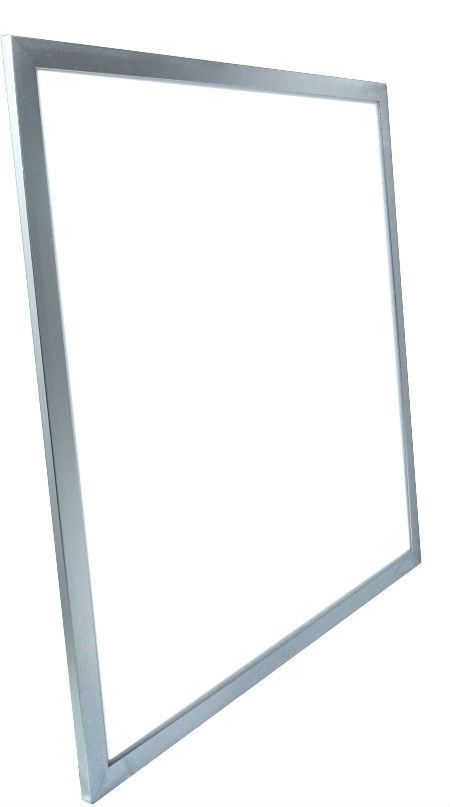

600 x 600mm High Quality Panel Lights
Production Lead Time:
7 - 15 day(s)
Model No.:
JNL-P66-40W
Brand:
JNL
Colour:
White, Silver
Size:
600 x 600 x 9mm
Voltage (V):
AC85-265V
Certification:
CCC, CE, FCC, RoHS, SAA
Wattage (W):
40W
Warranty:
3 year
Light Source:
LED Bulb
Body Material:
Aluminum
Is Dimmable:
No
Dimension (Length x Width x Height):
600 x 600 x 9 millimeter
Waterproof:
No
Style:
Modern
Power Source:
AC
Including Bulbs:
Yes
Use:
Commercial lights
Customized:
Yes
Description
Contact Supplier
Description
Specification
- 型号Model:JNL-P66-40W
- 光源Lighting source:SMD2835 LED 0.5W
- 灯珠数量LED QTY:120pcs
- 总功率Power consumption:40（includes driver）
- 电源输入电压:Input voltage (Driver)
- 100-240VAC /50-60HZ:灯具输入电压
- Input voltage (Lighting) :30-35V DC
- 输出电流Constant current:1100mA
- 电源效率Efficiency:≥85%
- 电源功率因数PF:≥0.95
- 光源平均寿命LED Lifespan:≥ 50000H
- 色温CCT:3000~6500K
- 光通量Luminous:3400LM(±5%)
- 发光效率 Luminescence efficiency:85 lm/w
- 照射角度Bean-angle :120 °
- 显色指数Ra :Ra ≥ 80
- 灯壳温升Temperature rising:< 20 ℃
- 工作温度Operation temperature :-45~+80℃
- 相对湿度Relative humidity:10%-80%RH
- 灯体材料Fixture Material:Oxidized Aluminum + High Quality PMMA (Acrylic)+PC diffuser
- 喷砂氧化铝+亚克力导光板+PC扩散板
- 尺寸Dimension:595 x 595 x 9mm
- 净重Net Weight (includes driver):3.4KG
- 防护等级Protection grade:IP44
- 电气绝缘等级Insulation class:CLASS II
- 环保Environmental:All materials meet with RoHS compliance / 所有材料符合RoHS环保标准
- 通过认证Certificate:CE,RoHS,FCC,SAA
