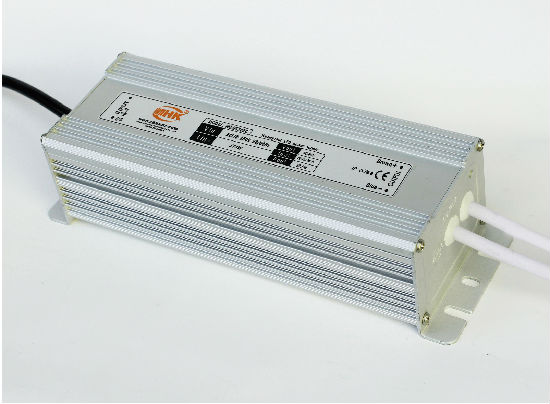

60W 700mA 50-85V IP67 Constant Current LED Driver

Production Lead Time:

3 day(s)

Model No.:

HC-85700C

Brand:

HONGKE

Colour:

Silver

Size:

199 x 66 x 52mm

Port:

Zhuhai

Type of Payment:

T/T, L/C

Minimum Order Quantity:

Description

Contact Supplier

Model: HC-85700C.
Input voltage range: 170-250V AC.
Frequency range: 50～60Hz.
Input power: ≤78W.
Inrush current: cold start: 40A/230V AC.
Leakage current: ≤0.75mA/240V AC.
Output DC voltage: 50-85V.
Rated current: 680±20mA.
Rated power: 59.5W.
Ripple & noise: ≤600mVp-p.
Hold up time: ≤2s.
Protection over loading: 120～150%.
Short circuit protection type: hiccup mode, recovers automatically after fault condition is removed.
High temp.: 100℃±10℃ (shut down, re-power on to recover).
Environment working temp.: -25℃～+40℃ (refer to output load derating curve).
Storage temp.: -40℃～+60℃, 10～95% RH.
Voltage resistance input-output: AC 1.5kV/5mA 5s.
Input-housing: AC 1.5kV/5mA 5s.
IP rating: IP67.
Dimension: L199 x W66 x H52mm.
Packing: 325 x 225 x 185mm/10pcs/carton.
Weight: 11kg/10pcs/carton.
