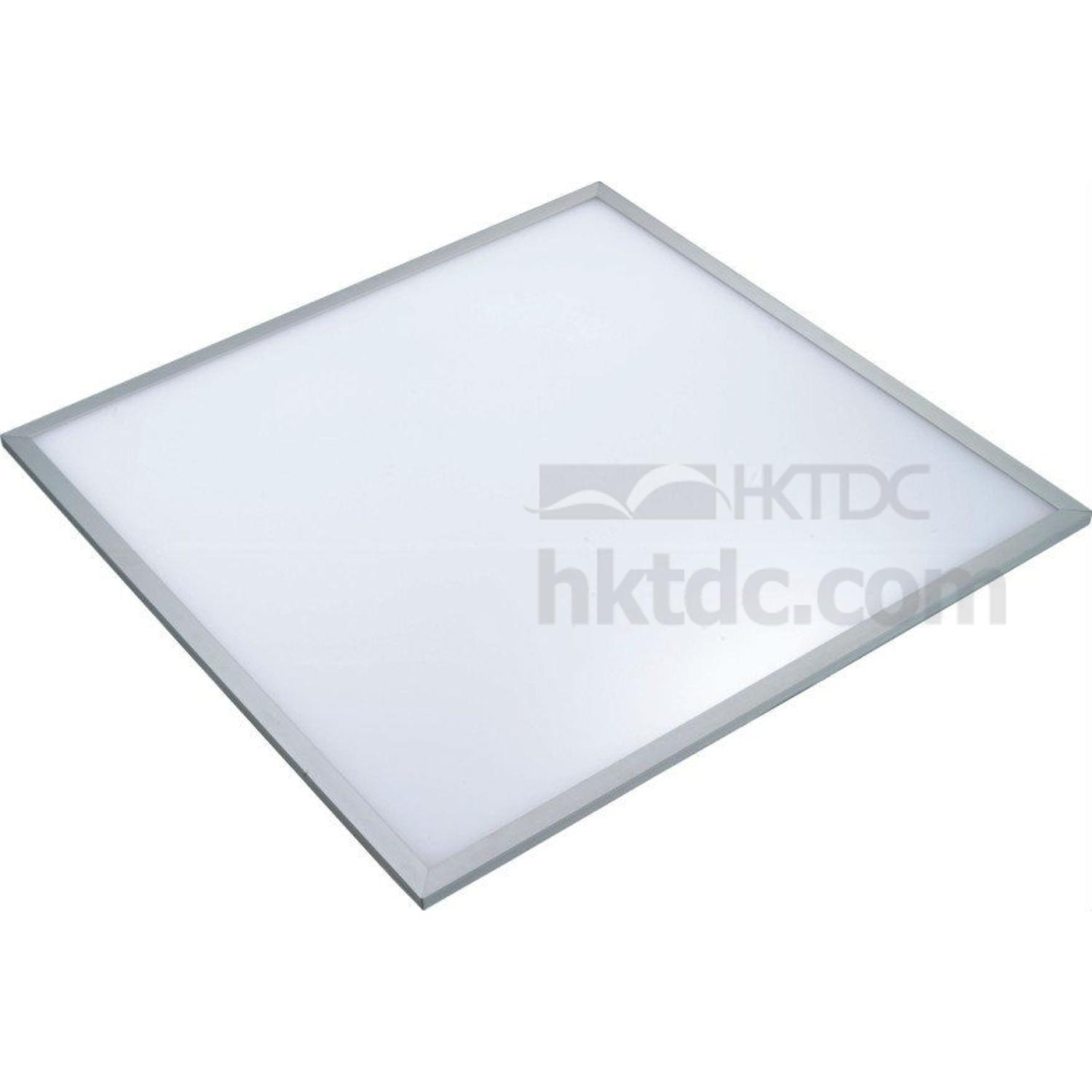

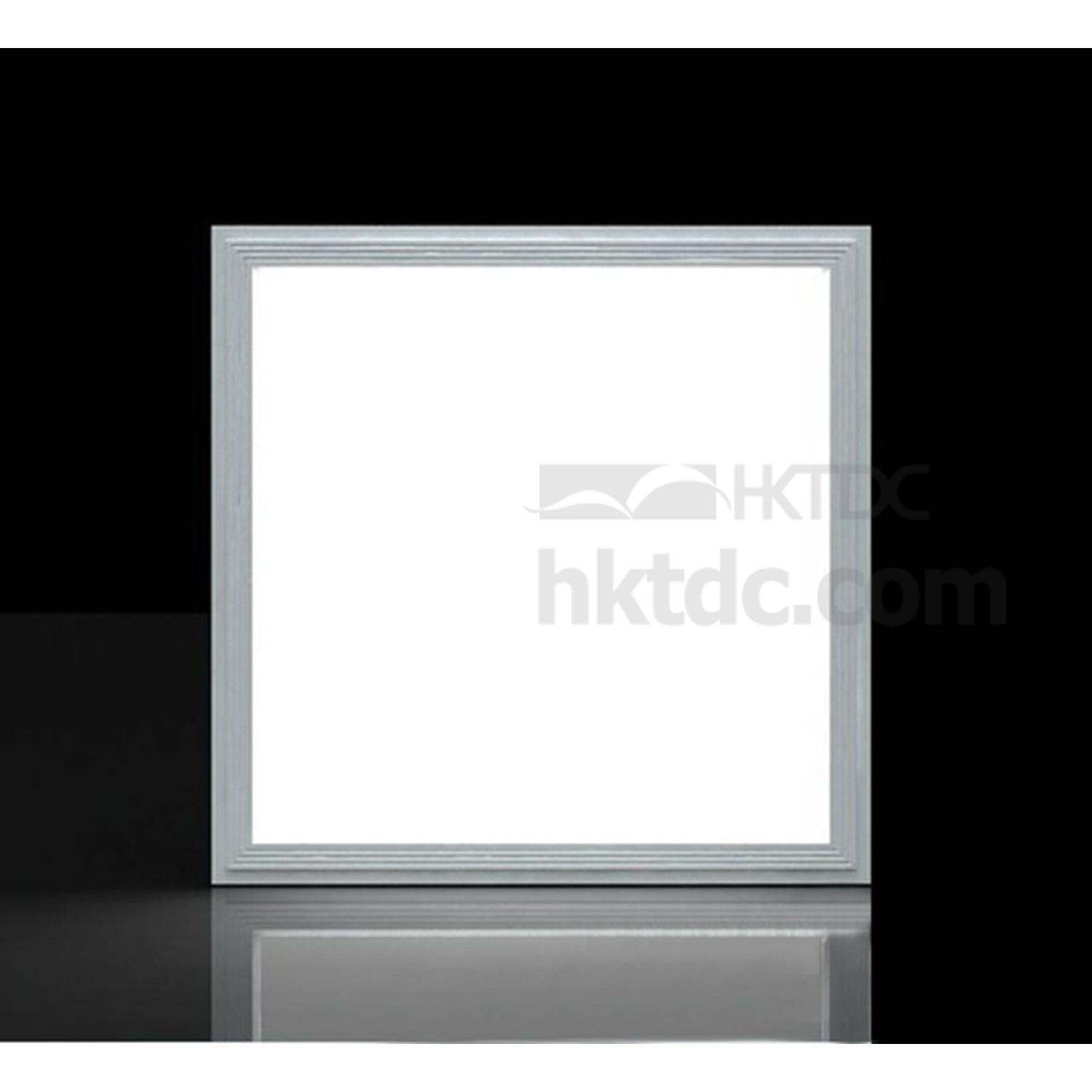

620*620mm LED Panel Light with 5 Year Warranty
Production Lead Time:
7 day(s)
Model No.:
PL620-620
Brand:
TOBILED
Colour:
silver, or customized color
Type of Payment:
T/T
Minimum Order Quantity:
1
Voltage (V):
40V
Certification:
CE
Wattage (W):
38W/45W/56W
Warranty:
5 year
Light Source:
2835 LED
Body Material:
Aluminum
Is Dimmable:
Yes
Dimension (Length x Width x Height):
616*616*20 millimeter
Waterproof:
No
Style:
Modern
Power Source:
DC
Including Bulbs:
No
Use:
Commercial, Industrial
Customized:
Yes
Description
Contact Supplier
Description
TOBILED LED Panel light combined side emitting backlight technology
with special designed dot LGP, with the features of uniform illumination,
low cost maintenance and high efficiency,

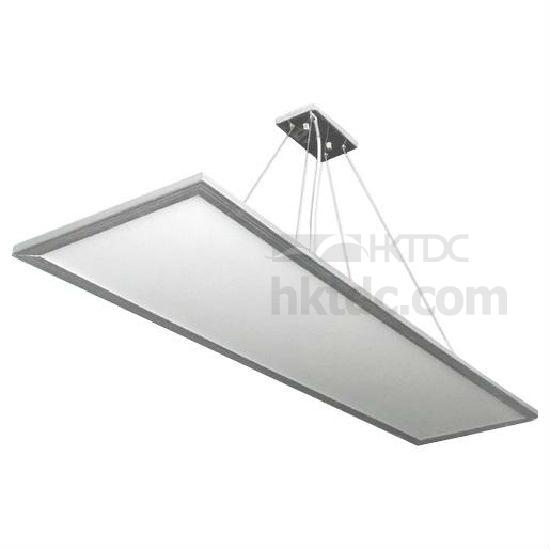

recessed type, suspending type and mounting type installation available.
Application:
It is ideal for hotels, conference rooms, workshops, offices or hospitals and other indoor areas which require high illumination and energy-saving.
Feature:
with special designed dot LGP, with the features of uniform illumination,
low cost maintenance and high efficiency,
recessed type, suspending type and mounting type installation available.
Application:
It is ideal for hotels, conference rooms, workshops, offices or hospitals and other indoor areas which require high illumination and energy-saving.
Feature:
*High efficiency >85lm/W,3014,2835 or 5630 LED
*No dark Zone, no black/White spot
*Long Lifetime >50,000 hours
*Color range：2700~6500K, CIR>80Ra
*Voltage Range:85~265VAC
*Beam Angle:110°
*IP:44
ModelPL6262
CCT(K)2700-6500k
Luminous Flux(lm）
(Max 100%)up to 2800-5600 lm
Beam Angle(50%)110°
LED3014 ,2835 or 5630 LED
Weight4.8kg
DimmableWith external power supply (10V/PWM/10-100KΩ)
CRI>80
Input VoltageDC60V, Constant current 700mA
Power Consumption38W, 40W, 48W,54W, 72W
Power Factor-
Dimensions620*620*11mm
IP RatingIP20
Working temperature-25~+50 ℃
Store temperature-40~+80 ℃
ModelPL6262
CCT(K)2700-6500k
Luminous Flux(lm）
(Max 100%)up to 2800-5600 lm
Beam Angle(50%)110°
LED3014 ,2835 or 5630 LED
Weight4.8kg
DimmableWith external power supply (10V/PWM/10-100KΩ)
CRI>80
Input VoltageDC60V, Constant current 700mA
Power Consumption38W, 40W, 48W,54W, 72W
Power Factor-
Dimensions620*620*11mm
IP RatingIP20
Working temperature-25~+50 ℃
Store temperature-40~+80 ℃
