65W Medical Power Adapter Desktop
Model No.:
UES65-SPAZ
Brand:
FUHUA
Colour:
Black
Size:
125(L) x 62(W) x 34(H)mm
Port:
FOB Hong Kong
Minimum Order Quantity:
1,000 piece(s)
Package:
Yes
Customised:
Yes
Output Voltage:
9.0-54.0V
Input Voltage:
100 - 240VAC
Output Frequency:
50-60Hz
Output Power:
65W
Output Current:
0.01-5.42A
Output Type:
Single
Place of Origin:
Mainland China
Description
Contact Supplier
Description
Features:
Electrical specifications:
Environmental parameter:
General:
Safety approval:
- Wide range of AC input voltage 90 - 264V AC
- Suitable for medical equipment up to class BF
- 9V to 24V, 48V to 54V outputs, up to 65W
- Protection against: short circuit, over voltage, overload protection
- Medical safety standard, meets Energy Star VI CoC V5 Tier (2016)

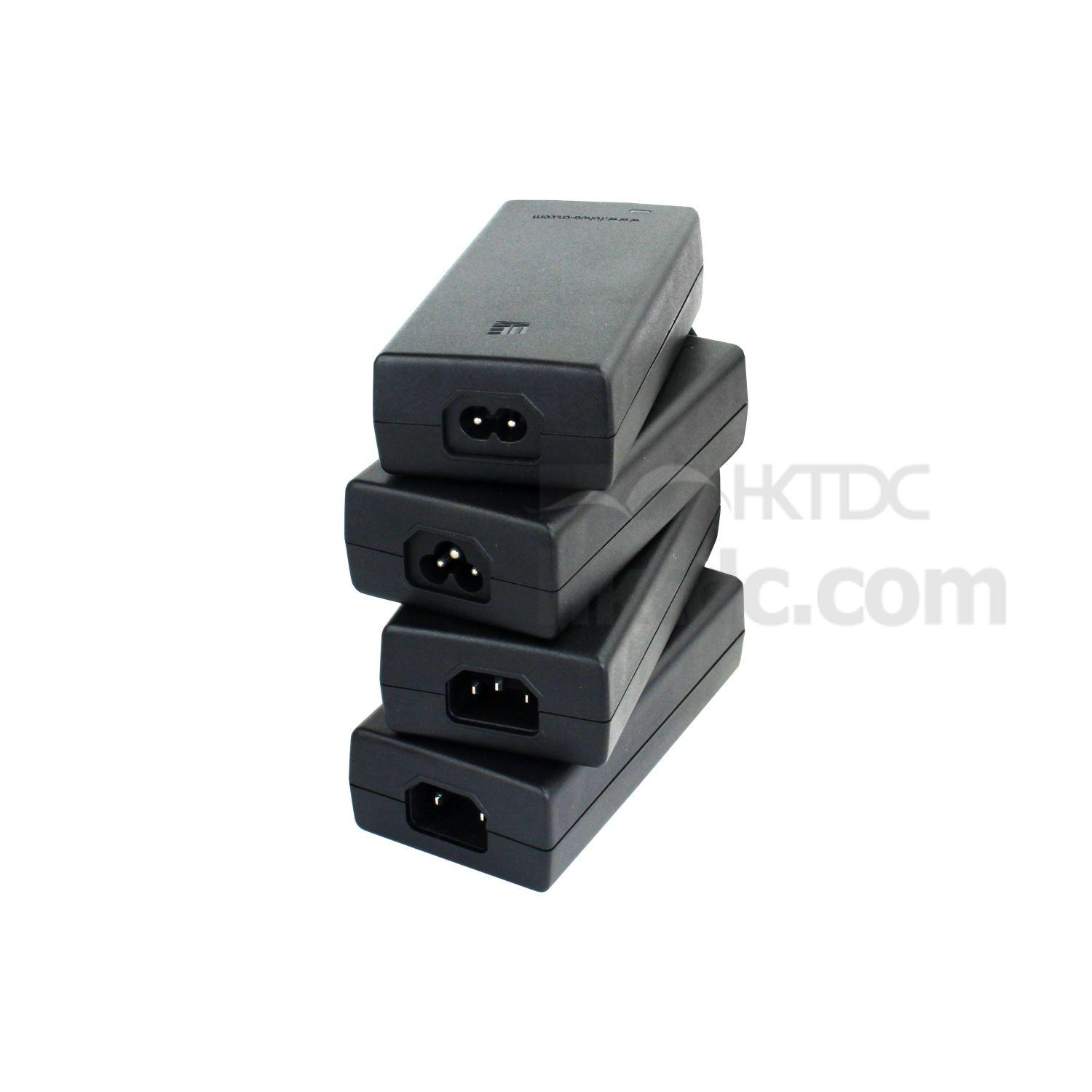

- 4 types of AC inlet
Electrical specifications:
- Input voltage range: 90-264VAC
- Frequency range: 47-63Hz
- Input current: 2.0A at 90VAC
- Standby power: 0.15W
- Touch leakage current: ≤50μA at 264VAC
- MTBF: 100,000 hours at maximum load levels and an ambient temperature of 25°C (in correspondence with MIL-HDBK-217)
Environmental parameter:
- Operating temperature: 0 to 40°C
- Storage temperature: -20 to 60°C
- Operating humidity: 10% to 90% RH non condensing
- Storage humidity: 5% to 90% RH
- Operating altitude: 5000m
General:
- Dimensions: 125 x 62 x 34mm
- Weight: 200g
- Isolation:
- 2,121VDC for Class I/5,656VDC for Class II Input to output
- 2,121VDC for Class I/5,656VDC for Class II Input to case
Safety approval:
- cULus (ITE UL60950-1, UL62368 & medical ES60601-1), TUV-GS (ITE EN60950-1, EN62368-1& medical EN60601-1), CB report (ITE IEC60950-1, IEC62368-1& medical IEC60601-1), CE
