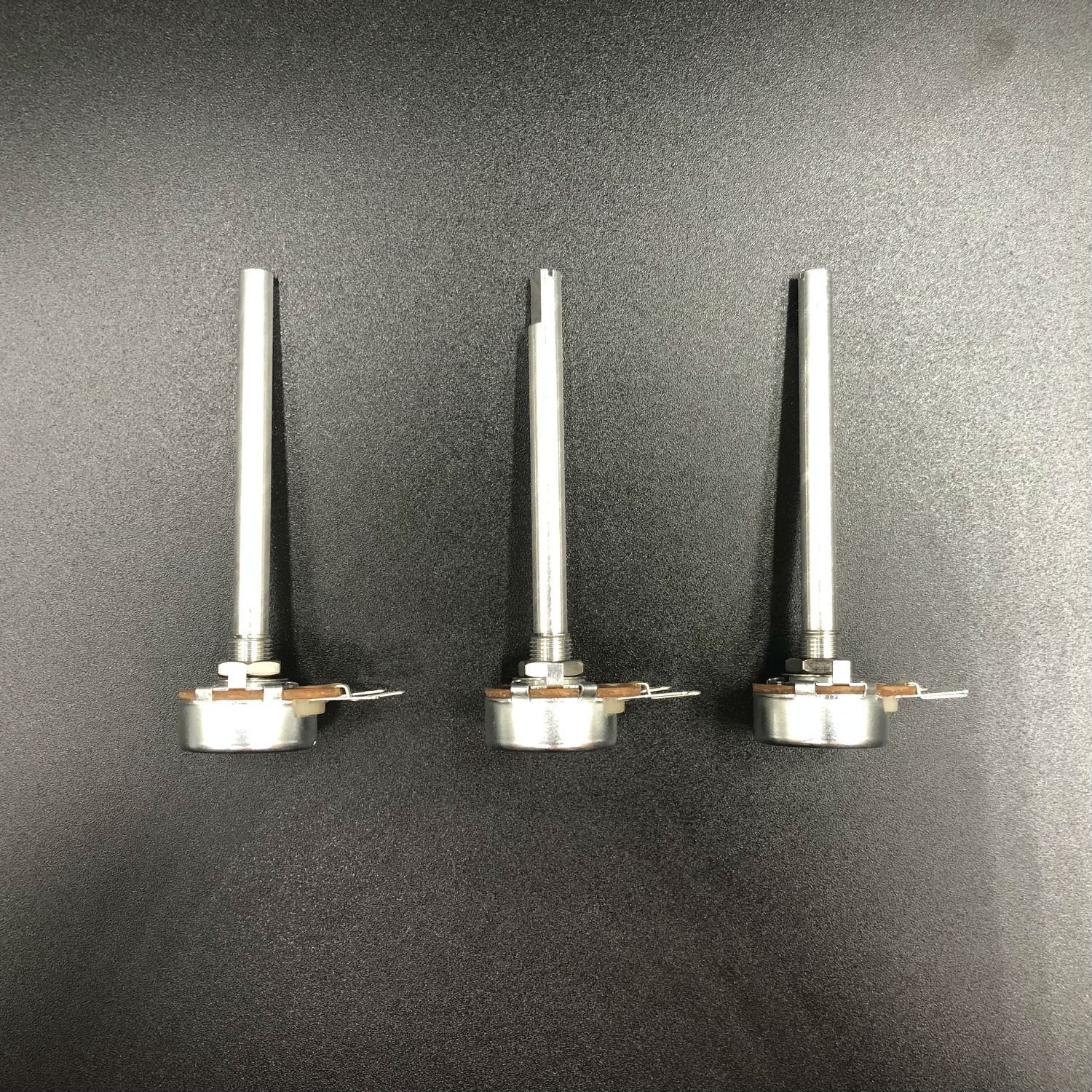

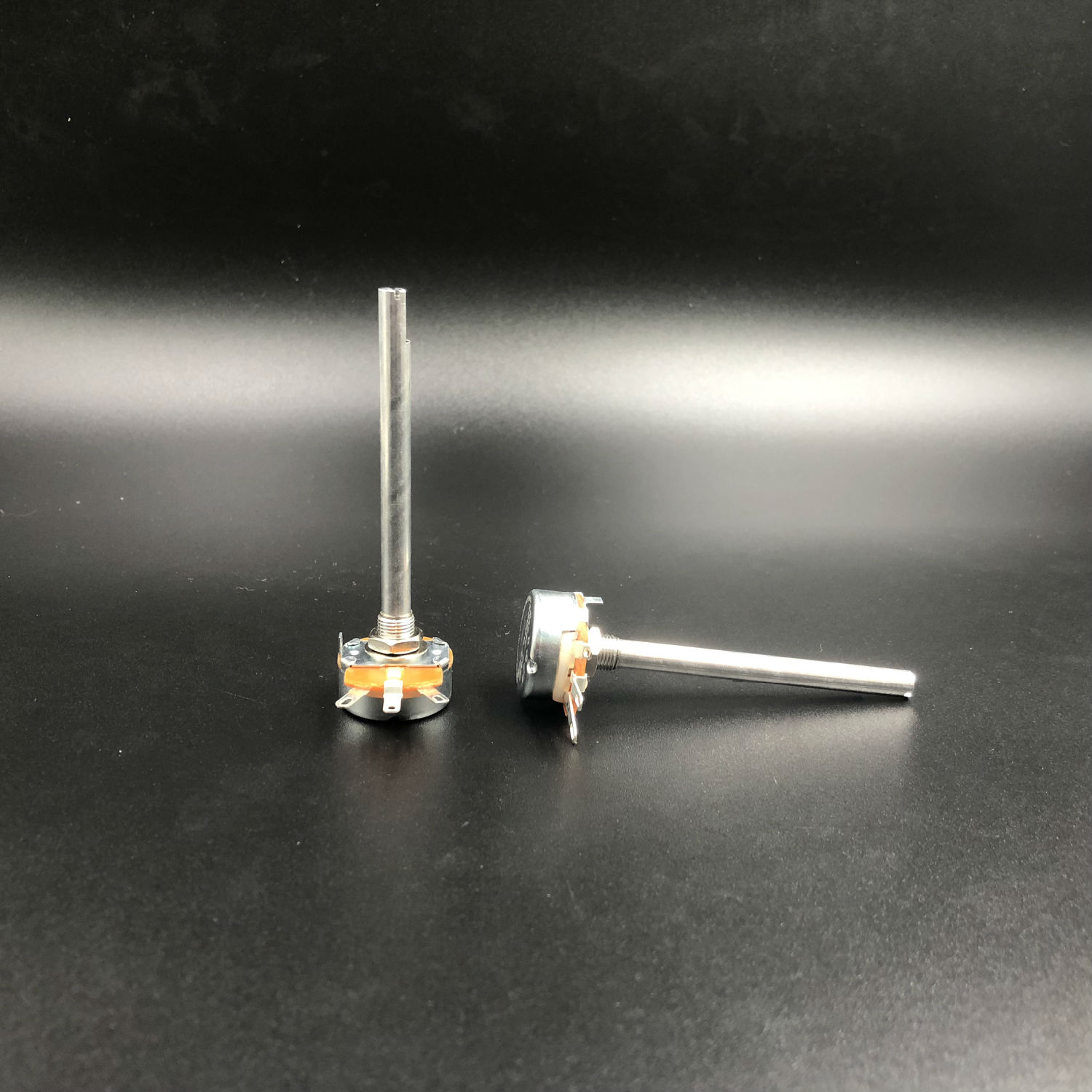

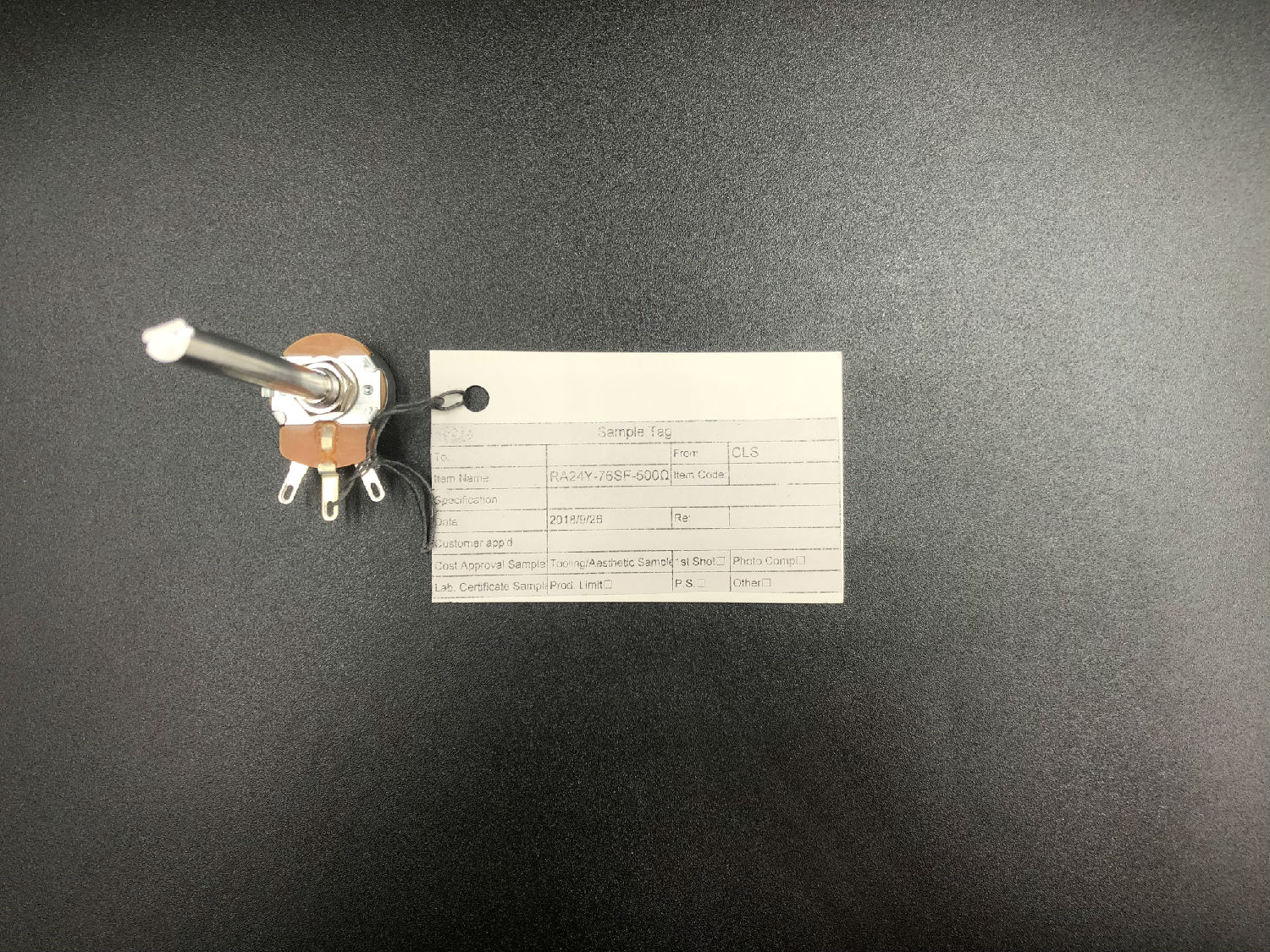

68mm Long Shaft Rotary Wire Wound Potentiometer
Production Lead Time:
30 day(s)
Model No.:
RA24Y-5W
Brand:
CHANG LONG SHENG
Port:
Shenzhen
Type of Payment:
PayPal, T/T
Minimum Order Quantity:
200 piece(s)
Package:
Yes
Customised:
Yes
Rated Power:
5W
Resistance Tolerance:
±5%
Technology:
Wirewound
Resistance:
10~10KΩ
Max. Operating Voltage:
AC 250V
Operating Temperature:
40~100℃
Description
Contact Supplier
Description
- Maximum working voltage: AC 250V
- Residual resistance: < 0.2% of total resistance
- Noise: < 47MV as JIS C6443
- Insulation resistance: > 100MΩ at DC 500V
- Dielectric strength: AC 1Kv for 1 min
- V.R life: 15,000 cycles
- Nominal total resistance: Terminal 1-3 B(R) ±5%
- Maximum rated wattage: Temp 40~100 Taper B 5W
- Mechanical characteristic:
- Total rotational angle: 300°±5°
- Rotational torque: 30~300gf –cm
- Shaft stop strength: ≥ 5Kg f
- Nut wring strength: ≥10Kg-cm
