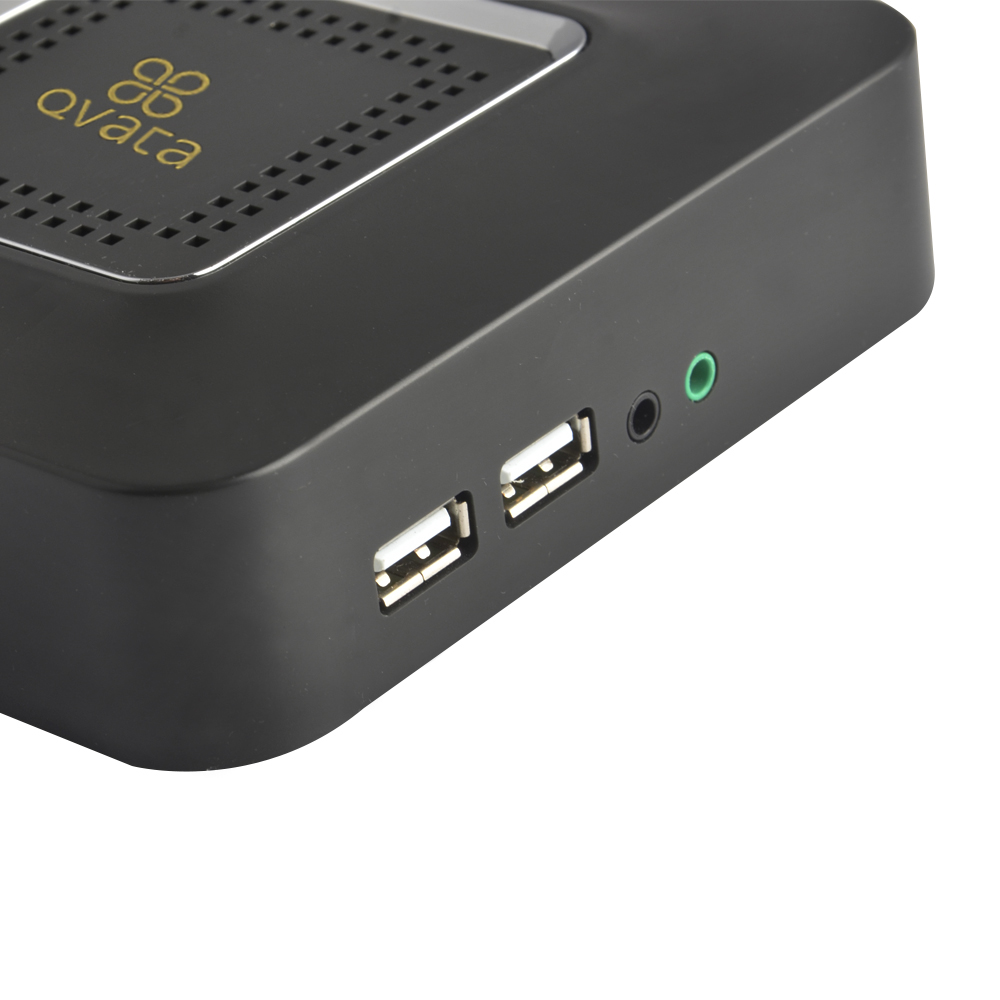

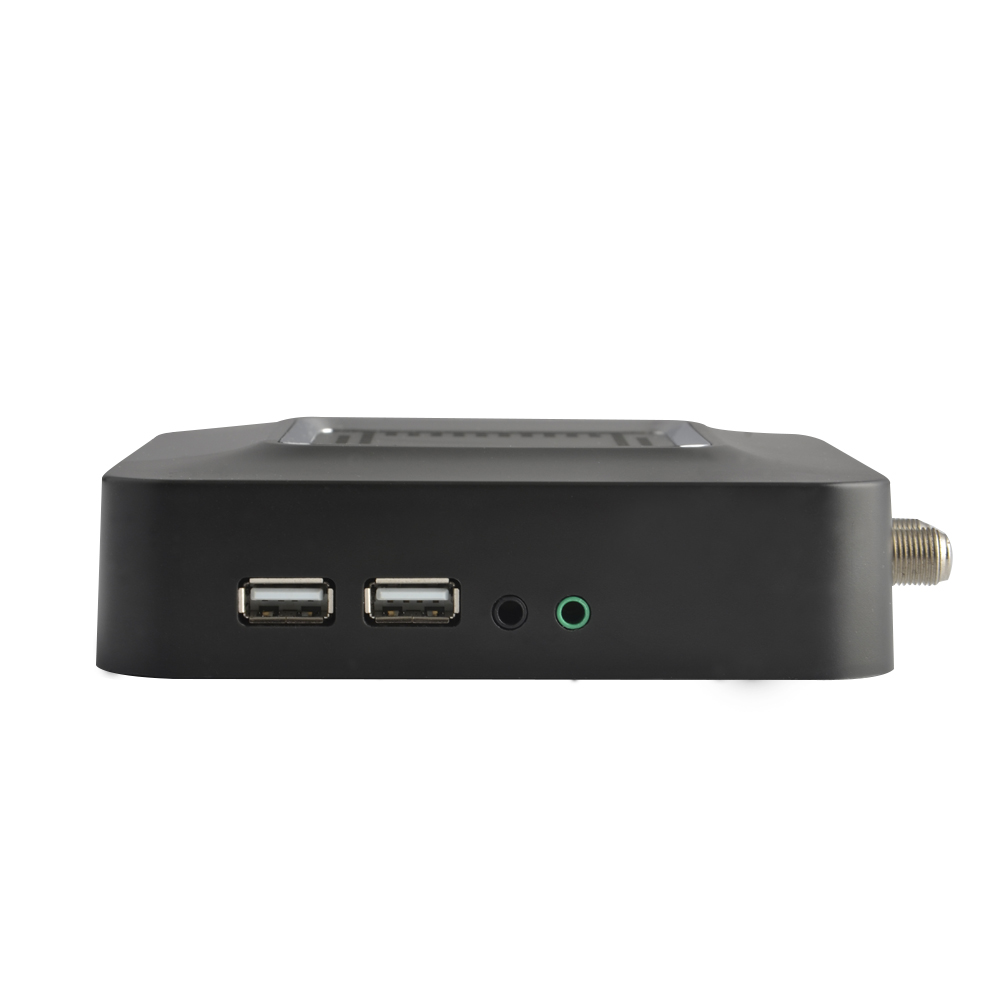

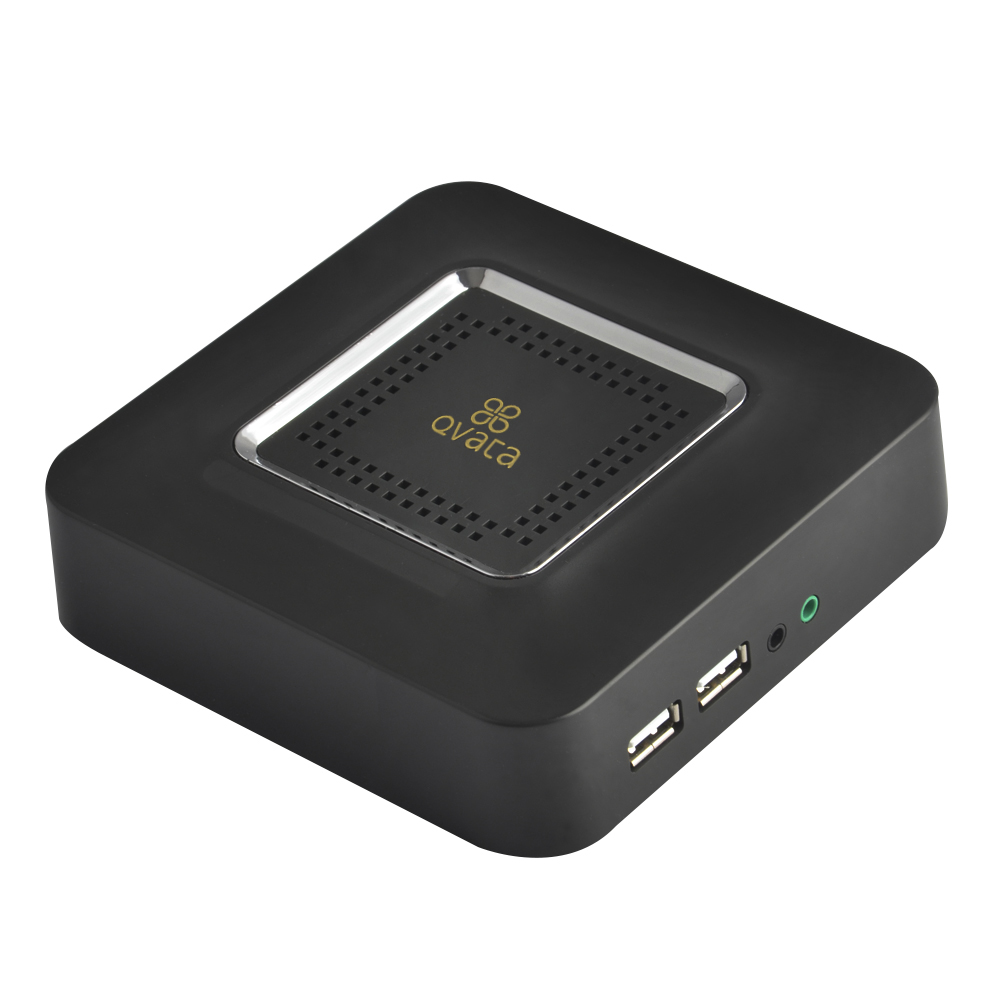

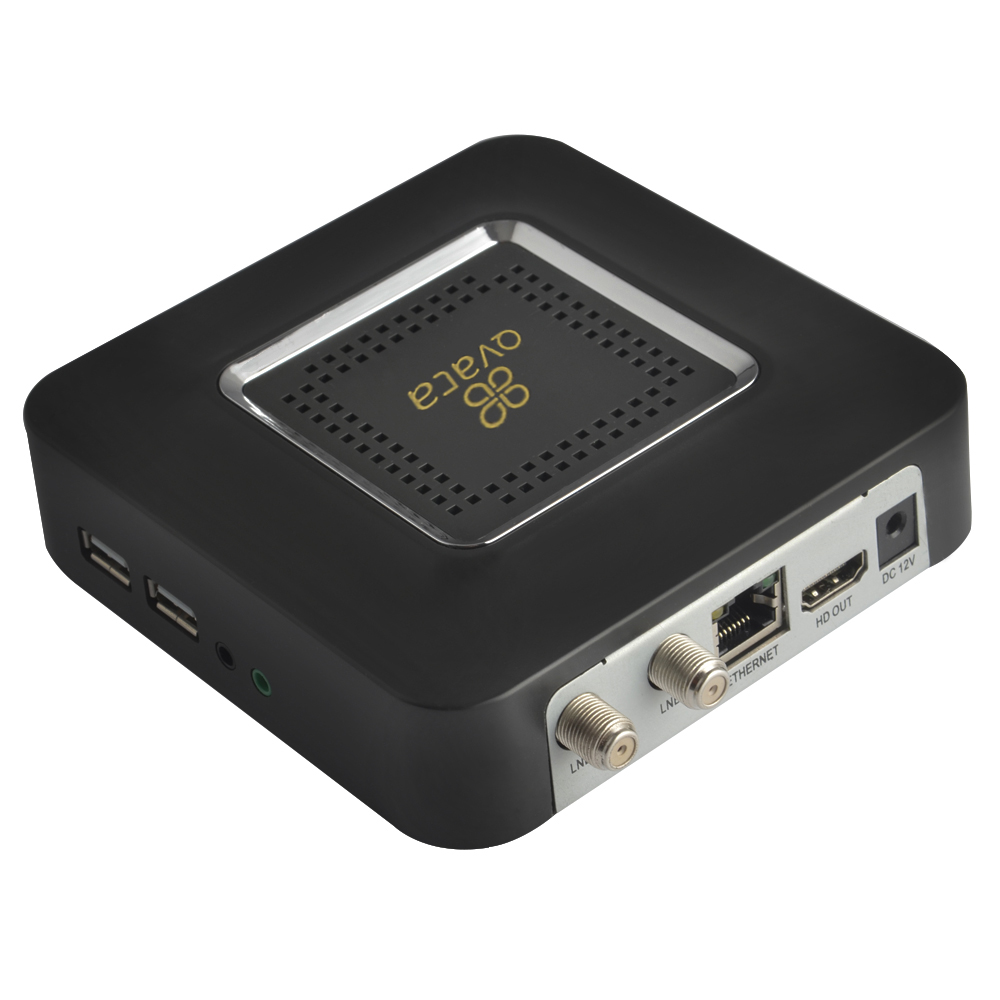

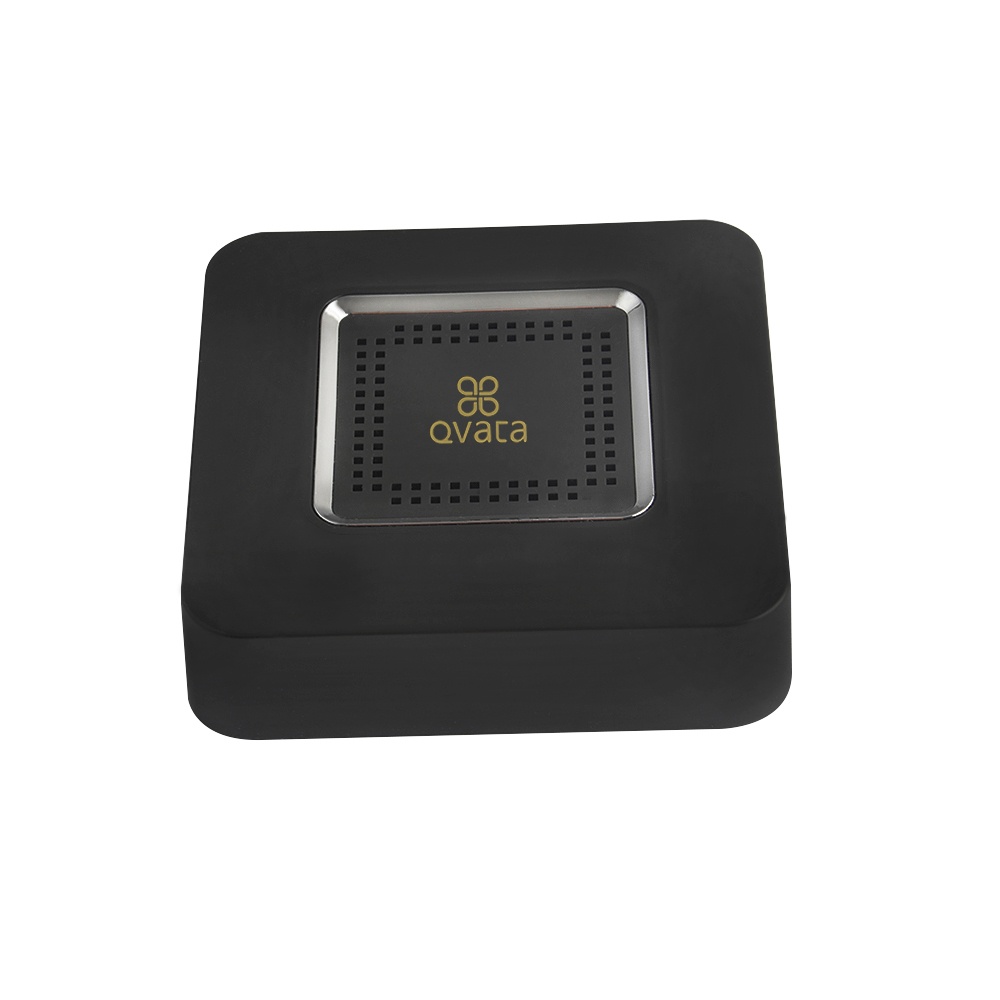

6K HDR Android DVBS2 & DVBT2 & DVBC Hybrid Combo
Production Lead Time:
5 day(s)
Model No.:
QXH617TCB
Brand:
QVATA/OEM/ODM
Colour:
Black
Size:
124x124x34mm
Port:
Shenzhen, Hong Kong
Type of Payment:
T/T, L/C
Minimum Order Quantity:
1,000 piece(s)
Package:
Yes
Customised:
Yes
Remote Control:
Included
Description
Contact Supplier
Description
Product Description:
Basic parameters:
- Quad core 64 bit 6K HDR Android Hybrid Box support DVBS2, DVBT2 and DVBC
- Android base TV system
- H.264 1080p 60fps Video encoding
- H.264/H.265 10bit HDR decoding up to 4K@60fps/6K30fps
- HDMI 2.0 max to 4K60 output, USB 3.0
Basic parameters:
- System SoC: Allwinner H6
- CPU: Quad-core ARM Cortex TM -A53 up to 1.8G Hz
- GPU: Mali-T720MP2
- DRAM: DDR3 2GB (1GB, 4GB Optional)
- Flash: EMMC 16GB( EMMC 8GB,32GB Optional)
- OS: Android N
- Network RJ45 Interface 10M/100M adaptive (1G Optional)
- Build in Wi-Fi 2.4GHz 802.11 b/g/n(2.4GHz, 5GHz, BT Optional )
- Support most external 3G/4G USB dongle(Optional)
- Tuner S2 Tuner+DEMO: AV2018+AVL6862
- Frequency Range: 950~2150MHZ
- Input Level: -65~-25dBm
- Input impedance: 75Ω
- Tuner T2 Tuner+DEMO: MXL608+AVL6862
- Frequency Range: (VHF)174~230MHz, (UHF)474~858MHz
- Input Level: -85dBm~-20dBm
- Input impedance: 75Ω
- Tuner C Tuner+DEMO: MXL608+AVL6862
- Frequency Range: (VHF)174~230MHz, (UHF)474~858MHz
- Input Level: -85dBm~-20dBm
- Input impedance: 75Ω
