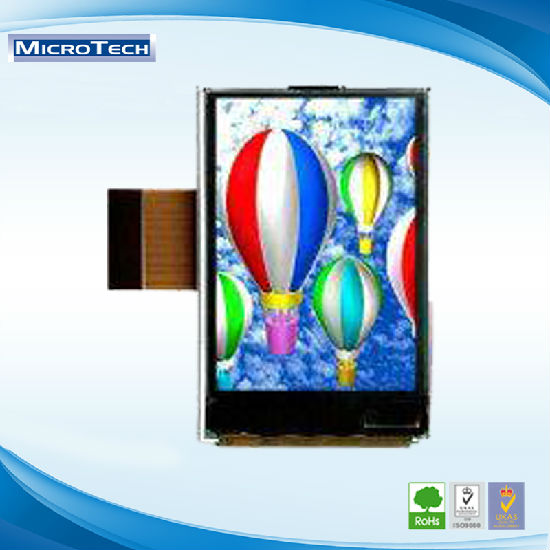

7.0 Inch TFT LCD Display Module with Capacitive Touch Panel
Model No.:
MTF070ICN-PB1 7.0"tft lcd with TP and backlight
Brand:
MICROTECH
Size:
97.35 x 162.03 x 2.3mm
Port:
Shenzhen
Type of Payment:
T/T
Package:
Yes
Customised:
Yes
Type:
TFT - Thin Film Transistor
Description
Contact Supplier
Description
7.0 inch TFT LCD display module with touch panel and 800 x 1280-pixel resolution
- 7.0-inch TFT LCD
- Resolution: 800*1280 dots
- Outline dimensions: 97.35*162.03*2.3mm
- Active area: 94.2*150.7mm
- 7.0 inch TFT LCD display with 800x1280 resolution
- Model name MTF070ICN-PB1
- Display Mode Normally White,Transmissive
- Resolution 800 x3 RGB x1280
- Technology Typea-Si TFT active matrix
- Pixel Pitch (mm) 0.1926(H) x 0.1790(V)
- Pixel Configuration R.G.B. Vertical Stripe
- Outline Dimension 97.35x162.03x2.3mm
- Active Area(mm) 94.2(W) x 150.7(H)
- Interface MIPI 24 bits with T-con
- Surface treatment:Anti-Glare
- Touch Panel Option
- LED Numbers 18 pcs
- Color Deptha-si, 16.7M
- Viewing Direction 12 o’clock
- Operating Temperature -20~70°C
- Storage Temperature -30~+80°C
