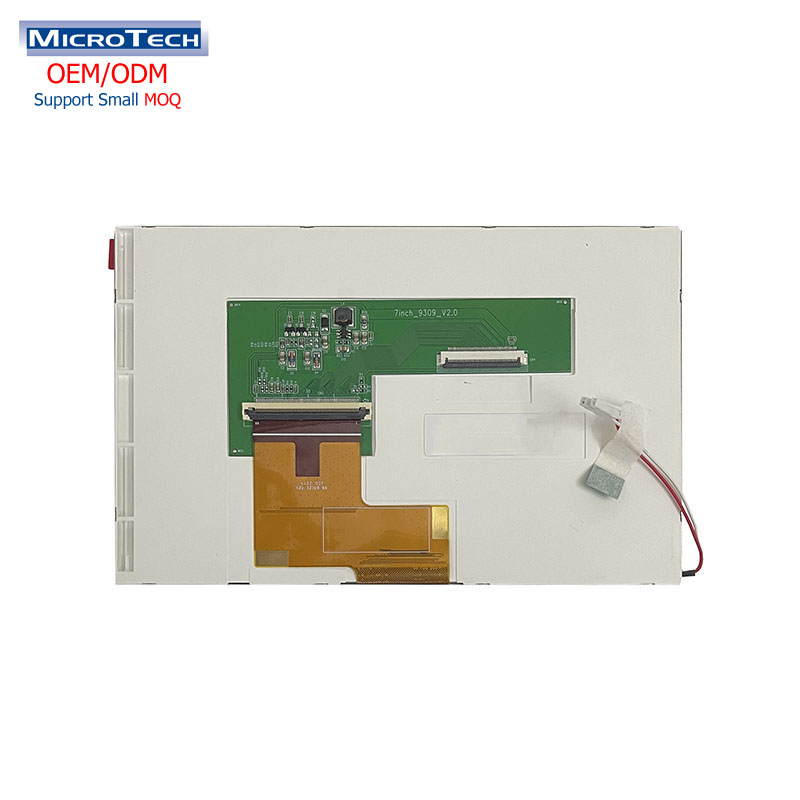

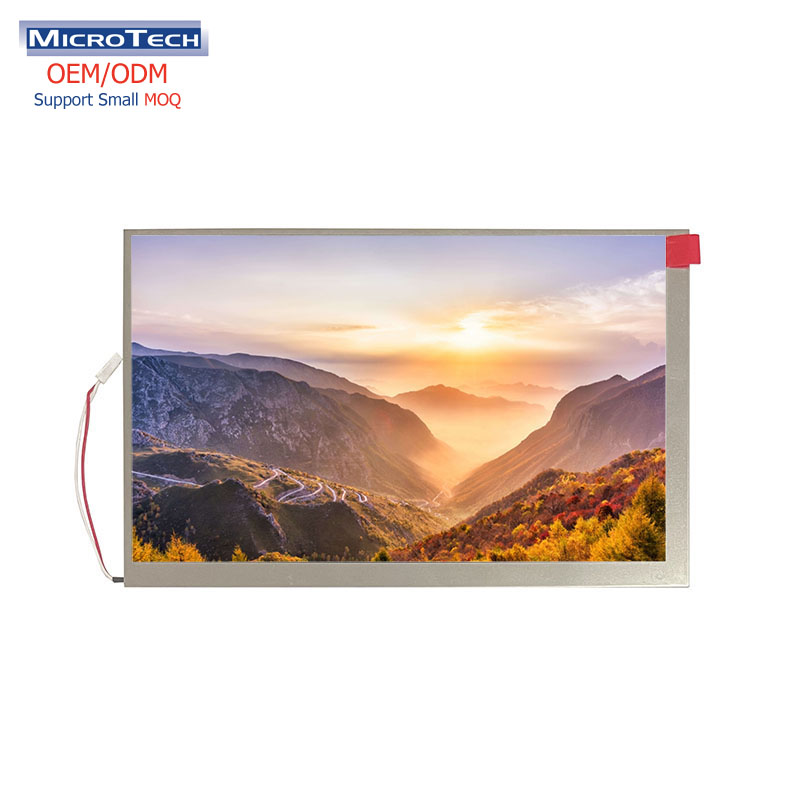

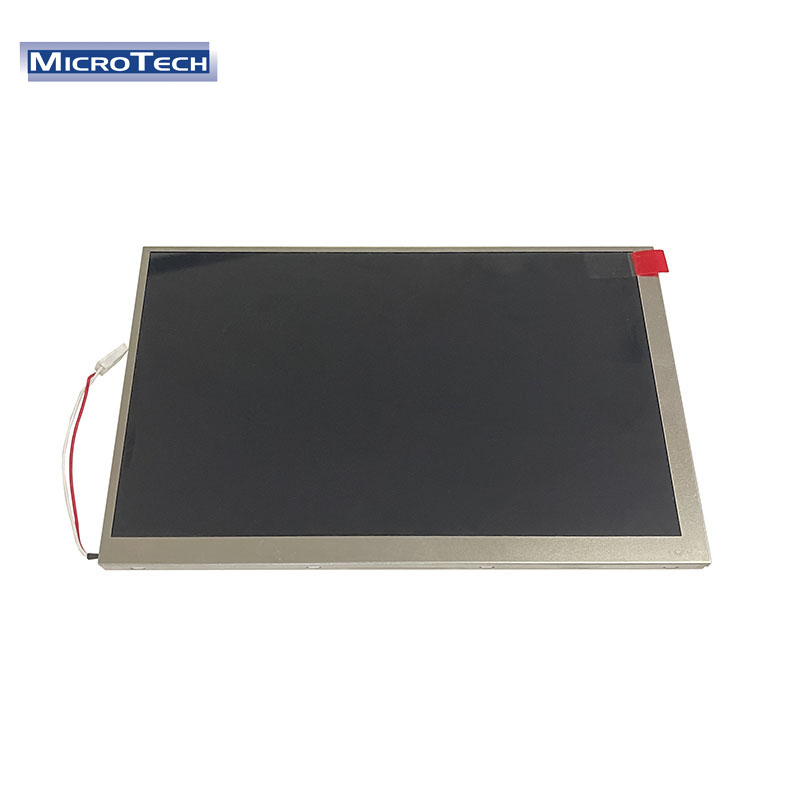

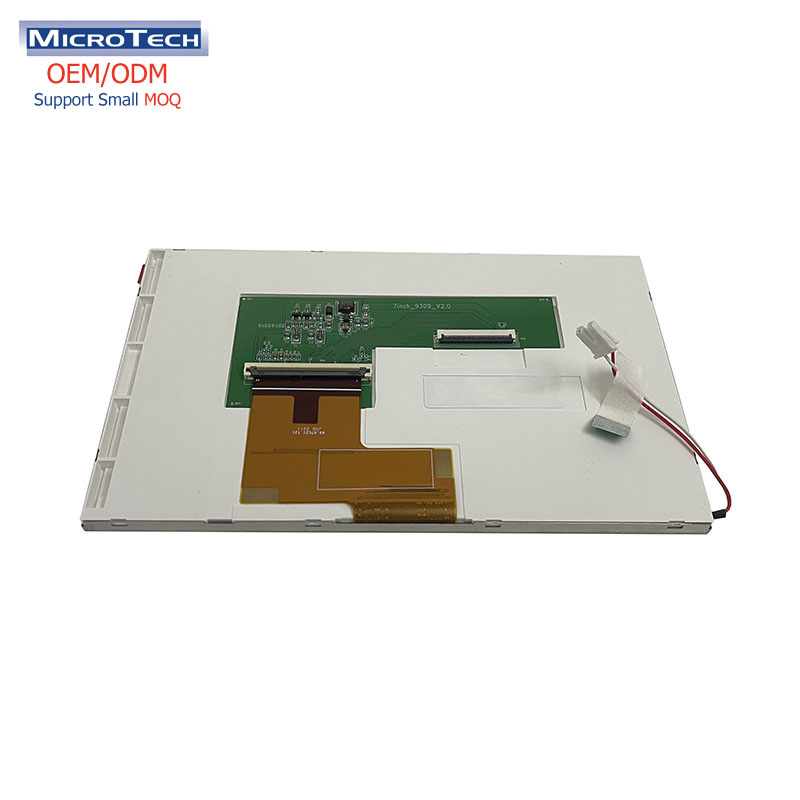

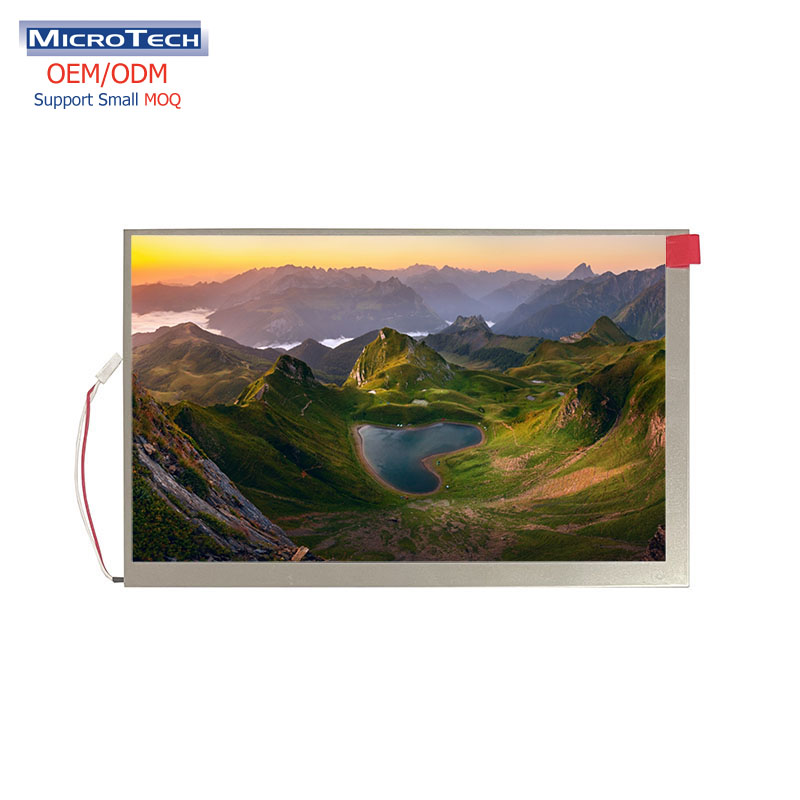

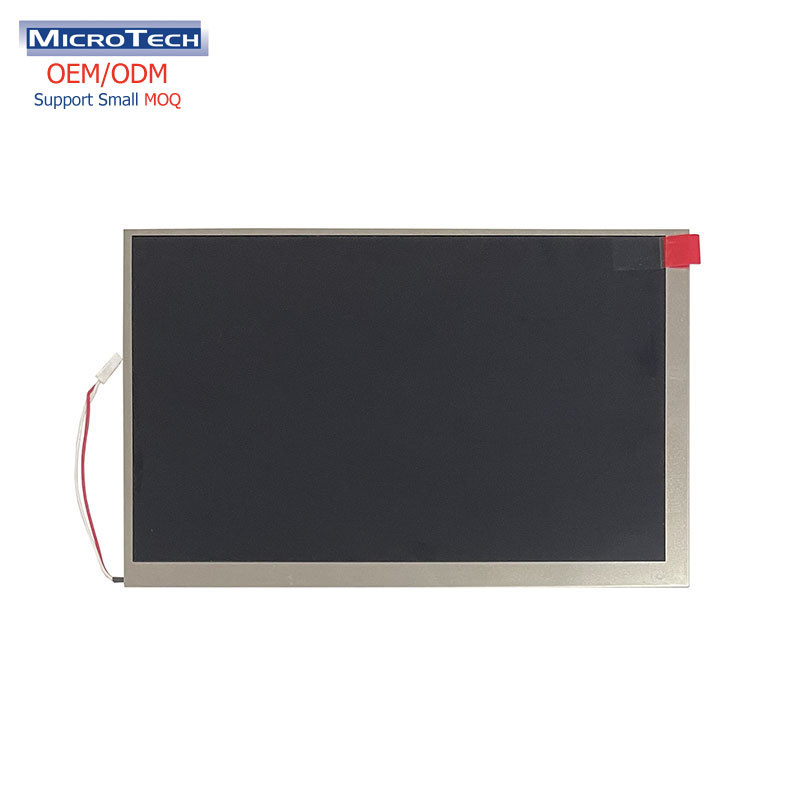

7.0 Inch TFT LCD Modules 800*480 RGB TFT Display TFT LCD screen TTL Interface LCD Module

US $10.00 - US $20.00

Production Lead Time:

25 day(s)

Shipping Method:

Support Express·Sea freight·Land freight·Air freight

Brand:

Microtech

Model No.:

MTF070AT9309A-V2

Customised:

Yes

Size:

7.0inch

Description

Contact Supplier

Item	Specification
Screen Size	7.0 inch (Diagonal)
Driver element	a-Si TFT active matrix
Resolution	800X480
Display mode	Normally
Dot pitch	0.0635(W)X0.1905(H) mm
Active area	152.4 (W)X91.44 (H) mm
Module size	165(W)X104.09(H)X5.3(D) mm
Interface	Digital (TTL)
Backlight power consumption	1.5W (Typ.)
Panel power consumption	0.66 W(Typ.)
