7.0 inch serial display resistive touch SPI 1024*600 driver IC LT7688 TTL/UART interface 500 brightness

US $30.00 - US $60.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTR070WS34A-V1

Customised:

Yes

Size:

7.0 inch

Description

Contact Supplier

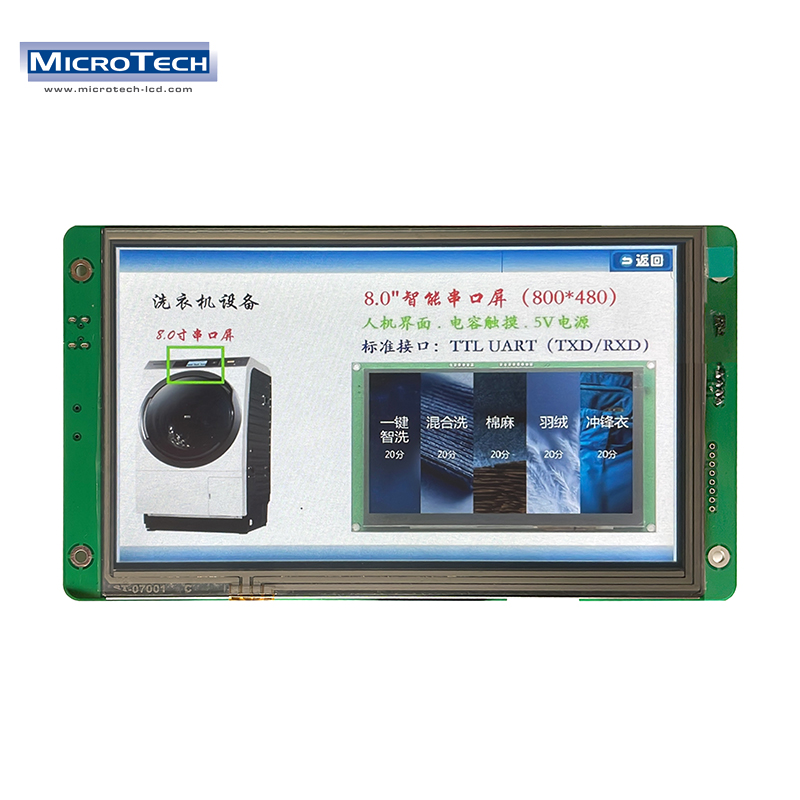

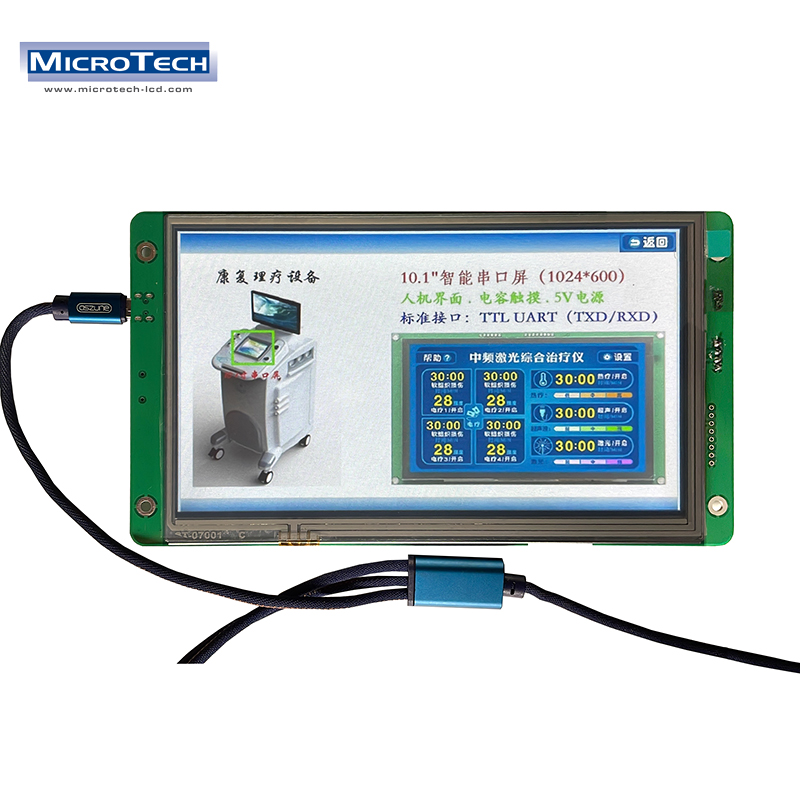

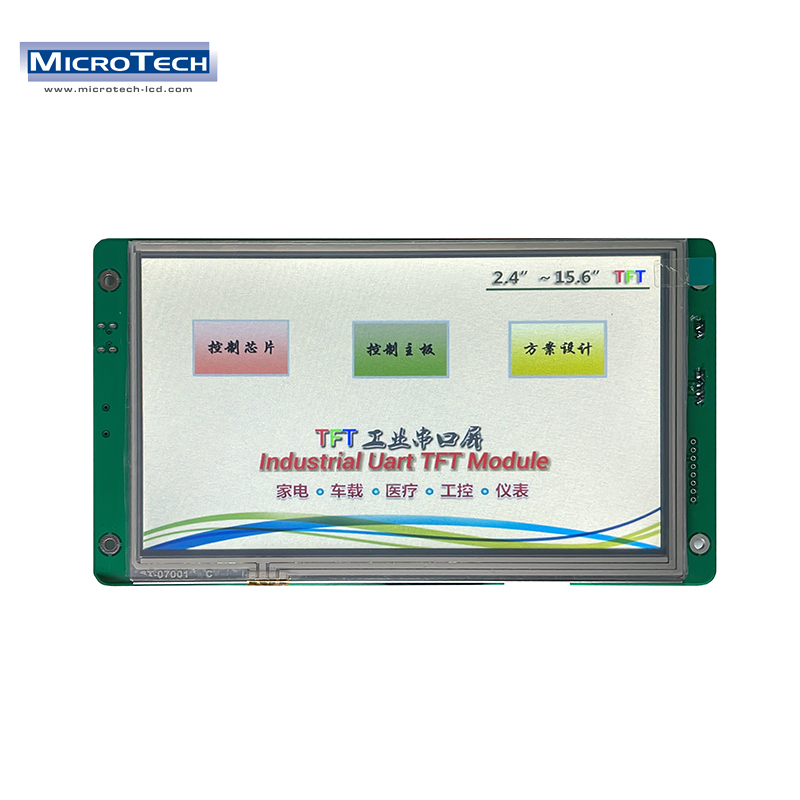

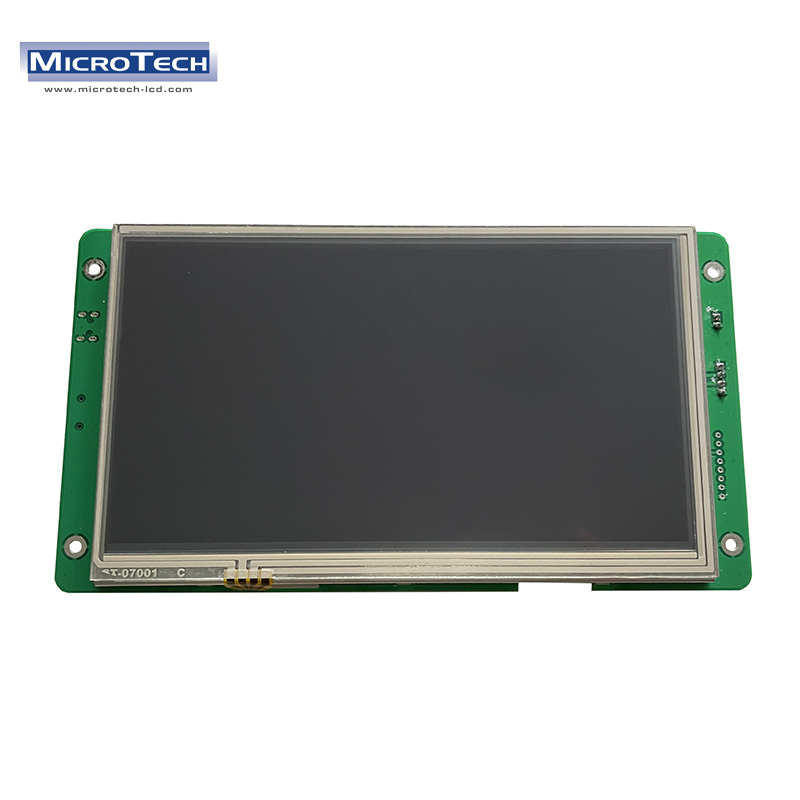

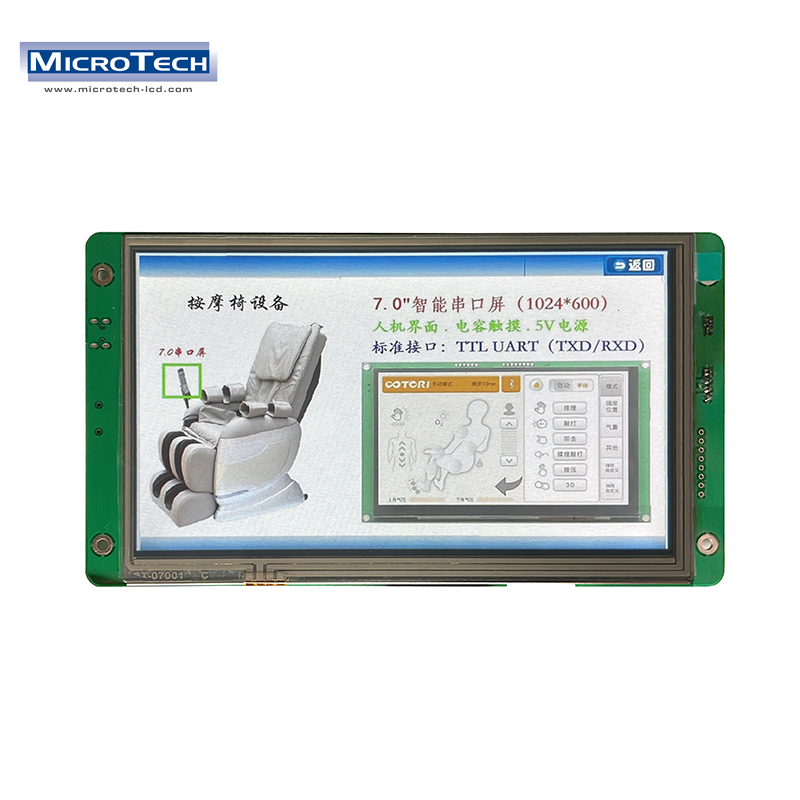

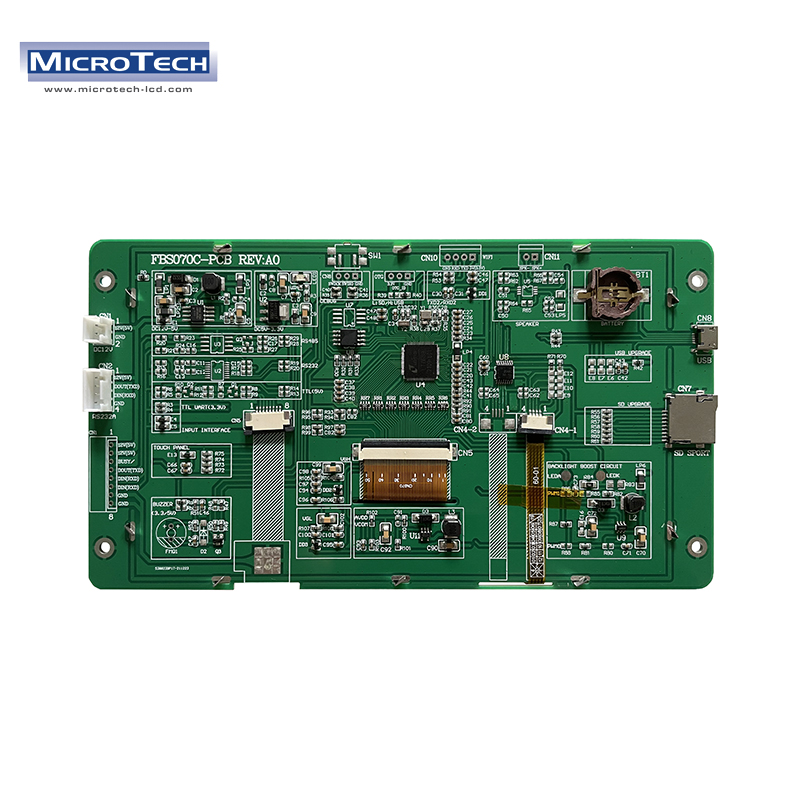

MTR070WS34A-V1 is a TFT dot matrix LCD module. It is composed of a PCBA, color-LCD panel, driver IC, FPC and a backlight unit. The module display area contains 1024x600 pixels. This product accords with RoHS environmental criterion.

Item	Contents	Unit	Notes
LCD Type	TFT TRANSMISSIVE	/	/
Viewing direction	All View	O' Clock	IPS
PCBA Outside	180.00(W)108.00(H)13.50(T)	mm	/
LCM Outside Dimensions	165.00(W)100.00(H)3.50(T)	mm	/
Active Area (WxH)	154.21 (W)*85.92(H)	mm	/
Number of Dots	1024x600	/	/
Driver IC	LT7688	/	Vcc=3.3V
Colors	16.7M	/	/
Touch Type	RTP (4 Line)	/	Vctp=3.3V
Backlight Type	3*9=27LEDS/White	/	Vbl=9.2V
Backlight Luminance	500	Cd/m2	/
Interface Type	TTL UART (TXD/RXD)	/	4PIN(2.54)
Input Voltage	5.0V (VDD)	V	2A
