7.0inch 1200*1920 Touch LCD screen IC FT7250 with TP TFT LCD module
US $20.00 - US $35.00
Production Lead Time:
25 day(s)
Shipping Method:
Support Express · Sea freight · Land freight · Air freight
Brand:
Microtech
Model No.:
MTF070UG56A-V1+TP
Customised:
Yes
Size:
7.0inch
Description
Contact Supplier
Description

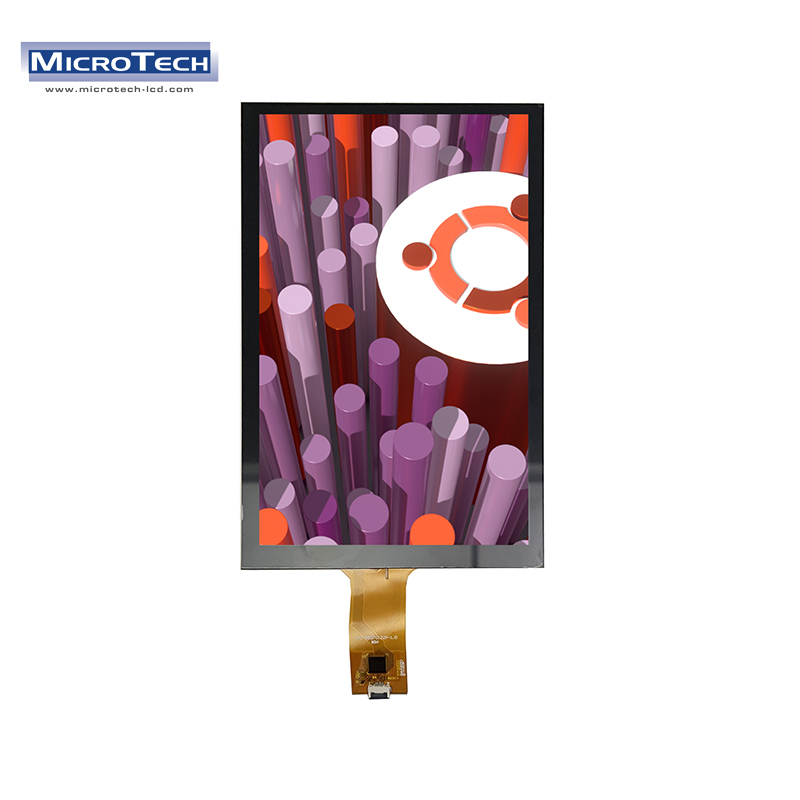

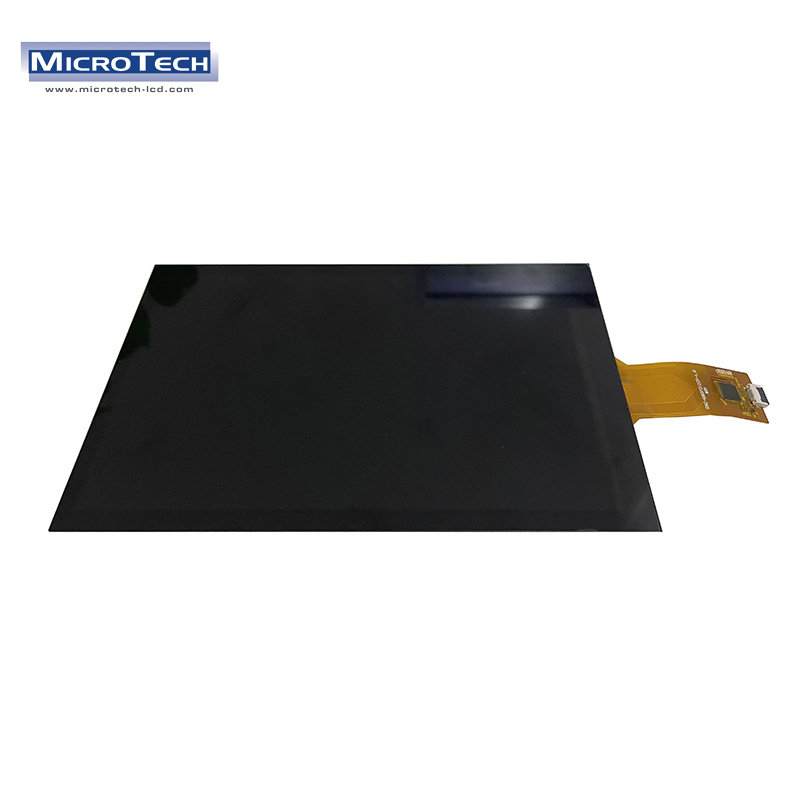

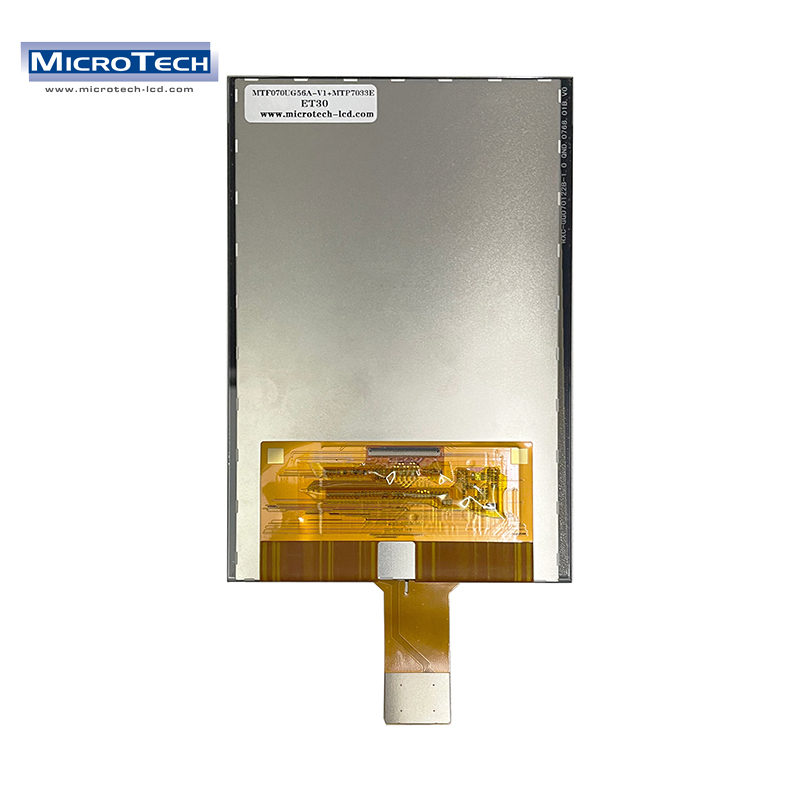

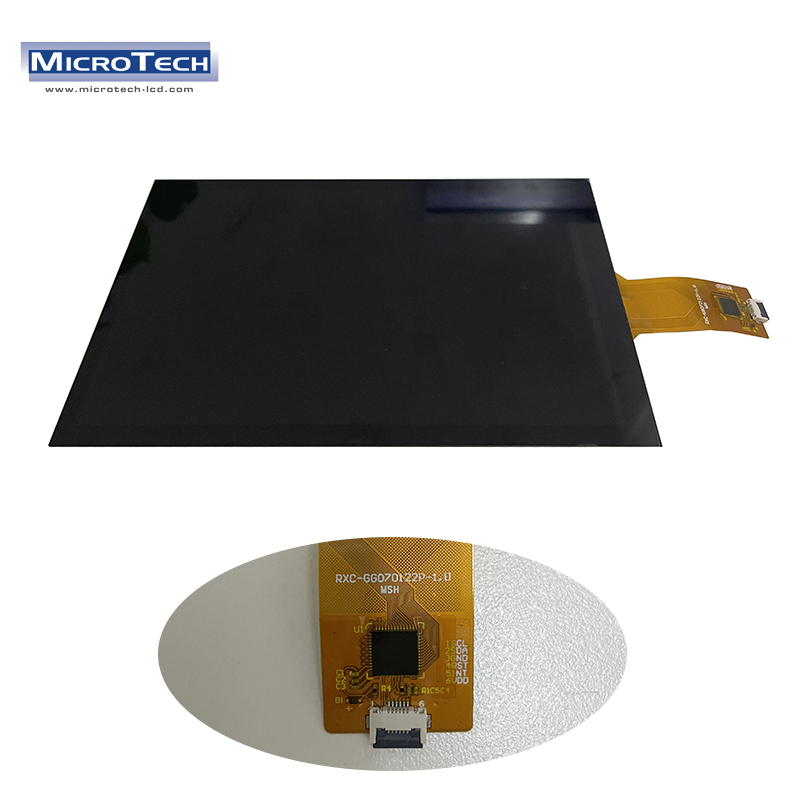

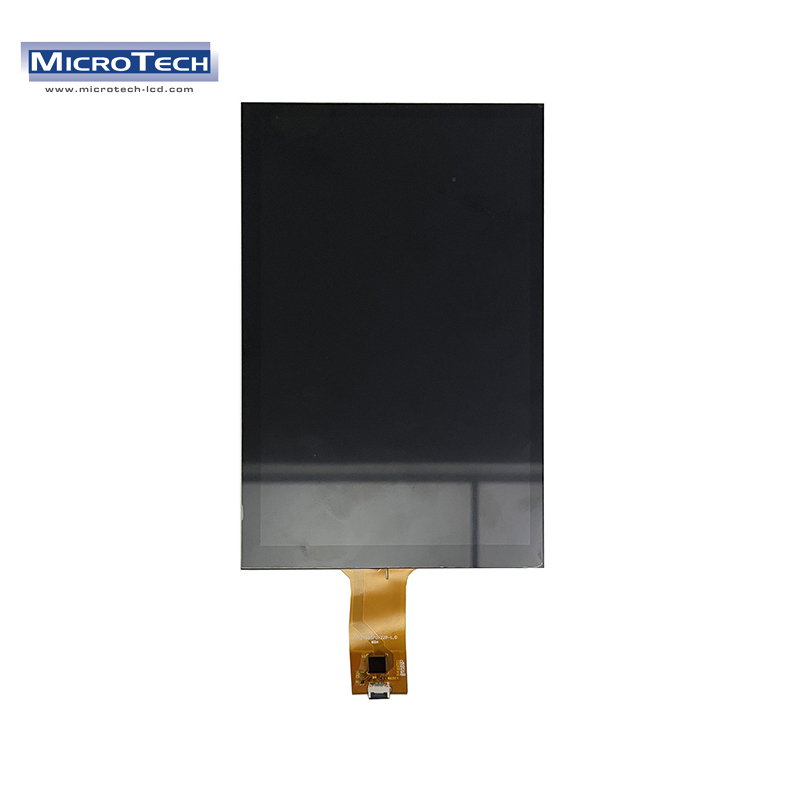

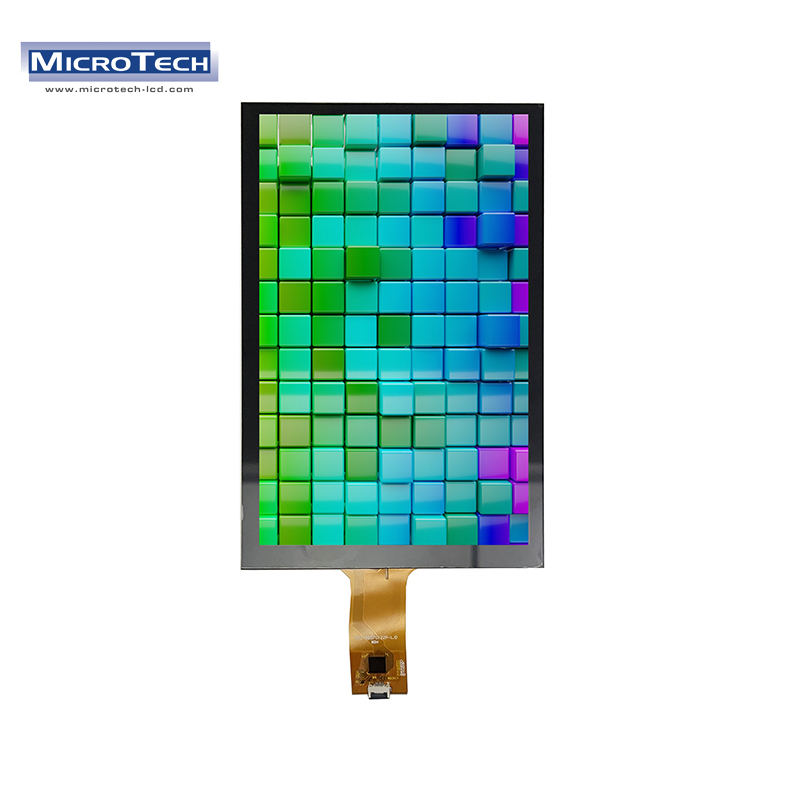

MTF070UG56A-V1 is a color active matrix TFT-LCD Model using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel and a driving circuit. It is a transmissive type display operating in the normal black. This TFT-LCD has a 7.02 inch diagonally measured active area with 1200 horizontal by 1920 vertical pixel array. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripe and this panel can display 1.07B colors.
TDDI
Thin and light weight
Low Power consumption, High trans, High CR, Wide view angle
Module Design
RoHS Compliant
Thin and light weight
Low Power consumption, High trans, High CR, Wide view angle
Module Design
RoHS Compliant
1.At the U/D/L/R direction, the viewing angle is same；
2.The TFT and CF LC Align Direction；
3.This product’s compatible IC is Focaltech FT7250, Please contact IC manufacturer and verify it when you choose any one of them. The information we suppose about IC just for reference.
