7.5V 0.5 AC/DC Adaptor
Model No.:
KRE-0750503L
Brand:
KRECO
Colour:
Black
Port:
Zhongshan
Type of Payment:
30% T/T in advance and 70% before shipment
Minimum Order Quantity:
2,000 piece(s)
Package:
Yes
Customised:
Yes
Output Type:
DC
Connection:
Plug In
Usage:
linear power supply
Place of Origin:
Mainland China
Description
Contact Supplier
Description

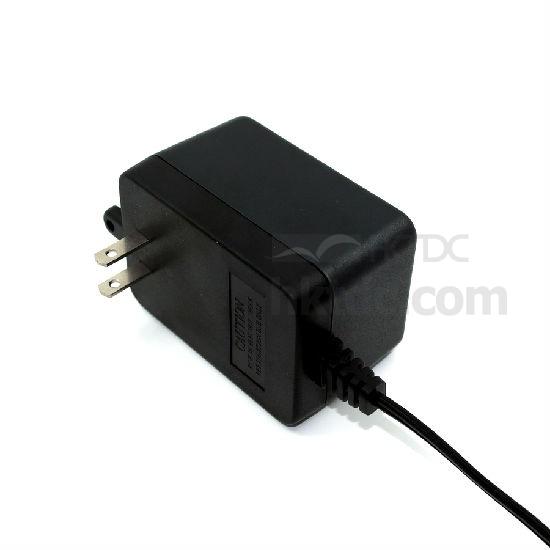

DC7.5V 0.5A Linear adapter, DC7.5V 0.5A Linear Power Supply. CE ROHS EMC certified, Class II, LPS, IP20, Universal input, customized design.
Key specification：
Key specification：
- North America: 120V AC at 50/60Hz
- No-load input power: 0.3W at 240V AC
- Efficiency: CEC IV, ErP I
- Input plug: EU/VDC (EU), US (North America), PSE (Japan), SAA (Australia, NZ), BS (UK, HK), Brazil, South Africa, CCC (China) and EK (Korea)
- DC output voltage: 7.5V (AC or DC) (optional)
- DC output current: 500mA
- Ripple and noise: 100mV
- Output voltage precision: 5%
Working environmental:
- Storage temperature: -20 to 65°C
- Storage humidity: 10 to 95% RH
- Operating temperature: 0 to 40°C
- Operating humidity: 10 to 95% RH
- Burn-in: 100% full load, 40°C, 4hrs minimum
- MTBF: meet MIL-HDBK-217F over 50,000hrs, full load, 25°C
- Leakage current: 0.25mA maximum at 264V AC
- Withstanding voltage: 3kV 1minute 10mA max, between primary and secondary
Emission and immunity:
- IEC61000-4-6, IEC61000-4-11
- IEC61000-4-4, IEC61000-4-5
- IEC61000-4-2, IEC61000-4-3
- GB9254-1998/GB17625.1-2003
- FCC part 15 class B
- CISPR22 class B
- EN55022 class B
- CNS13438 class B
- EN55024/A1:2001
- AS/NZS3548, AS/NZS4251.1 class B
- CE (low-voltage directive)
- UL1310, GB4943-2001
- PSE IEC60950, EN60065
- EN61558-2-6
- EN60950:2009, EN60065
- AS/NZS 60950:2000, AS/NZS60065
