7'' Digital Wireless Backup Camera system
Weight:
400g
Model No.:
DF-723H2662-CUT
Brand:
VEISE
Colour:
Black
Size:
185X122X28mm
Port:
Guangzhou
Type of Payment:
T/T; L/C in advance.
Minimum Order Quantity:
1
Voltage:
12V
External Testing Certification:
CE, EEC, EMARK, FCC, ISO9001, ROHS
Customised:
Yes
Description
Contact Supplier
Description

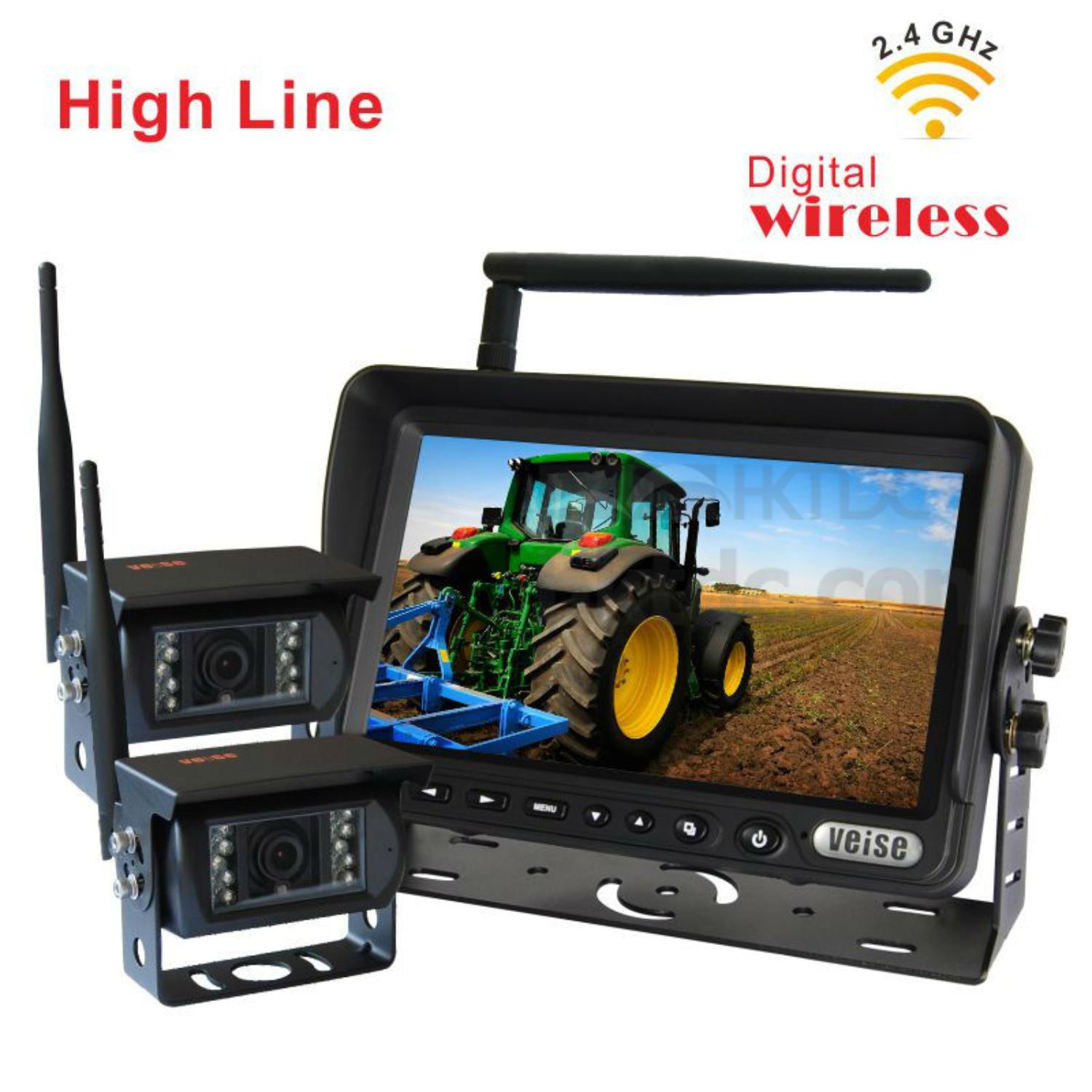

- Digital Wireless Camera Monitor Systems
7"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver,Graphical menu
Image automatic cycle mode, night mode settings, reversing ruler settings, reversing the priority function is triggered;
Picture Mode sub-screen, two screens
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
DC14~+87V(Td400mS) 5pulses Load Dump，400cd/m2 Brightness
2.4GHz Digital Wireless Camera Aluminum Camera IP69K Waterproof and 10G Vibration, IR LEDs for Night Vision

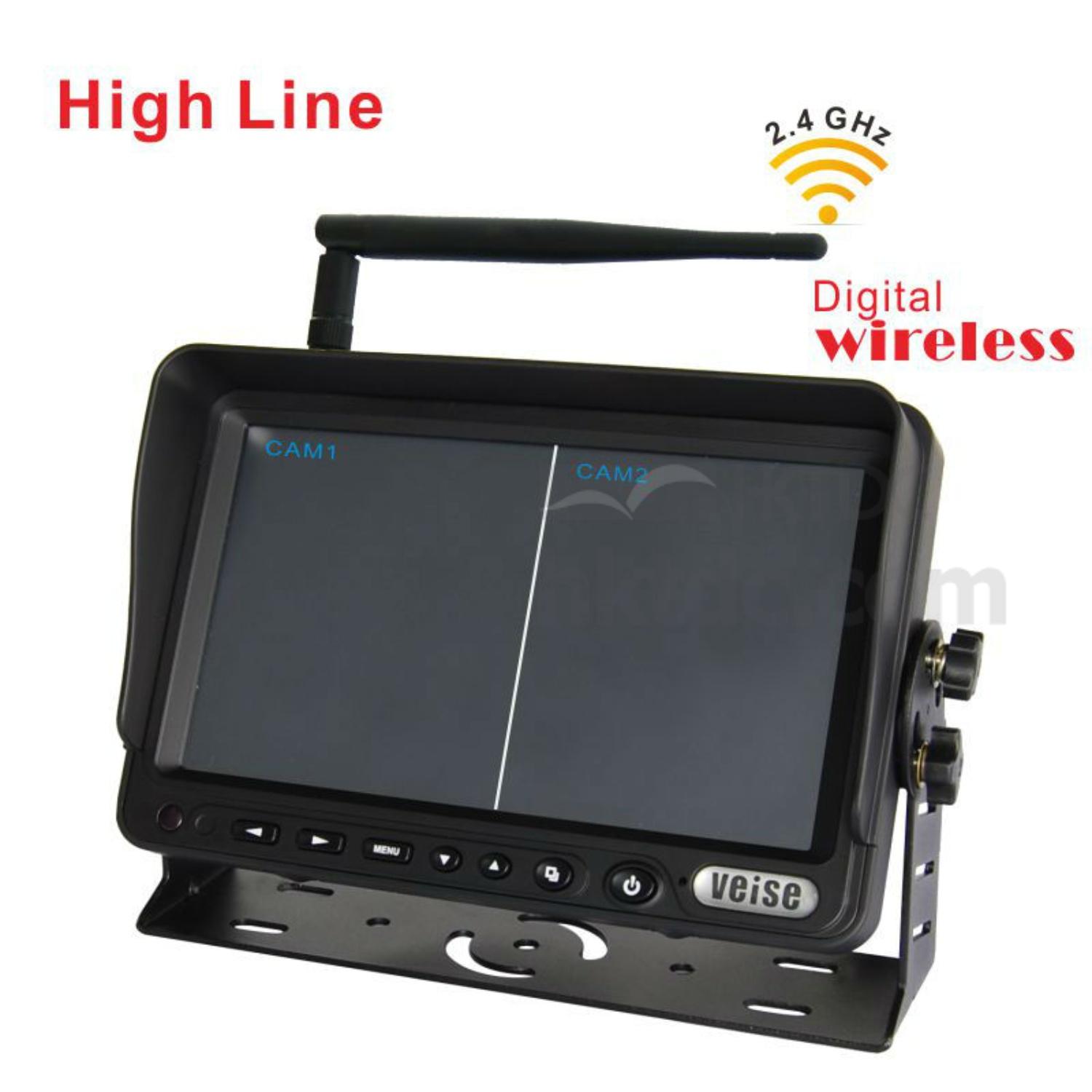

Built-in IR-CUT filter image colors more realistic - Digital Wireless Receive Monitor(Model:SP-723H2)
7" Digital Screen TFT LCD Monitor with Removable Sun Visor
Built in 2 CH 2.4GHz Digital Wireless Receiver
Operation Frequency:2400 ~ 2483.5MHz
Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE)
Overlapping Hopping Channel:80
Color System:PAL/NTSC
Display Resolution: 800RGB(H) X 480(V) dot
Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65
Brightness (cd/m2): 450
Contrast ratio: 500:1
Operating temperature: -20℃ to +70℃
Storage temperature: -30℃ to +80℃
Free Operating Voltage: DC10~32V
External dimensions:(L x W x T) (185X122X28mm) without mounting Sun Visor
Weight Approx: 400g
Digital Wireless Waterproof IR Camera(MODEL:DF-4605H-SFS-CUT*2)
Image Type: 1/3 inch Color CMOS
Built in 2.4GHz Digital wireless transmitter
Transmission Power：18dBm with Power control
Line of Sight Range:≤100M
Horizontal Resolution:600TV Lines
Effective pixel:NTSC:960(H)X480(V);PAL:960(H)X480(V)
Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)
Free viewing angle: 120°
IR-CUT: Automatic switch, day and night mode
Waterproof: IP69K
Shockproof: 10G
Free Operating Voltage: DC10-32 Volts
Dimensions: 108(W) x 78(H) x 75(D) mm (without mounting)
Weight : 450g
Accessorie
U- Support Bracket、Angle Adjustment Screw、Removable Sun Visor、Electrical Connecting Cable、Antenna*3、User's Manual
