7 inch LCD screen 1280*800 LVDS interface TFT LCD module with Driver IC 3*ST5821C and 1*ST5084C

US $50.00 - US $65.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Model No.:

MTF070WX61A-V1

Customised:

Yes

Size:

7inch

Brand:

Microtech

Description

Contact Supplier

Item	Feature	Spec
Display Spec.	Size	7
	Resolution	1280(RGB)x800
	Technology Type	a-Si
	Pixel Pitch(mm)	0.117x0.117
	Pixel Configuration	R.G.B. Vertical Stripe
	Display Mode	SFT with Normally Black
	Surface Treatment(Up Polarizer)	HC

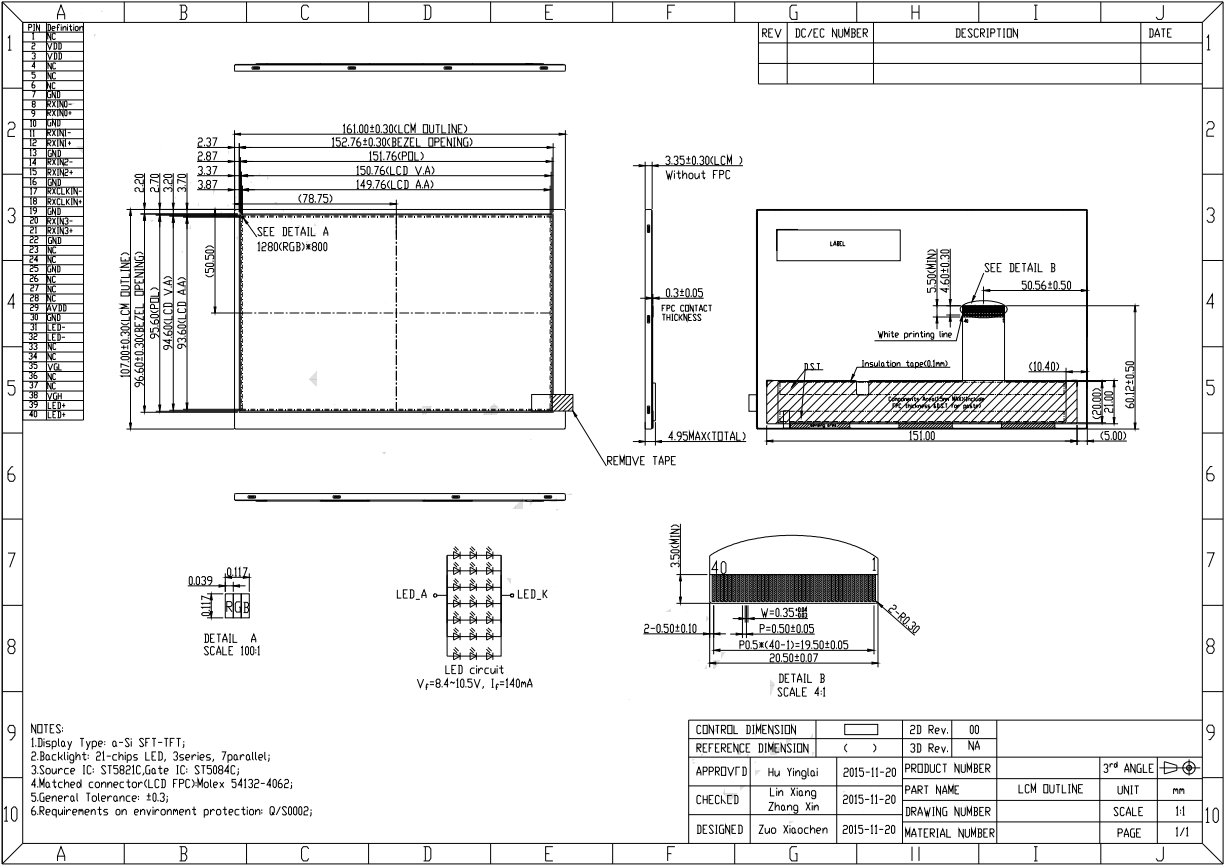

Mechanical Characteristics	LCM (W x H x D) (mm)	161.0x107.0x3.35(Typ)
	Active Area(W x H) (mm)	149.76 x 93.60
	LED Numbers	21 LEDs
	Matching Connector Type	Molex 54132-4062
	Weight(g)	120 (Typ)
	Operation temperature	-20-70℃
	Storage temperature	-30-80℃
Electrical Characteristics	Interface	LVDS 40 Pin
	Color Depth	16.7M

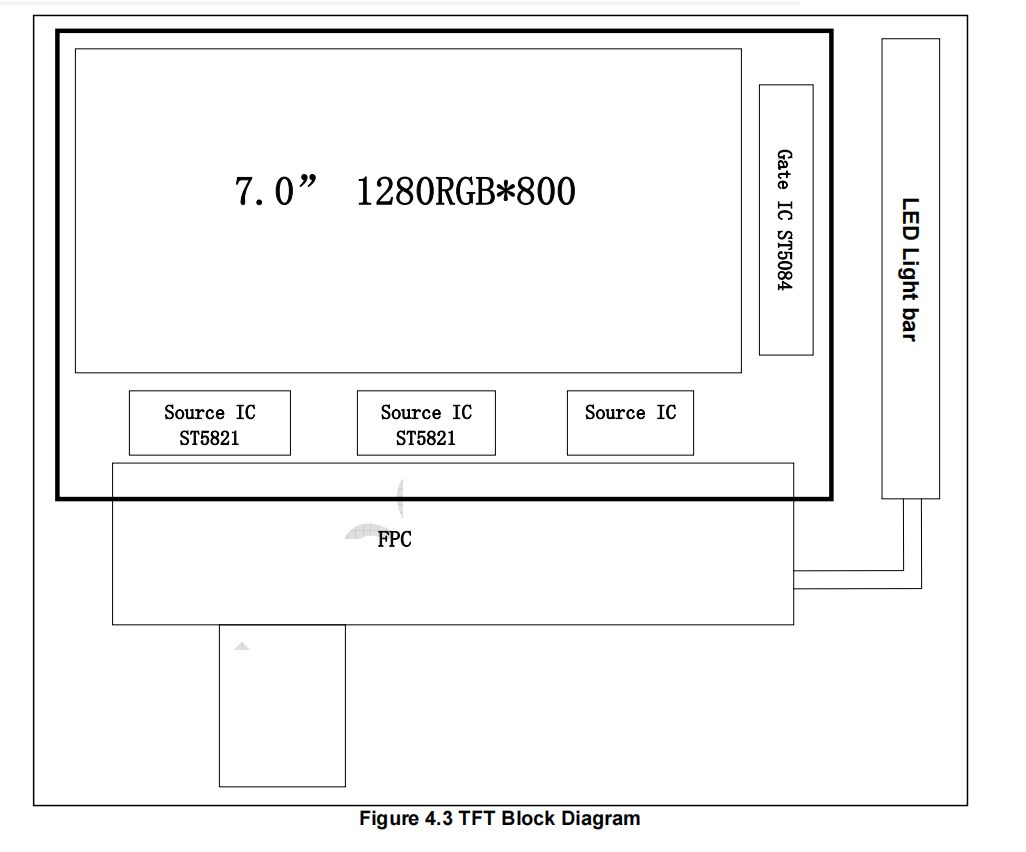

	Driver IC	3ST5821C and 1 ST5084C
