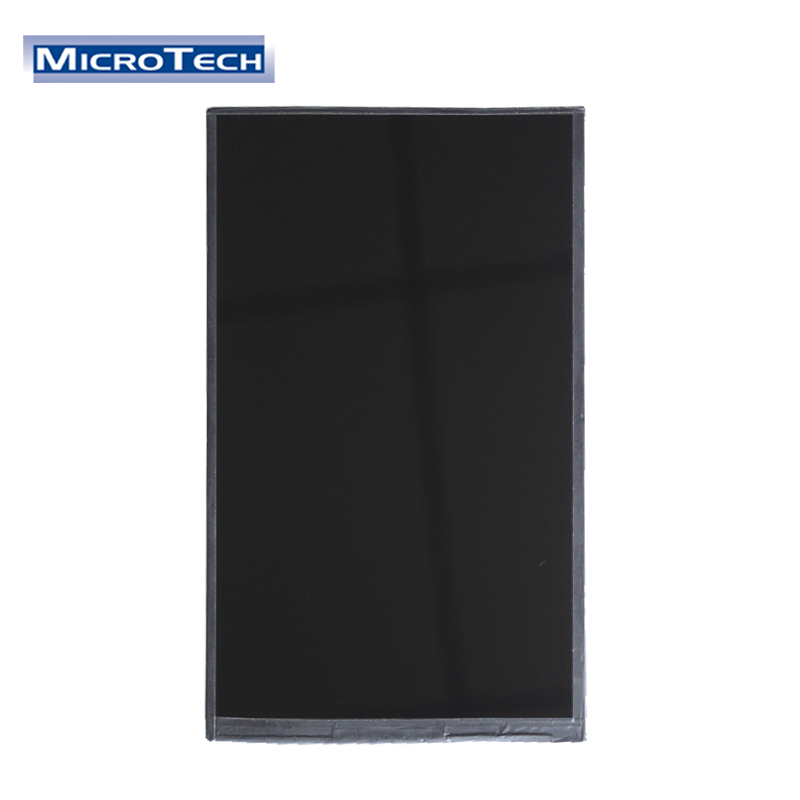

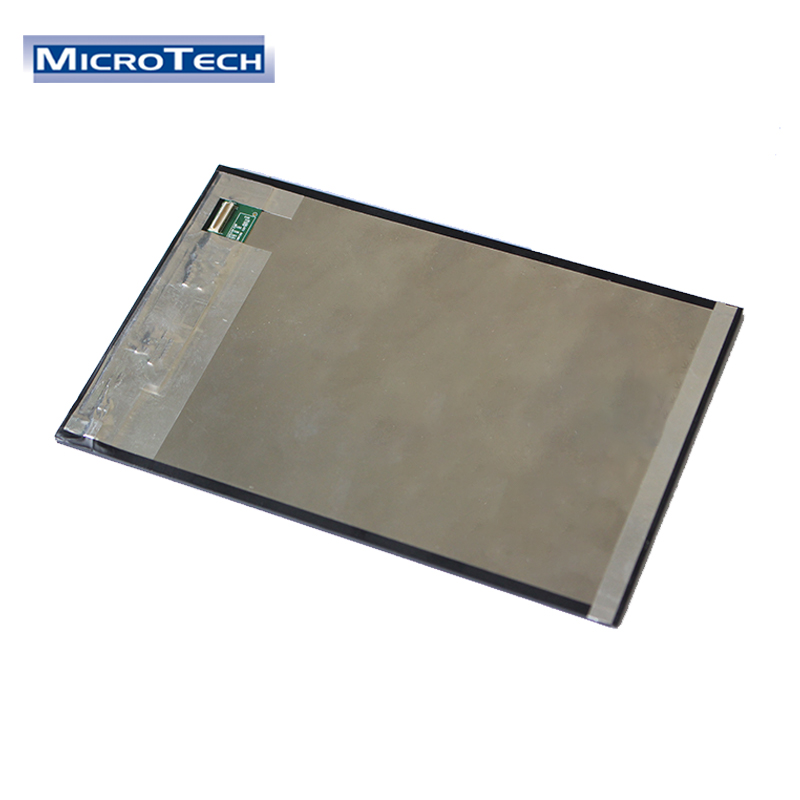

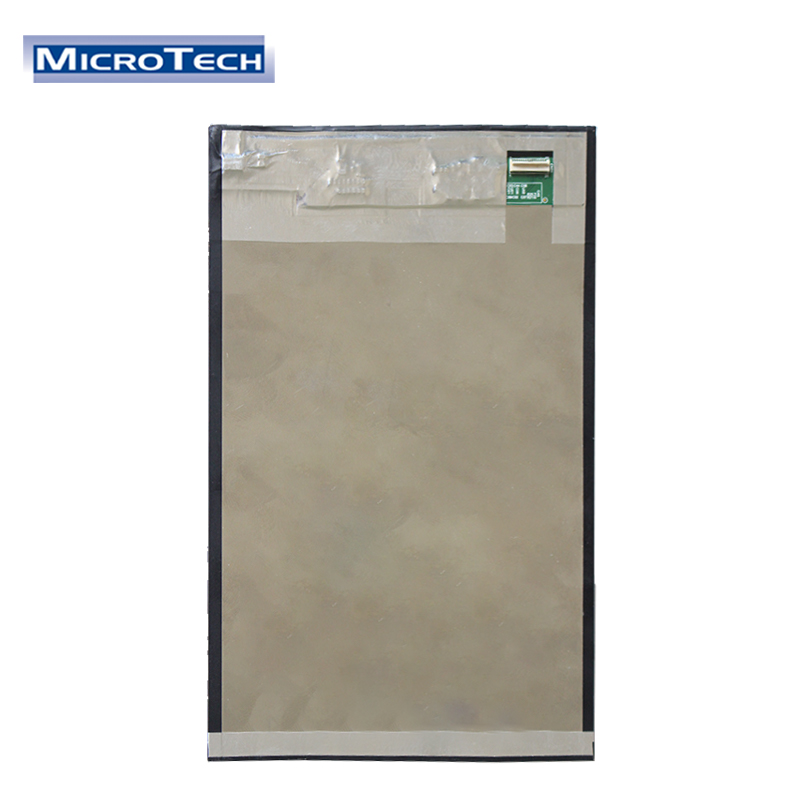

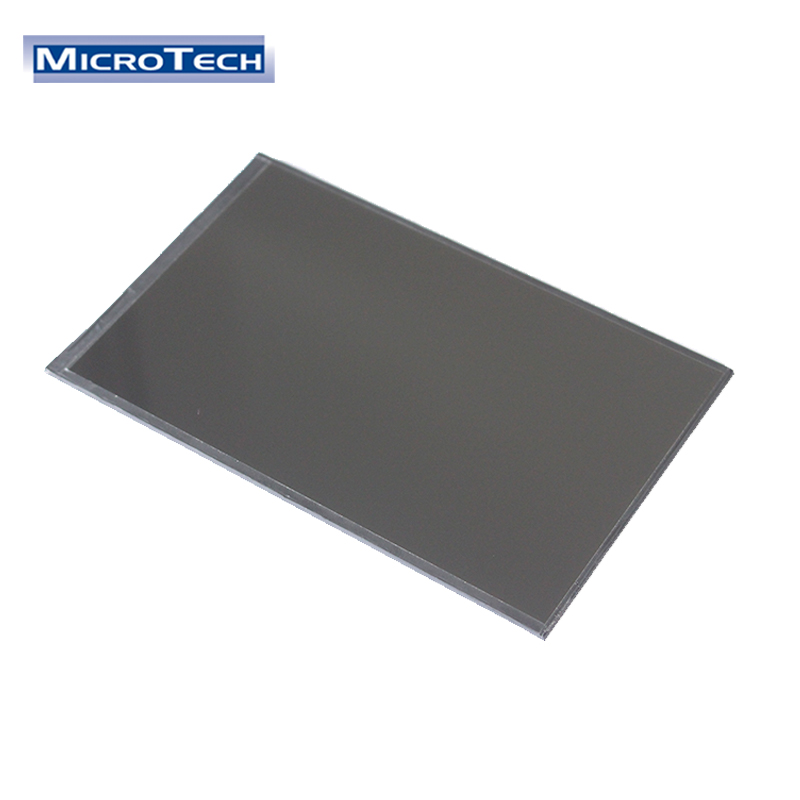

7-inch TFT LCD Display Module Supports 800*1280 with LED Backlight Unit and 31

US $5.00 - US $10.00

Production Lead Time:

25 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech-lcd

Model No.:

MTF070ICE-G02

Customised:

Yes

Size:

7inch

Description

Contact Supplier

7-inch TFT LCD display module supports 800*1280 with LED backlight unit and 31

Item	Specification	Unit	Note
Screen Size	7" diagonal
Driver Element	a-si TFT active matrix	-	-
Pixel Number	800 xR.GB.x 1280	pixel	-
Pixel Pitch	0.11775(H) x 0.11775 (V)	mm	-
Pixel Arrangement	RGB vertical stripe	-	-
Display Colors	16,777,216 (8bit color depth)	color	-
Transmissive Mode	Normally black	-	-
Surface Treatment	Hard coating (3H), Glare	-	-
Luminance, White	300	Cd/m2
Power Consumption	1.47 W (Max.) (Panel 0.4 W (Max.), BLU 1.07W (Max.))		(1)

Item		Min.	Typ.	Max.	Unit	Note
Module Size	Horizontal (H)	103.3	103.5	103.7	mm	⑴
	Vertical (V)	162.02	162.22	162.42	mm
	Thickness (T)			2.65 (w/o PCBA) 4.51 (w/ PCBA)	mm
Bezel Area (CF Polarizer)	Horizontal	97.15	97.35	97.55	mm
Bezel Area (CF Polarizer)	Vertical	153.62	153.82	154.02	mm
Active Area	Horizontal		94.2		mm
Active Area	Vertical		150.72		mm
Weight		-	-	88	g
