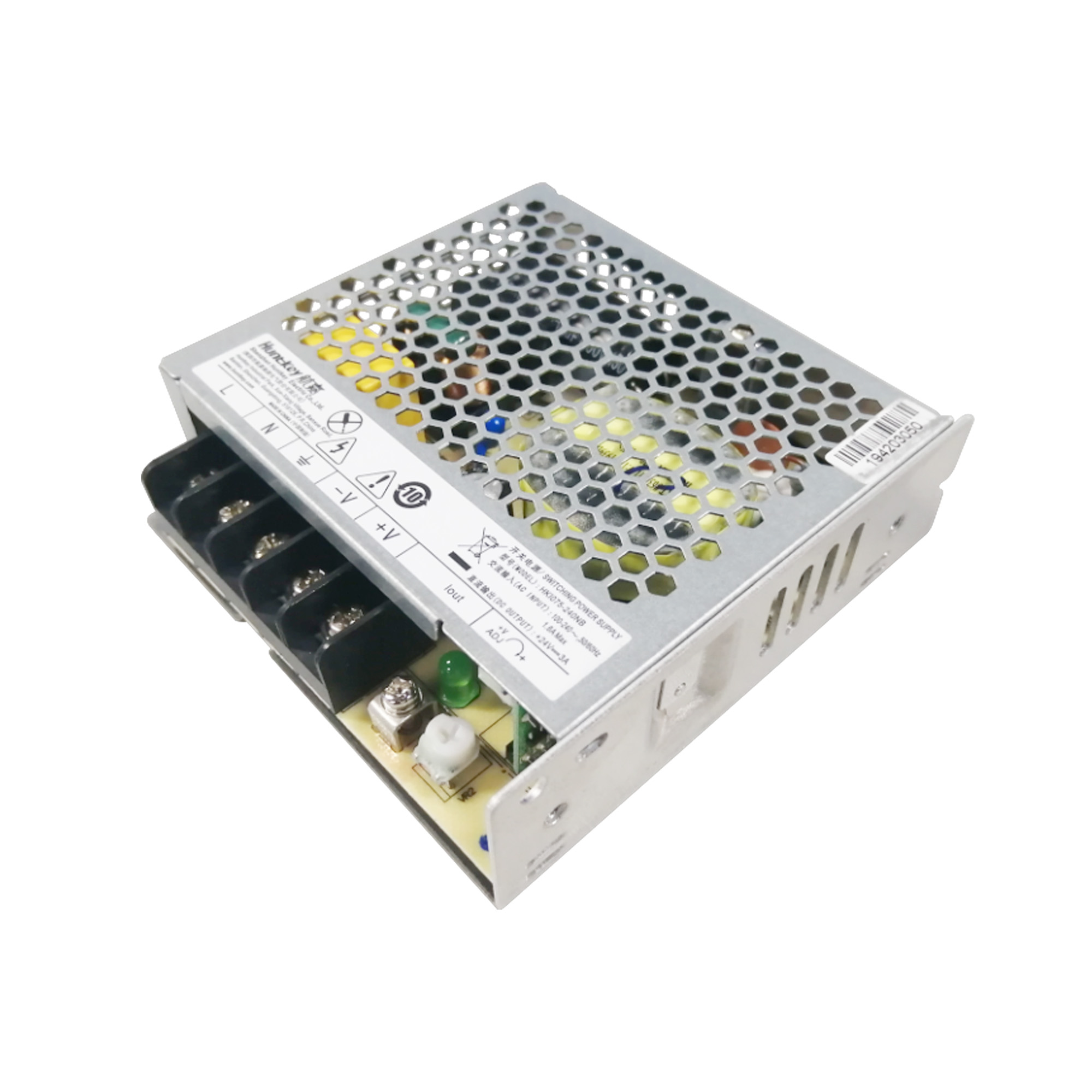

75W 12V/6A Single-Rail Output Switching Power Supply, AC/DC Switching Adapter

US $7.00 - US $12.00

Production Lead Time:

30 day(s)

Shipping Method:

Negotiable

Brand:

Huntkey

Model No.:

HKI075-120NB

Output:

12V/6A

Input:

90-264V, 102-370VDC

Protections:

OVP, OCP, OTP, UVP, SCP

Dimensions:

99*97*30mm

Certificates:

CE, CB, CCC, RoHS

Description

Contact Supplier

75W Single-Rail Output

Features:

Full range voltage input
Small size, slim in height of 30mm
All-round protections, including OVP, OCP, OTP, UVP & SCP
High efficiency, transfer efficiency at least 80%
Low ripple, can lower than 150mVp-p
Operating temperature from -30 to 70 Celsius degree
High capacitive load, 2000uF/A at the least
High reliability, 100% burn-in test, 3-year warranty
Choices for parallel or unparallel operation
Environment friendly, lead free, CCC(5000m), CB, CE certified

Specifications:

Model		HKI075-050NB	HKI075-120NB		HKI075-240NB	HKI075-480NB
Output	DV/DC	5V/14A	12V/6A		24V/3A	48V/0.75A
	Voltage Regulation Range	4.5~5.5V	10.8~13.2V		21.6~26.4V	43.2~52.8V
	Current Regulation Range	0~7A	0~6A		0~3A	0~0.75A
	Regulation Precision	±1%	±1%		±1%	±1%
	Ripple	<100mVp-p	<100mVp-p		<100mVp-p	<150mVp-p
Input	Lowest Efficiency	82%	84%		86%	86%
	Voltage Range	90~264VAC；102~370VDC
	Surge Current	Cold boot<45A/230VAC
Protections	OVP	115%-135%(Rated Voltage), auto restore		115%-135%(Rated Voltage), power off to restore
	OCP	120%-180%(Rated Current), auto restore
	OTP	To ensure all components will not exceed a certain temperature, auto restore
	UVP	Input UVP activation point:<=60Vac, UVP restoration point:>=70Vac
	SCP	To protect components without being damaged or burned, auto restore
Environment	Operating	-30~+70°C, 5~85﹪RH, no condensation (please refer to load-deflection curve)
	Storage	-40~+85°C, 5~95﹪RH, no condensation
	Vibration	10~500HZ, 5G, 10 minutes/cycle, 60 minutes for each X-, Y-, Z-direction
Safety & EMC	Safety Standards	GB4943, EN62368
	EMC Standards	EN55032 Class B, GB9254 Class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3
	Hi-Pot	I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC
Others	Dimensions	999730mm
	Packing	30pcs/9kg
	Mechanical Specifications	6
