Product number

MTR070WV60A-V1

Processor

Cortex-A8 architecture, clocked at 1.0GHZ

Memory

512MB of DDR3

Flash

256MB of Nand-Flash

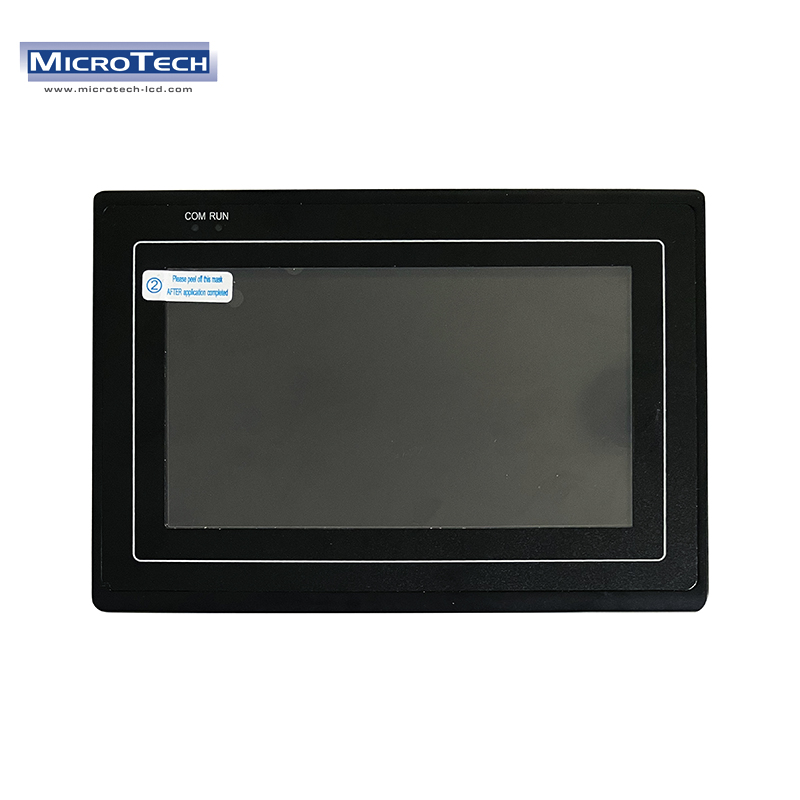

Screen size

7 inches

Resolution

800x480

Display

Wide temperature type, 64K colors or 260,000 colors

LED backlight

Life > 25000 hours

Touch screen

Four-wire resistive touch screen (integrated driver in Wince system)

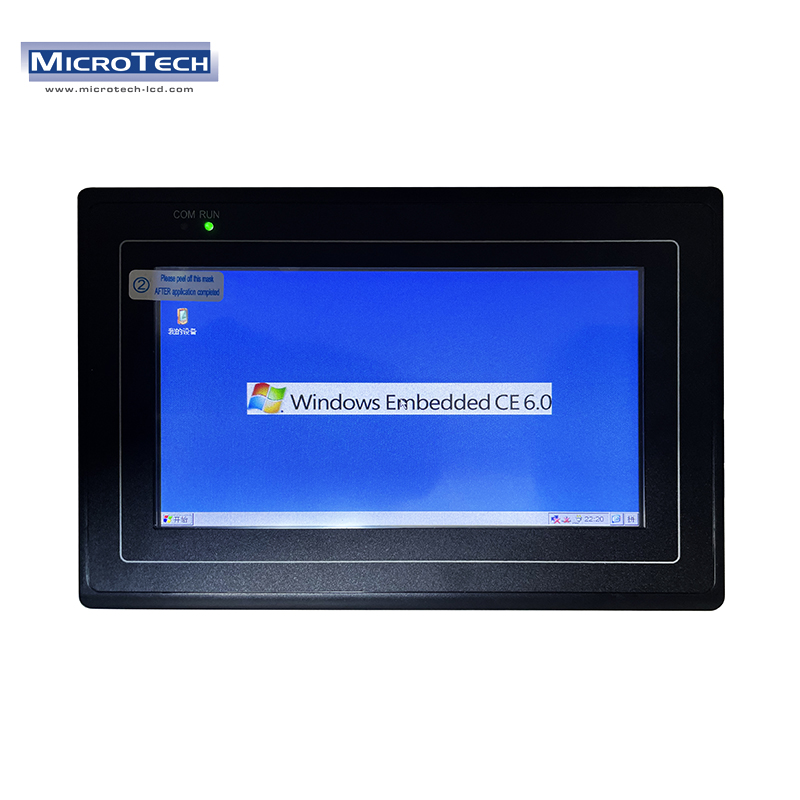

Operating system

Windows CE 6.0 R3

Protection class

IP65 (front panel)

Working conditions

12-24V DC, 600mA

Operating temperature

・10~55℃・20~80℃ (Storage temperature)

Working humidity

10~90%RH

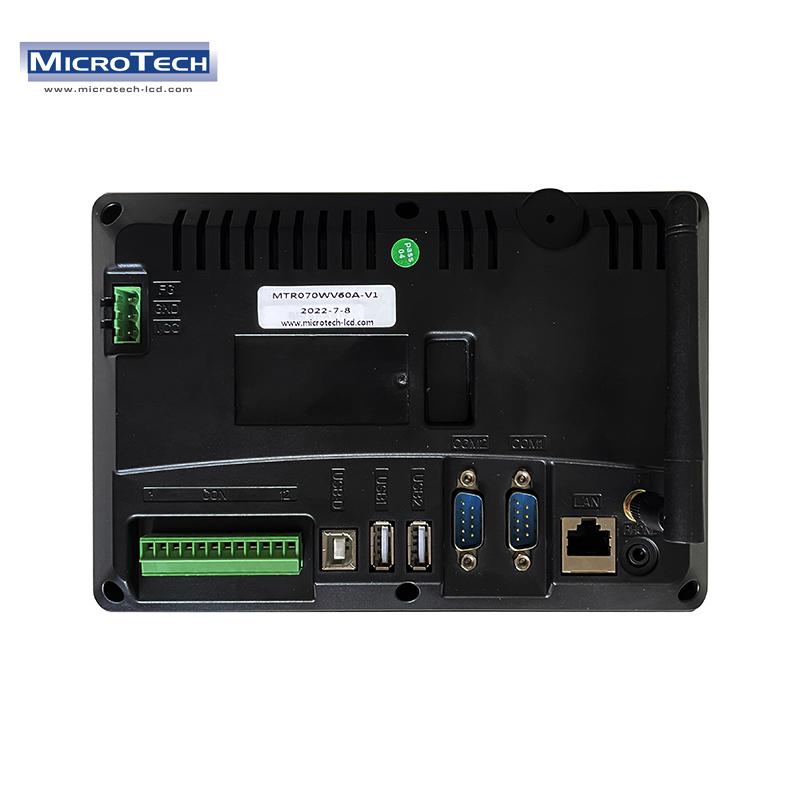

Hardware interface

Four-way 3-wire RS-232 serial ports (C0M1, COM2, COM3, COM4), two of which (C0M1, COM2) can be used as RS-485 bus interface extensions (optional with isolation mode)

A secondary isolated CAN bus interface. (optional)

-Use the built-in W coin interface. (optional)

One USB Device interface, support Active sync and PC synchronous communication and joint debugging application

Two-way USB Host interface, support mouse, keyboard, U disk and other devices

One use 100M Ethernet interface

SD/MMC interface, support SD card and MMC card

DC12V-24V, with isolated industrial electric boat case, higher reliability

Structure

plastic shell

Panel size

206.00x142.00 (mm)

Hole Size

195.60x131.60 (mm)

Notice

When the serial port is connected, the GND ground of the two devices must be connected together to avoid burning the serial port chip and affecting the communication.
