7inch Customized 1200*1920 Resolution TFT LCD FT7250 Display

US $10.00 - US $15.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech-lcd

Model No.:

MTF070UG46A-V1

Customised:

Yes

Size:

7inch

Description

Contact Supplier

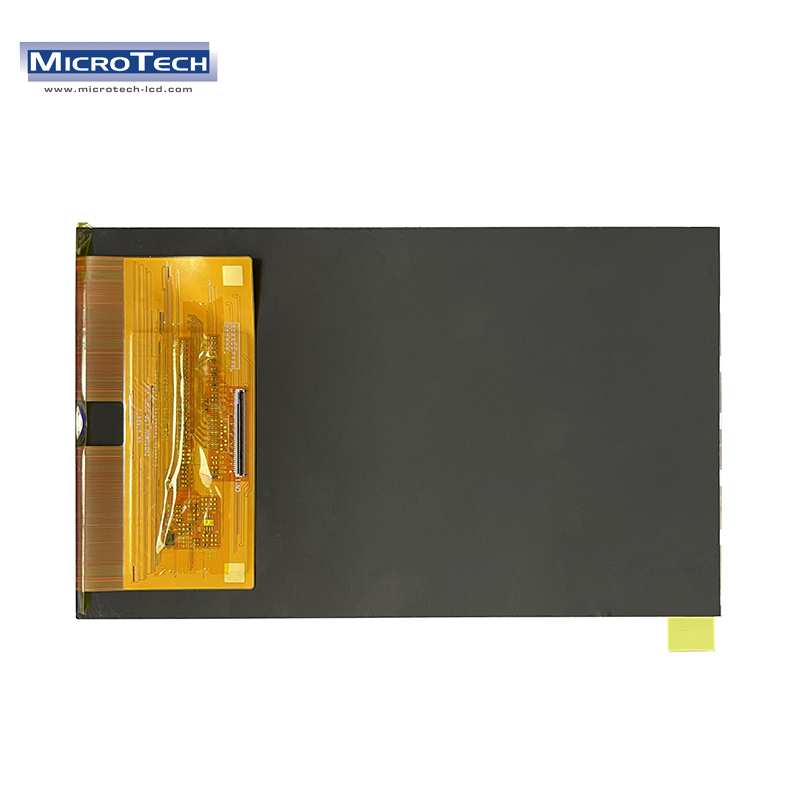

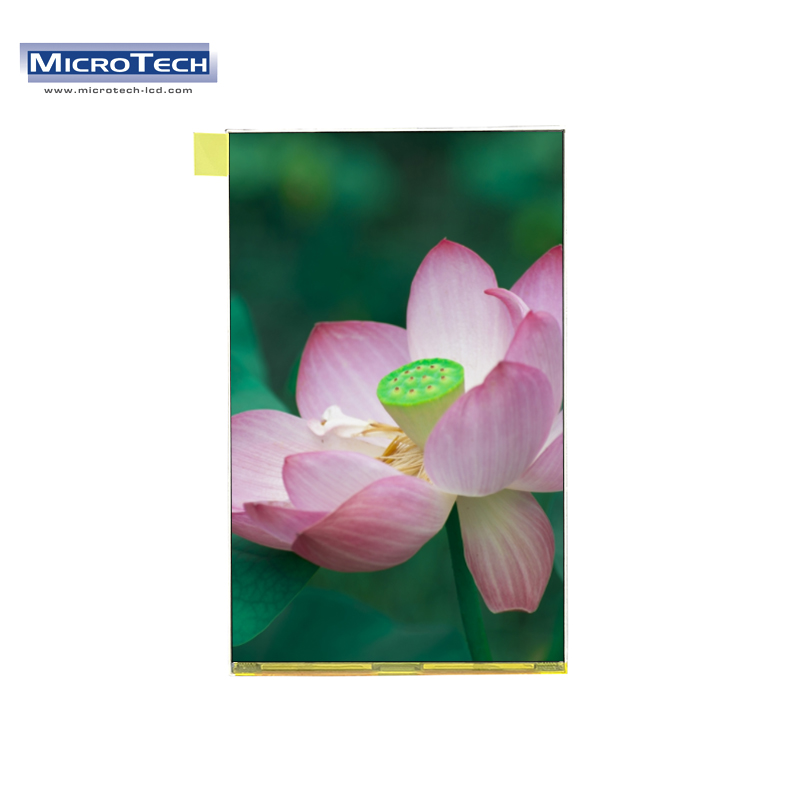

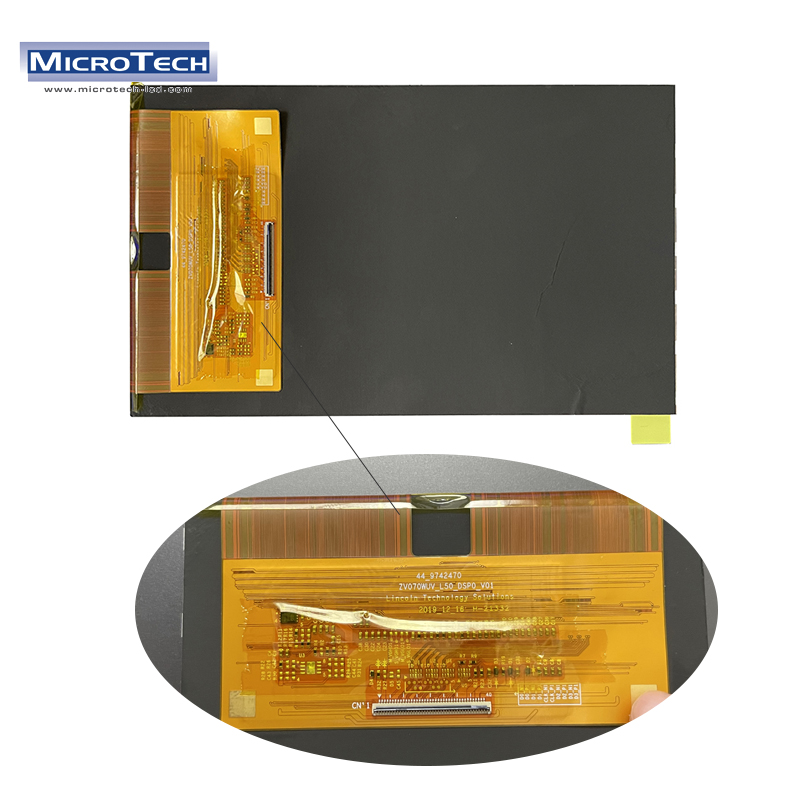

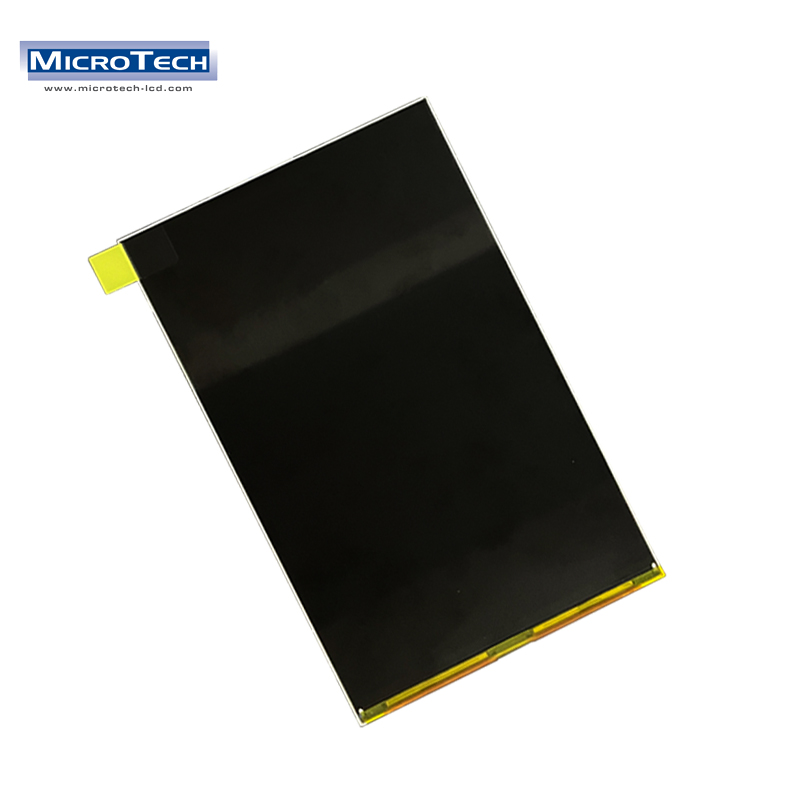

7inch Customized LCD Panel 1200*1920 Resolution TFT LCD FT7250 Display

MTF070UG46A-V1 is a color active matrix TFT-LCD Model using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This model is composed of a TFT-LCD Panel and a driving circuit. It is a transmissive type display operating in the normal black. This TFT-LCD has a 7.02 inch diagonally measured active area with 1200 horizontal by 1920 vertical pixel array. Each pixel is divided into Red, Green, Blue dots which are arranged in vertical stripe and this panel can display 1.07B colors.

Parameter	Specification	Unit	Remark
Active Area	94.5(H) x 151.2(V)	mm
Number of pixels	1200(H) RGB x 1920(V)	pixels
Number of pixels	(1 pixel = R + G + B dots)	pixels
Pixel Pitch	78.75 x 78.75	um
Dimensional Outline	98.7(H) xl60.8(V) x2.2	mm
Pixel Arrangement	RGB Vertical Stripe
Display Colors	1.07B	colors	8+2Bit
Color Gamut	80% (typ.)		CF+C Light
Display Mode	Normally Black, Transmissive mode
Dimensional Outline	97.3±0.2(H) x 159.4±0.2(V) x 0.68±0.08(D) (Without FPC)	mm
Polarizer Surface treatment	Front POL： Hard coating Rear POL: Advanced Polarizer Film
Viewing Direction (Human Eye)	80/80/80/80		Note lz2
D-IC	FT7250		Note 3
Touch Interface	I2C
Operation Temperature	-10-60	℃
Storage Temperature	-30-70	℃
Dot pitch	26.25(H) x 78.75(V)	um
Panel ID	10*1.7	mm
COG pad area	3.2	mm
D-IC to FPC distance	0.5	mm	Note
D-IC width	1.372	mm
D-IC to CF edge	0.528	mm
Seal Area (U/D/L/R)	1.4/3.6/1.4/1.4	mm

1. At the U/D/L/R direction, the viewing angle is same;2. The TFT and CF LC Align Direction;
3. This product’s compatible IC is FocalTech FT7250, Please contact IC manufacturer and verify it when you choose any one of them. The information we suppose about IC just for reference.
