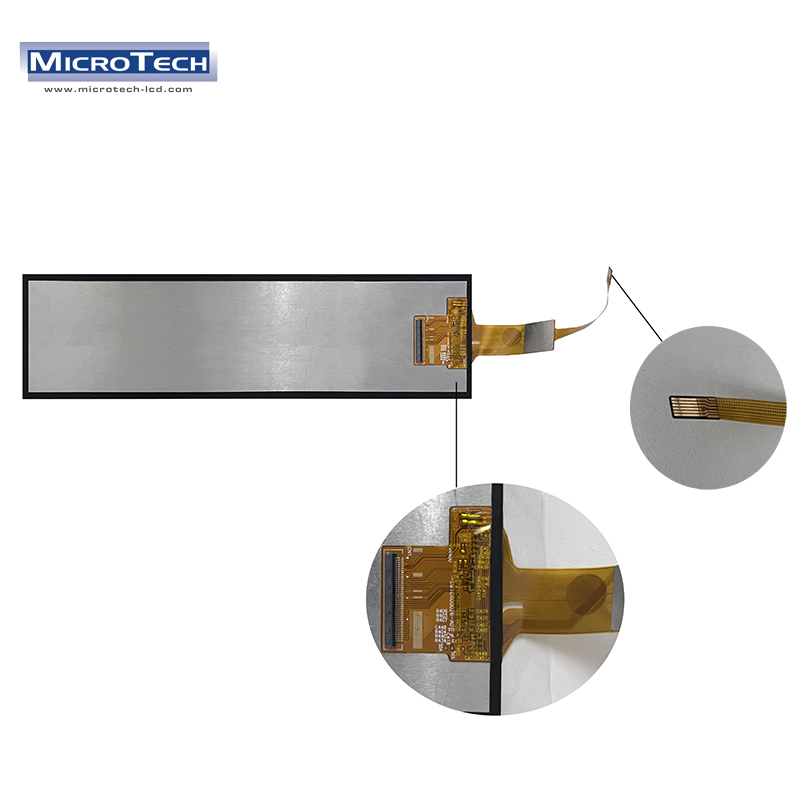

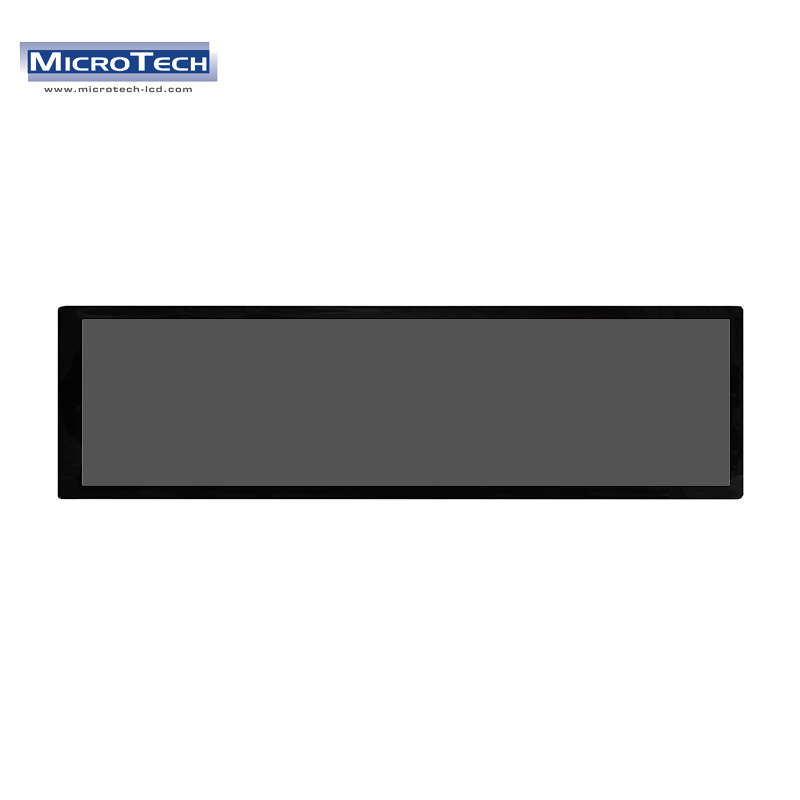

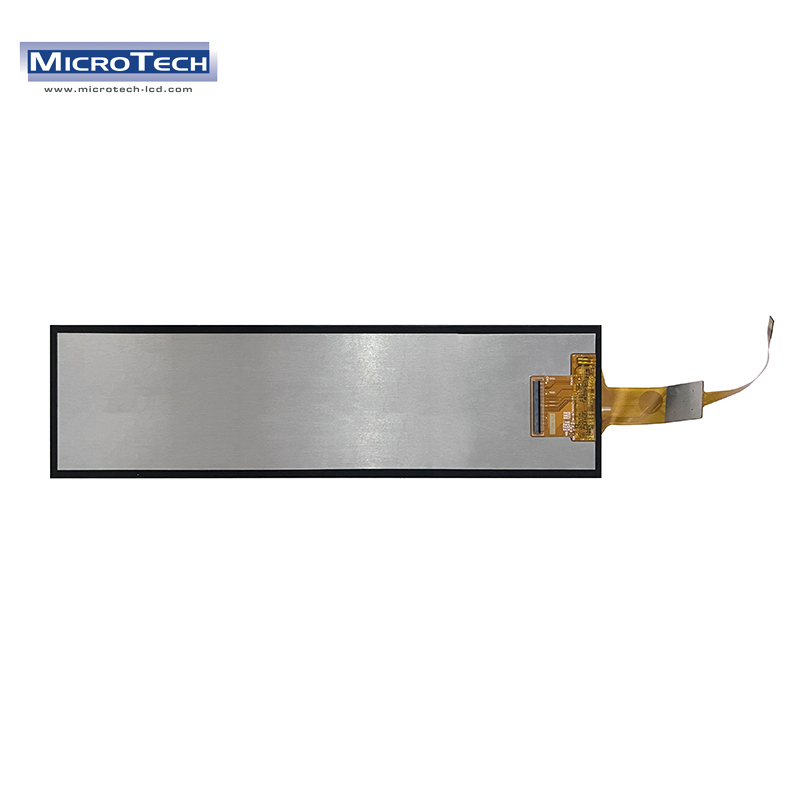

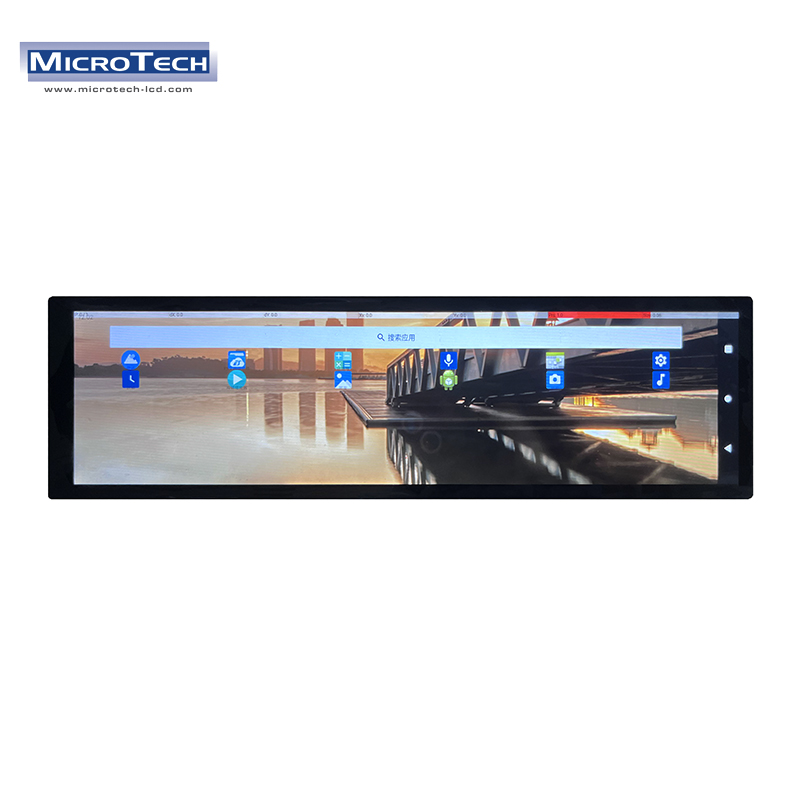

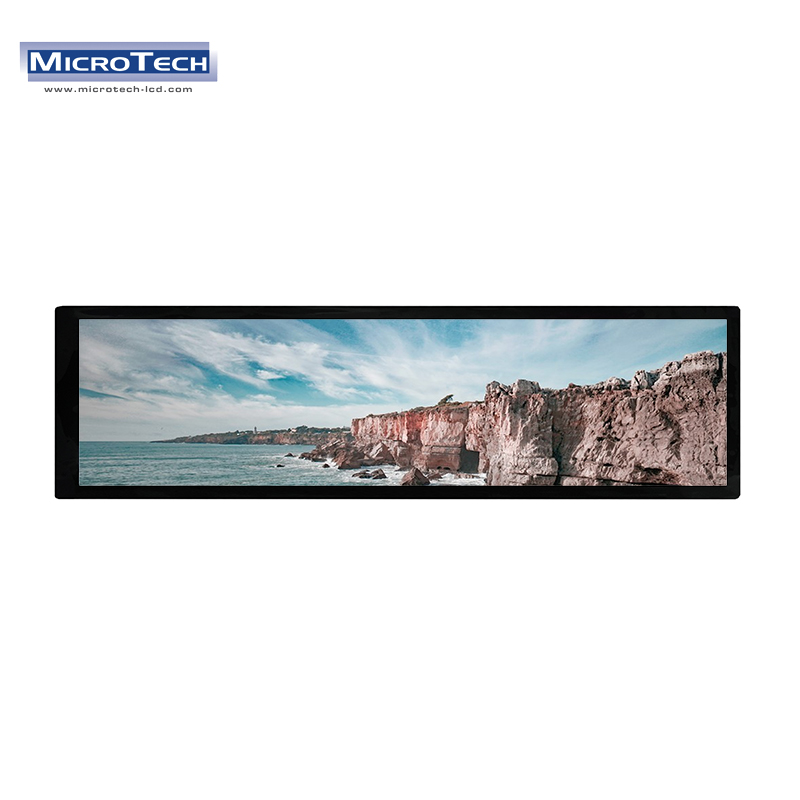

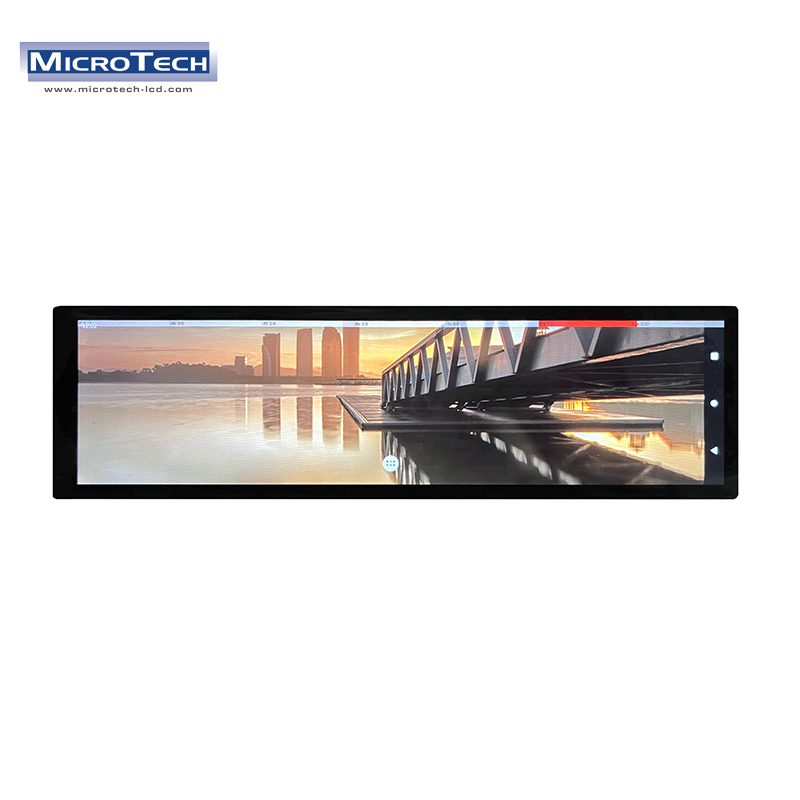

8.8 inch TFT LCD widescreen 480*1920 IPS 16.7M LCD assembly 600 brightness for PC Raspberry Pi

US $30.00 - US $50.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Brand:

Microtech

Model No.:

MTR088QW01A-V1

Customised:

Yes

Size:

8.8inch

Description

Contact Supplier

The HDMI interface has become the most popular video interface standard to date, and HDMI video sources are easier to come by nowthan ever before. Whether you need an HDMI TFT display for your Raspberry Pi/BeagleBone Blackapplication, a Windows/Windows Embedded PC monitor, or a touch screen HMI for your Linux or other embedded system, the Display HDMI TFT product line offers asolution. Our HDMI TFT Modules unite our existing high-quality TFT display panels with a custom PCB by Display. Assembled to the display, our PCB provides the user an all-in-one, plug-and-play HDMI + USB Touch solution for virtually any application.

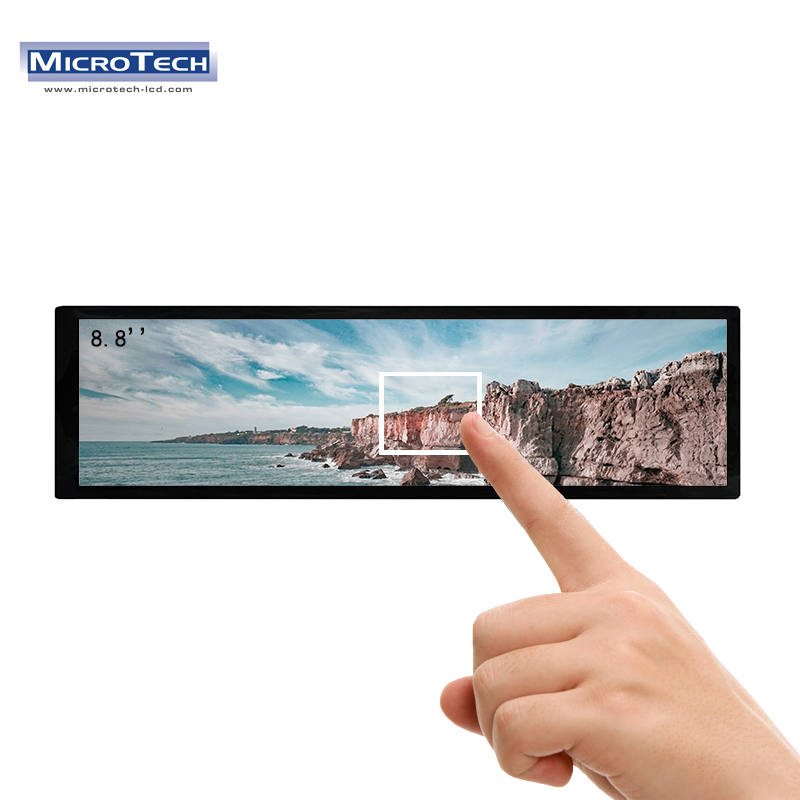

◆ 8.8” HDMI TFT Module w/ USB-HID Capacitive option

◆ On-board Realtek LD8816 HDMI Receiver

◆ HDMI (Type-A HDMI 1.4) Input

◆ Compatible with PC (Windows/macOS/Linux)

◆ Compatible with Linux based SBCs such as Raspberry Pi, BeagleBone, etc.

◆ Plug-and-playUSB-HID Touch, no external driver installation required

◆ 24-bit True Color, 480*1920 Resolution

◆ On-board High Brightness LEDDriver w/ PWM

◆ IPS Panel, better color reproduction and full viewing angles

◆ There are 4*2.5mm Mounting Holes on the back, which can directly fix the Raspberry Pi motherboard orbracket

Model	P88	P88-T
Screen Size	8.8inch TFTLCD
Panel Type	IPS
Resolution	480*1920
Viewing Angle	170"Full View Angle
Outline Dimension	66.5x233.5x13(mm)	66.5x233.5x15(mm)
Display Area	54.72(W)x218.88(H)mm
Cobr Gamut	50% NTSC
Display Cobr	16.7M
Refresh Rate	60Hz
Response Time	30 (Typ.)(Tr+Tf)ms
Screen Ratio	1:4
Contrast Ratio	800:1
Surface Luminance	600cd/m2
Touch Function	No	Yes
Touchscreen Type	/	Capadtve
Touch Points	/	5 Point Touch
Power Supply	microUSB Port(5V)
Interface	lxHDMI, lxmicroUSB	lxHDMI, lxmicroUSB(Power+louch)
