800*480 LCD Module 1000nits 7.0 inch TN Customized LCD Screen with RGB 24 Bits TCON

US $15.00 - US $30.00

Production Lead Time:

25-45 day(s)

Shipping Method:

Support Express · Sea freight · Land freight · Air freight

Model No.:

MTF070WV44A-V1

Brand:

Microtech-lcd

Customised:

Yes

Size:

7.0inch

Description

Contact Supplier

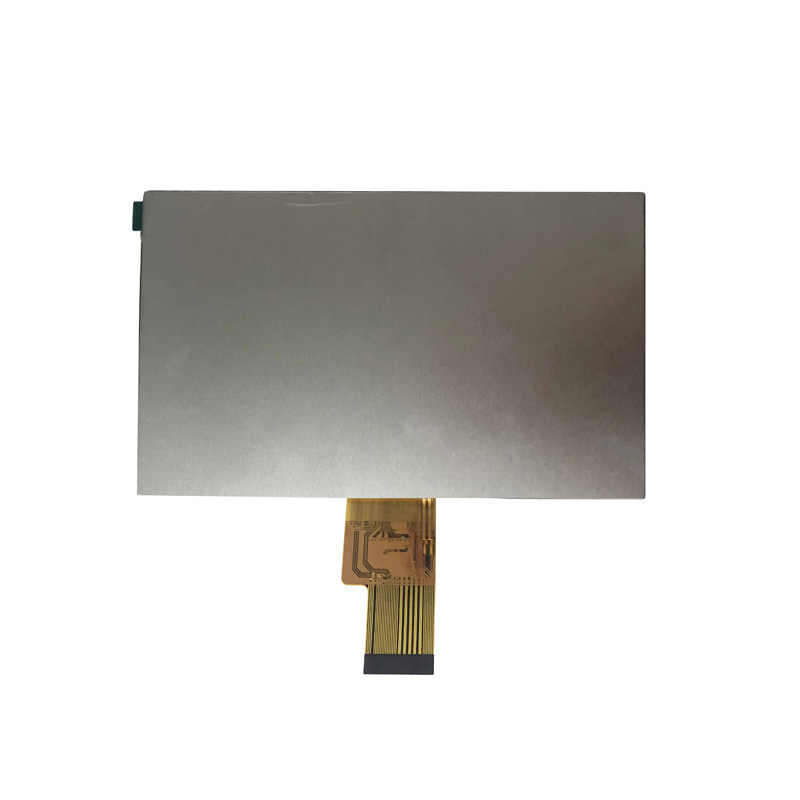

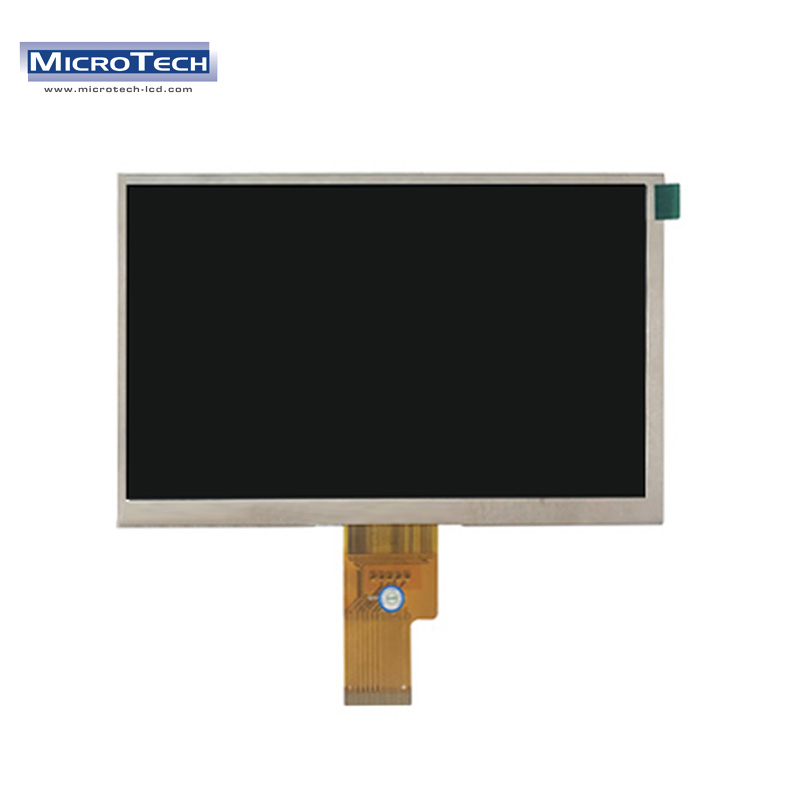

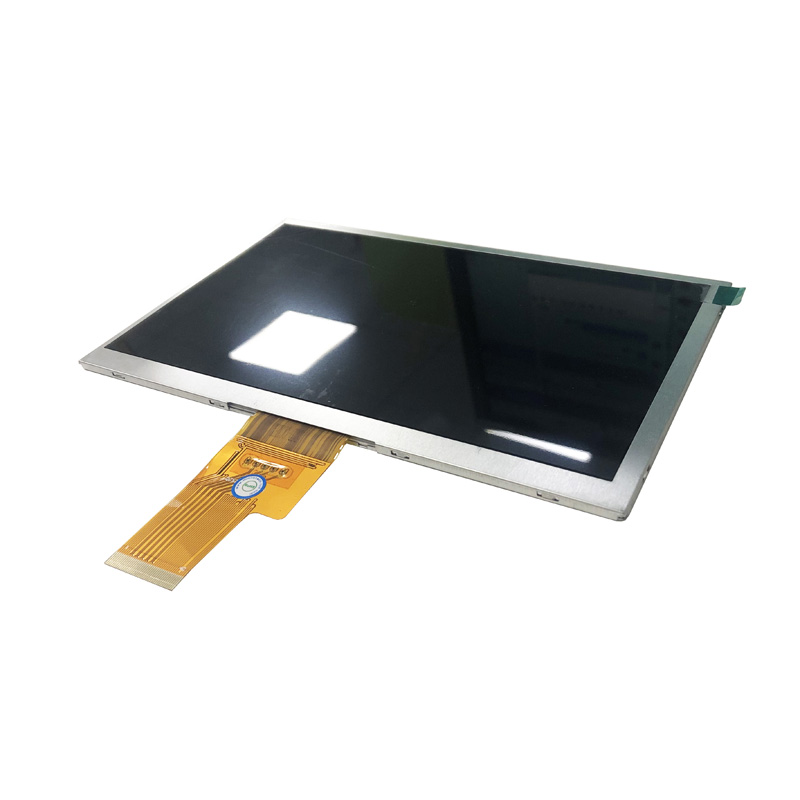

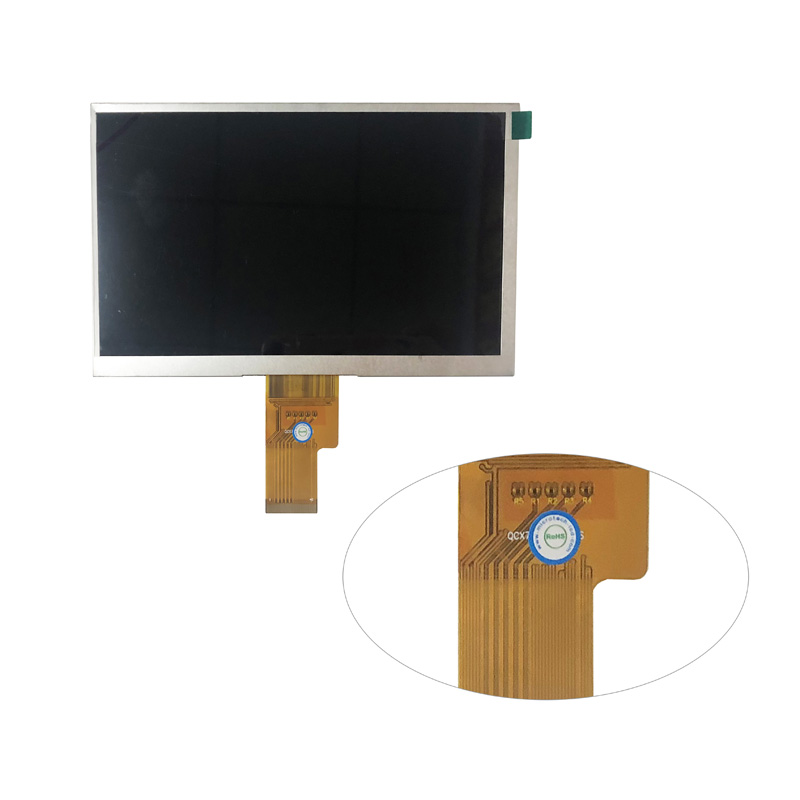

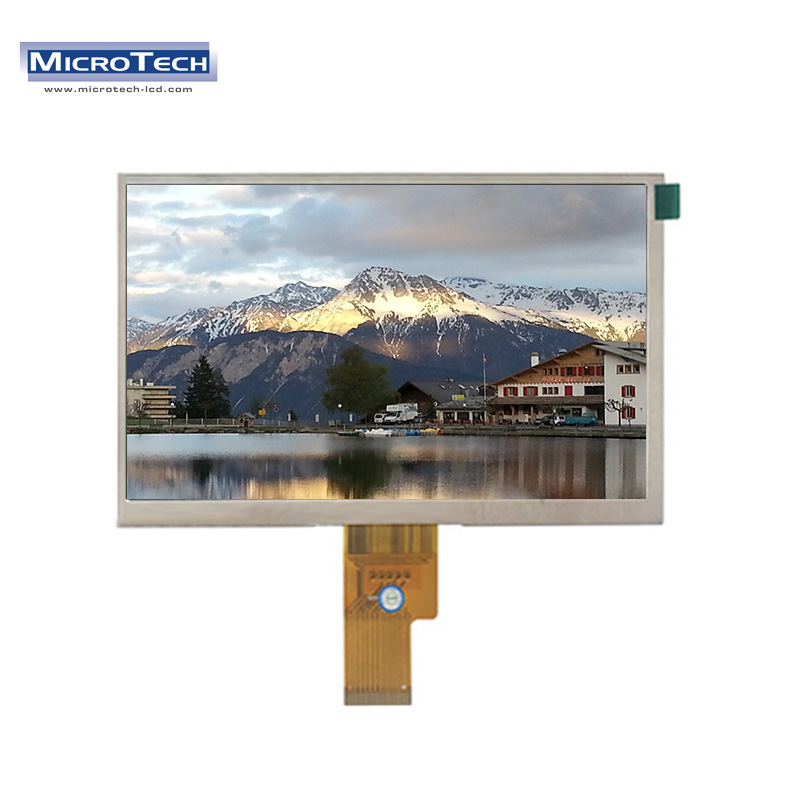

800*480 LCD module 1000nits 7.0 inch TN customized LCD screen with RGB 24 bits TCON

Feature		Spec
Display Spec.	Size	7.0 inch
	Resolution	800(RGB) x 480
	Technology Type	a-Si TFT
	Pixel Configuration	R.G.B. Vertical Stripe
	Pixel pitch(mm)	0.1926 (H) x 0.179(V)
	Display Mode	TM,NW
	Surface Treatment	Anti Glare
	Viewing Direction	12 o’clock
	Gray Scale Inversion Direction	6 o’clock
Mechanical Characteristics	LCM (W x H x D) (mm)	164.9x 100 x 5.7
	Active Area(mm)	154.08 (W) x 85.92 (H)
	With /Without TSP	Without TSP
	Matching Connection Type	FH12A-50S-0.5H
	LED Numbers	24 LEDS
	Weight (g)	TBD
Electrical Characteristics	Interface	RGB 24 bits with TCON
	Color Depth	16.7M
	Driver IC	HX8264D1+HX8664B1
