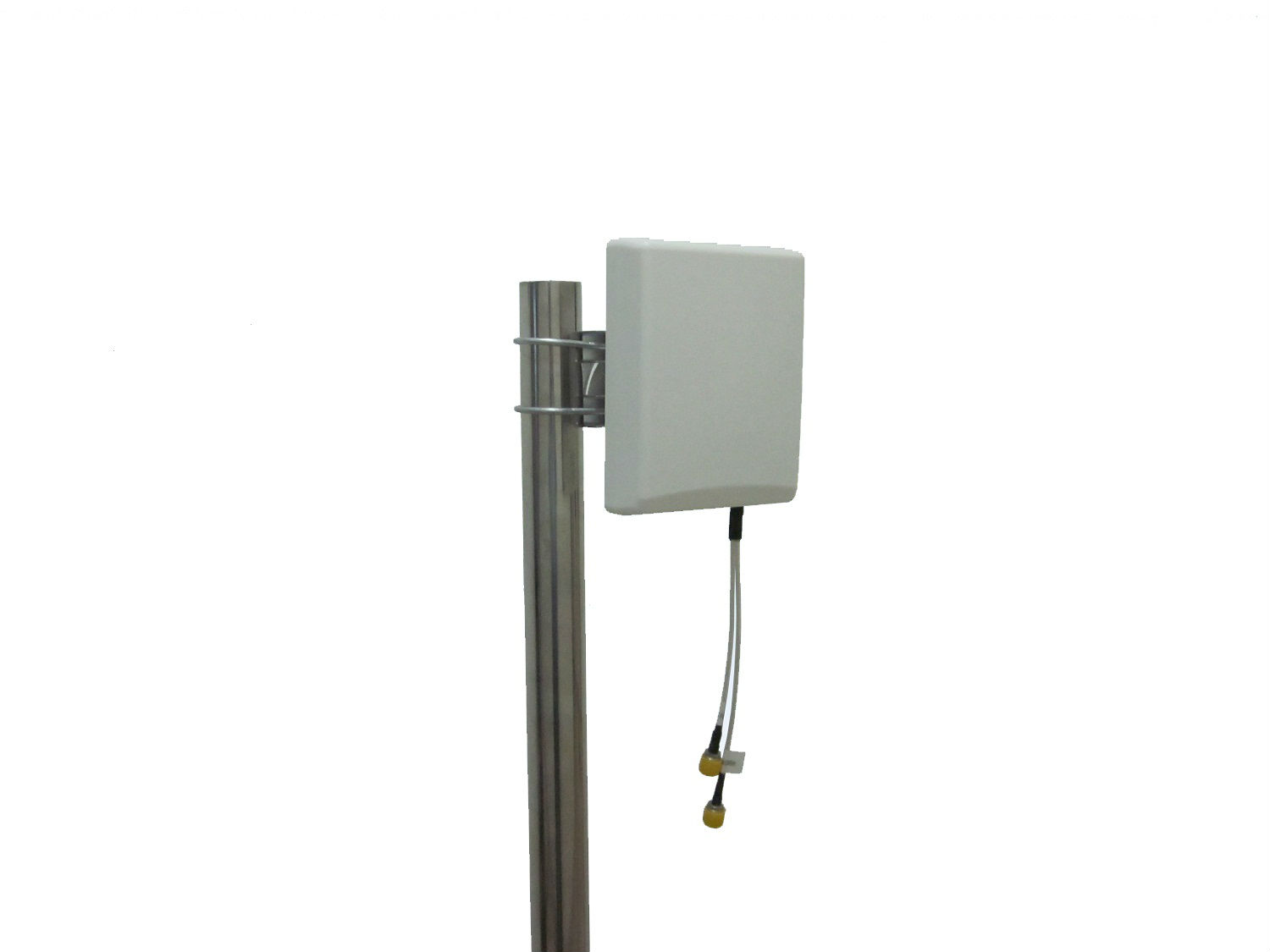

806-2700MHz LTE Mimo Antenna
Production Lead Time:
7 day(s)
Model No.:
SHD-D-082712-BGHV
Brand:
SHD/OEM
Size:
203x156x46mm
Port:
Guangzhou, Shenzhen
Type of Payment:
100% before shipment by TT
Minimum Order Quantity:
100
Description
Contact Supplier

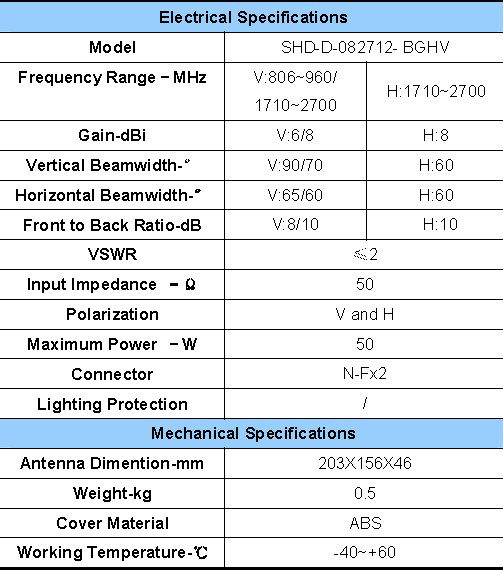

Description
- Frequency Range–MHz: V:806~960/1710~2700; H:1710~2700
- Gain-dBi: V:6/8; H:8
- Vertical Beamwidth-°: V:90/70; H:60
- Horizontal Beamwidth-°: V:65/60; H:60
- Front to Back Ratio-dB: V:8/10 ; H:10
- VSWR: ≤2
- Input Impedance –Ω:50
- Polarization: V and H
- Maximum Power –W: 50
- Connector: N-Fx2
- Antenna Dimension-mm: 203X156X46
- Weight-kg: 0.5
- Cover Material: ABS
- Working Temperature-℃: -40~+60
