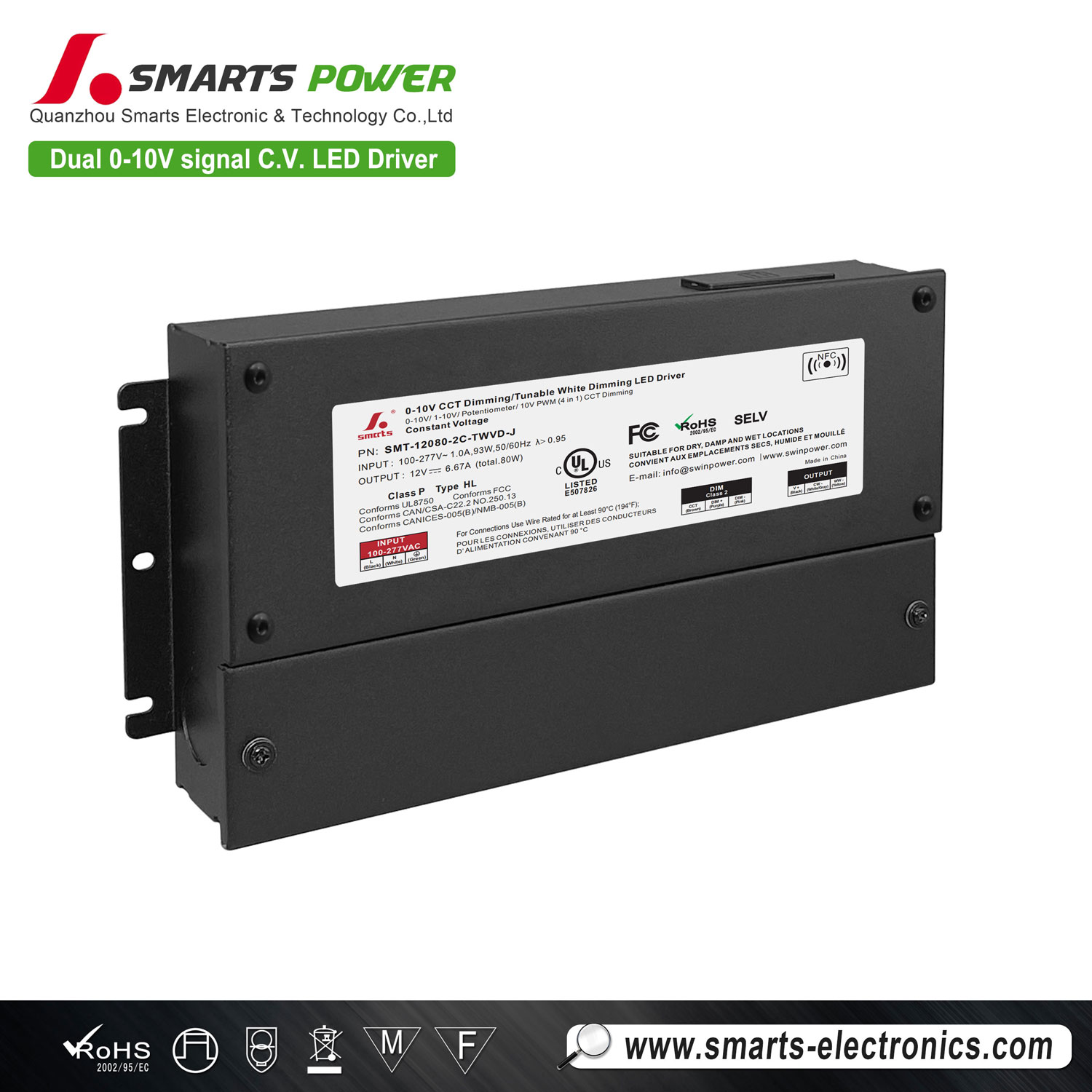

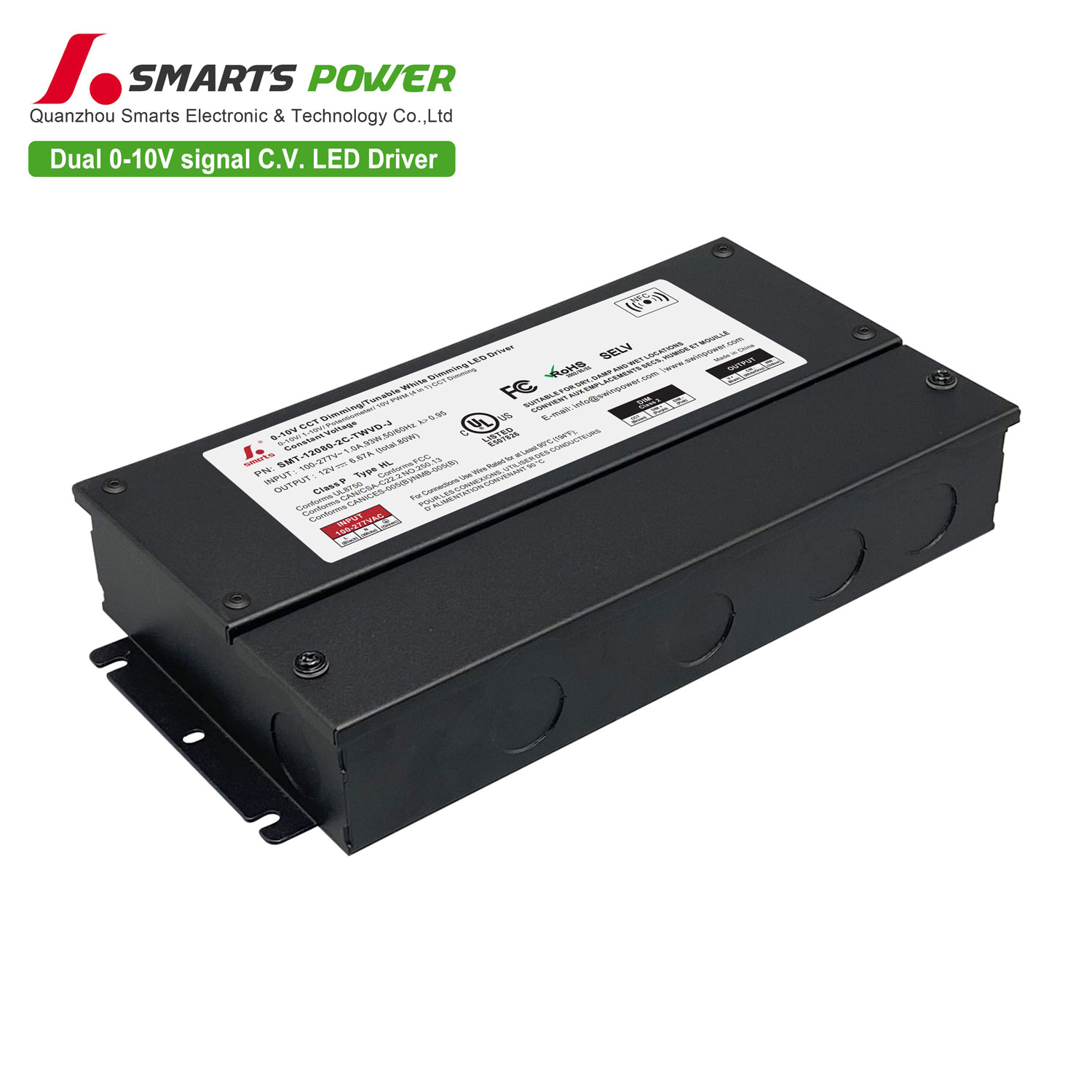

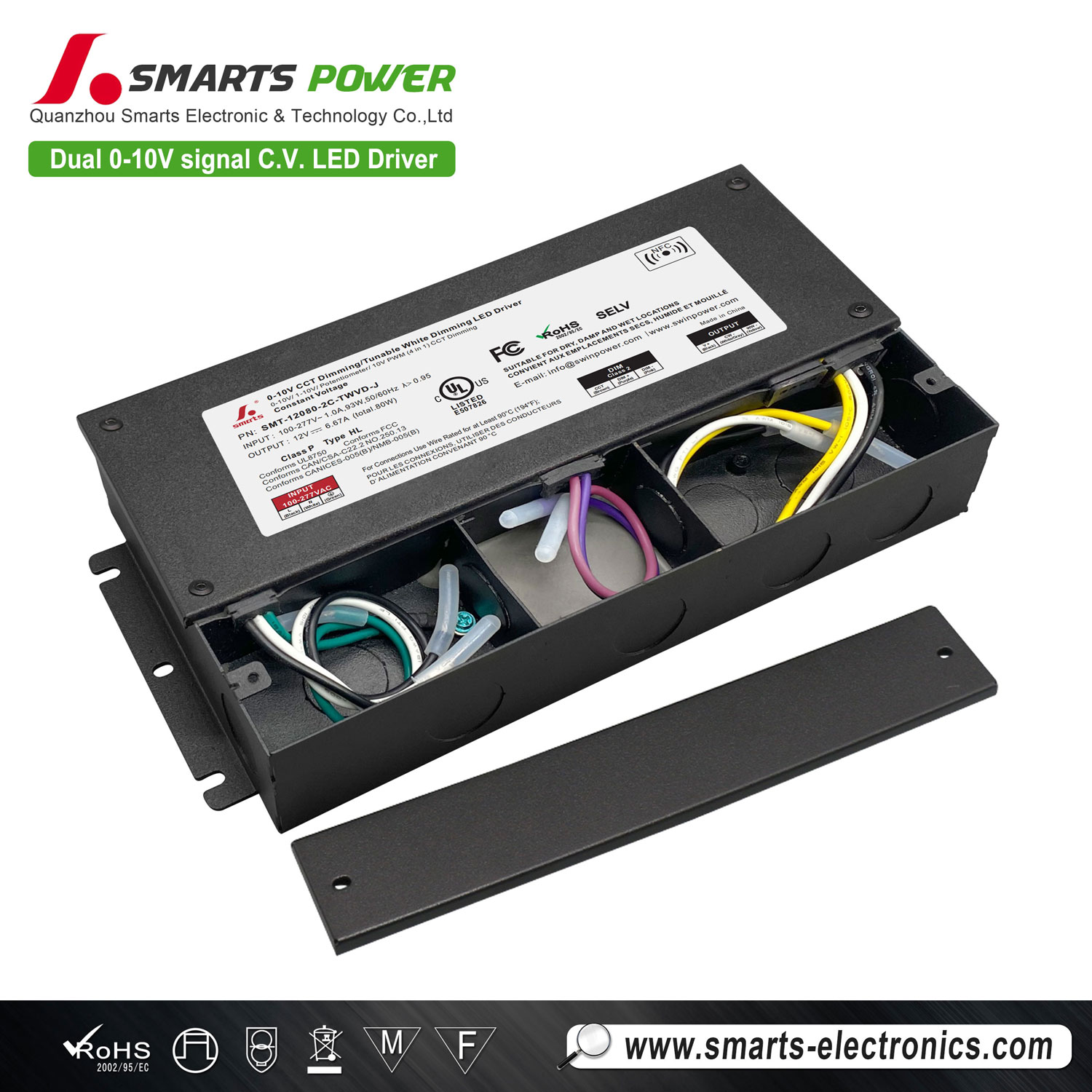

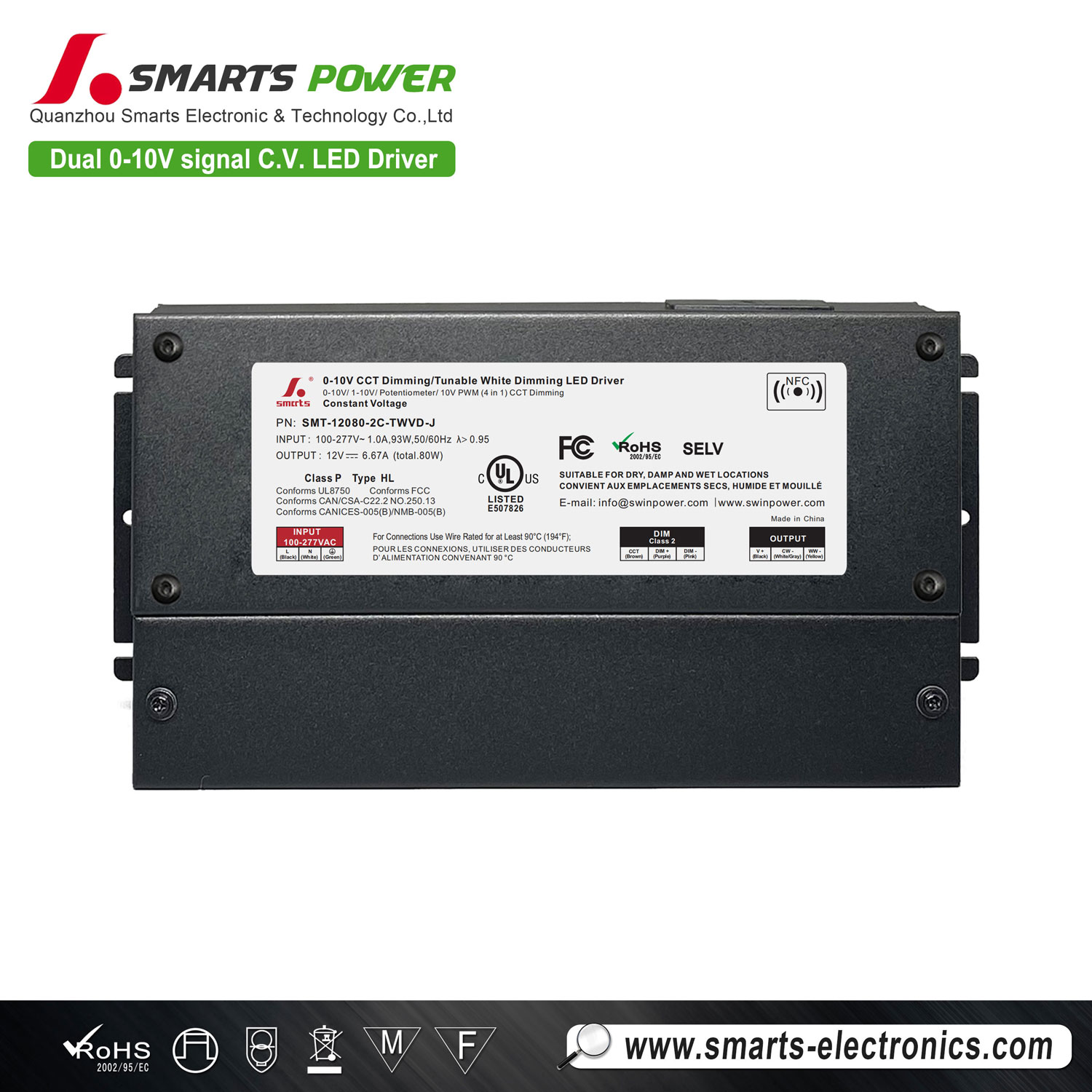

80W Dual 0-10V Signal Tunable White Dimming Mode Constant Voltage led driver with Junction Box

Output:

Constant Voltage

Range:

100-277VAC

Efficiency:

Up to 91%

PFC design:

Built-in active PFC function

Dimming range:

0-100%

Warranty:

7 years warranty

Waterproof performance:

12V&24V: Full aluminum protection housing, for dry, damp & wet locations. 48V: Full aluminum protection housing, for dry and damp locations.

Protections:

Short circuit / Over load / Over temperature

Heat dissipation:

Cooling by free air convection

Description

Contact Supplier

Model		SMT-12080-2C-TWVD-J	SMT-24080-2C-TWVD-J	SMT-48080-2C-TWVD-J
Certificate		UL / cUL / FCC / ICES-005 / Class P / Class 2 (24V&48V) / TYPE HL / SELV / ROHS / REACH
Output	Rated Voltage	12V	24V	48V
	DC Voltage	12-13.5V adjust by NFC	24-26V adjust by NFC	48-50V adjust by NFC
	Voltage Tolerance	±0.5V	±0.5V	±0.5V
	Voltage Regulation	≤0.5%	≤0.5%	≤0.5%
	Load Regulation	≤2%	≤1%	≤1%
	Rated current	6.67A	3.33A	1.67A
	Rated power	80W
Input	Voltage Range	100-277VAC
	Frequency Range	50 / 60Hz
	Power Factor (Typ.) @ full load	>0.95
	THD(Typ. ) @ full load	≤15%
	Efficiency(Typ.) @ full load	87%@120VAC 88%@230VAC 89%@277VAC	87%@120VAC 88%@230VAC 89%@277VAC	89%@120VAC 90%@230VAC 91%@277VAC
	AC Current (Max.)	1A
	Inrush Current (Typ.)	28A, 320us @50%120VAC 90A, 76us @50%230VAC 58A, 260us @50%277VAC
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed.
	Over Load	105%~120% Hiccup mode, recovers automatically after fault condition is removed.
	Over temperature	Shell surface temp.100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment	Working TEMP.	-40~+60℃ (see below derating curve)
	Working Humidity	20 -95%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH non-condensing
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes
Safety & EMC	Safety standards	UL8750; CAN/CSA-C22.2 No. 250.13
	Withstand voltage	I/P-O/P:1.88KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH
	EMC Immunity	FCC/ICES do not request this test.
	EMC Emission	FCC CFR Title 47 Part 15 Subpart B:2020; ICES-005 Issue 5
Others	Net Weight	1.73KG
	Dimension	24112542.7mm(LWH)
	Packing	305262283mm 20pcs/CTN
Notes	1. All parameters NOT specially mentioned are measured at 120VAC input,rated load and 25℃ of ambient temperature.
	2. Under low input voltage, derating output is required to ensure a long life.
	3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10.
