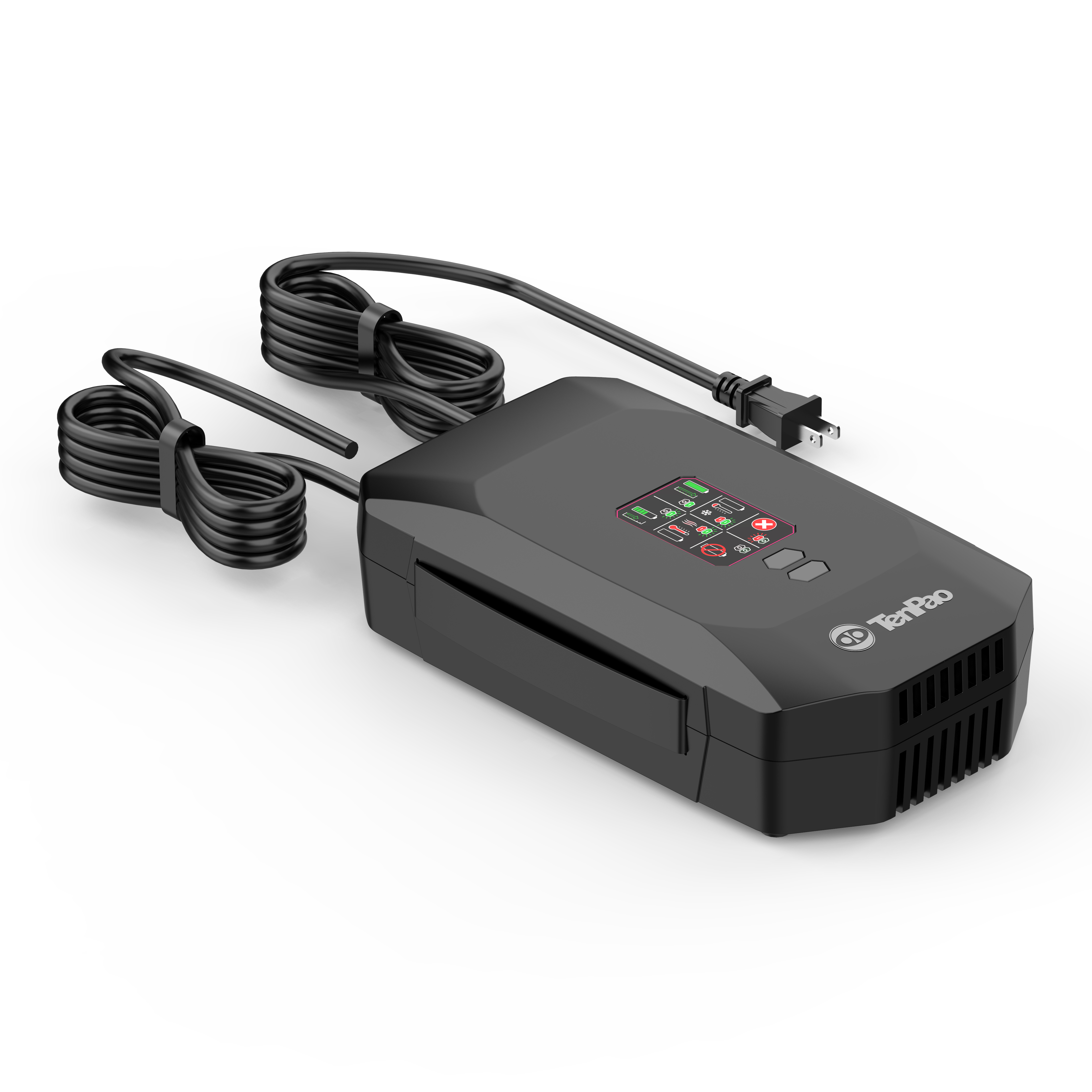

840W Smart Battery Charger

Ten Pao Int'l Ltd

Enquire

Compare & Bulk Enquire

Brand:

tenpao

Model No.:

840W Smart Battery Charger

Description

Contact Supplier

Product introduction：

Middle protection series smart charger adopts fixed AC line design, built-in soft switch and digital communication technology, can quickly respond to control instructions, excellent performance in battery adaptation, can better match the battery charging curve, to achieve a safe and reliable effect.

Main feature：

Intelligent and efficient/Good heat dissipation/Small volume/Easy to carry/Wide range voltage/Flexible upgrade/Digital communication/IPx3 Protection

	840W		unit
AC Input
Input voltage range	100-132 or 176-264		Vac
AC current harmonics THD	<5		%
Power factor	>0.99
Efficiency	> 90@from50%toMaxload		%
Max input current	12		Aac
DC output	Type 1	Type 2
Output rated voltage	60 (optional)	90 (optional)	Vdc
Output voltage range	CV:20-60	CV:30-88	Vdc
Charging current accuracy	≤5	≤5	mVp-p
Ripple	≤750	≤900	mAp-p
Max charging current	15	10	A
Communication method	CAN/485, UART or user define
Dimension	L282W168H76		mm
