Product introduction:

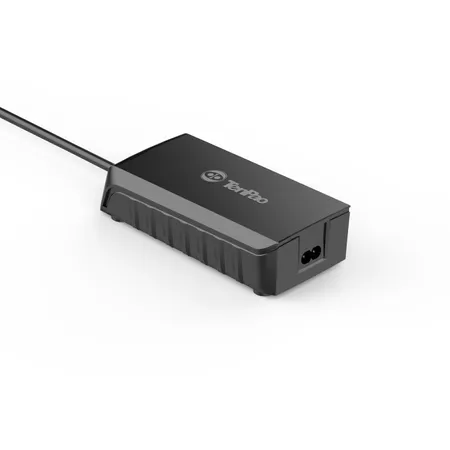

Middle protection series smart charger adopts fixed AC line design, built-in soft switch and digital communication technology, can quickly respond to control instructions, excellent performance in battery adaptation, can better match the battery charging curve, to achieve a safe and reliable effect.
Main feature:
Intelligent and efficient/Good heat dissipation/Small volume/Easy to carry/Wide range voltage/Flexible upgrade/Digital communication/IPx3 Protection
| 84W | unit | ||
| AC Input | |||
| Input voltage range | 90-264 | Vac | |
| AC current harmonics THD | IEC61000-3-2 | % | |
| Power factor | N/A | ||
| Efficiency | > 88 at full load | % | |
| Max input current | 1.6 | Aac | |
| DC output | |||
| Output rated voltage | 42 | Vdc | |
| Output voltage range | 15-42 | Vdc | |
| Charging current accuracy | ≤10 | mVp-p | |
| Ripple | ≤300 | mAp-p | |
| Max charging current | 2 | A | |
| Communication method | UART/User define | ||
| Dimension | L160*W78*H40 | mm | |
