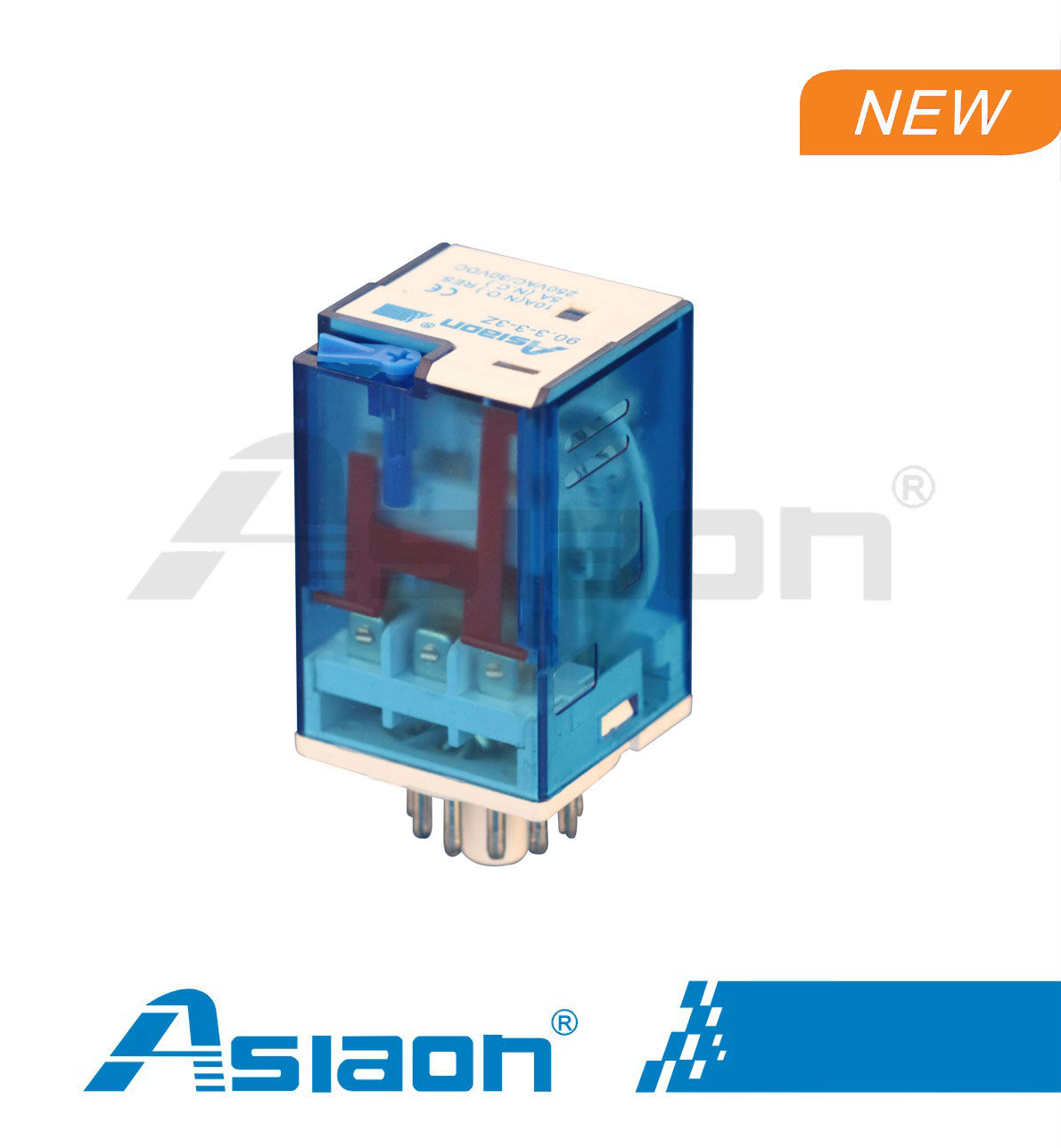

90.2 90.3 Series General Purpose Relay
Production Lead Time:
3 day(s)
Brand:
Asiaon
Usage:
General Purpose
Package:
Yes
Customised:
Yes
Description
Contact Supplier
Description
- Contact Specification Contact form 2Z, 2H, 2D
- Contact material AgCdO AgSnO2
- Contact capacity 10A 250VAC/30VDC
- Technical Specification
- Terminal type Electron tube pin Coil
- Rated coil power 1.6W/2.8VA DC
- Coil Data Nominal voltage Operate voltage Release voltage Coil resistance VDC VDC VDC ohms±10% 6 4.8 0.6 22.5 12 9.6 1.2 90 24 19.2 2.4 360 48 38.4 4.8 1440 100 80.0 10.0 6250 110 88.0 11.0 7560 AC
- Coil Data Nominal voltage Operate voltage Release voltage Coil resistance 6 4.8 1.8 4.5 12 9.6 3.6 18 24 19.2 7.2 72 48 38.4 14.4 288 110/120 88.0 36.0 1512 220/240 176.0 72.0 6050/7200
- Matched socket AS760 90.20 90.22 MT750
