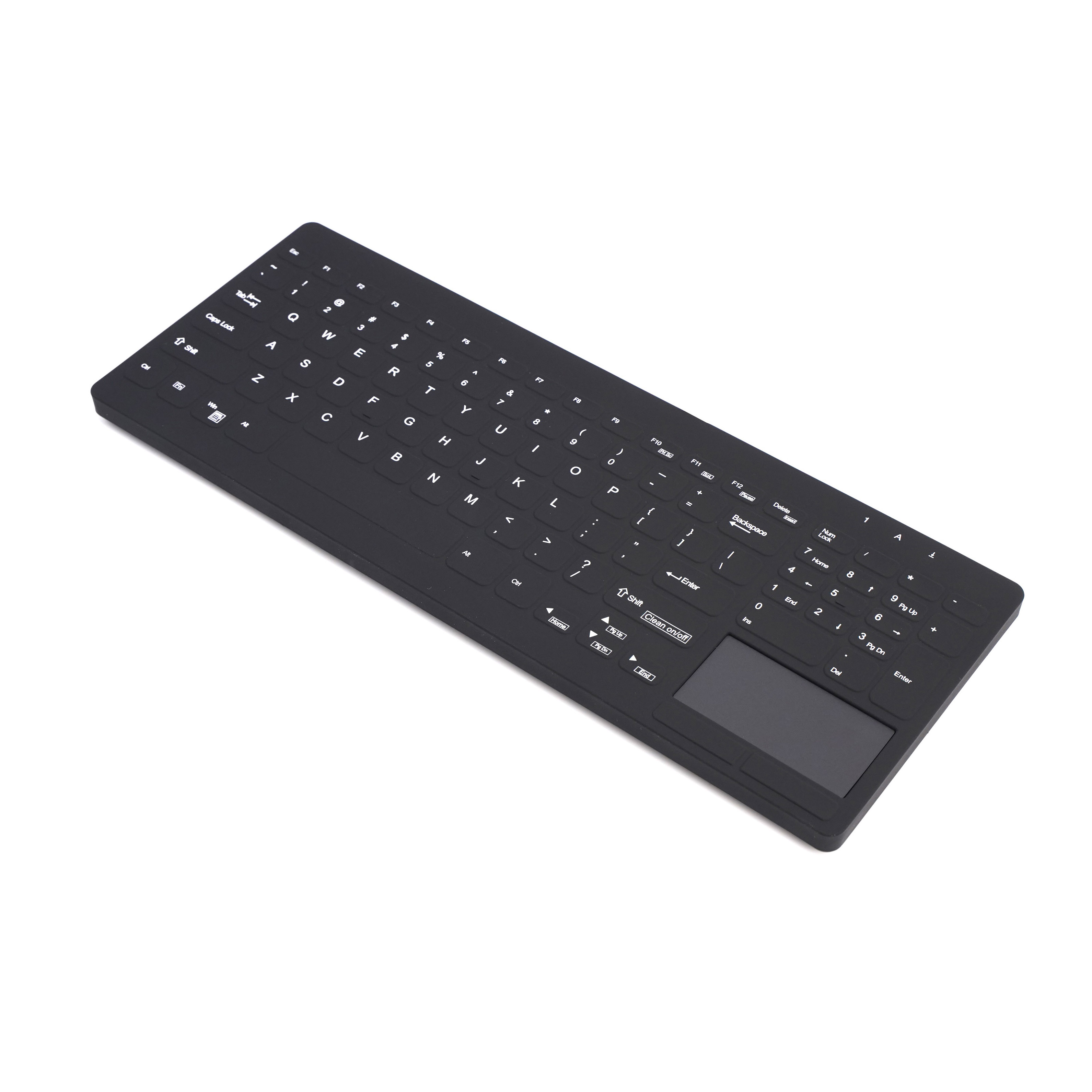

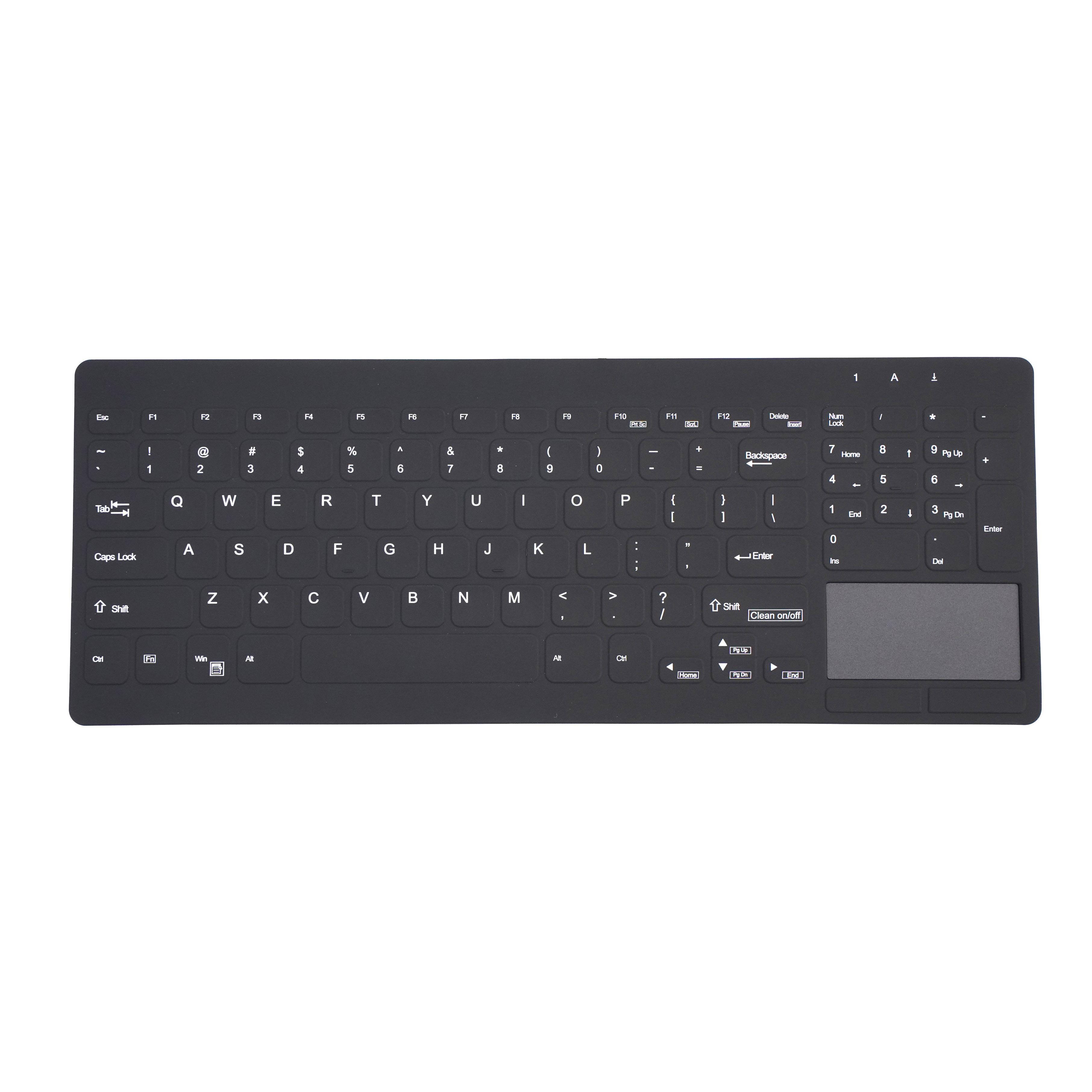

95 Low Profile Scissor Keys with Built-in Numpad and Touchpad
Share this page
Model Number:
CK95B
Customised:
Yes
Size:
365 x 139.6 x 15.7mm
Number of Keys :
95
Approval and Compliance:
FCC / CE / RoHS / REACH
Brand:
Hengyu
Color:
White/Black
Description
Contact Supplier
Description
Main Features
● 95 low profile scissor keys, with built-in numpad and touchpad
● EasyClean key combination temporarily disables all keys for efficient disinfection
● Crevice-free silicone surface can be sprayed and wiped
● Quickly cleaned and disinfected with hospital-approved germicidal wipes
● Powered by patented cleaning scheduling and detection software

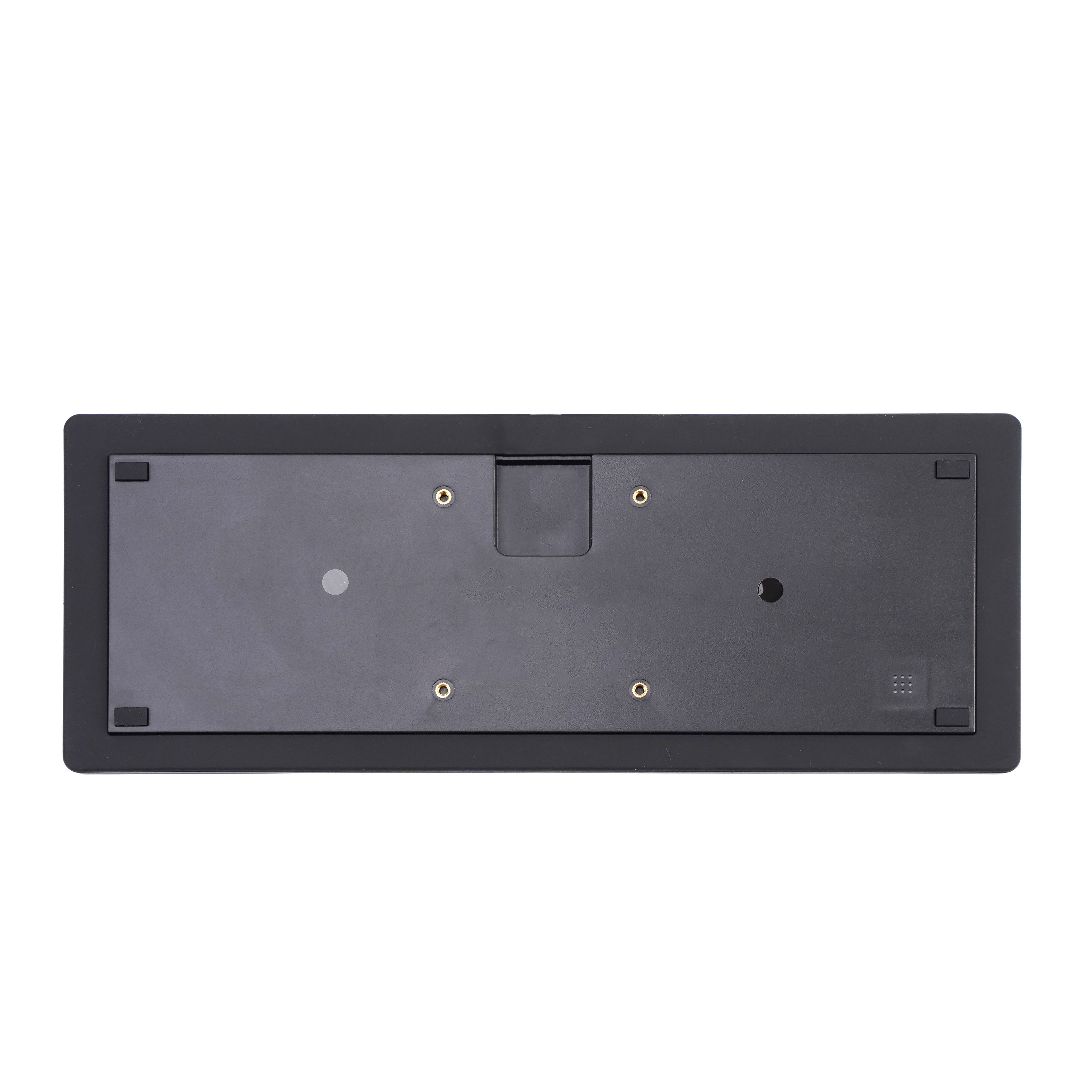

● With VESA-mounting holes (75x75mm) for mounting to different equipment
● With Optional Backlit version
● With two cable options:
 - IP65: detachable type C cable
 - IP68: built-in sealed cable
● Support three interfaces: USB, Bluetooth and RF (2.4G)
● With built-in rechargeable lithium battery (for wireless version)

[Electronics]
[USB]
Input Voltage Range:  5V
Max current consumption:
less than 100mA (non-backlit version)
less than 150mA (backlit version)
[Wireless]
Lithium Battery Capacity: 1000mAH
[RF]
Working current: 7mA
Sleeping current: 250uA
[Bluetooth]
Working current: 8mA
Sleeping current: 250uA

[Touchpad]
Touchpad Active Area: 71.7 x 35.8mm
Gesture supported: All Windows gestures

[Mechanical]
Number of Keys: 95
Key strokes life: 10 million
Key Travel Distance: 2mm

[Others]
Storage temperature: -40˚C to +55˚C
Operating temperature: 0˚C to +45˚C
Operating humidity: 40% to 90%
Dimensions: 365 x 139.6 x 15.7mm
Approval and Compliance: FCC / CE / RoHS / REACH
