    96 Low Profile Scissor Keys With Built-in Numpad
    Share this page
    Model Number:
    CK96A
    Customised:
    Yes
    Size:
    373 x 138 x 37 mm
    Number of Keys :
    96
    Approval and Compliance:
    FCC / CE / RoHS / REACH
    Brand:
    Hengyu
    Color:
    White/Black
    Description
    Contact Supplier
    Description
    Main Features

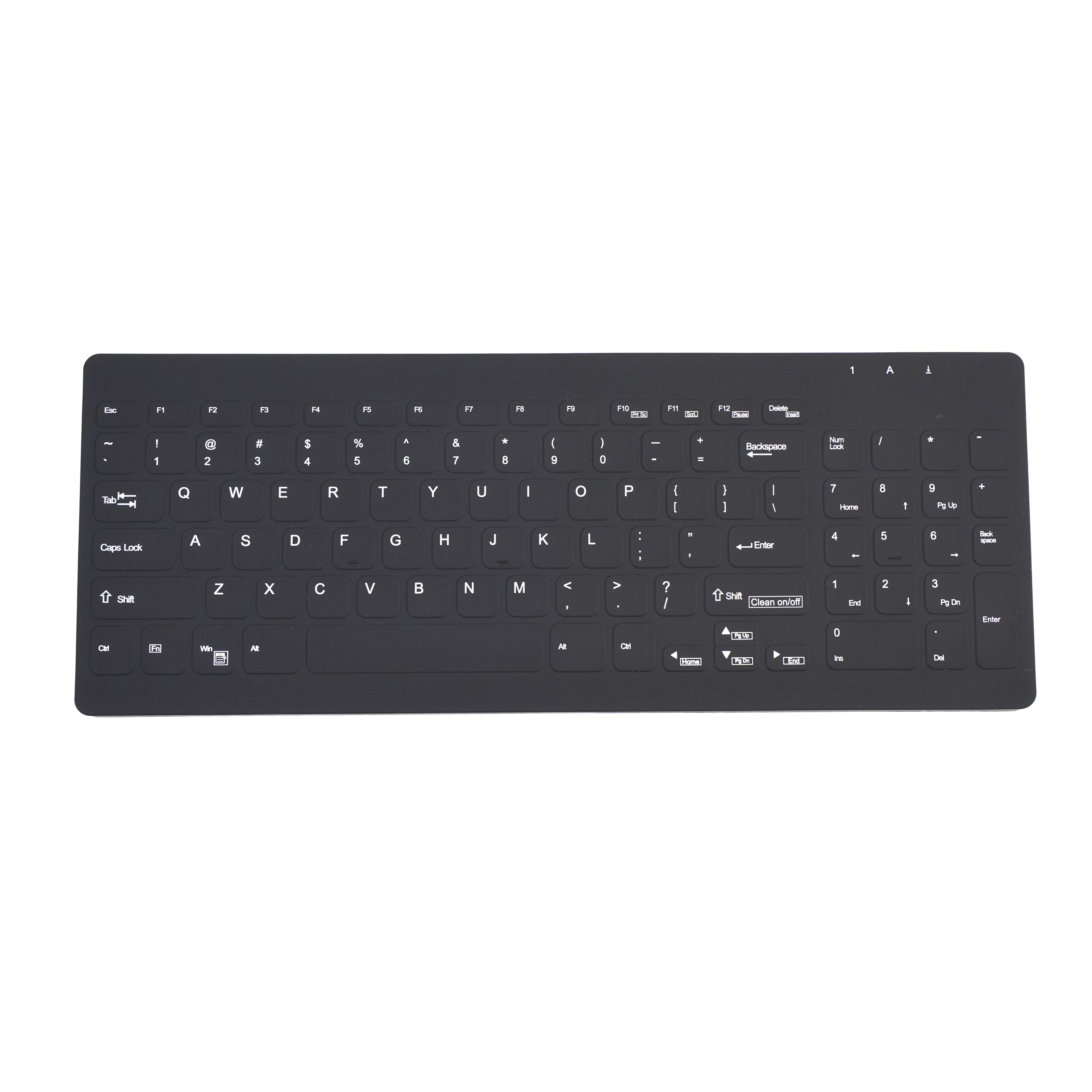

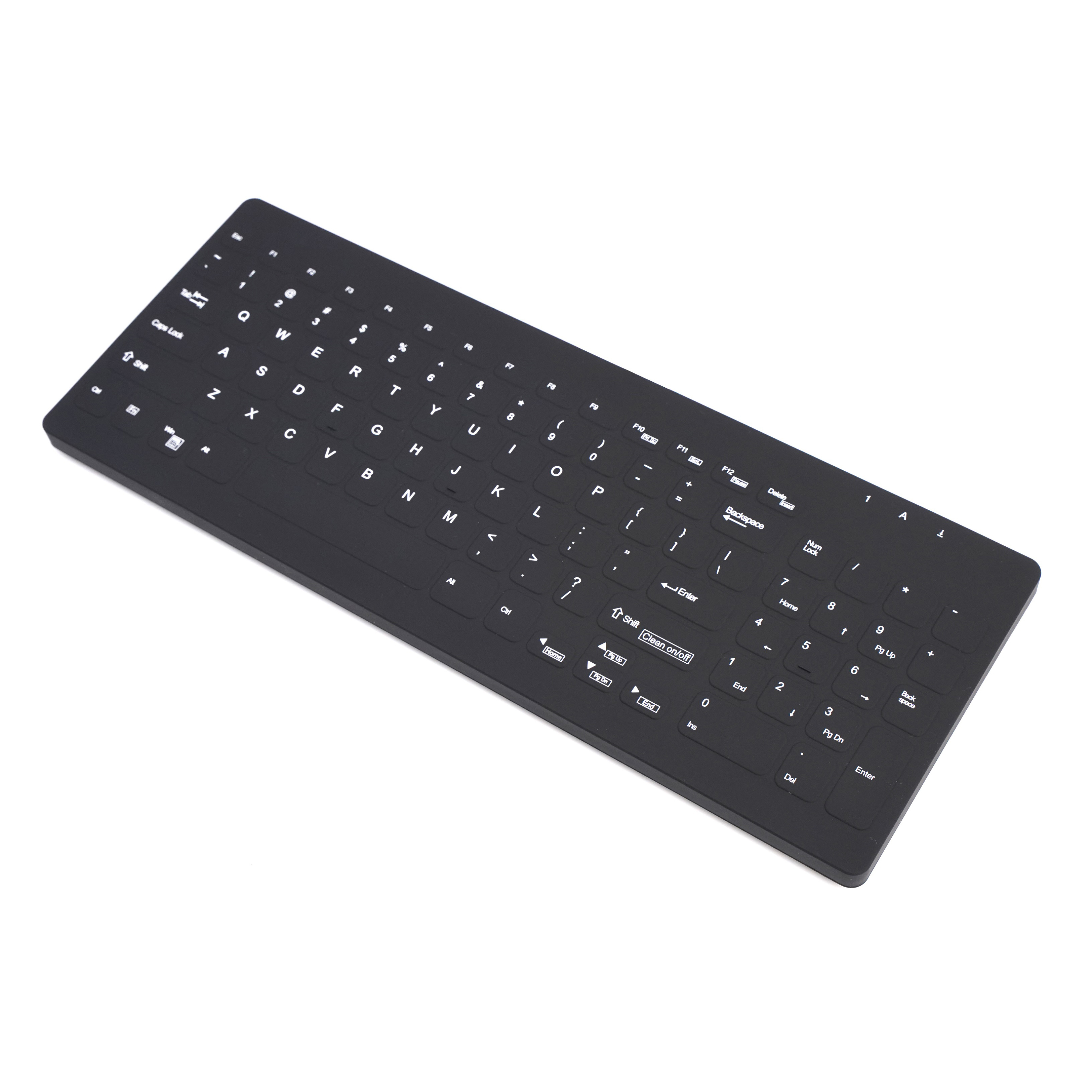

    ● 96 low profile scissor keys, with built-in numpad
    ● EasyClean key combination temporarily disables all keys for efficient disinfection
    ● Crevice-free silicone surface can be sprayed and wiped
    ● Quickly cleaned and disinfected with hospital-approved germicidal wipes
    ● Powered by patented cleaning scheduling and detection software

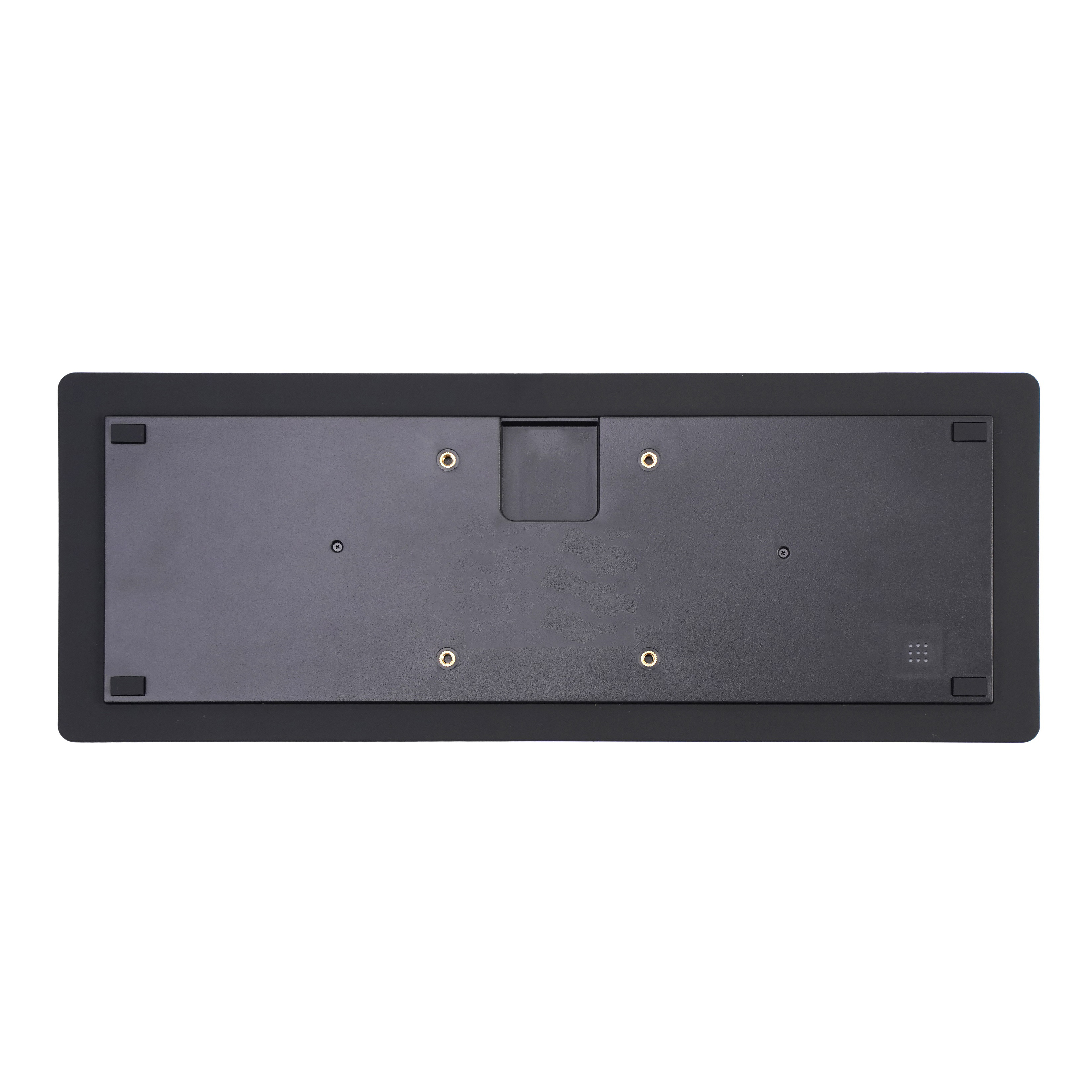

    ● With VESA-mounting holes (75x75mm) for mounting to different equipment
    ● With Optional Backlit version
    ● With two cable options:
     - IP65: detachable type C cable
     - IP68: built-in sealed cable
    ● Support three interfaces: USB, Bluetooth and RF (2.4G)
    ● With built-in rechargeable lithium battery (for wireless version)

    [Electronics]
    [USB]
    Input Voltage Range:  5V
    Max current consumption: less than 100mA
    [Wireless, RF 2.4G]
    Power Supply: "AAA" x 4
    Input Voltage Range: 6V
    Current Consumption:
       ~20mA @ Key pressing (operation)
       ~50u A @ Idle mode
       ~50uA @RF suspend (Deep sleep mode)

    [Mechanical]
    Number of Keys: 103 (US-ANSI); 104 (EU-ISO)
    Key strokes life: 10 million
    Key Travel Distance: 2mm
    IP68 compliant
    Battery Replaceable:
      1) Twist and pull the battery cover on side
      2) Replace the battery
      3) Twist and lock battery cover on side again

    [Others]
    Storage temperature: -40˚C to +55˚C
    Operating temperature: 0˚C to +45˚C
    Operating humidity: 40% to 90%
    Dimensions:
      USB: 373 x 138 x 21 mm
      RF: 373 x 138 x 37 mm
    Approval and Compliance: FCC / CE / RoHS / REACH
