AAT Automatic Antenna Tracker with Flat-panel directional auto tracking antenna for drone Mavlink wireless video data transmitter and receiver

US $1280.00 - US $1380.00

Production Lead Time:

10 day(s)

Shipping Method:

Express

Brand:

iVcan.com

Customised:

Yes

Feature:

Automatic Antenna Tracker

Model No.:

iVcan1916

Weight:

4kgs

Colour:

Black

Optional Accessory:

Flat Panel Antenna, Tripod, Tray, Battery

Description

Contact Supplier

Flat-panel automatic tracking antenna directional antenna for drone Mavlink wireless video data transmitter and receiver Vcan1916

Introduction

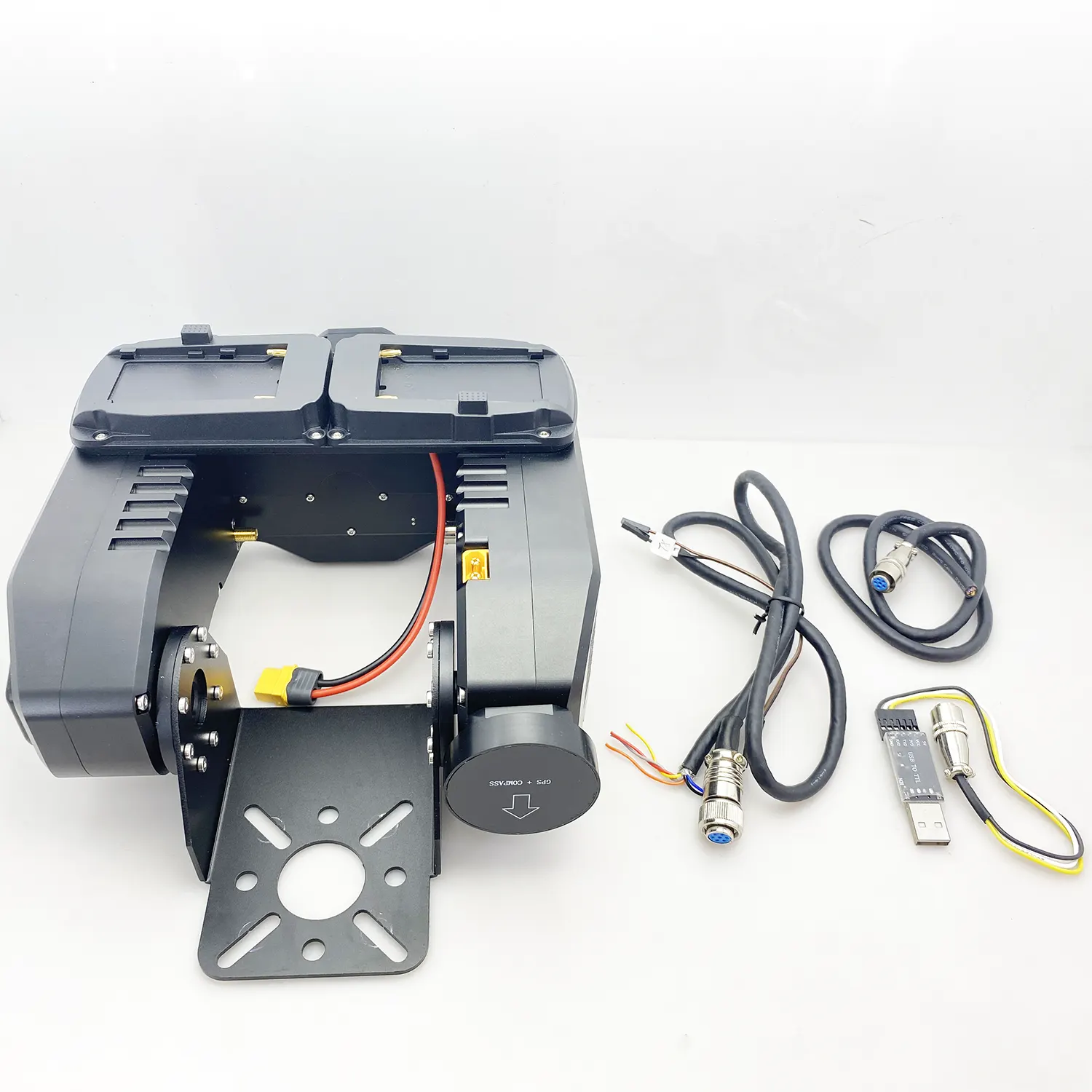

This is a gimbal for the automatic antenna tracker.
It can be installed on a tripod, and the flat-panel directional antenna is installed on this gimbal.
After installing them and setting it up, it can ensure that the flat-panel directional antenna always faces the drone. Wherever the drone is flying away or in any direction, the gimbal will source and adjust its angle according to the drone’s GPS position.
The auto-tracking antenna system will help the wireless drone video data link to get the strongest signal.
automatic antenna tracking system gimbal for flat panel directional antenna
automatic antenna tracking system gimbal for flat panel directional antenna

Feature

Smart-size and light-weight
Real-time and high-accuracy auto-tracking
Compatibility with a wide variation of flight controllers
Up to 3GHz frequency supported

Specification

Yaw stability enhancement accuracy <0.5°
Pitch stability enhancement accuracy <0.1°
Yaw rotation range Unlimited
Pitch rotation range -15~135°
Maximum horizontal turning rate 300°/s
Maximum vertical turning rate 60°/s
Weight 2.6kg
Maximum torque 300 N.cm
Operational voltage DC 12V~15V
Average power consumption 15W
Working temperature -20~60℃
IP level 65
Working humidity 20%~70%
Interface TTL serial
Supported protocol MavLink, NMEA-0183

FAQs

1. Does your automatic antenna tracker support 3.5G frequency?
2. Is there slip ring on rf cable, so your AAT can rotate 360 degrees continuously?
3. To use in a drone-based data link project we are interested in your Auto Antenna Tracking System.
How to install the Automatic Tracker Antenna AAT to your drone wireless Video Data transmitter and receiver
Automatic Antenna Tracking AAT Mavlink Protocol for Drone Video Transmitter Antenna Tracker
Automatic Antenna Tracker Gimbal Construct and Interface
Automatic Antenna Tracking AAT Mavlink Protocol for Drone Video Transmitter Antenna Tracker

Download

Auto Antenna Tracker_datasheet

AAT Users Manual

Relative Keywords

антенный трекер для fpv

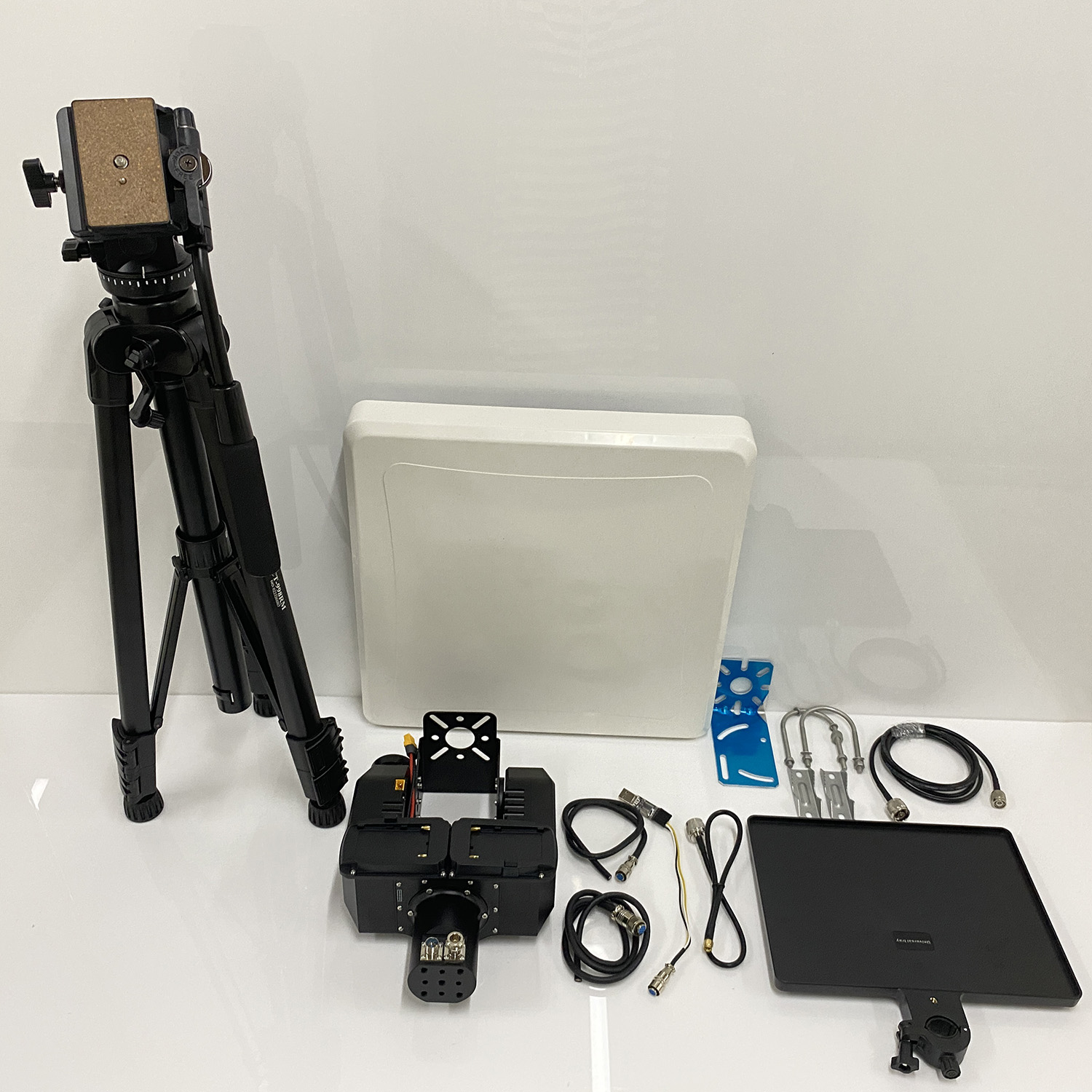

What accessories at a set of auto-tracking antennae (picture and quotation)

Automatic Antenna Tracker
Two Battery for Automatic Antenna Tracker
Flat panel directional antenna
390cm x 390 cm or 260cm x 260cm details
Tripod
Tray

Please tell us if you want to order

Antenna connector type for your wireless video data transmission
connector cable from the automatic antenna tracker to the wireless video data transmitter
If you just buy our automatic antenna tracker to connect your own wireless video data transmitter, then it is better to tell us what type of antenna, the default is SMA.
The data port of the AAT default is TTL, please tell us if the data port of your wireless video data transceiver is RS232.
Can you please purchase batteries locally? Battery Model: NP-F980
