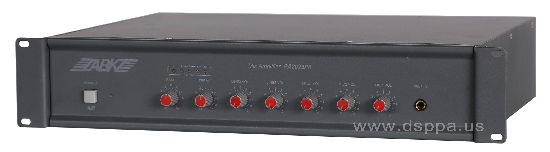

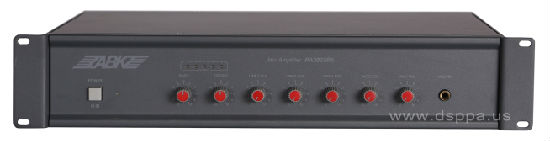

    ABK 250W PA System Mixer Amplifier
    Share this page
    Production Lead Time:
    7 - 30 day(s)
    Model No.:
    PA2025PII
    Brand:
    ABK
    Colour:
    Black
    Size:
    480 x 340 x 88mm
    Port:
    Guangzhou
    Type of Payment:
    L/C, T/T
    Minimum Order Quantity:
    10 piece(s)
    Output Power:
    250W
    Package:
    Yes
    Customised:
    Yes
    Type:
    Professional Amplifier
    Description
    Contact Supplier
    Description
    Features
    Ø  2 microphone inputs, 3 Line inputs, and 1 Line output
    Ø  Rated Power:250W
    Ø  Transformer for the speaker outputs at 100V,70V&4Ω--16Ω
    Ø  Muting function.

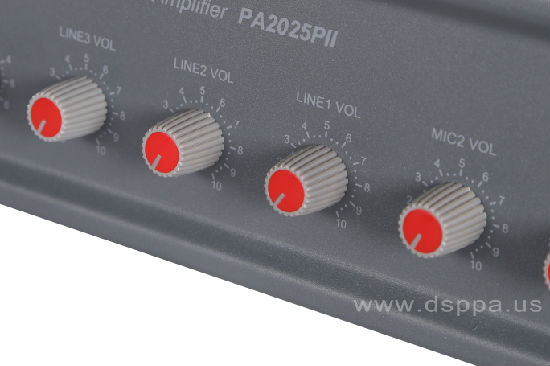

    Ø  Individual volume control.
    Ø  Low and high tone control.
    Ø  5 LED Indicator for status display
    Short-circuit, over-current, over-load, over-heat warning and protection, distortion

    Specifications
    Model———PA2025PII
    Rated output———250W
    Output regulation———Less than 3dB
    Speaker output———Balanced 4Ω, 70V, 100V
    AUX output———1V
    Input Sensitivity———Mic1,2,  3mV  unbalanced
     ———Line 1,2,3,  300mV  unbalanced
    Frequency response———60Hz -16kHz
    Distortion———Less than 0.5%  at 1kHz , 1/3 rated power
    The ratio of signal to noise ratio———Mic1 and 2  :   Bigger than 66dB
     ———Line1、2 and 3  Bigger than 70dB
    Tone———Bass :  ± 10dB at 100Hz
     ———Treble: ± 10dB at 10kHz
    Protection———AC fuse; DC voltage; overload; short-circuit.
    Muting function———Mic1 overrides other input signals with 0 to -30dB attenuation
    Power requirements———AC220-240V/50-60Hz
    Power consumption———500W
    Dimensions———480×340×88mm
    Weight———13.8kg
