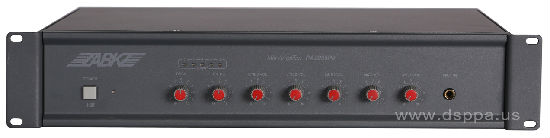

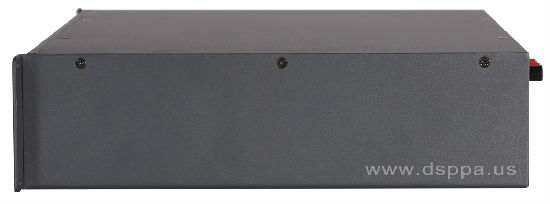

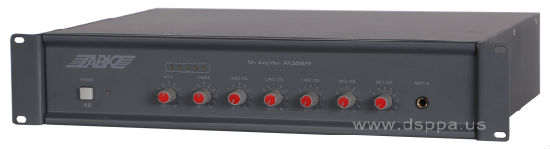

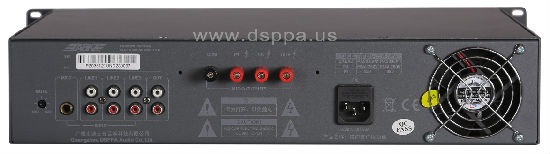

ABK 350W PA System Mixer Amplifier

Production Lead Time:

7 day(s)

Model No.:

PA2035PII

Brand:

ABK

Colour:

Black

Size:

480 x 340 x 88mm

Port:

Guangzhou

Type of Payment:

L/C, T/T

Minimum Order Quantity:

10 piece(s)

Output Power:

350W

Package:

Yes

Customised:

Yes

Type:

Professional Amplifier

Description

Contact Supplier

Features
Ø 2 microphone inputs, 3 Line inputs, and 1 Line output
Ø Rated Power:350W
Ø Transformer for the speaker outputs at 100V,70V＆4Ω--16Ω
Ø Muting function.

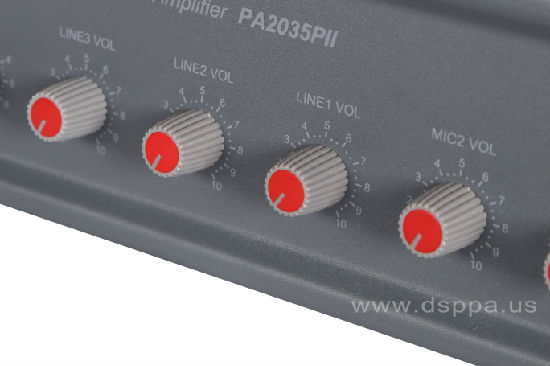

Ø Individual volume control.
Ø Low and high tone control.
Ø 5 LED Indicator for status display
Ø Short-circuit, over-current, over-load, over-heat warning and protection, distortion indication

Specifications
Model———PA2035PII
Rated output———350W
Output regulation———Less than 3dB
Speaker output———Balanced 4Ω, 70V, 100V
AUX output———1V
Input Sensitivity———Mic1,2, 3mV unbalanced
　———Line 1,2,3, 300mV unbalanced
Frequency response———60Hz -16kHz
Distortion———Less than 0.5% at 1kHz , 1/3 rated power
The ratio of signal to noise ratio———Mic1 and 2 : Bigger than 66dB
　———Line1、2 and 3 Bigger than 70dB
Tone———Bass : ± 10dB at 100Hz
　———Treble: ± 10dB at 10kHz
Protection———AC fuse; DC voltage; overload; short-circuit.
Muting function———Mic1 overrides other input signals with
Power requirements———0 to -30dB attenuation
Power consumption———AC220-240V/50-60Hz
Dimensions———650W
Weight———480×340×88mm
Dimensions———14.5kg
