ABK 450W PA System Power Amplifier

Production Lead Time:

7 day(s)

Model No.:

PA4002

Brand:

DSPPA

Colour:

Black

Size:

484 x 380 x 88mm

Port:

Guangzhou

Type of Payment:

L/C, T/T

Minimum Order Quantity:

10 piece(s)

Output Power:

450W

Package:

Yes

Customised:

Yes

Type:

Professional Amplifier

Description

Contact Supplier

Features

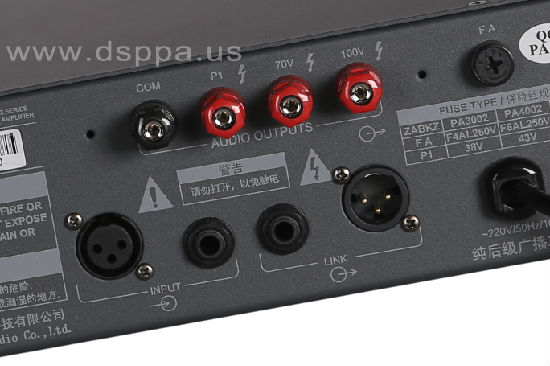

Ø Transformer isolated 100V, 70V and P1 outputs.
Ø Rated Power:450W
Ø 5 LED indicators for status display.
Ø XLR socket and 6.35 mm jack for link convenient.
Ø Output circuit shorting protection & display.
Ø Series amplifiers of high output power available.

Specifications
Model———PA4002
Max. Rated Power———450W
Input sensitivity———1V
S/N Ratio———＞80dB
Damping Factor———200:01:00
Input CMRR———greater than 90dB.
Frequency Response———50Hz-15kHz (±3dB)
THD into 4W/1kHz———＜0.3%
Slew Rate———＞15V/microsecond
Indicators———“power”, “clip”, “signal”, “prot”, and “temp” LEDs.
Protection———Power turn on-turn off,High temperature, DC voltage & Output Circuit Shorting.
Power Requirement———AC220-240V/50-60Hz
Power Consumption———850W
Dimensions———484´380´88mm
Weight———16.5kg
