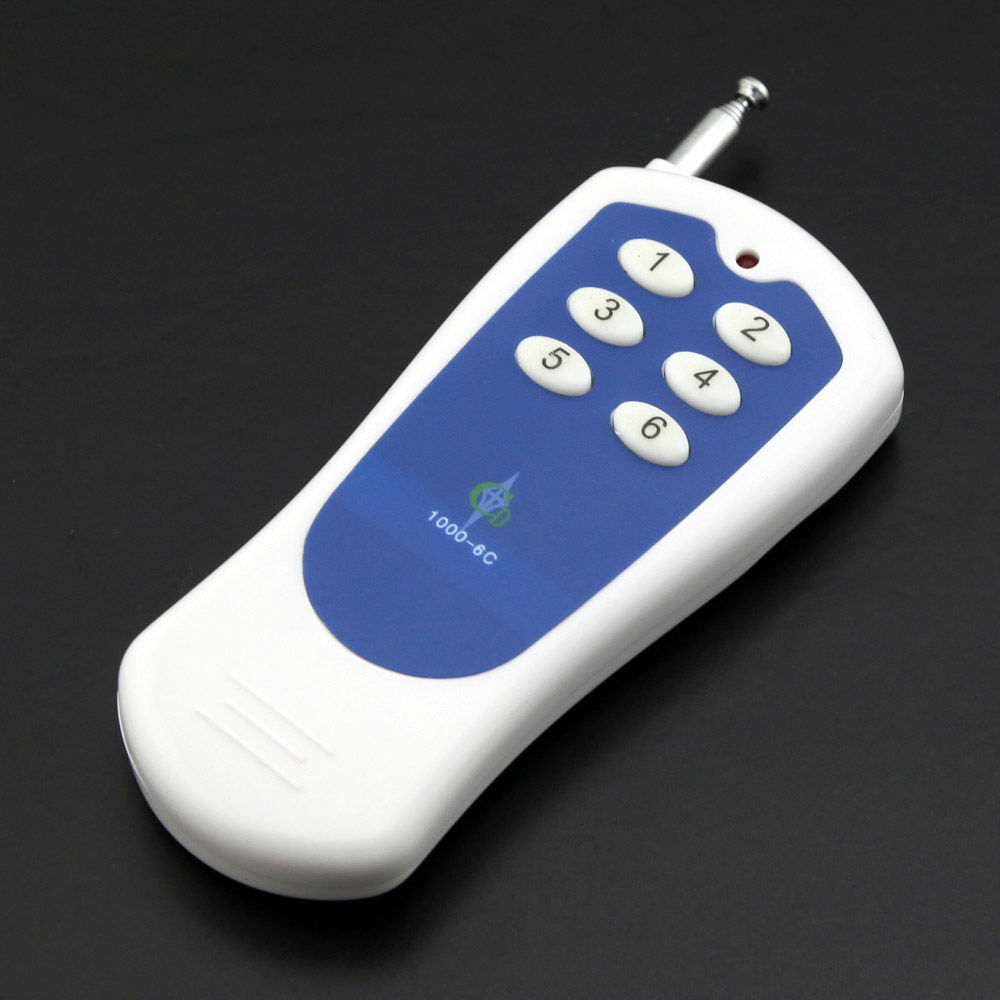

TRANSMITTER

• Operating Voltage: DC 12V
• Operating Frequency: 433Mhz
• Vibration Resistance: 4.7M
• Chip Type: 2264
• Modulation: ASK (Stable, less interference)
• Encode Type: Pads
• Battery Type: 12V 23A(not included)
• Remote Distance: 150m (Theoretical value)
• Ambient TEMP: -30℃ -70℃, Humidity<95%
• Product DIM: 105x48x15mm

RECEIVER

• Input Voltage: AC 220V
• Operating Frequency: 433Mhz
• Operation Way: Inching, Self-locking
• Coding Way: Intelligent Learning
• Output Type: Active output
• Max load: 1000W
• Ambient TEMP: -30℃ -70℃, Humidity<95%
• Factory Default: Self-locking

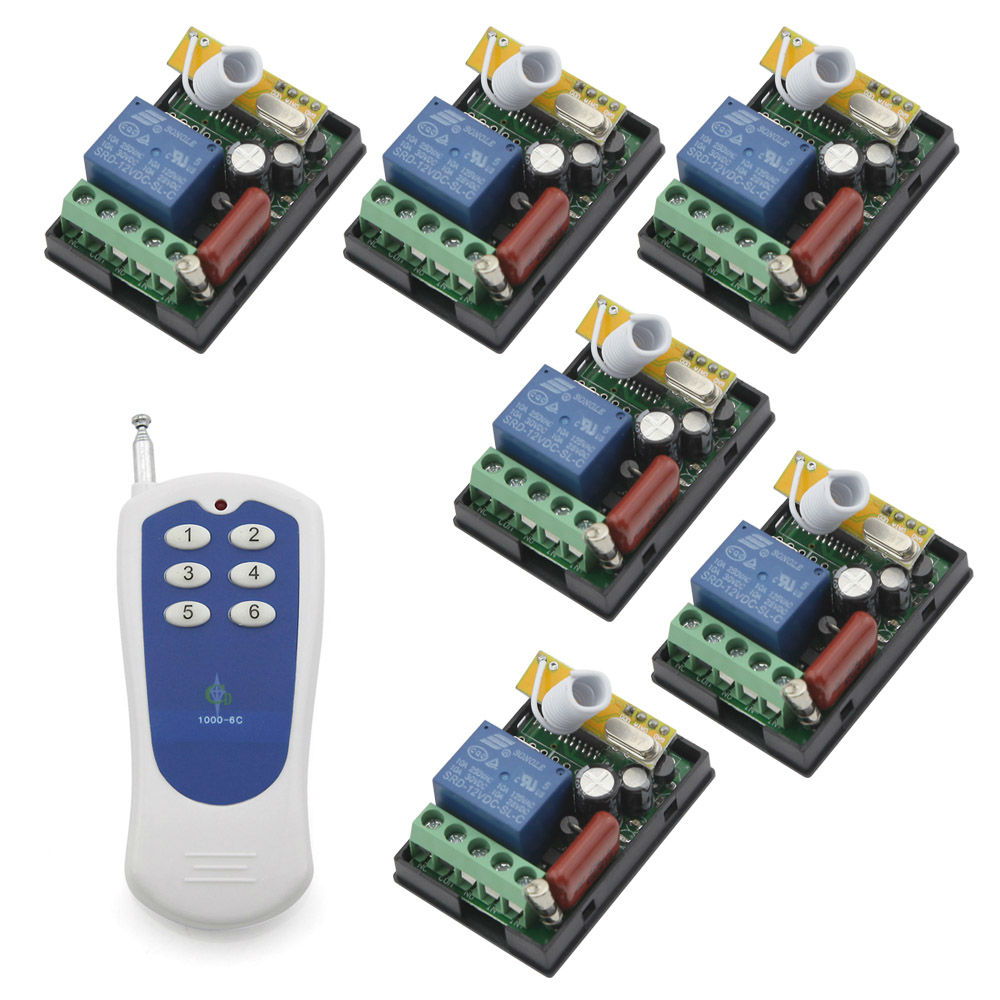

• Board DIM: 45x30.5x17mm
• Case DIM: 65x37x22mm

Package Includes:
1X Transmitter (Battery is not included)
6X Receivers
1X English Manual

Three modes:
Inching: press&hold one button, the reply turns on, release the button, the reply turns off.
Self-lock: press the one button, the reply turns on, press the button again, the reply turns off.
Interlock: press the one button, the reply turns on, press the next button, the reply turns off.

Steps:
Clear:

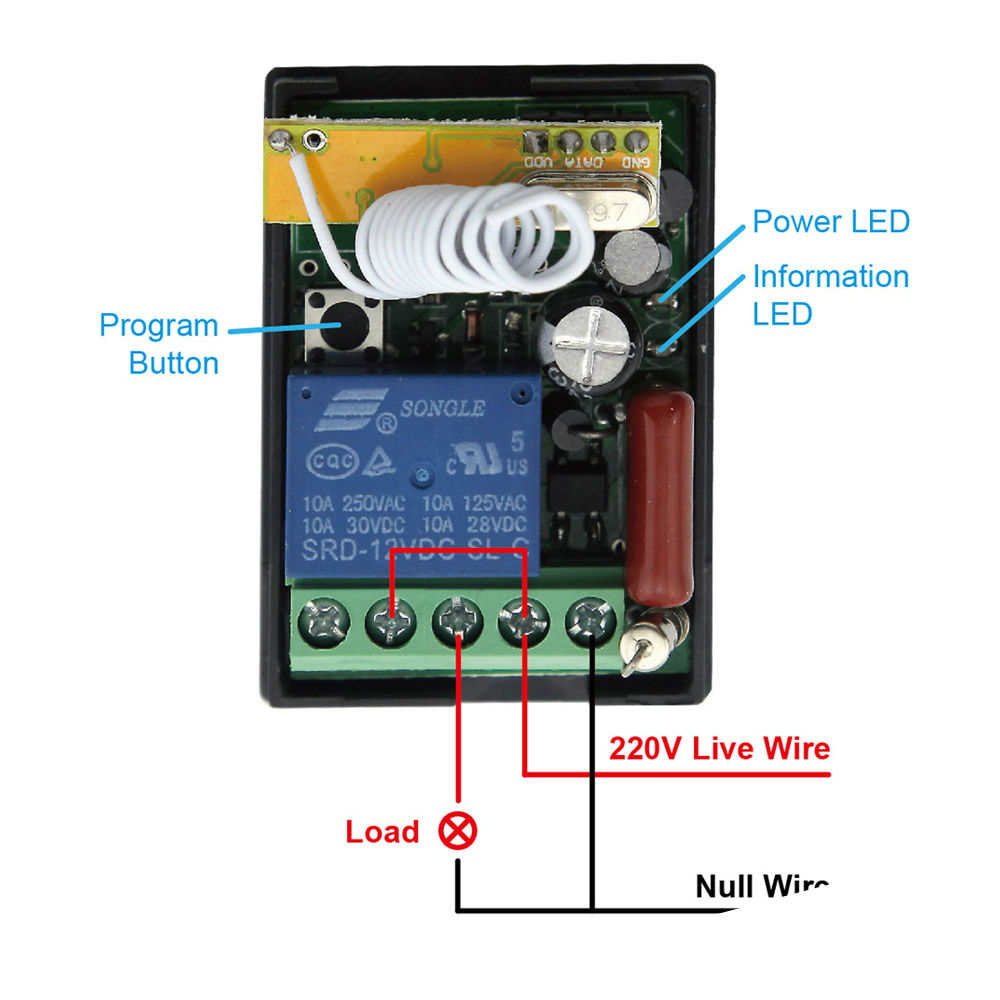

Press&hold the program button on the receiver, the red light will turn on and stay on for about 5 seconds.

Choose the mode:
inching:release the button after the light flashes once.
Self-lock:release the button after the light flashes twice.
Inter-lock:release the button after the light flashes three times.

Link the remote control:
Press the program button on the receiver until the red light turns on, and then release the program button, the red light will stay on.
Press a transmitter button, and the red light will flash, at this time, it means finished linking.
