AC-4 LCD Screen Indicating Signal Strength 12V to 1000V AC Voltage Detector
Model No.:
AC-4
Size:
165(L) x 40(W) x 20(D) mm
Weight:
58g
Safety level:
CAT. III 1000V
Range:
12V~1000V (available to select high/low sentivity)
Description
Contact Supplier
Description

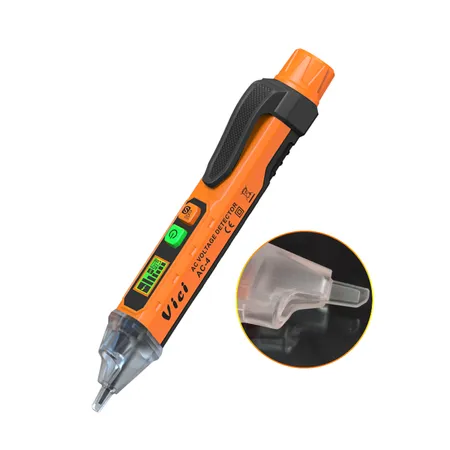

AC-4 Non-contact LCD Voltage Detector
Feature:
- Non-contact, much safer
- Sound & Light alarm
- Live/Neutral wire identification
- Inductive Break-point Testing
- Switchable sensitivity 12V~1000V
- Liquid crystal display with sensed voltage signal
Technical specifications:
About 48-1000V (boot default) | About 12-1000V (press S key) | |
Frequency | 50Hz/60Hz | |
Type of alarm | LCD display and sound and light alarm | |
Flashlight | LED light | |
Automatic shut-down | Auto shut down when no operation for 5 minutes & no voltage signal is detected | |
Battery low voltage indication | The screen displays low voltage symbol | |
Live wire identification | According to the signal indicating light, LCD screen analog bar, backlight color | |
Sensitivity | Two alternatives | |
Usage temperature | 0 ~ 40℃ | |
Storage temperature | -10~50℃ | |
| Altitude | <2000m | |
| Security level/phase | CAT.III 1000V / CAT.IV 600V | |
Power supply | 2×1.5V AAA battery | |
General Info:
Tester color | Orange + Gray |
Tester weight | 58g |
Tester size | 165(L) x 40(W) x 20(D) mm |
| Standard packing including | AC-4voltage tester, blister-card, battery |
| Individual packing style | Blister-card |
Master packing | 200pcs/carton |
G.W. per carton | 18kg |
Carton size | 65.5x29.0x45.5cm |
