AC Adapter
Production Lead Time:
15 day(s)
Brand:
Jodeway
Colour:
Black
Port:
Shenzhen
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description

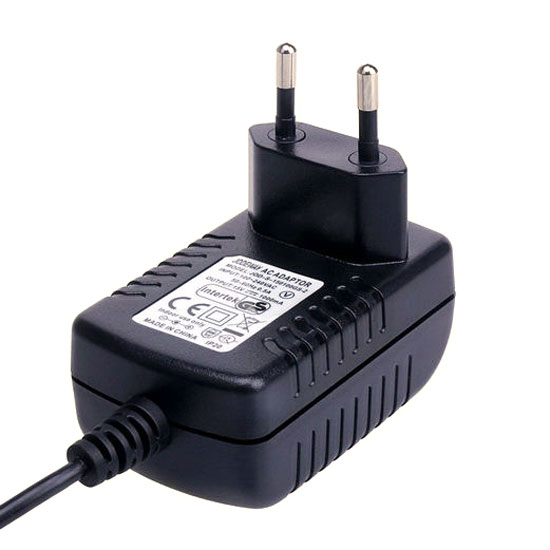

This is an AC adapter that comes with an insulated housing for safe operation. It is certified to meet the CE safety standard. This AC adapter has an extra-long service life.
- Input voltage: 100-240V AC.
- Input frequency: 50-60Hz.
- Voltage range: 90-264V AC.
- Inrush current: 30A.
- Max. input current: 0.5A.
- Max leakage current: 0.25mA.
- Max. efficiency: CEC ERP GEMS.
- Output voltage: DC 3-36V.
- Output current: 0.1-3A.
- Maximal power: 18W.
- Protection: over-current protection; short-circuit protection; over-voltage protection.
- DC Cable: UL2468 UL2464 UL1185 SPT.
- Certificate: ETL UL GS PSE CE CB SAA FCC EMC LVD C-TICK RCM.
- Standard: EMC CISPR22/EN55022 CISPR24/EN55024 CISPR14/EN55014-1 EN55014-2 EN 61000 FCC Part 15.
- Safety: IEC/EN/ AS/NZS 61558 IEC/EN AS/NZS 60950 ETL1310 J60950.
- Storage temperature: -10-75℃,
- High-reliability: MTBF 20,000 hours under 25℃.
- HS code: 8504409990.
