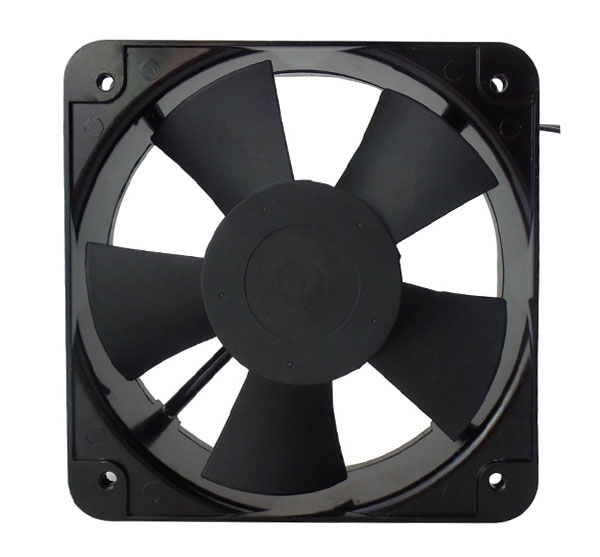

AC Cooling Fan 200 x 200 x 60mm
Production Lead Time:
7 day(s)
Model No.:
YA220060HBL
Brand:
TYJ
Colour:
Black
Size:
200 x 200 x 60mm
Customised:
Yes
Blade Material:
PBT UL94V-0
Type:
Axial Flow Fan
Electric Current Type:
AC
Speed:
1700RPM
Air Volume:
325CFM
Description
Contact Supplier
Description
200*200*60mm AC FAN
★General Specification(一般规格）
☆Material:
Lmpeller:Thermal Plastic UL 94V-0
Frame:Aluminium Alloy
☆Lead Wires:UL Type
☆Motor Protection:Lmpedance Protected
☆Insulation Resistance:10MΩ Or Over With a
DC500V Megger
☆Dielectric Strength:AC1500V 0.5mA 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage)
| ★Specifications(规格） | ||||||||||
| Model | Bearing | Rated | Freq. | Current | Input | Speed | Air Flow | Static | Niose | Weight |
| System | Voltage | power | Pressure | Level | ||||||
| (V) | (Hz) | (A) | (W) | (RPM) | (CFM) | (mm-H2O) | (dB-A) | (g) | ||
| (型号) | (培林) | (电压) | (频率) | (电流) | (功率) | (转速) | (风量) | (静压) | (噪音) | (重量) |
| YA120060HBL | Ball | 110 | 60 | 0.69 | 56 | 2500 | 325 | 10.40 | 59 | 1700 |
| YA220060HBL | Ball | 220 | 50 | 0.30 | 48 | 2500 | 325 | 10.40 | 59 | 1700 |
| YA320060HBL | Ball | 380 | 50 | 0.16 | 45 | 2500 | 325 | 10.40 | 59 | 1700 |
- CE,UL, CCC etc approve
- Samples delivery time: 3-5 working days
- Order delivery time:10-20 working days
- Function:FG,RD,PWM 3 wires 4 wires can be choice
- Waterproof:IP44 to IP68
- Size:15mm to 300mm
- Voltage: 5V/12V/24V/48V/110V/220V etc
- AC FAN, DC FAN, Blower Fan, Cross flow Fan, EC Fan etc.
- 16 years of experience in cooling fan industry !
- OEM or ODM is welcome!
