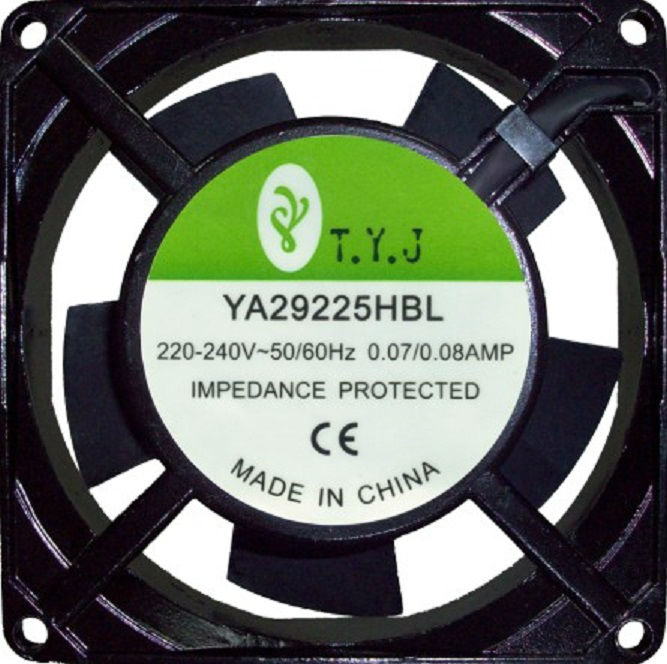

AC Cooling Fan 92 x 92 x 25mm UL
US $2.80 - US $4.50
Production Lead Time:
7 day(s)
Model No.:
YA29225HBL
Brand:
TYJ
Colour:
Black
Size:
92 x 92 x 25mm
Customised:
Yes
Blade Material:
PBT UL94V-0
Type:
Axial Flow Fan
Electric Current Type:
AC
Speed:
2450RPM
Air Volume:
30CFM
Description
Contact Supplier
Description
- General Specification(一般规格）
☆Material:
Lmpeller:Thermal Plastic UL 94V-0
Frame:Aluminium Alloy
☆Lead Wires:UL Type
☆Motor Protection:Lmpedance Protected
☆Insulation Resistance:10MΩ Or Over With a
DC500V Megger
☆Dielectric Strength:AC1500V 0.5mA 1S
☆Allowable Ambient Temperature Range:
-10℃～+70℃(Operation)
-40℃～+70℃(Storage) - Size:92 x 92 x 25mm ,3.62" x 3.62" x 1"
★Specifications(规格） Model Bearing Rated Freq. Current Input Speed Air Flow Static Niose Weight System Voltage power Pressure Level (V) (Hz) (A) (W) (RPM) (CFM) (mm-H2O) (dB-A) (g) (型号) (培林) (电压) (频率) (电流) (功率) (转速) (风量) (静压) (噪音) (重量) YA19225HSL Sleeve 110 50/60 0.13/0.11 12/9.5 2400/2800 28/36 3.45/4.70 29/34 240 YA19225HBL Ball 110 50/60 0.13/0.11 12/9.5 2450/2850 29/37 3.50/4.76 29/34 240 YA29225HSL Sleeve 220 50/60 0.09/0.08 15.5/12.5 2450/2900 29/37 3.50/4.76 29/34 240 YA29225HBL Ball 220 50/60 0.09/0.08 15.5/12.5 2500/3000 30/38 3.55/4.82 29/34 240 ★Dimensions Drawing(外观图）& ★Characteristic Curves(特性曲线）
