ACV DCV NCV LIVE T-RMS 6000 counts Digital Multimeter VC746A | Parts, Electrical Electronic Supplies

Vicimeter Technology (Hong Kong) Co., Ltd.

ACV DCV NCV LIVE T-RMS 6000 counts Digital Multimeter VC746A

Production Lead Time:

30 day(s)

Shipping Method:

by sea/air/express/land

Brand:

Vici

Model No.:

VC746a

AC+DC current:

20A

DC voltage:

1000V

AC voltage:

750V

Resistance:

60MΩ

Capacitance:

60mF

Temperature:

-40℃~1000℃ | -40℉~1832℉

Frequency:

10MHz

Functions:

T-RMS, NCV, LIVE, REL, MAX, MIN, Backlight, High volt indication, etc..

Diode and continuity test:

yes

Description

Contact Supplier

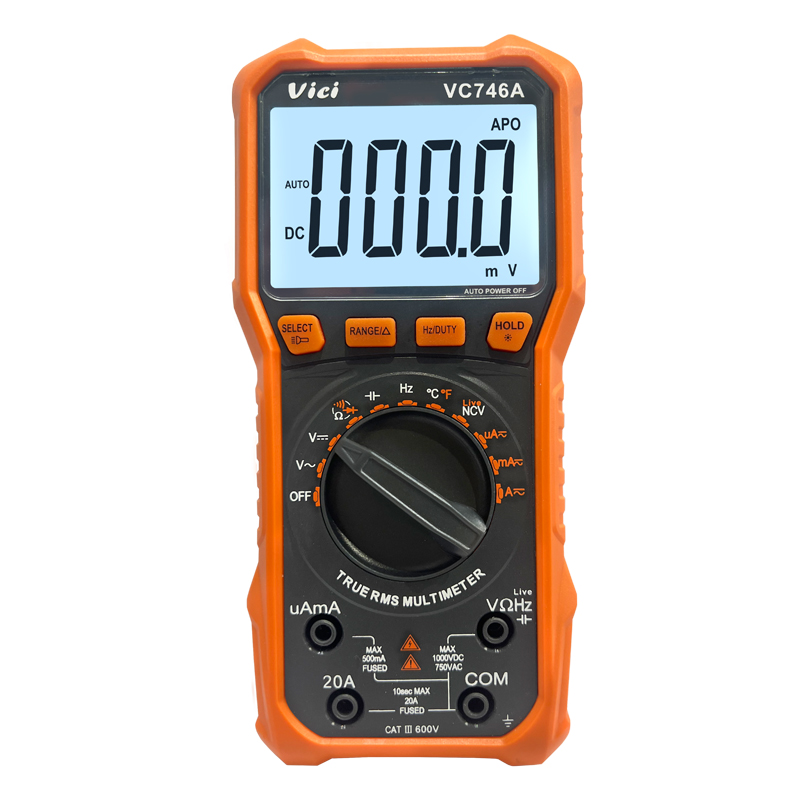

VC746A 5999 Counts Digital Multimeter

Features:

1. New shell panel, streamlined design, comfortable handle;

2. Large LCD display makes reading clear;

3. Strong antimagnetic and anti-interferential performance; Full function protection;

4. Auto power off when there is no measurement in 15 minutes;

5. Unit symbol large HD LCDdisplay, easy to read; Lighting function, backlight display.

6. True RMS , NCV, Live wire, Relative value measurements, frequency/duty cycle and data hold function.

Technical Data:

Specific Function:

Model	VC746A
Max. display	6000
True RMS	√
NCV	√
Live test	√
High voltage indication	√
Data hold	√
Function protection	√
Torch function	√
Backlight display	√
Duty cycle	1%~99%
Diode test	0V~3.3V, it displays “OL” if over 3.3V
Continuity alarm	Less than 50Ω, it displays “OL” if over 610Ω
Low battery indicator	Approx. less than 2.4 V
Auto power off	About 15 minutes
Input impedance	10MΩ
Sampling rate	3 times/s
AC frequency response	40Hz-2kHz
Operation method	Manual or Auto range
LCD size	65.0×43.5mm
Battery	3V (1.5V AAA×2)
Power consumption	Quiescent current about 2mA

General Info:

Meter color	Orange + Grey
Meter weight	306g (including battery)
Meter size	190×92×50mm
Standard accessory	Test leads, battery, manual, TP01 temperature probe
Standard packing	30pcs
G.W. per carton	15.5kg
Carton size	43.529.542.5cm
