AGM Battery 12V150AH | Batteries | Consumer Electronics

Shenzhen Ritar Power Co., Ltd.

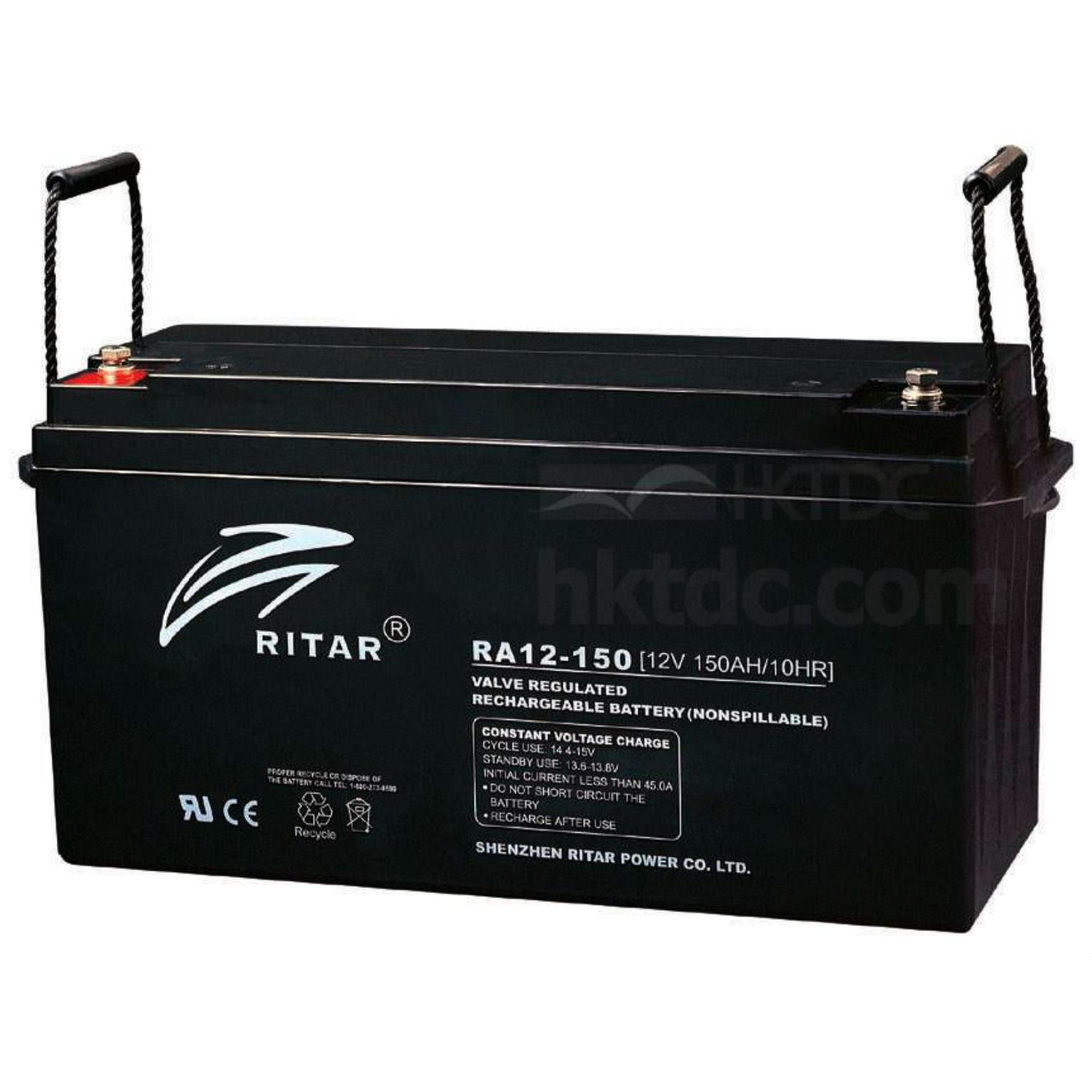

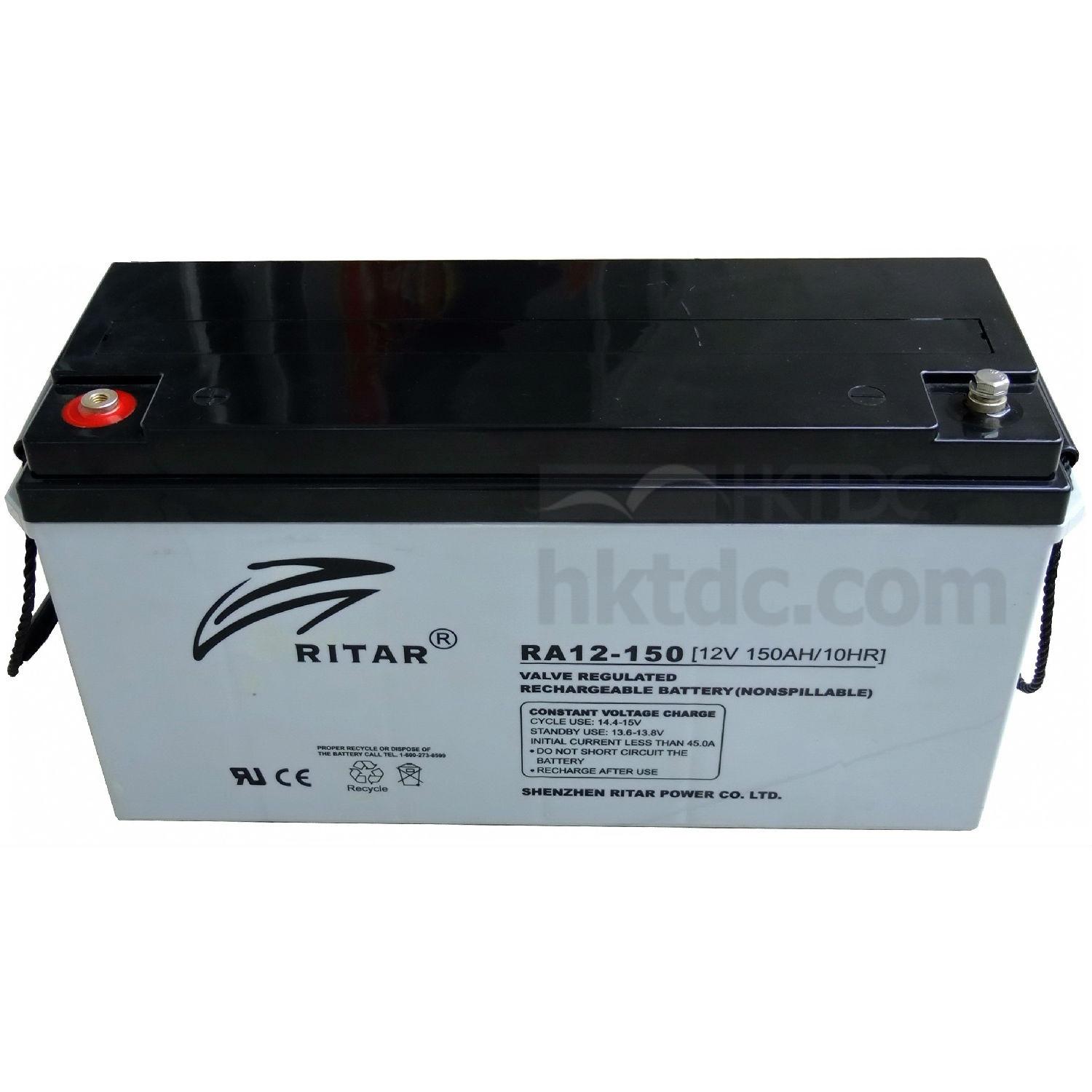

AGM Battery 12V150AH

Weight:

44.5Kg

Model No.:

RA12-150

Brand:

RITAR

Colour:

Black or White

Size:

483(L)×170(W) ×240(H)mm

Port:

Shenzhen, China

Type of Payment:

T/T, L/C

Minimum Order Quantity:

100 pcs

Package:

Yes

Customised:

Yes

Nominal Capacity:

12V150AH

Sealed Type:

Sealed

Usage:

UPS/EPS, medical equipment,emergency light and security system

Maintenance Type:

Maintenance free lead acid battery

Description

Contact Supplier

Capacity: 12V150AH.
Cells per unit: 6.
Voltage per unit: 12.
Capacity: 150Ah@10hr-rate to 1.80V per cell @25℃.
Max discharge current: 1500A (5 seconds).
Internal resistance: approximately 4mΩ.
Operating temperature range: discharge: -20℃~60℃; charge: 0℃~50℃; storage: -20℃~60℃.
Normal operating temperature range: 25℃±5℃.
Float charging voltage: 13.6 to 13.8 VDC/unit average at 25℃.
Recommended maximum charging current: 45A.
Equalization and cycle service: 14.6 to 14.8 VDC/unit average at 25℃.
Self-discharge: RITAR valve regulated lead acid (VRLA) batteries can be stored for more than 6 months at 25℃.
Self-discharge ratio less than 3% per month at 25℃.
Please charge batteries before using.
Terminal: F5/F12.
Container material: A.B.S. UL94-HB, UL94-V0 optional.
Rectangular shape.
Metallic terminal in red and black.
With two handles on top.
Showing electrical data on the exterior.
Place of produce: Shenzhen, China.
Weight: 44.5Kg±1.5%.
