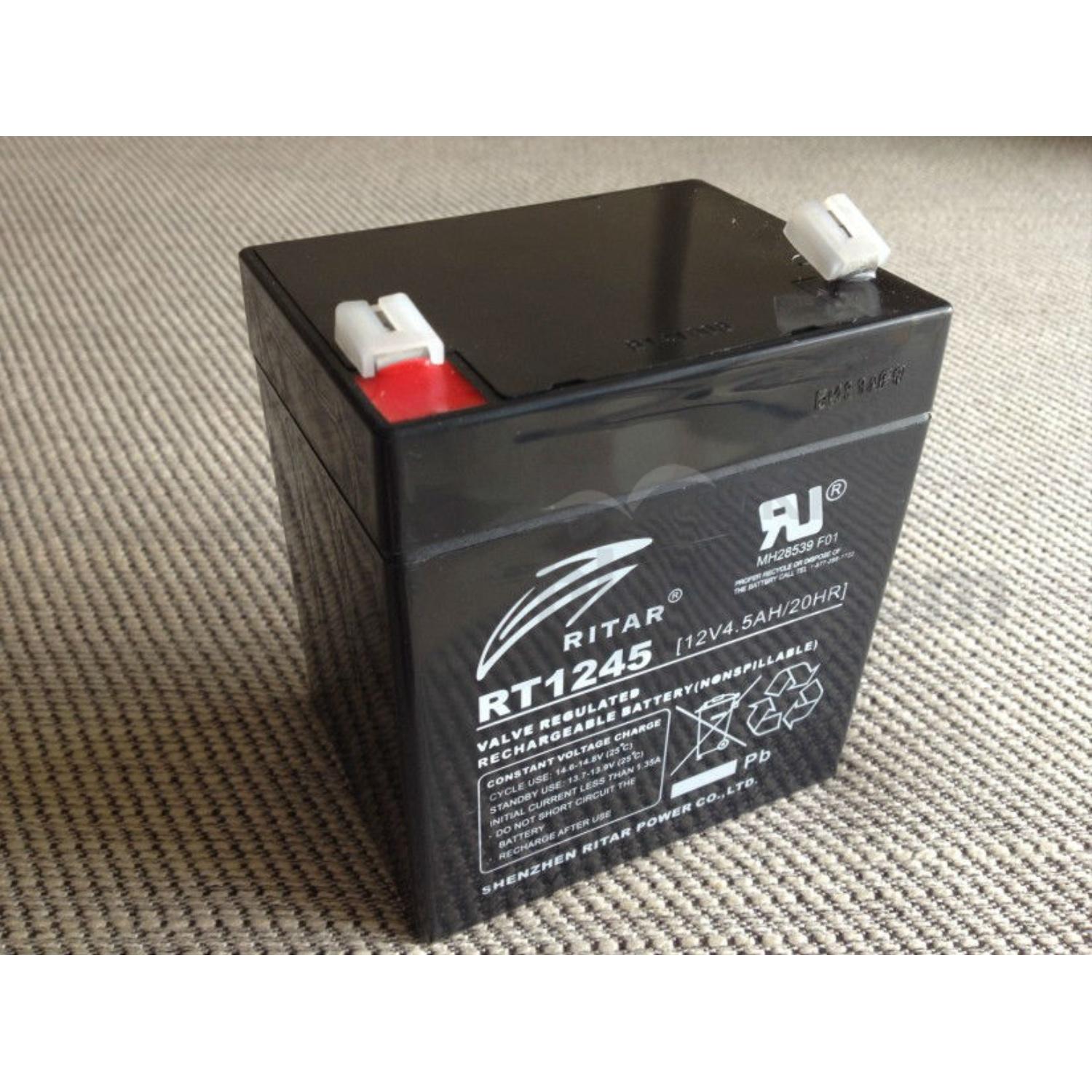

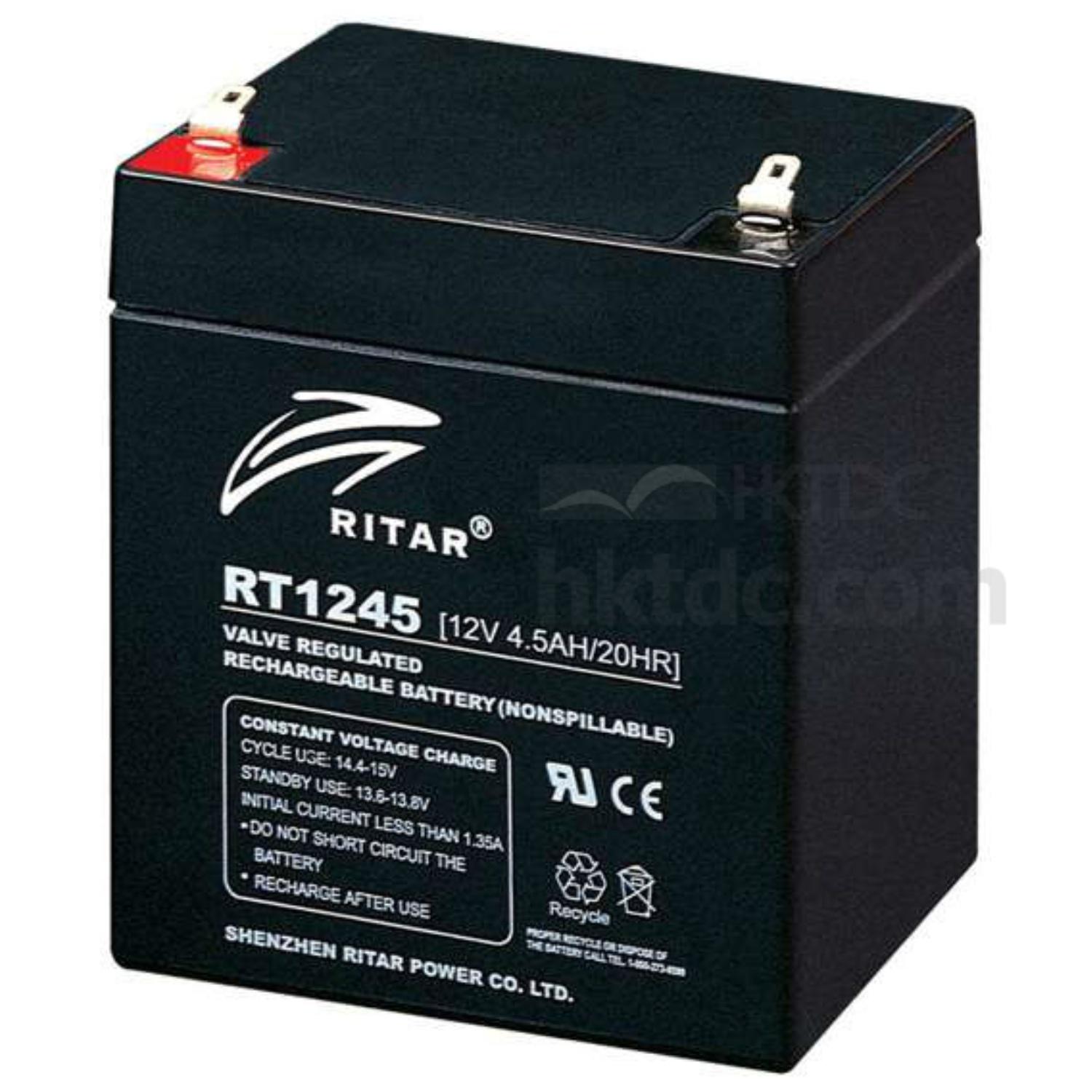

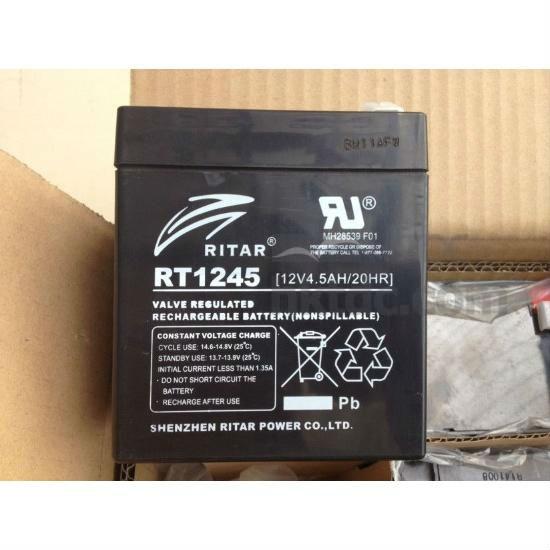

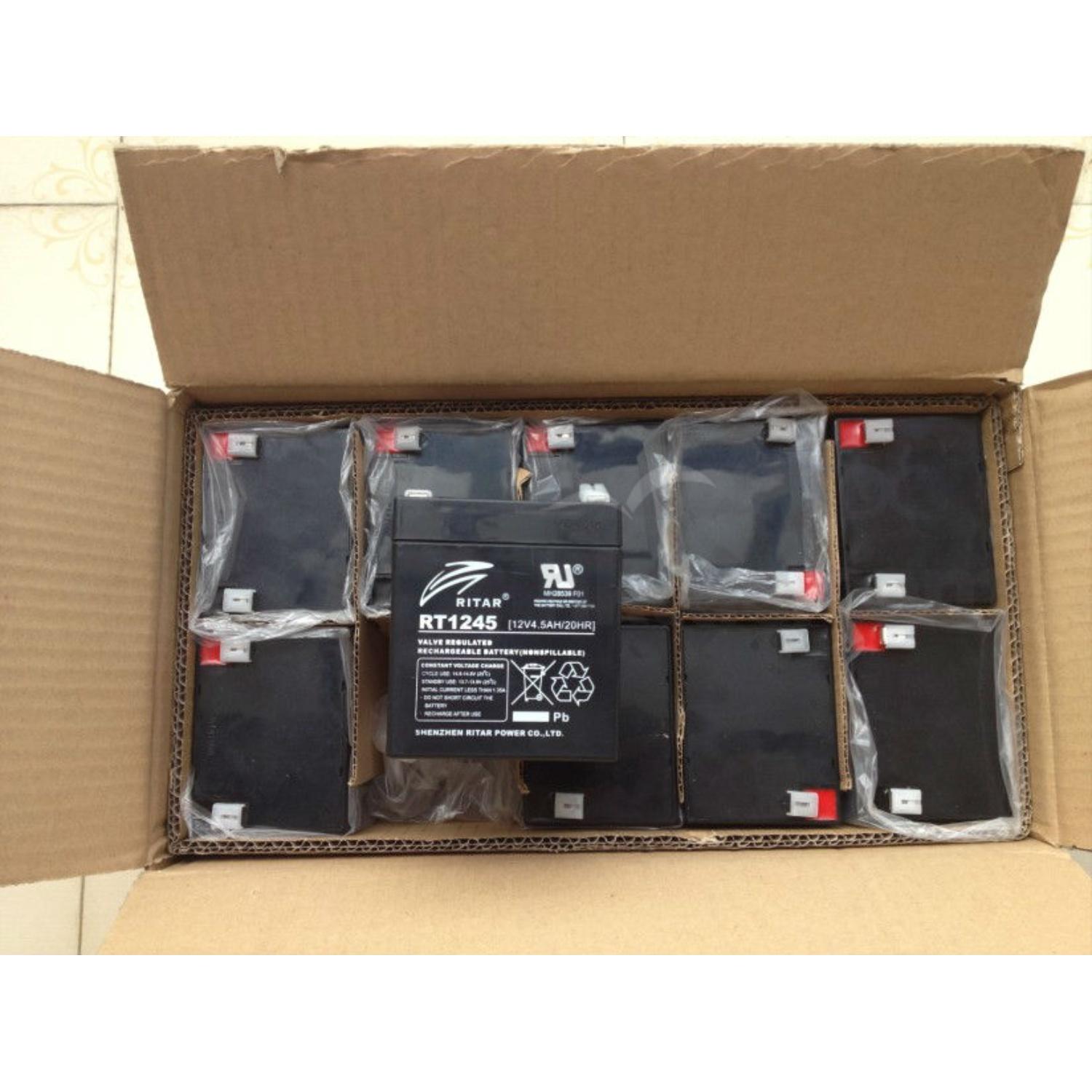

AGM Battery for UPS E bike
Weight:
1.4KG
Model No.:
RT1245
Brand:
RITAR
Colour:
Black
Size:
90(L)×70(W)×107(H)mm
Port:
Shenzhen, China
Type of Payment:
T/T, L/C
Minimum Order Quantity:
100
Package:
Yes
Customised:
Yes
Nominal Capacity:
12V4.5AH
Sealed Type:
Sealed
Usage:
UPS use
Maintenance Type:
Maintenance free lead acid battery
Description
Contact Supplier
Description
- Capacity: 12V4.5AH.
- Cells per unit: 6.
- Voltage per unit: 12.
- Capacity: 4.5Ah@20hr-rate to 1.75V per cell @25℃.
- Max discharge current: 45A (5 seconds).
- Internal resistance: approximately 38mΩ.
- Operating temperature range: discharge: -20℃~60℃; charge: 0℃~50℃; storage: -20℃~60℃.
- Normal operating temperature range: 25℃±5℃.
- Float charging voltage: 13.7 to 13.9 VDC/unit average at 25℃.
- Recommended maximum charging current: 3.6A.
- Equalization and cycle service: 14.6 to 14.8 VDC/unit average at 25℃.
- Self-discharge: RITAR valve regulated lead acid (VRLA) batteries can be stored for more than 6 months at 25℃.
- Self-discharge ratio less than 3% per month at 25℃.
- Please charge batteries before using.
- Terminal: fast on tab 187(F1)/fast on tab 250(F2).
- Container material: A.B.S. UL94-HB, UL94-V0 optional.
- Rectangular shape.
- Metallic terminals labeled with red and black.
- Electrical data shown on the exterior.
- Place of produce: Shenzhen, China.
- Weight: 1.4Kg±4%.
