ANENG 623 Multimeter | Parts, Components & Electrical Supplies

Shenzhen Jiduoduo Dianzi Shangwu Co.,Ltd

ANENG 623 Multimeter

Production Lead Time:

7 day(s)

Shipping Method:

Express/Air/Sea

Brand:

ANENG

Model No.:

623

Description

Contact Supplier

Features:

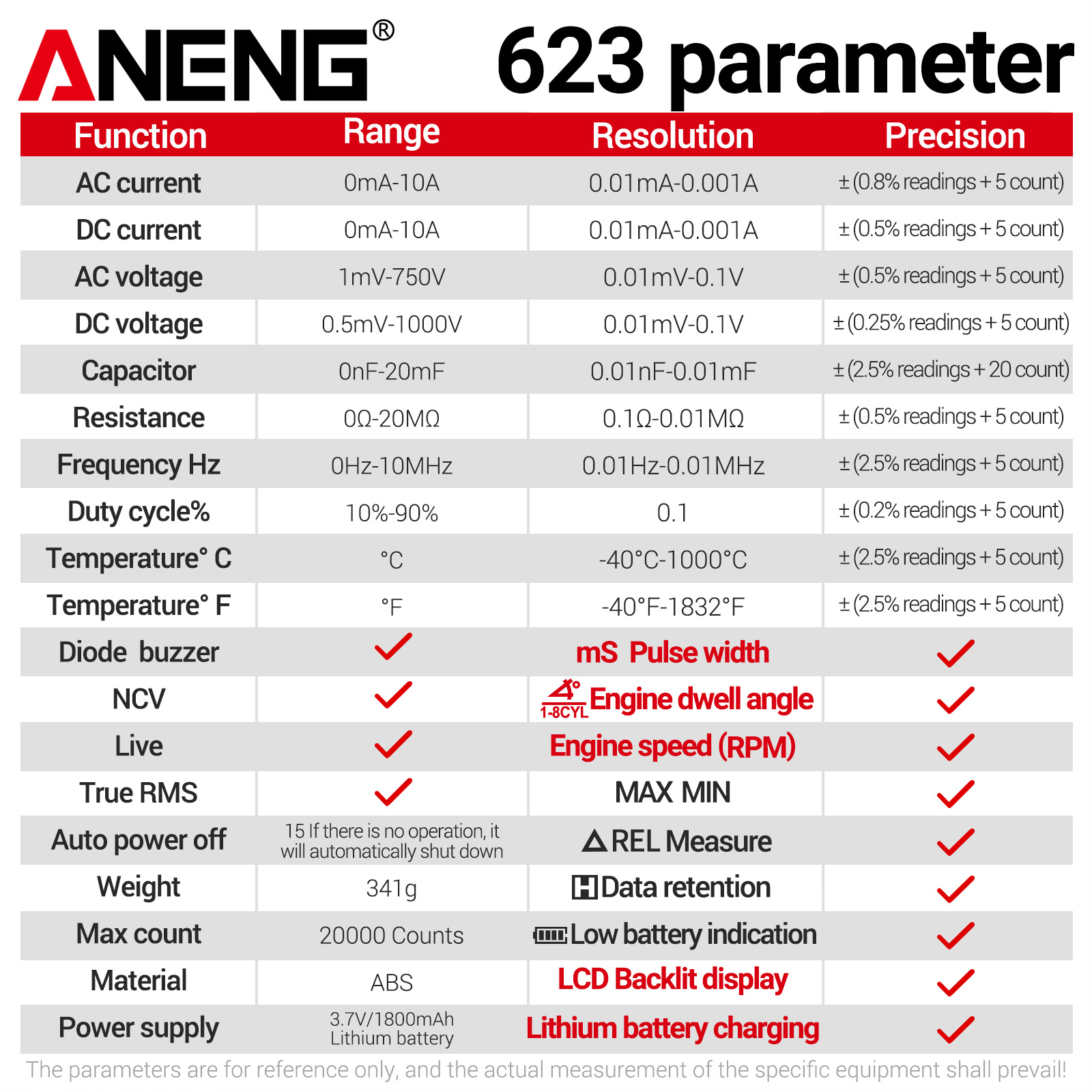

Function	Range	Resolution	Precision
AC current	0mA-10A	0.01mA-0.001A	±(0.8%+5)
DC current	0mA-10A	0.01mA-0.001A	±(0.5%+5)
AC voltage	1mV-750V	0.01mV-0.1V	±(0.5%+5)
DC voltage	0.5mV-1000V	0.01mV-0.1V	±(0.25%+5)
Capacitor	0nF-20mF	0.01nF-0.01mF	±(2.5%+20)
Resistance	0Ω-20MΩ	0.1Ω-0.01MΩ	±(0.5%+5)
Frequency Hz	0Hz-10MHz	0.01Hz-0.01MHz	±(2.5%+5)
Duty cycle%	10%-90%	0.1	±(0.2%+5)
Temperature°	°C	-40°C-1000℃	±(2.5%+5)
Temperature°	°F	-40°F-1832°F	±(2.5%+5)
Diode buzzer	√	mS Pulse width	√
NCV	√	Engine dwell angle	√
Live	√	Engine speed (RPM)	√
True RMS	√	MAX MIN	√
Auto power off	15 lf there is no operation, it will automatically shut down	REL Measure	√
Weight	341g	Data retention	√
Max count	20000 Counts	Low battery indication	√
Material	ABS	LCD Backlit display	√
Power supply	3.7V/1800mAh Lithium battery	Lithium battery charging	√
