Function

Range

Resolution

Accuracy

DC voltage

0~1000V

0~1V

±(0.8%+10)

AC voltage

0~750V

0~1V

±(1.0%+10)

AC current

0~10A

0~0.01A

±(2.5%+10)

DC current

0~10A

0~0.01A

±(2.5%+10)

Capacitance

0nF~100mF

0nF~0.1mF

±(5.0%+5)

Resistance

0~60MΩ

0Ω~0.01MΩ

±(2.5%+5)

Temperature ℃

-40℃~1000℃

1℃

±(1.9%+5d)

Temperature °F

-40°F~1832°F

1°F

±(1.9%+6d)

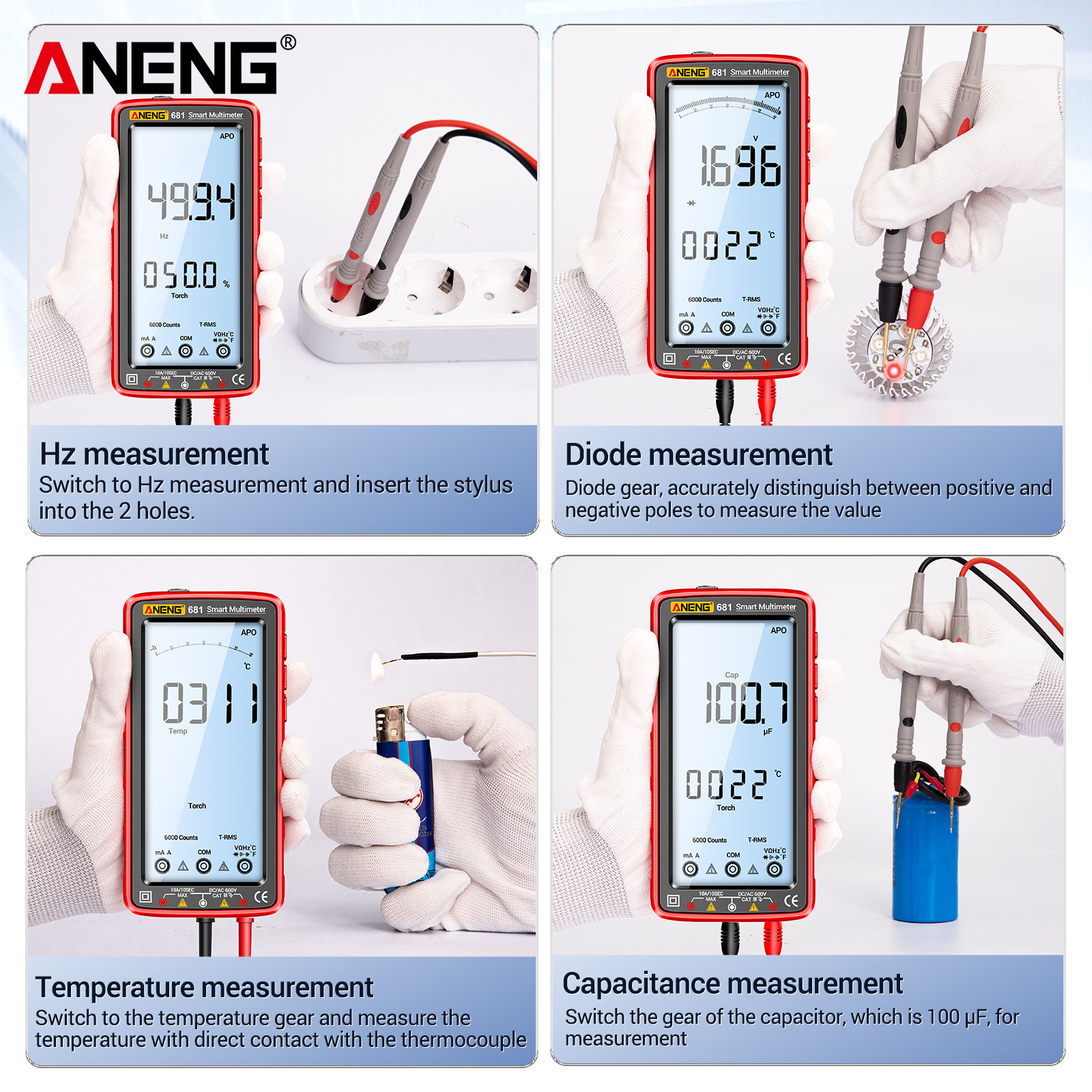

Hz Frequency

0-999.9kHz

0~0.1kHz

±(0.8%+3d)

Diode

√

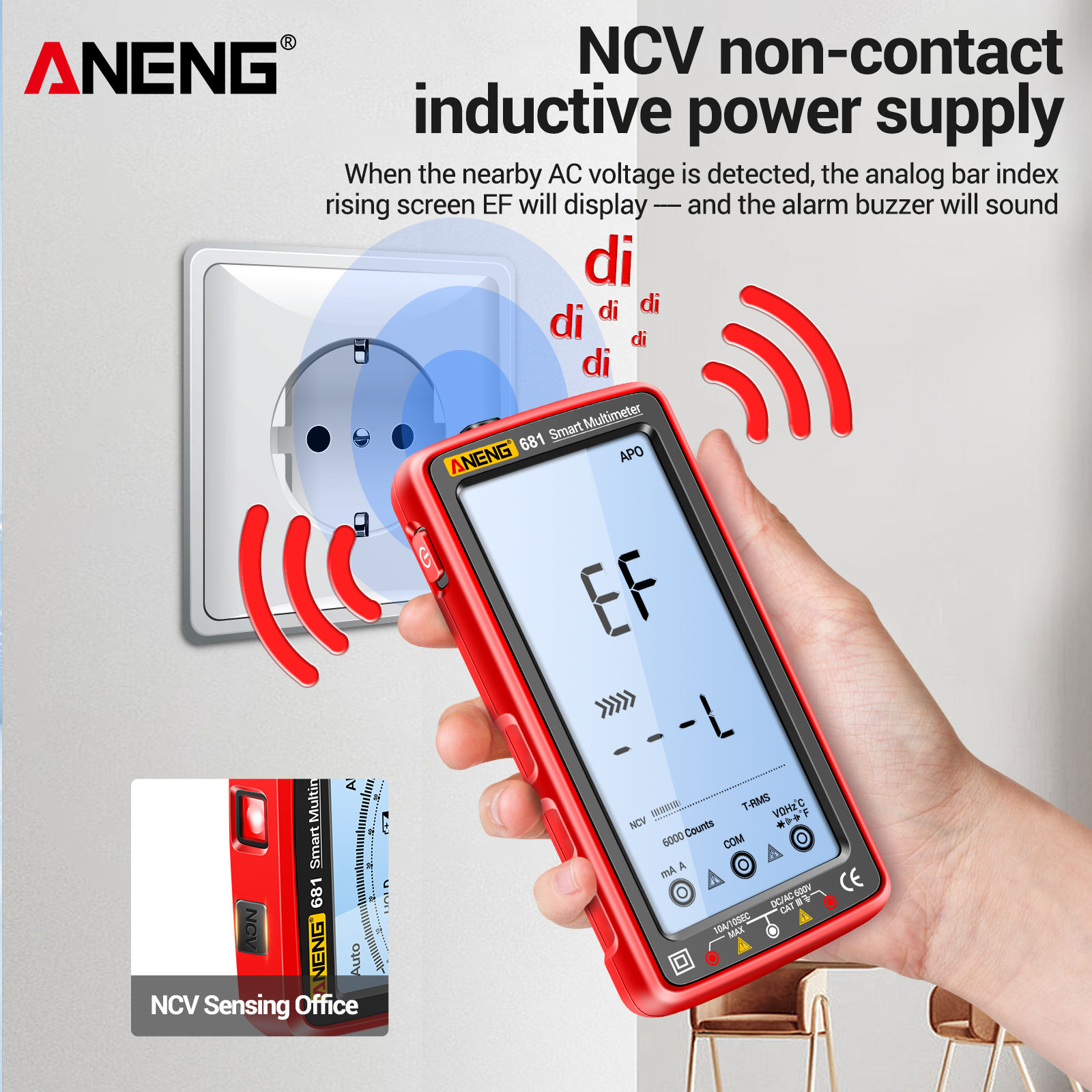

NCV voltage induction

√

On-Off beep

√

Low power prompt

√

Auto shut-down

√

Flashlight

√

Data Hold

√

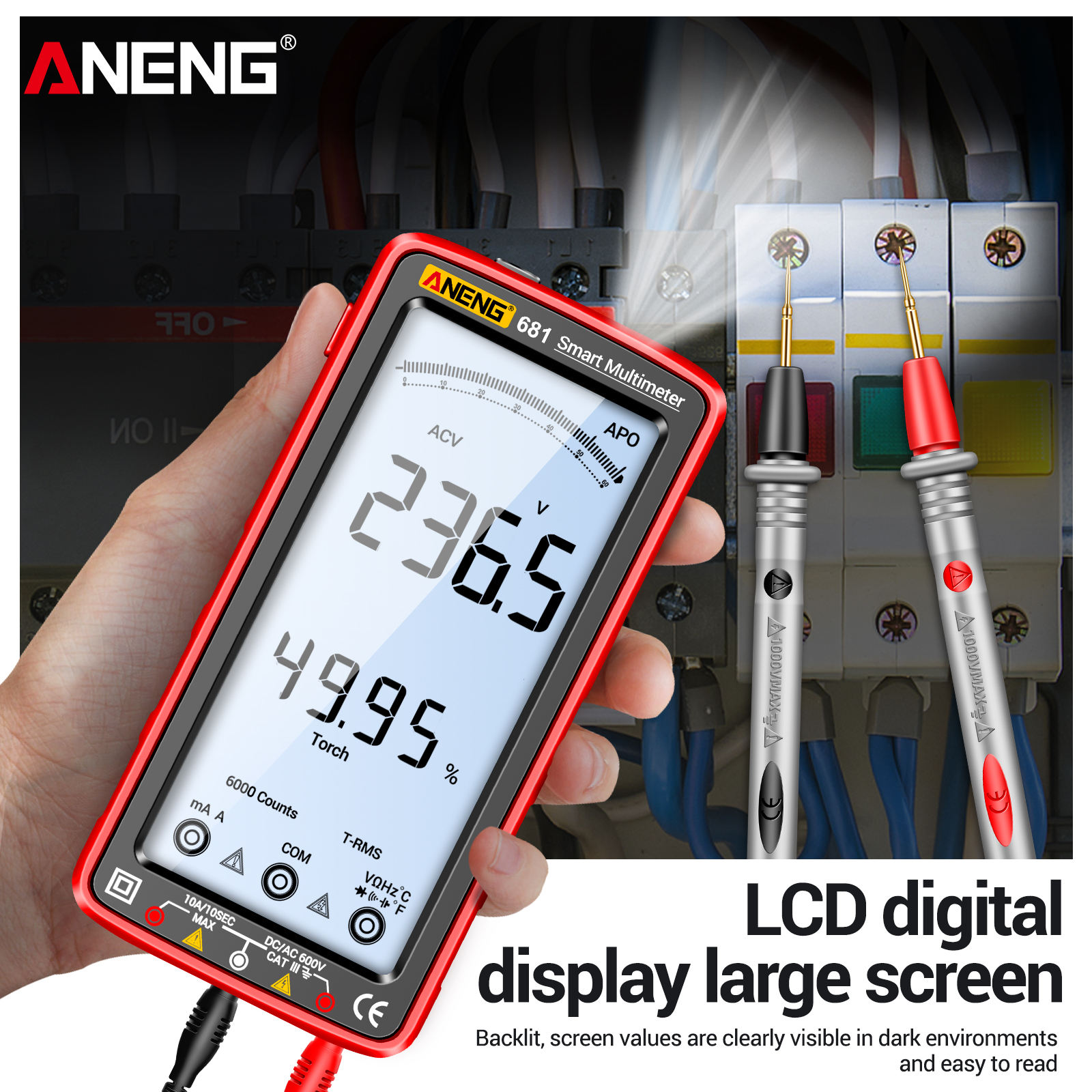

Backlit bright screen

√

Material

ABS/ Silicone

Neutral and Live

√

Test lead material

Brass/Silicone

 Silicone sheath

√

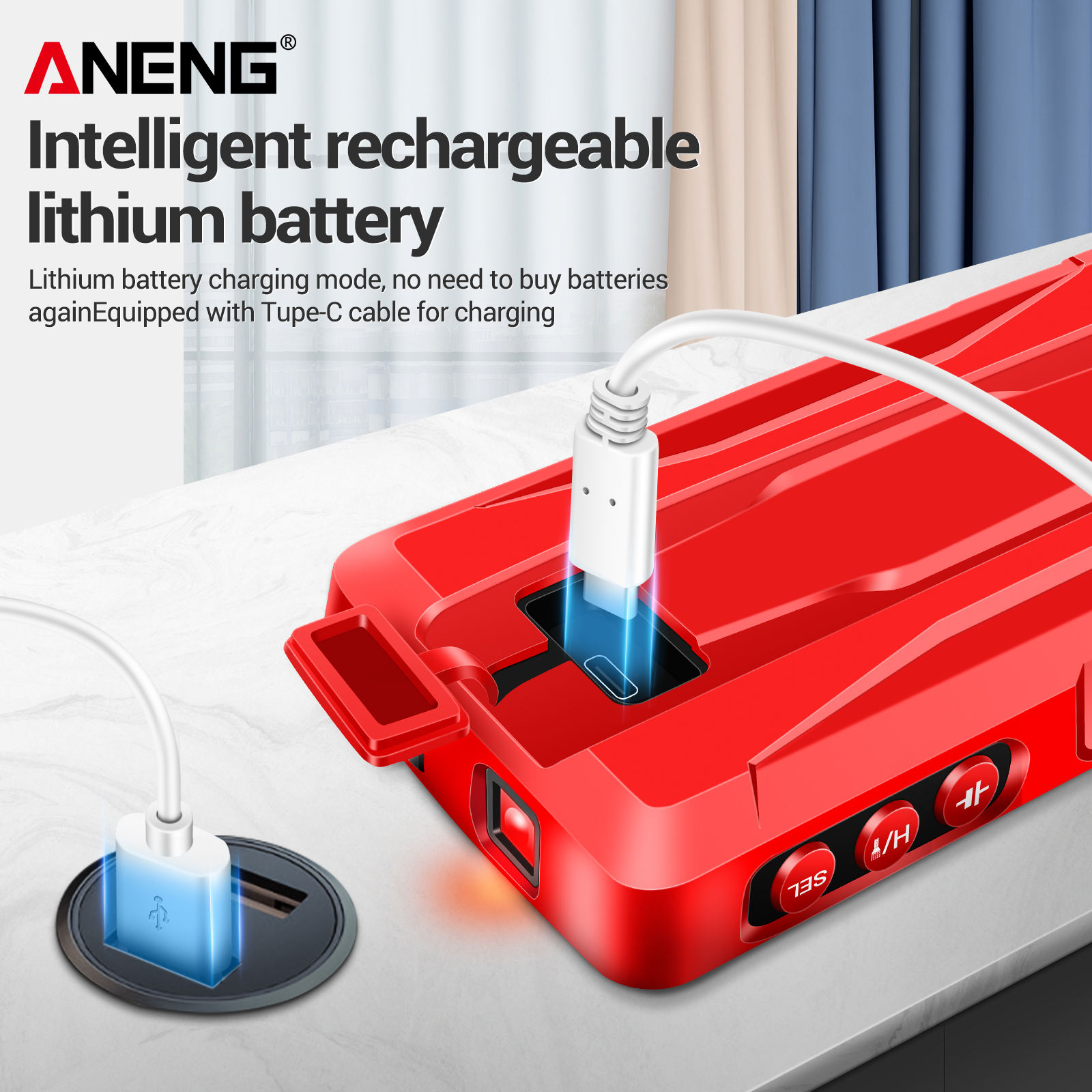

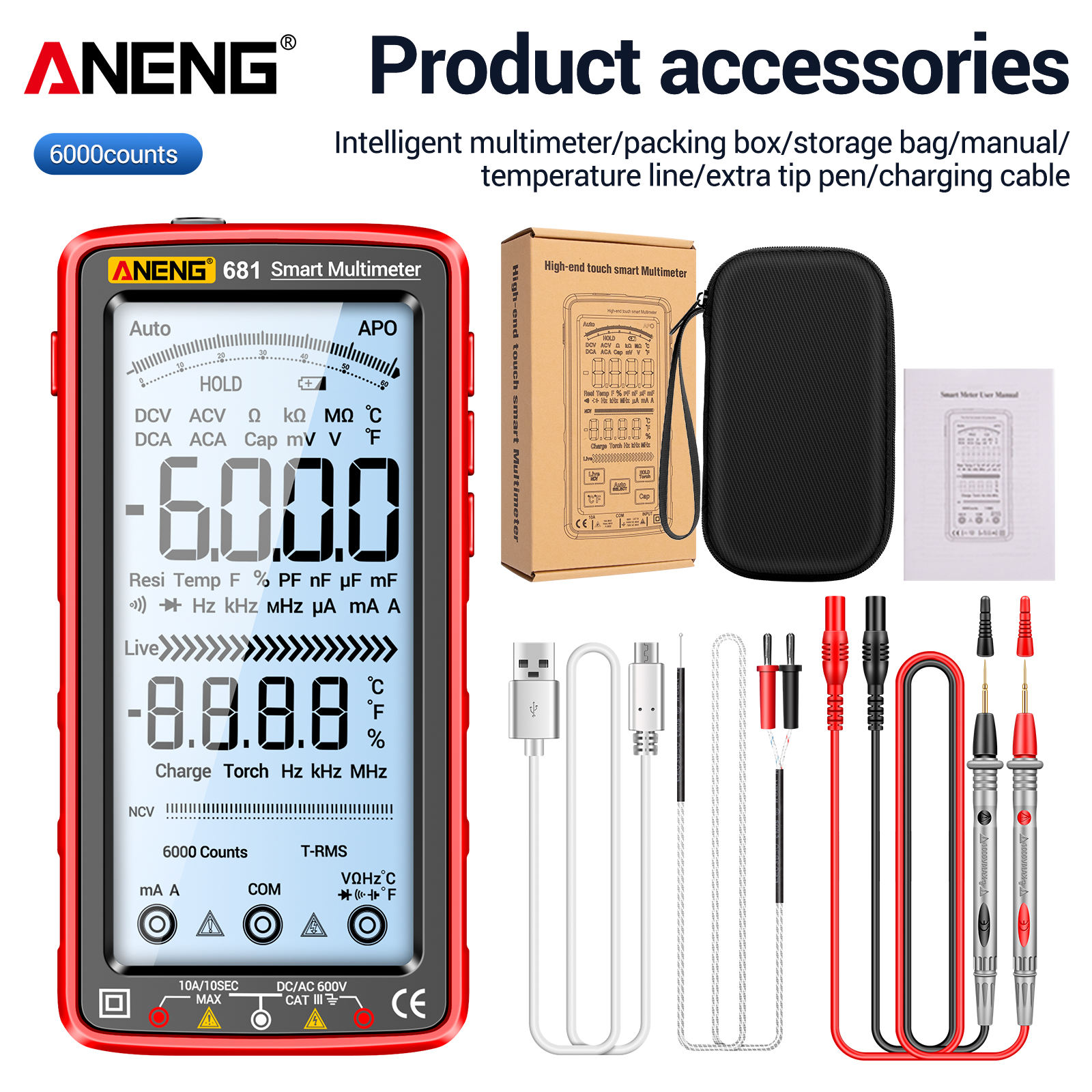

Charging Lead

√

With a stylus

√

Test Lead

√

Temperature Lead

√

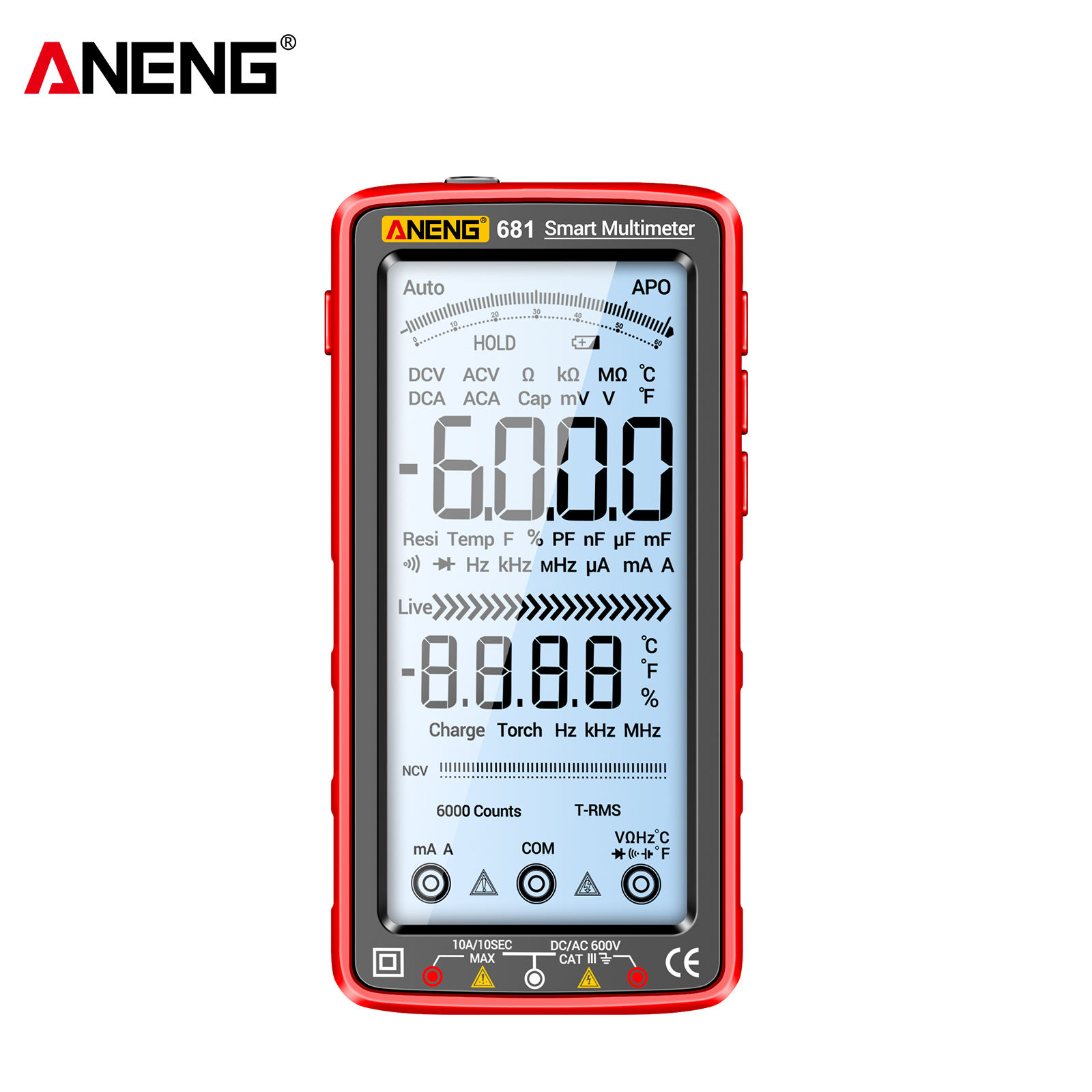

Model

681

Max Count

6000 Counts

Product Size

150.8*74.8*23.8 mm/5.94*2.94*0.98 inch

above parameters are for reference only, and the actual measurement of the specific equipment shall prevail
