ANENG AR02 Thermal Imaging Multimeter
Production Lead Time:
7 day(s)
Shipping Method:
Express/Air/Sea
Brand:
ANENG
Model No.:
AR02
Description
Contact Supplier
Description
Specifications:

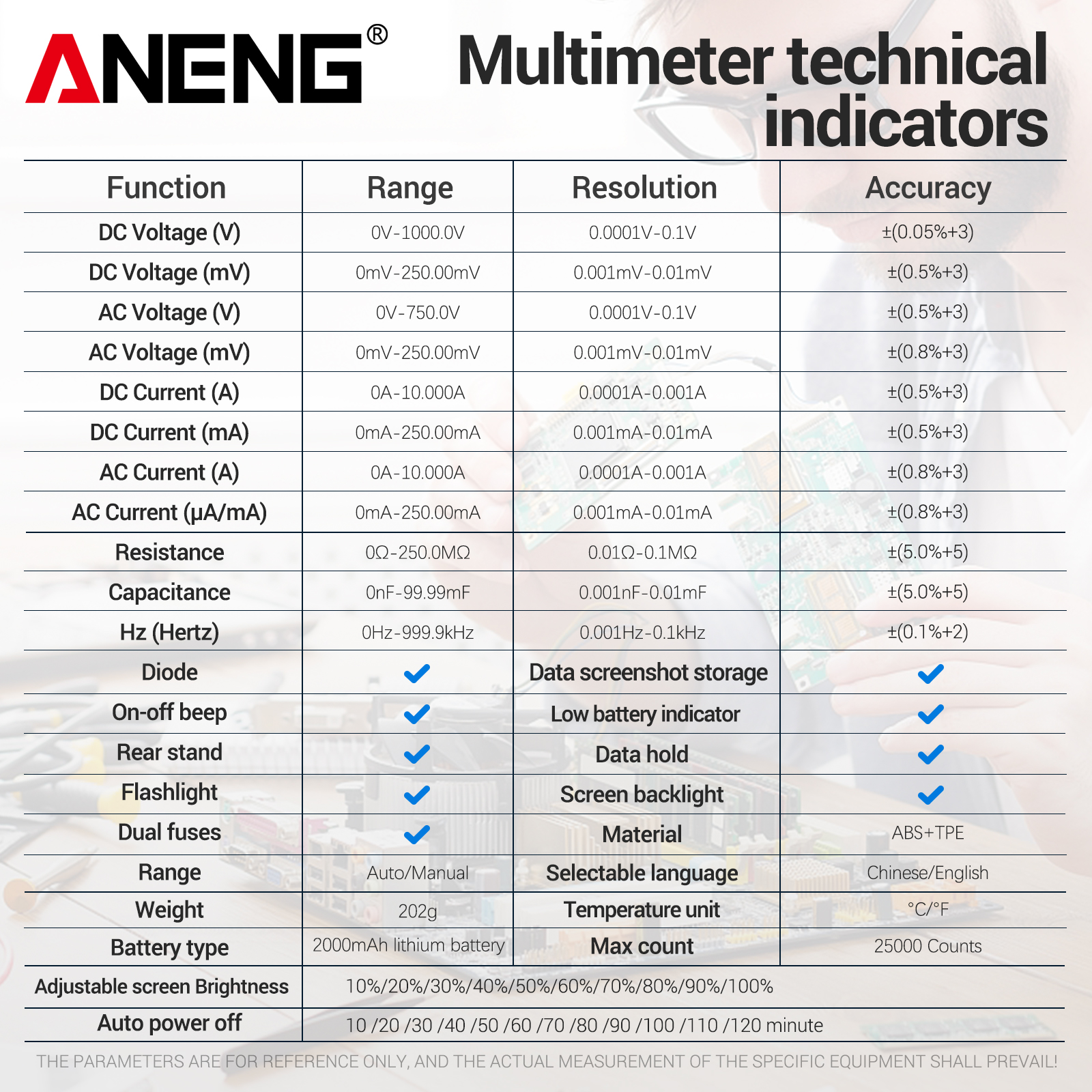

| Multimeter Specifications | |||
| Function | Range | Resolution | Precision |
| DC Voltage (V) | 0V-1000V | 0.0001V-0.1V | ±(0.05%+3) |
| DC Voltage (mV) | 0mV-250mV | 0.001mV-0.01mV | |
| AC Voltage (V) | 0V-750V | 0.0001V-0.1V | ±(0.5%+3) |
| AC Voltage (mV) | 0mV-250mV | 0.001mV-0.01mV | |
| DC Current (A) | 0A-10A | 0.0001A-0.001A | ±(0.5%+3) |
| DC Current (mA) | 0mA-250mA | 0.001mA-0.01mA | |
| AC Current (A) | 0A-10A | 0.0001A-0.001A | ±(0.8%+ 3) |
| AC Current (μA/mA) | 0mA-250mA | 0.001mA-0.01mA | |
| Resistance | 0Ω -250Ω | 0.01Ω | ±(0.5%+3) |
| 2.5kΩ-250kΩ | 0.0001kΩ-0.01kΩ | ±(0.2%+3) | |
| 250kΩ-250MΩ | 0.1MΩ | ±(5.0%+5) | |
| Capacitor | 0nF-9.999nF | 0.001nF | ±(5.0%+20) |
| 99.99nF-999.9μF | 0.01nF-0.1μF | ±(2.0%+5) | |
| 9.999mF-99.99mF | 0.001mF-0.01mF | ±(5.0%+5) | |
| Hz frequency | 0Hz-9.999Hz | 0.001Hz-0.01kHz | ±(2.0%+2) |
99.99Hz-999.9kHz | 0.001Hz-0.1kHz | ±(0.1%+2) | |
| Diode | √ | on-off Beep | √ |
| Thermal Imaging Specifications | |||
| Function | Instruction | Function | Instruction |
| Emissivity | Adjustable from 0.01 to 1.00 | Display screen | 2.4-inch TFT |
| Frame rate | 25 frames per second | Display resolution | 320x240 |
| Field of View (FOV) | 50.0°(H) x50°(V)/72.1°(D) | Imaging mode | Infrared light |
| Focusing method | No focusing required | Palette | White heat, black heat, blue, iron red,color, red heat, fusion, rainbow |
| Effective temperature measurement distance | 0.3~50 m adjustable | Contrast and brightness | Adjustable |
| Temperature measurement range | -20°C~150°C and 100°C~550°C | Image format | bmp |
| Temperature measurement accuracy | +2°C or + 2% of the reading (taking themaximum value) | Take a screenshot to save and view | Support |
| High and low temperature values | Automatic capture measurement | USB communication interface | Type-C |
| Temperature measurement point | Center point | Firmware update | Support |
| Temperature measurement area | 3 (highest temperature, real-timetemperature, lowest temperature) | Power supply | 3.6V~4.2V lithium battery |
| Charge | USB interface 5V | ||

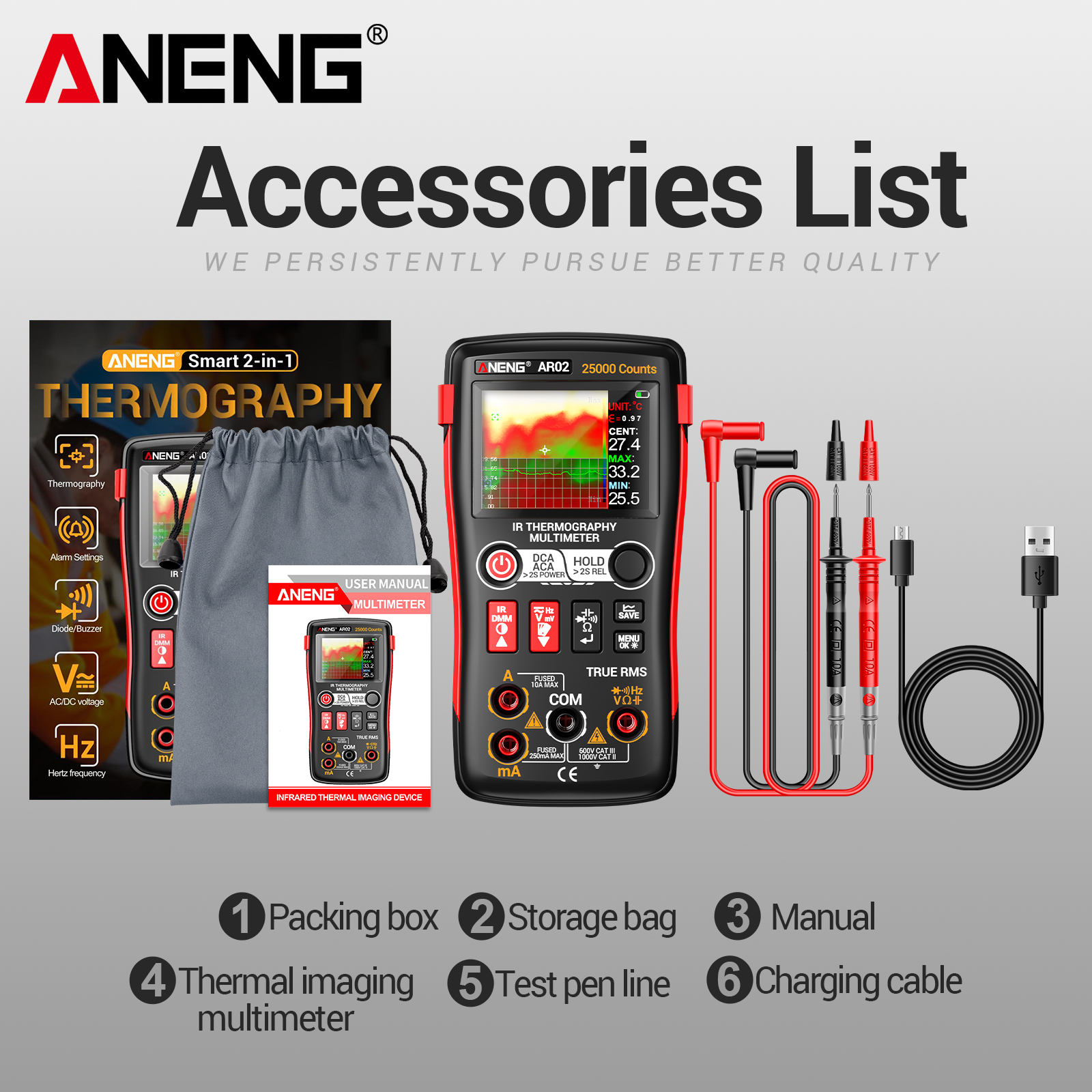

Packaging List:
1 X AR02 Infrared Thermal Imaging Multimeter
2 X Test Lead
1 X USB Charging Cable
1 X User Manual
1 X Cloth Bag
2 X Test Lead
1 X USB Charging Cable
1 X User Manual
1 X Cloth Bag
1 X Packing Box
