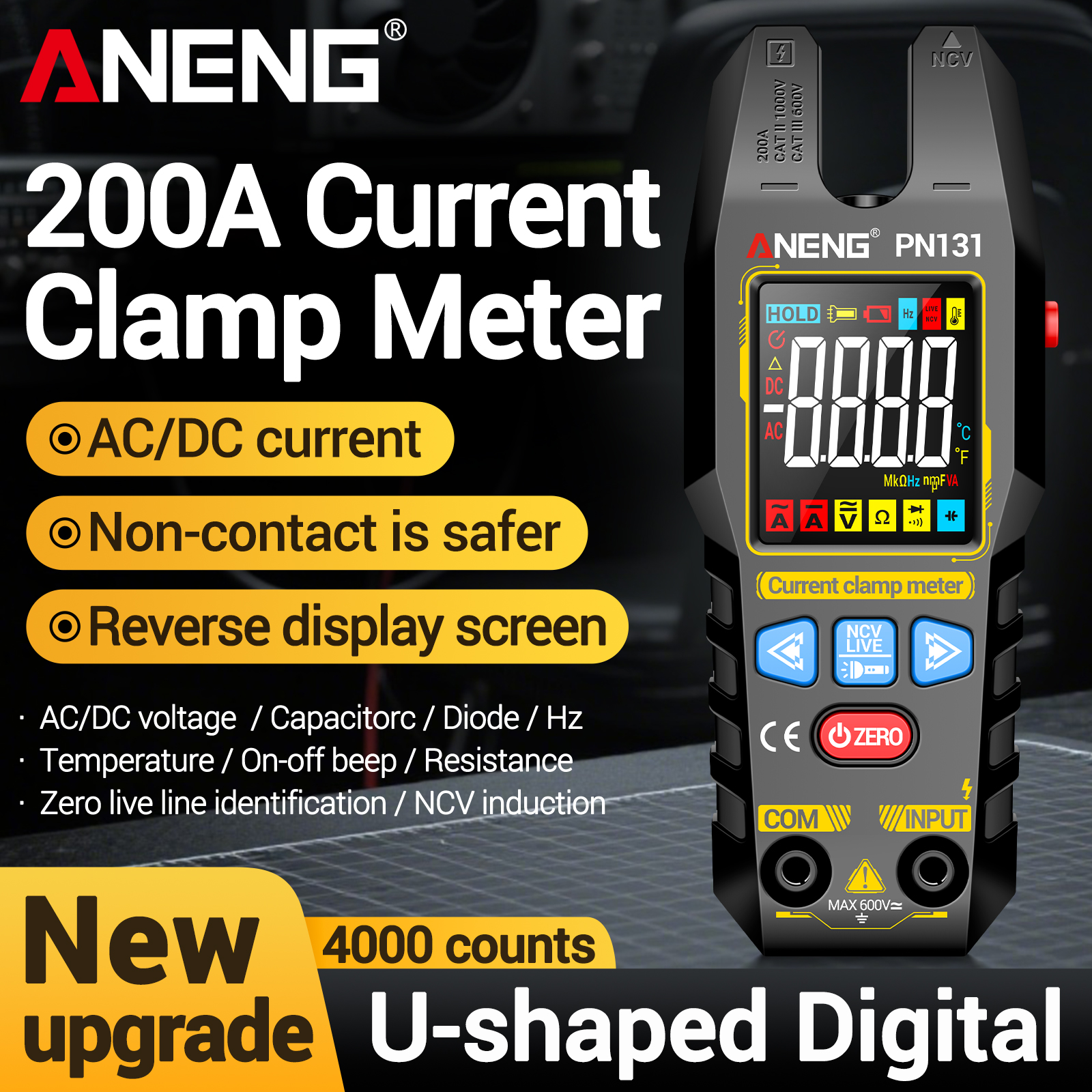

ANENG PN131 Clamp Meter
Production Lead Time:
7 day(s)
Shipping Method:
Express/Air/Sea
Brand:
ANENG
Model No.:
PN131
Description
Contact Supplier
Description

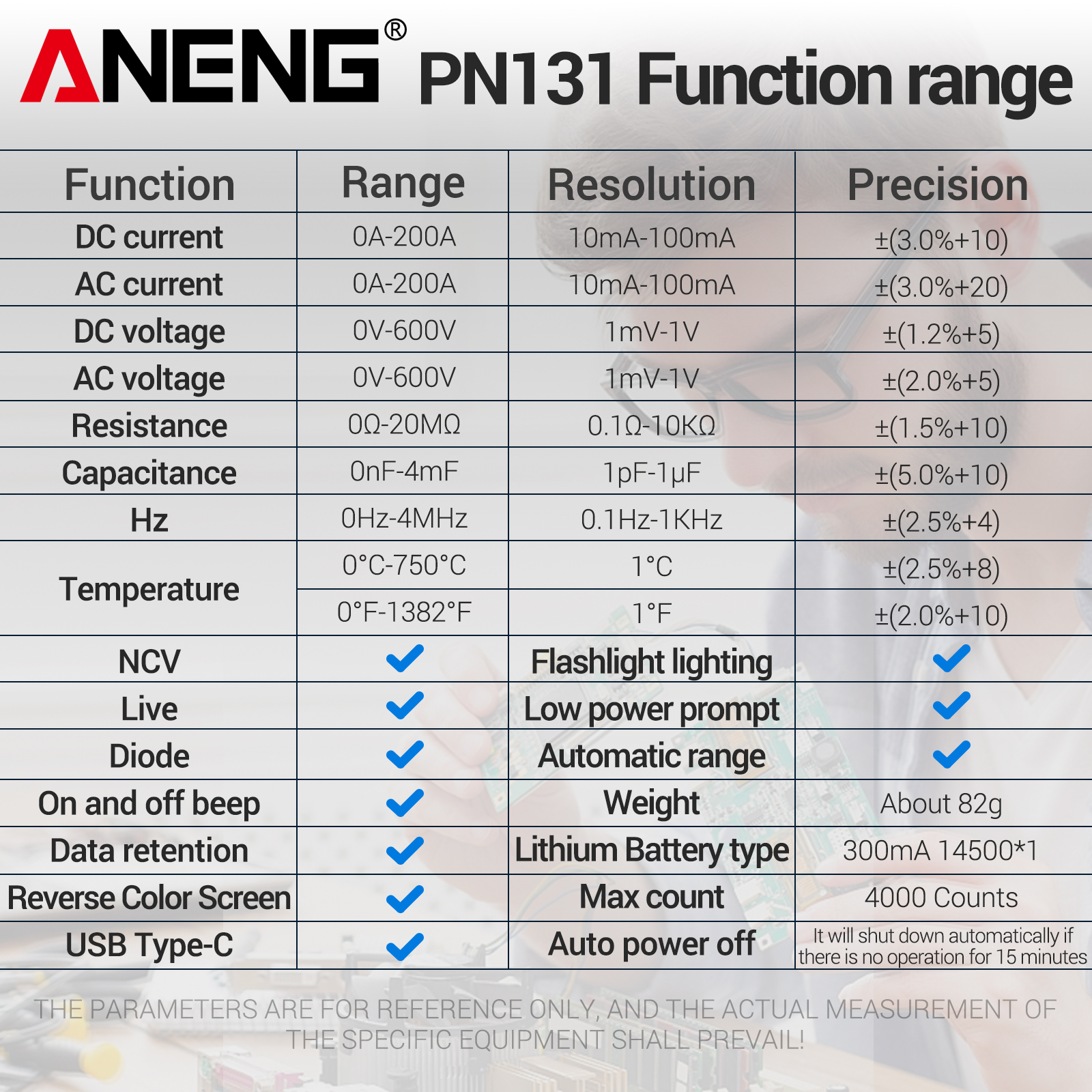

Specifications:
Unless otherwise specified, the following characteristics are measured within one year of manufacture under operating temperature conditions of 18°C~28°C and relative humidity <80%.
| Function | Range | Resolution | Precision |
| DC Current | 0A-40A | 10mA | ±(3.0%+10) |
| 40A-200A | 100mA | ||
| AC Current | 0A-40A | 10mA | ±(3.0%+10) |
| 40A-200A | 100mA | ||
| DC Voltage | 0V-4V | 1mV | ±(1.0%+5) |
| 4V-40V | 10mV | ||
| 40V-400V | 100mV | ||
| 400V-600V | 1V | ±(1.2%+5) | |
| AC Voltage | 0V-4V | 1mV | ±(1.5%+5) |
| 4V-40V | 10mV | ||
| 40V-400V | 100mV | ||
| 400V-600V | 1V | ±(2.0%+5) | |
| Resistance | 0Ω-400Ω | 0.1Ω | ±(1.5%+10) |
| 400Ω-4KΩ | 1Ω | ±(1.0%+10) | |
| 4KΩ-40KΩ | 10Ω | ||
| 40KΩ-400KΩ | 100Ω | ||
| 400KΩ-4MΩ | 1KΩ | ||
| 4MΩ-20MΩ | 10KΩ | ±(1.5%+10) | |
| Hz frequency | 0Hz-400Hz | 0.1Hz | ±(1.5%+10) |
| 400Hz-4KHz | 1Hz | ||
| 4KHz-40KHz | 10Hz | ||
| 40KHz-400KHz | 100Hz | ±(2.0%+10) | |
| 400KHz-4MHz | 1KHz | ||
| Capacitance | 0nF-4nF | 1pF | ±(4.0%+10) |
| 4nF-40nF | 10pF | ||
| 40nF-400nF | 100pF | ||
| 400nF-4μF | 1nF | ||
| 4μF-40μF | 10nF | ||
| 40μF-400μF | 100nF | ±(4.5%+10) | |
| 400μF-4mF | 1μF | ±(5.0%+10) | |
| Temperature | 0℃-400℃ (32℉-752℉) | 1℃/℉ | ±(2.5%+4) |
400℃-750℃ (752℉-1382℉) | 1℃/℉ | ±(2.5%+8) | |
| Diode | Yes | 0.001V |

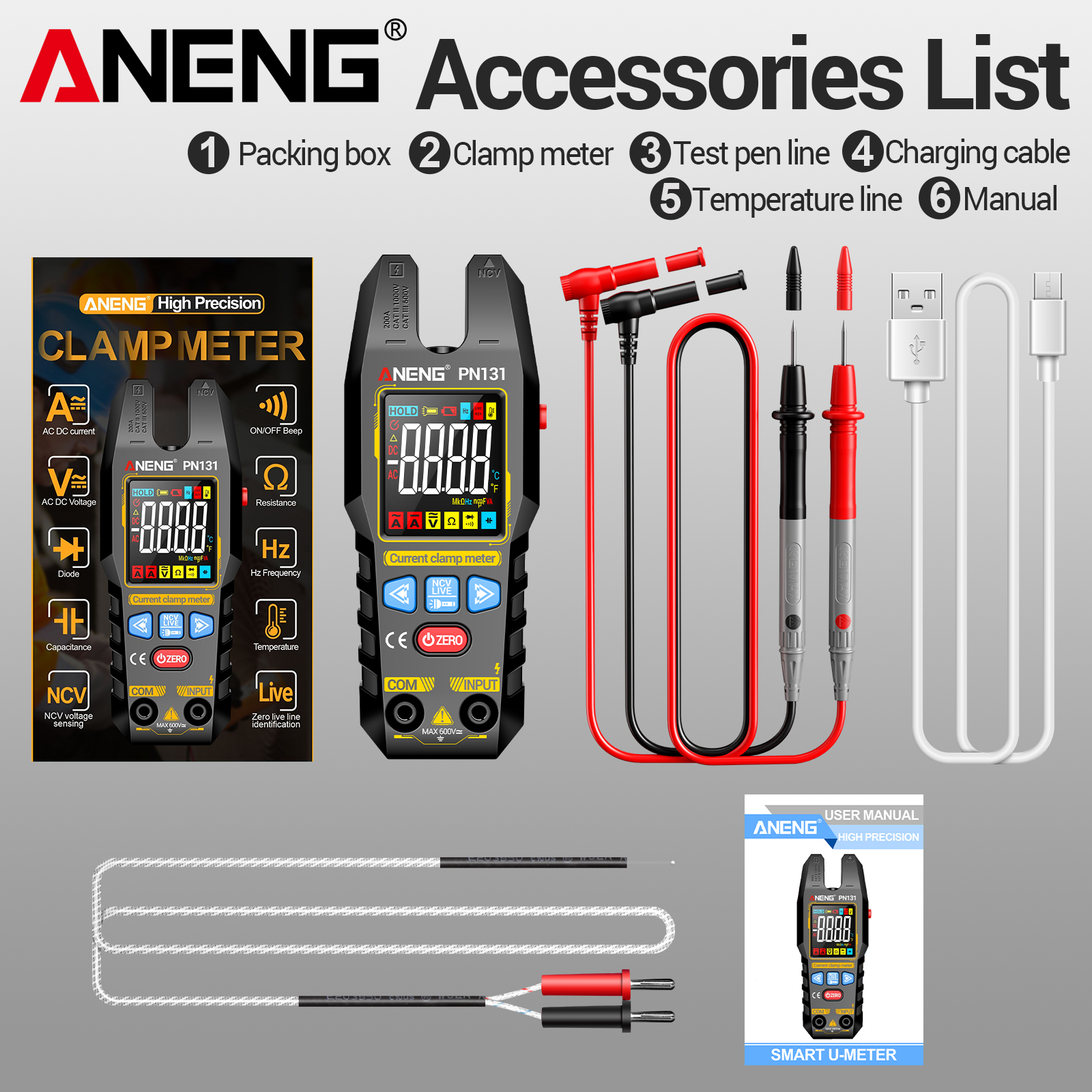

Packaging List:
1 X PN131 Clamp Meter
2 X Test Lead
1 X USB Charging Cable
1 X User Manual
1 X Packing Box
