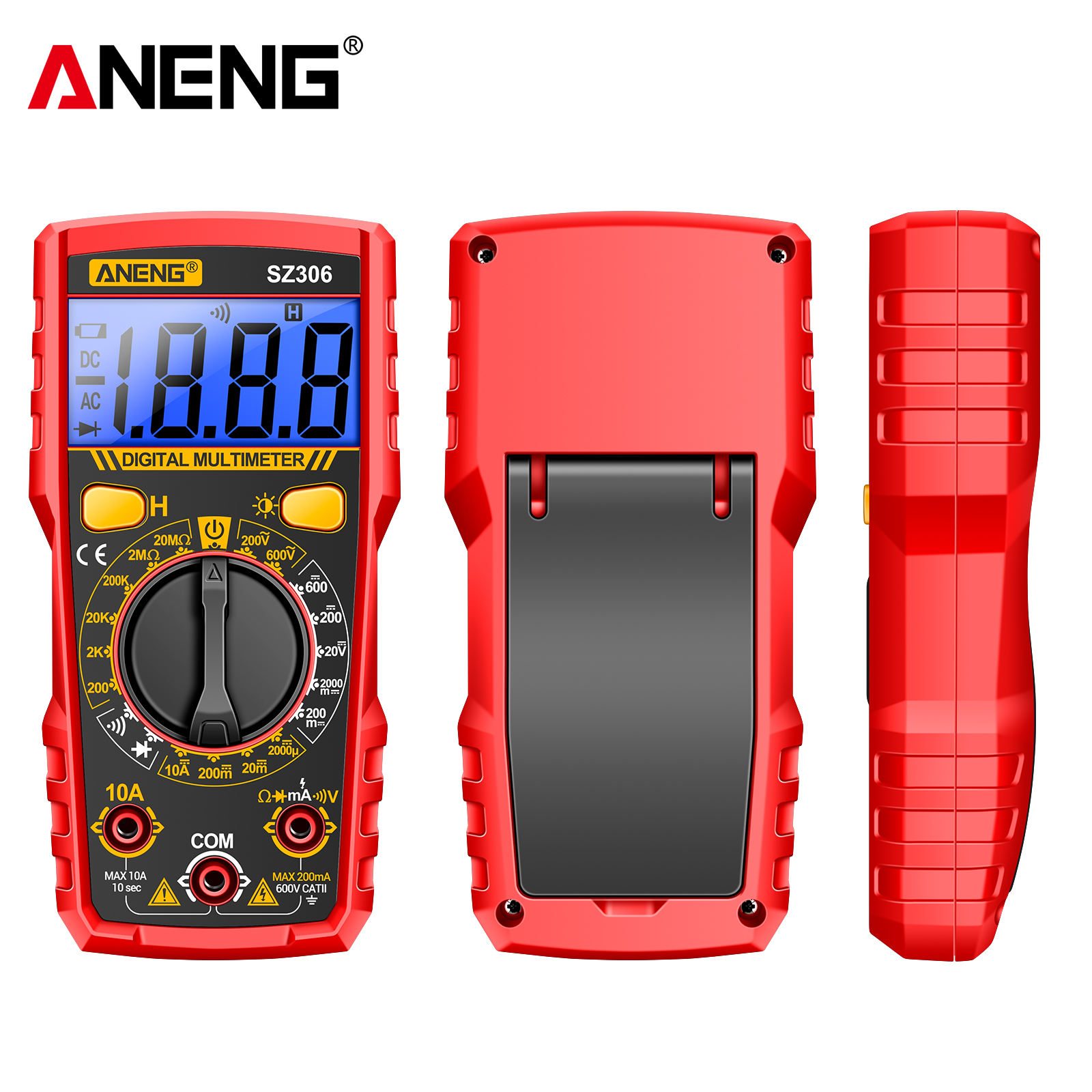

ANENG SZ306 Multimeter

Production Lead Time:

7 day(s)

Shipping Method:

Express/Air/Sea

Brand:

ANENG

Model No.:

SZ306

Description

Contact Supplier

Specifications:

Function	Range	Resolution	Precision
AC voltage	0V-600V	0.1mV-1V	±(1.5%+10)
DC voltage	0mV-600V	0.1mV-1V	±(1.5%+5)
DC current	0uA-10A	1uA-0.001A	±(1.5%+10)
Resistance	0Ω -20MΩ	0.1Ω-10kΩ	±(1.5%+10)
Diode	√	Auto power off	After 15 minutes without operation
Buzzer	√	Battery model	1.5V AAA battery X2
Weight	97g	Hold Data retention	√
Maximum count	1999 Counts	Blue backlit screen	√
Material	ABS	Low power prompt	√

Usage Precautions:

1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.

2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.

3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.

4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument.

5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.

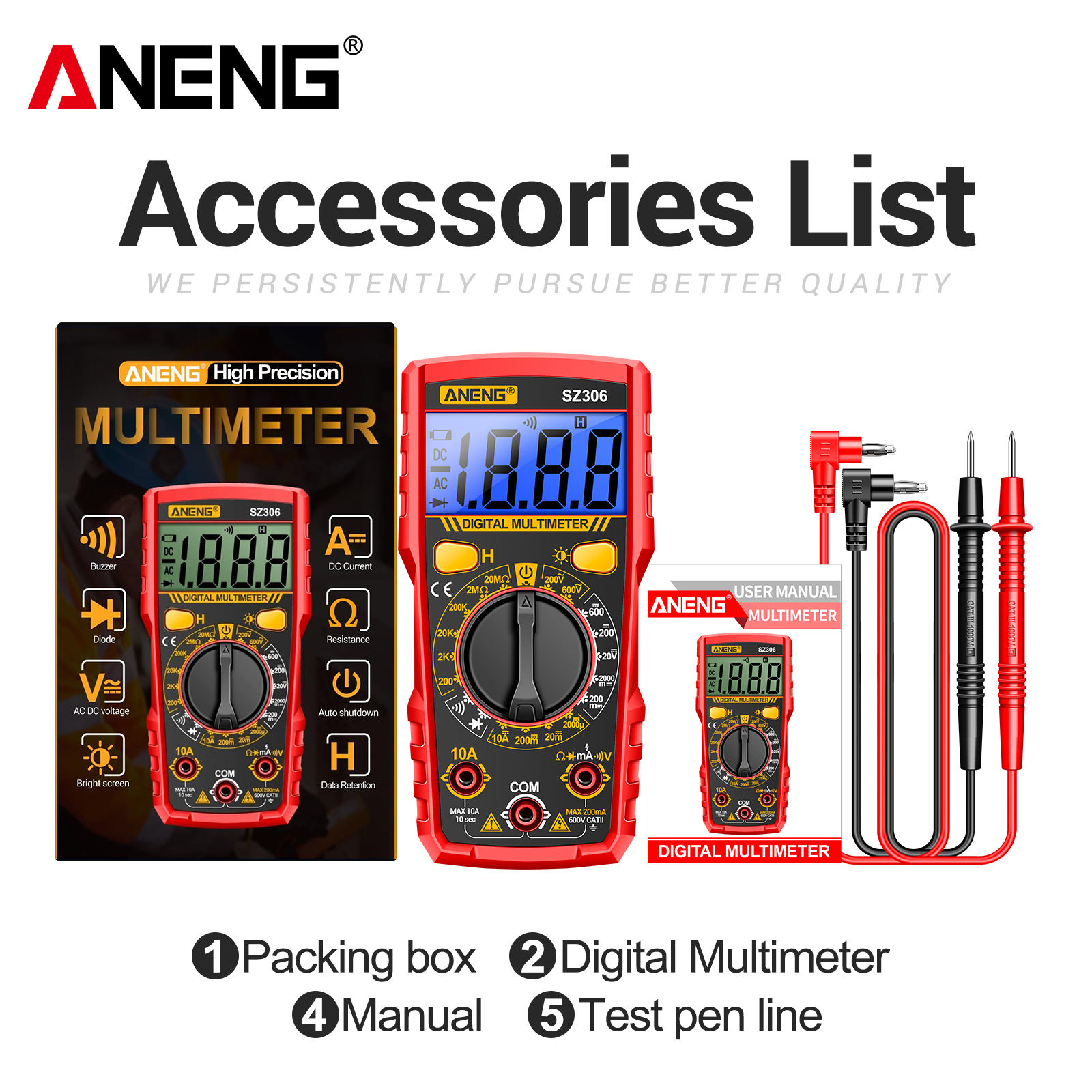

Packaging List:
1 X SZ306 Multimeter(Whitout battery)
2 X Test Lead
1 X User Manual
1 X Packing Box
