ANNEG BT-171 Battery Tester

Production Lead Time:

7 day(s)

Shipping Method:

Express/Air/Sea

Brand:

ANENG

Model No.:

BT-171

Description

Contact Supplier

Description:

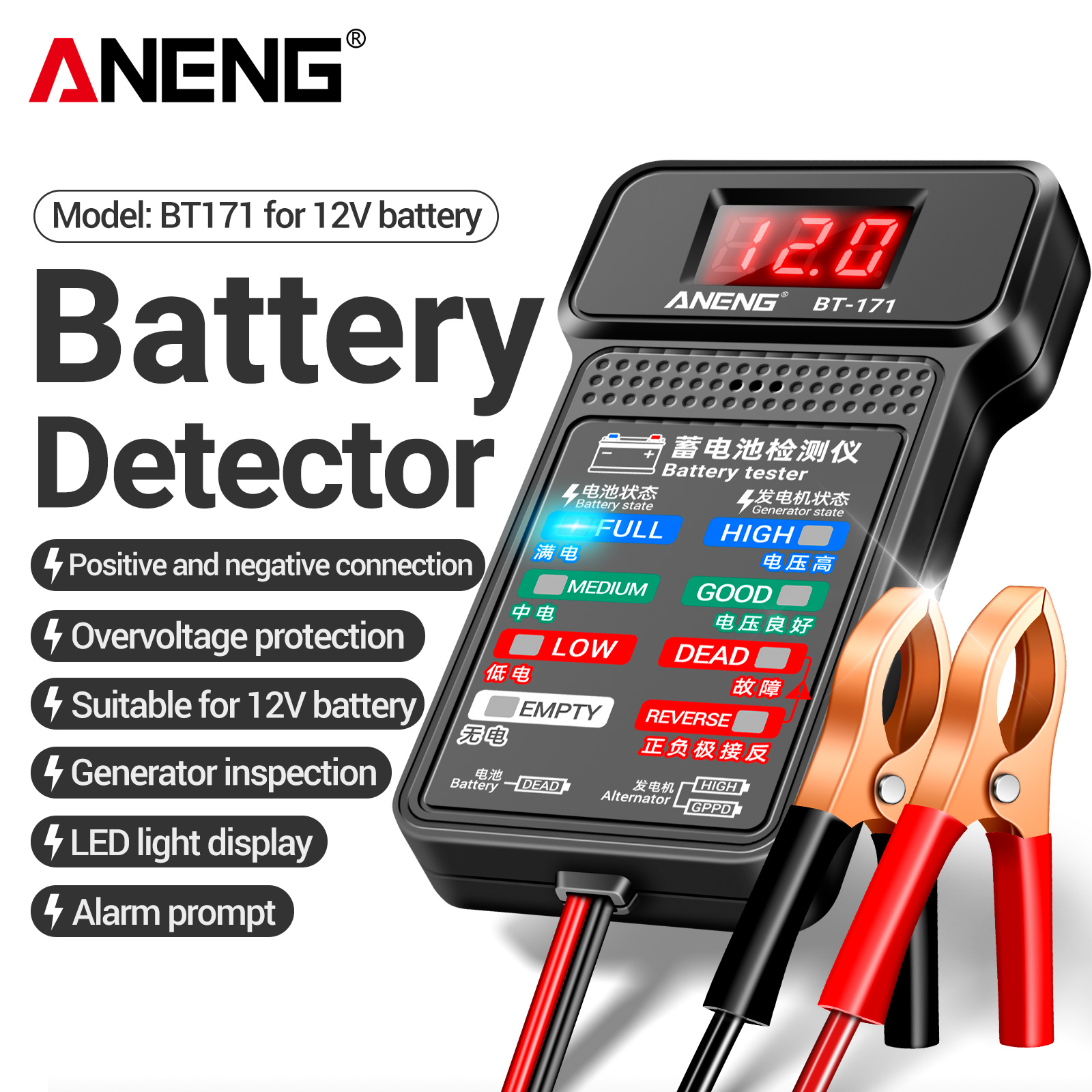

1.Designed for testing 12V battery voltage or charging system voltage.

2.With LED display and LED battery status indicator.

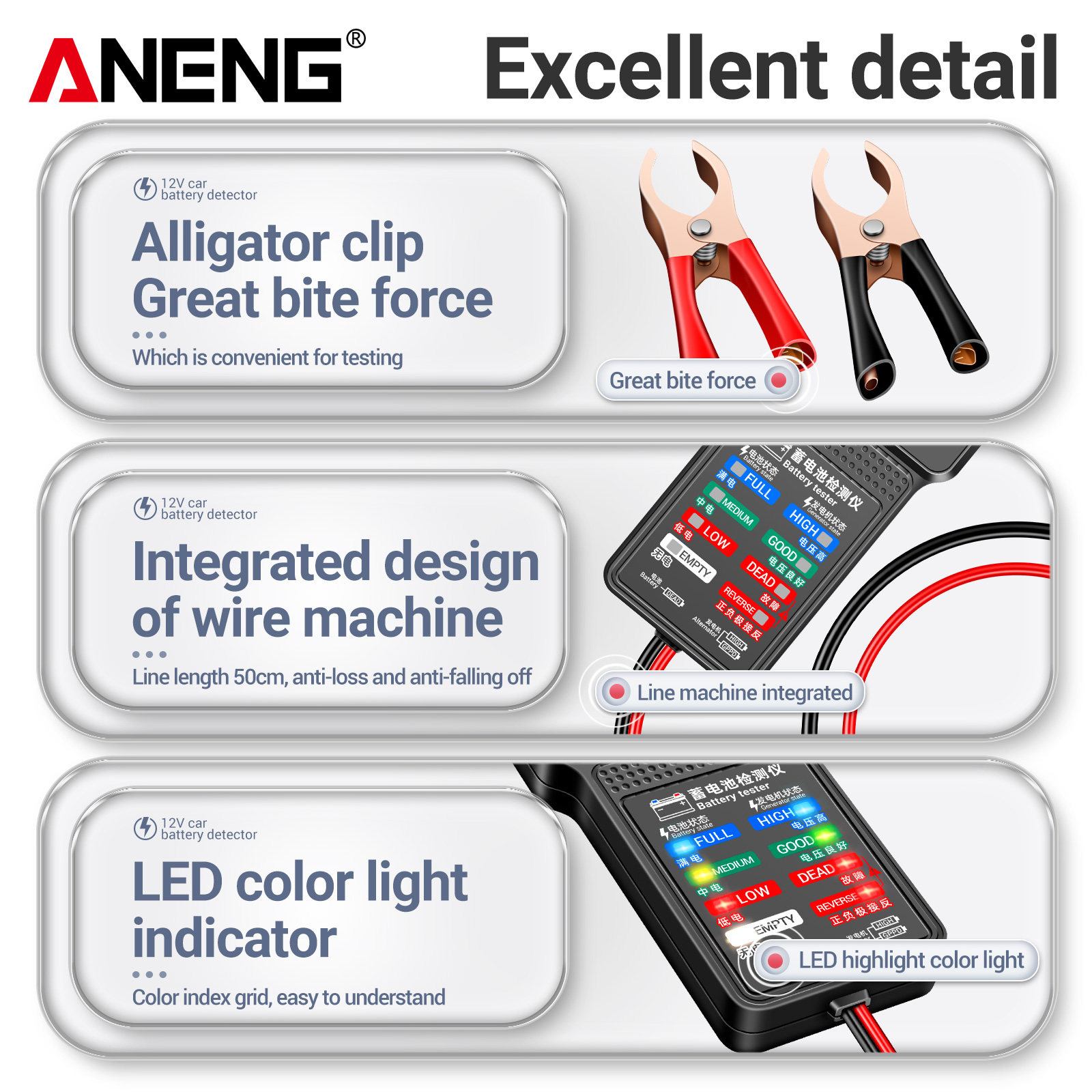

3.Rubber body with alligator clips for connection.

4.With reverse connection alarm and overvoltage protection function.

Specification:

1.Correctly connect the instrument battery clip to the battery terminal, the red clip connects to the poitive pole"+" abd the black clip connect to the negative pole "-",if the connection is reversed, the LED display does not show, PEVERSC indicator lights up and issues an alarm prompt.

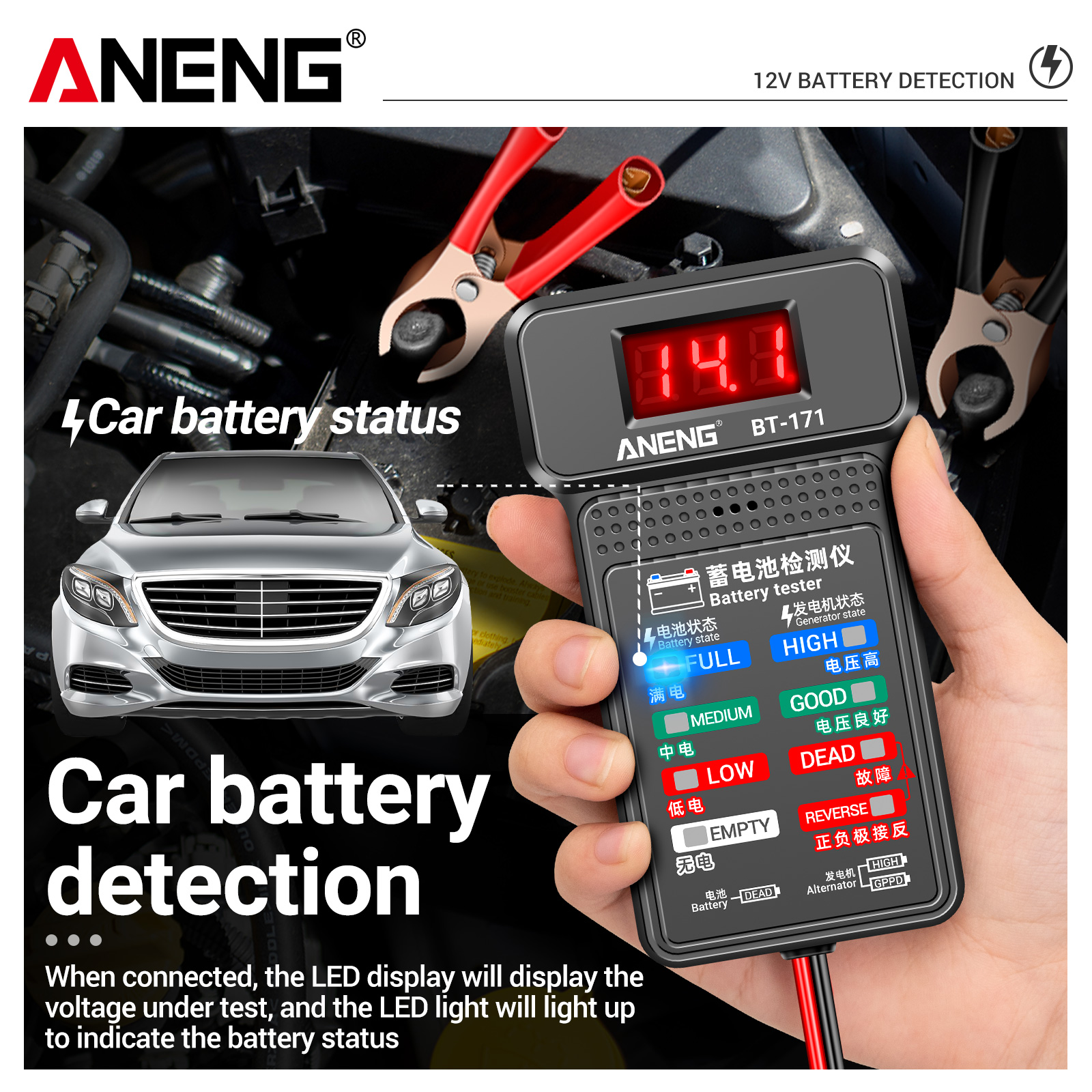

2.After the correct connection.The LED display will show the real time voltage of the battery under test, while the LED lights up to indicate the battery status.

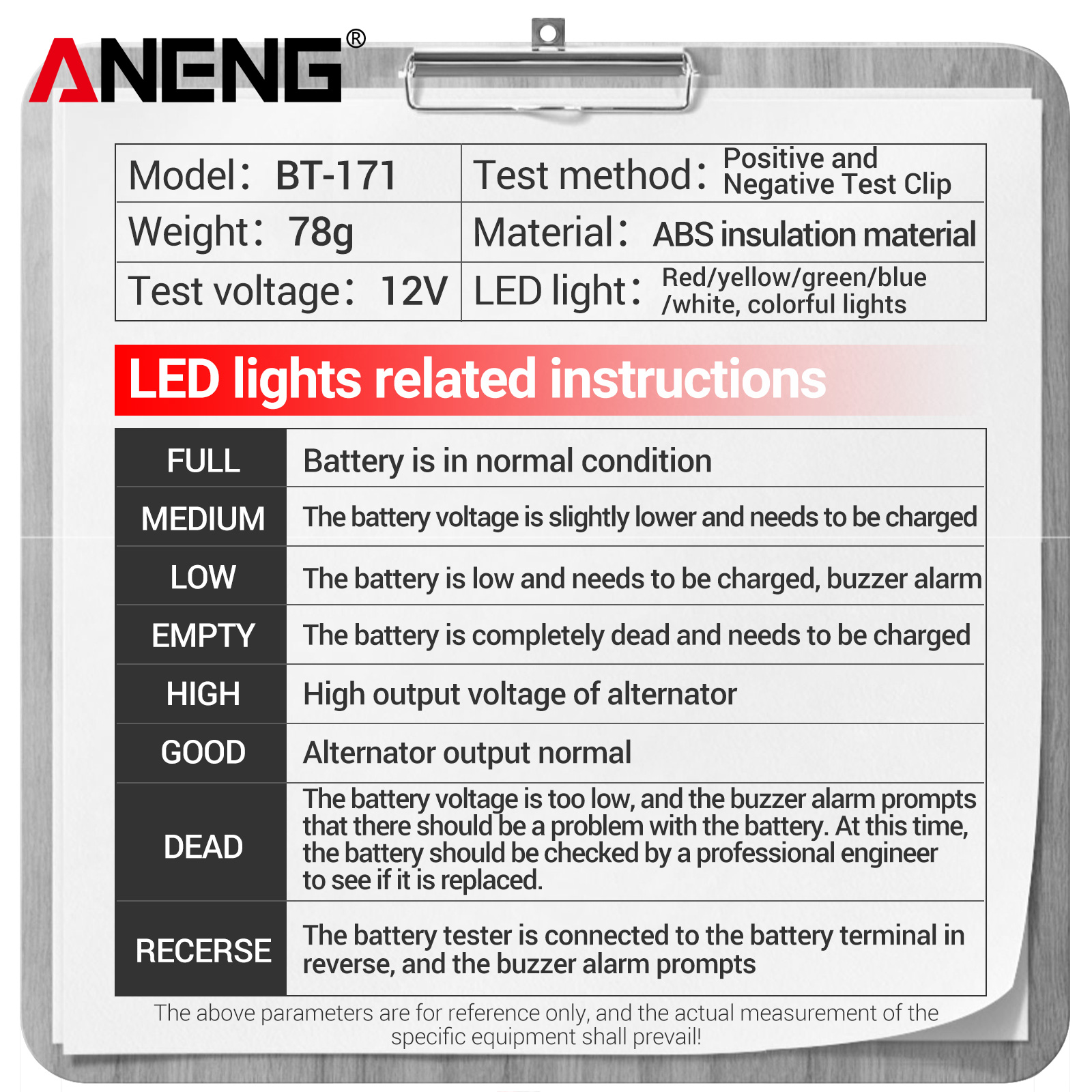

FULL	Battery is in normal condition
MEDIUM	The battery voltage is slightly lower and needs to be charged
Low	The battery is low and needs to be charged, buzzer alarm
EMPTY	The battery is completely dead and needs to be charged
HIGH	High output voltage of alternator
GOOD	Alternator output normal
DEAD	The battery voltage is too low, and the buzzer alarm prompts that there should be a problem with the battery. At This time, the battery should be checked by a professiona; engineer to see if it is replaced.
RECERSE	The battery tester is connected to the battery terminal in reverse, and the buzzer alarm prompts

3.When testing the generator charging system. Please keep the tester and battery terminals correctly connected, and then start generator, the output voltage will be shown on the LED display screen, and the right LED indicator lights up to indicator the genrator status.

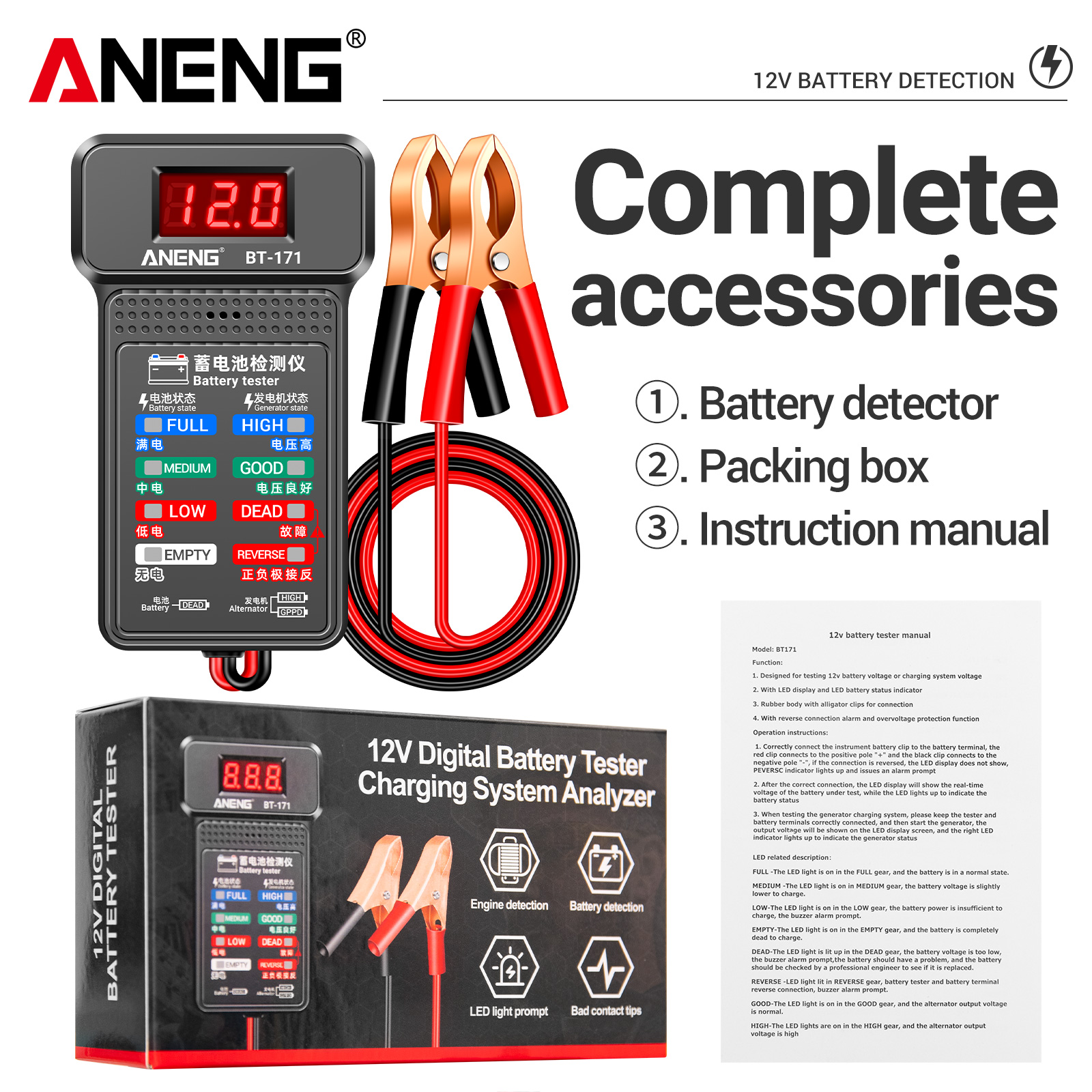

Packaging List:

1 X BT-171 Battery Tester(without battery)

1 X User Manual

1 X Packing Box
