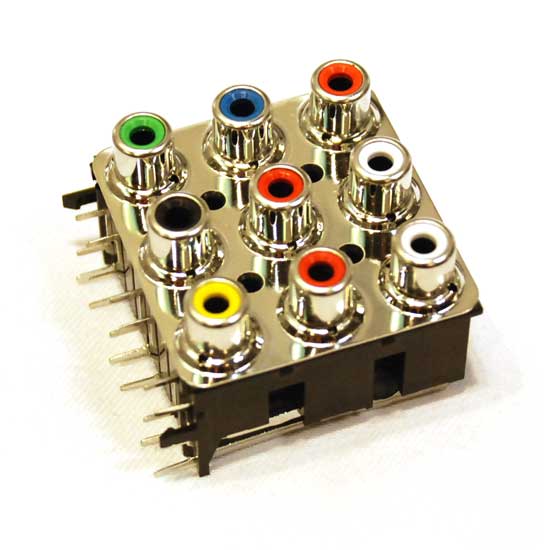

AV Pin Jack Board
Model No.:
AV9-8.4-17PB
Colour:
Silver
Port:
Shanghai, Ningbo
Description
Contact Supplier
Description
This AV pin jack board comes in a classical 9-jack design for the highest functionality. The extra-long lifespan allows this board to be used for more than 5,000 times. This jack board works perfectly from -40°C to 70°C.
- Rated voltage: 50V, 40V.
- Rated current: 0.5A.
- Contact resistance: ≤0.03Ω.
- Insulation resistance: ≥100MΩ DC 500V.
- Withstand voltage: AC 500V.
- PH value: PH6-8.
