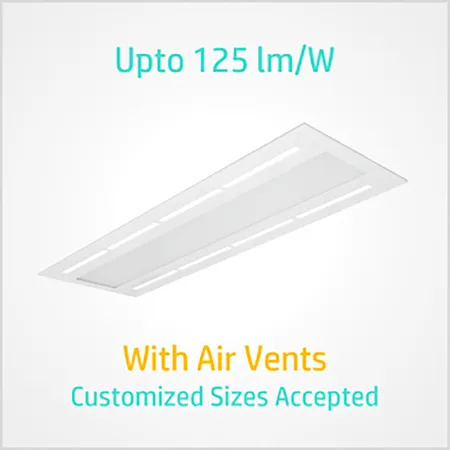

Cyanlite LED Backlite panel light with Aircon Slots/ Air Vents for T-bar ceiling and SAS150/SAS330 ceiling systems

The Cyanlite™ panel light with Aircon Slot series is a product that combines premium LED panel light and air slots. Aesthetic simple design with double function. Tool-less installation saves huge time for installers and enable them to complete the project easily and quickly. Besides the light with air vents for T-bar ceiling system, Cyanlite also offer LED lighting with air vents/ aircon slot for metal ceiling systems such as SAS150 CLIP-IN/ SAS330 HOOK-OVER etc.,

• Advantages

-          Specifically designed for places where requires LED light and air handing and air return.

-          Classy and modern appearance, perfectly match the ceiling where it's installed

-          Easy and fast installation, tool-less installation, saving installation cost

-          Flexible and customization oriented, bespoke sizes are welcome, suitable for SAS150&SAS330 ceilings.

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

• Features

• l   Standard sizes (mm): 600x600, 300x1200, 600x1200, customized sizes are welcome
• l   RAL9016 as standard, other RAL colors available on request
• l   System Efficiency upto 125 lm/W
• l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser
• l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K
• l   5 Years Warranty
• l   Various dimming options, including 0-10V, DALI, Switch Dim etc.
• l   Emergency options available

• Specifications

- Light Distribution

                      - UGR22 with Opalic diffuser                                                                - UGR19 with Micro Prismatic diffuser

• Retrofit Replacement Case Study

This customer used about 500pcs traditional T8 fluorescent tube fittings with air con slot/ air vents in their building, they wanted to replaced all of those luminaires for energy saving, improving lux level and reducing the maintenance cost. So Cyanlite customized this project for them, make the perfect retrofit replacement with LED panel light with air vents, in the same luminaire dimension, the same air vent and air return capacity specification, better light efficiency, longer life and better maintenance cost.

1, the previous T8 tube fitting with air vents used.

2, Cyanlite created the drawing and design based on previous luminaire and requirements.

3, Cyanlite produced the LED panel light with air vents retrofit replacement.

4，Installation is very easy and fast due to the retrofit design, perfectly integrated to the aircon and ceiling systems.

• 9.1 Q: What is Cyanlite’s product warranty policy?

A: Cyanlite offers 5 years warranty to our products. The detailed information on the 5-year warranty and the warranty conditions can be found under Cyanlite 5-Year Warranty Letter.

• 9.2 Q: What shall I do if I find a product failure?

A: If you have a product failure within the warranty period, please contact your account manager or our customer service department at customer@cyanlite.com. As a responsible company, Cyanlite will take care and be responsible for each failure caused by quality.

• 9.3 Q: Will I receive free replacement?
• 9.3.1       Failure rate less than 0.5%, Cyanlite will send the replacements directly.
• 9.3.2       Failure rate less than 1%, Cyanlite would need the application details, installation information, and defect product pictures for brief analysis and then send replacements.
• 9.3.3       Failure rate more than 1%, Cyanlite would require customers to send back the defect product samples for detailed analysis. If the failure is due to product quality, we will send replacements together with a full 8D report showing how to terminate it entirely in the short and long term.
