Alarm Cable Unshielded 6 Core 2 | Telecommunication

Ningbo Suntek Electronic Co., Ltd.

Alarm Cable Unshielded 6 Core 2

Production Lead Time:

30 day(s)

Model No.:

alarm cable

Brand:

OEM

Colour:

White, Grey

Size:

100m

Package:

Yes

Customised:

Yes

Insulation Material:

PVC

Description

Contact Supplier

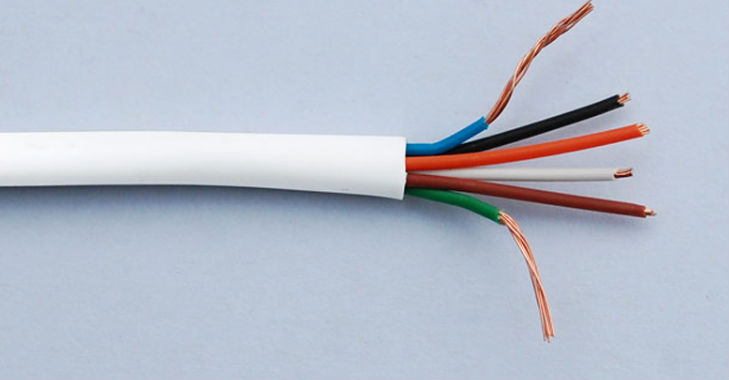

Alarm Cable Unshielded 6 Core 24 AWG Security for Indoor Use

Unshielded 6 core 24 AWG security alarm cable for indoor use
Alarm cable Security cable
7 x 0.20mm or 7 x 0.24mm copper, tinned copper or CCA, alarm cable
Shield or unshielded, PVC Lszh Alarm Cable Security Cable 7/0.20mm stranded or 14 x 0.20mm, 6 cores unshielded or we can produce as per buyer's request
7 x 0.18mm, 7 x 0.20mm or 7 x 0.24mm copper, tinned copper or CCA, stranded, shield or unshielded, good PVC, LZSH PVC
Conductor: bare copper or tinned copper or CCA or CCS conductor
Insulation: PVC-flame proof or common PVC insulation
Cable core: 2C, 4C, 6C, 8C, 12C, etc. are available
Rip cord
Jacked: PVC-flame proof or common PVC insulation, CMP, CM

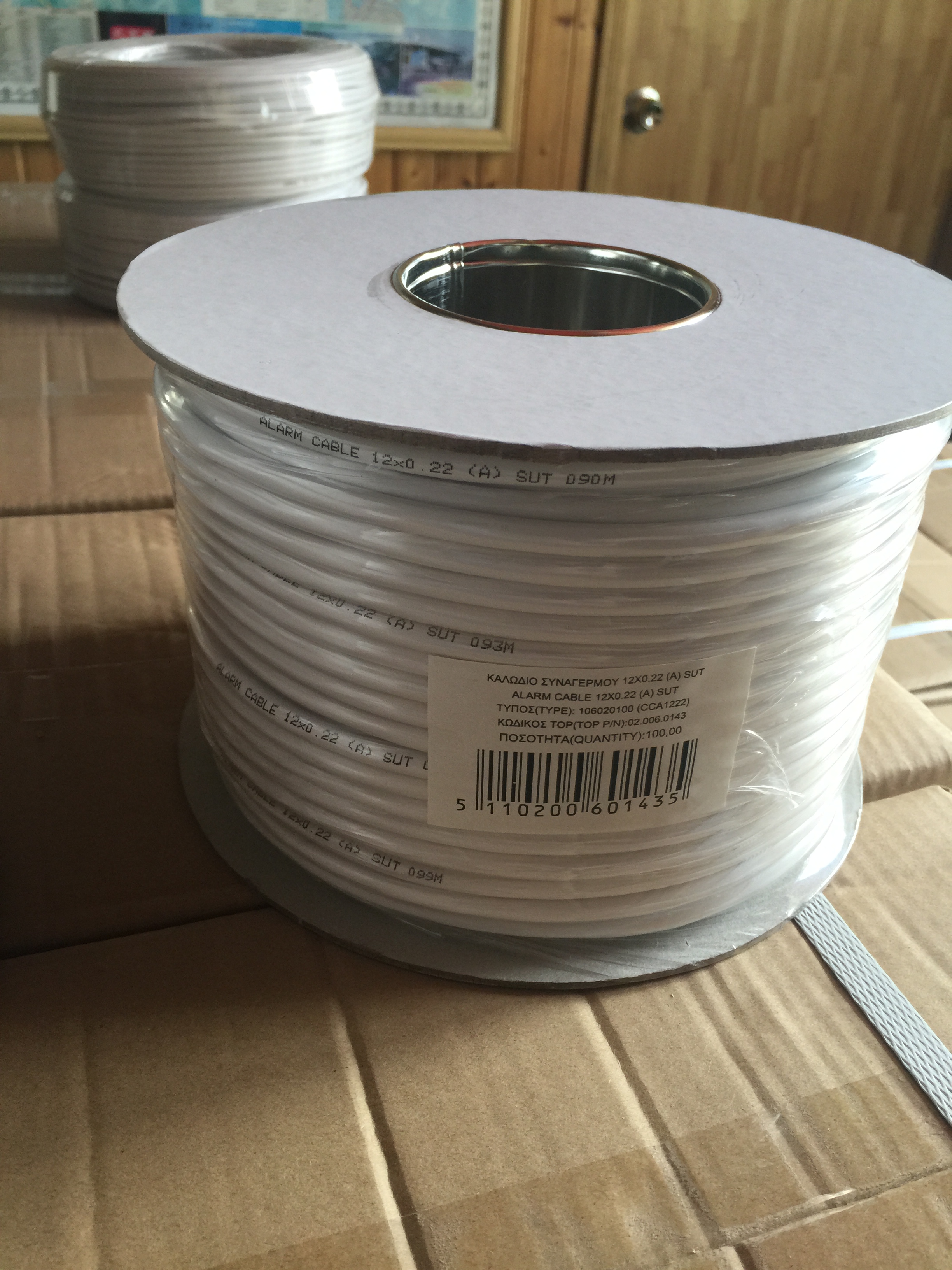

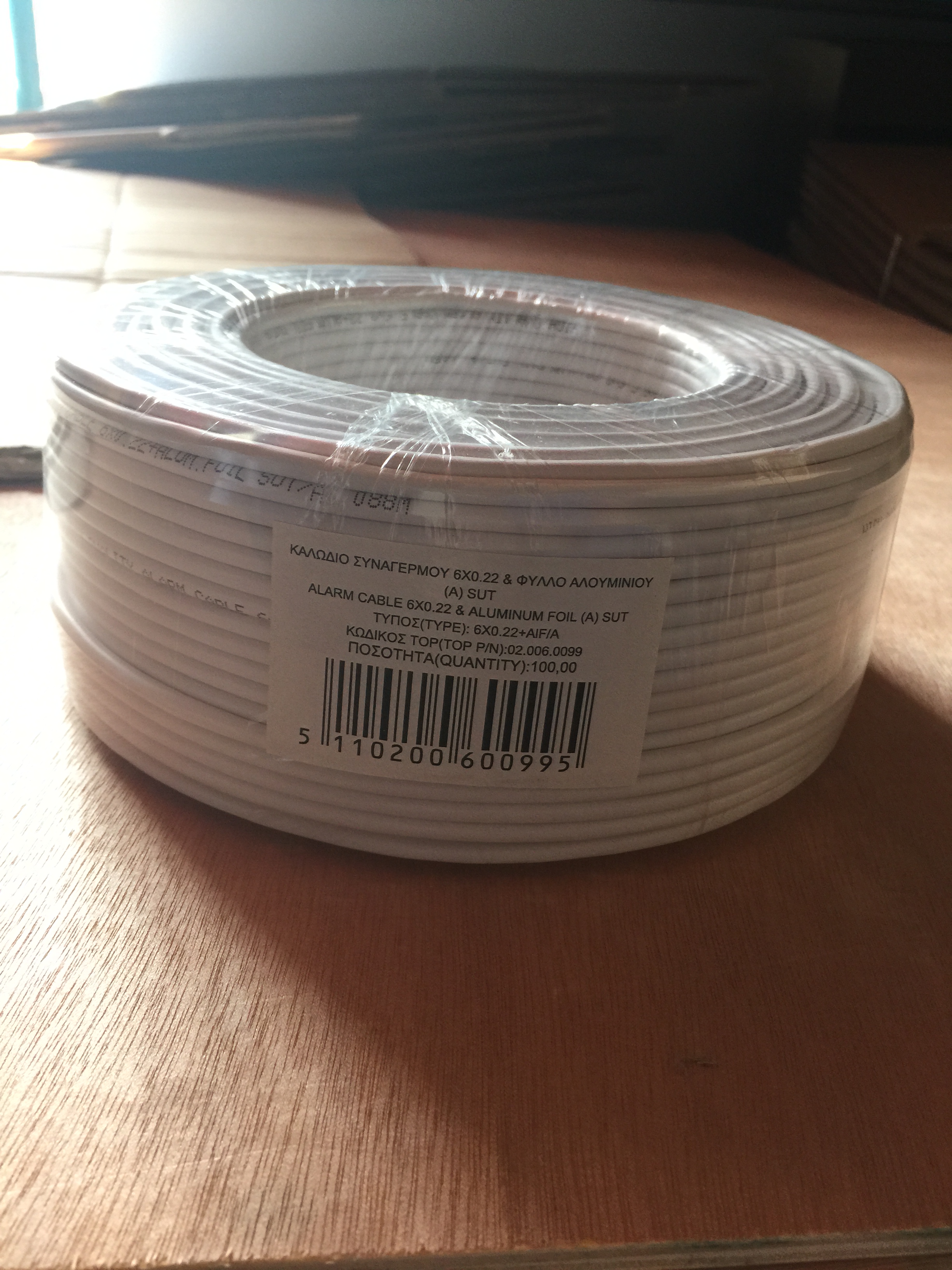

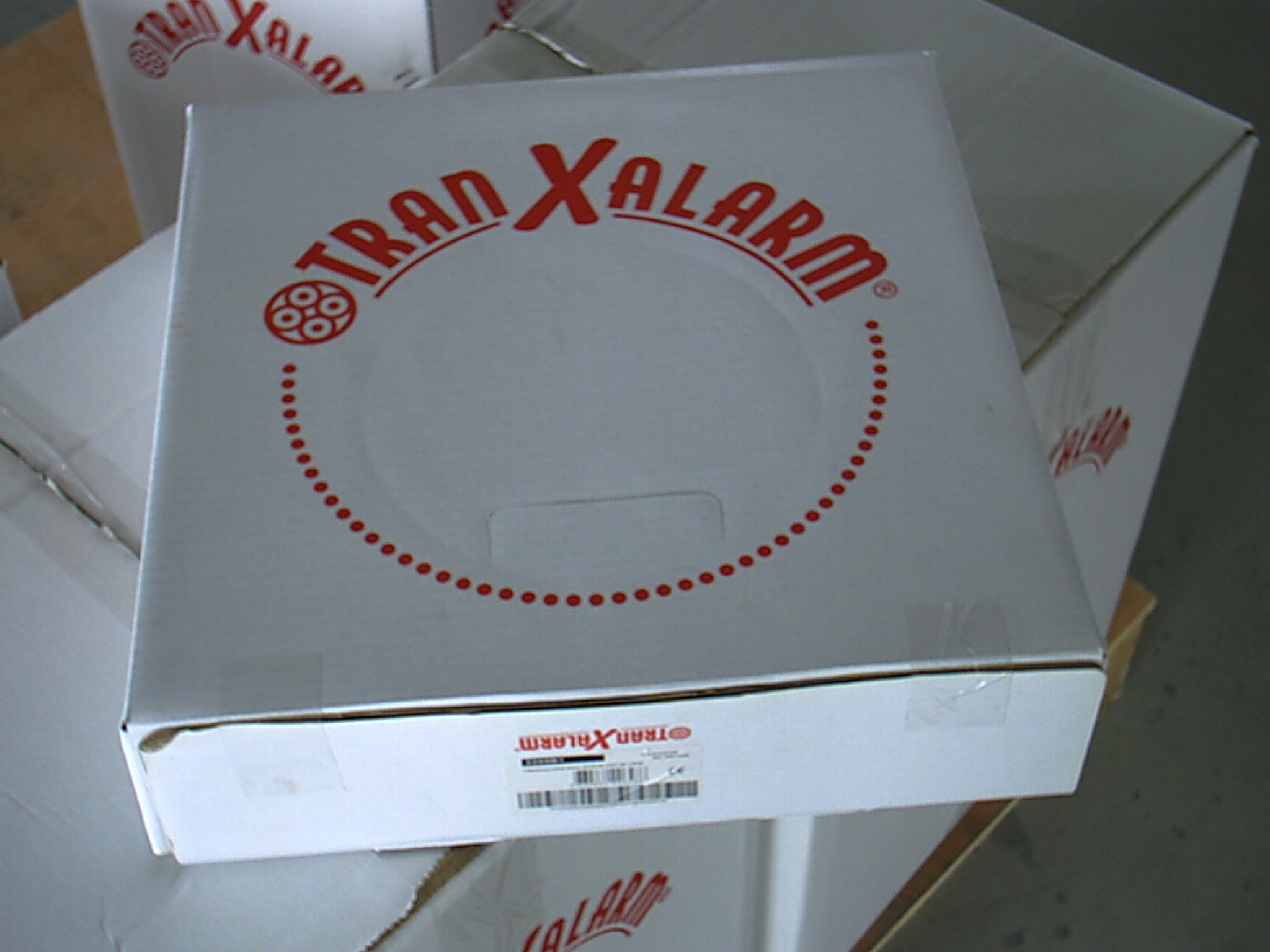

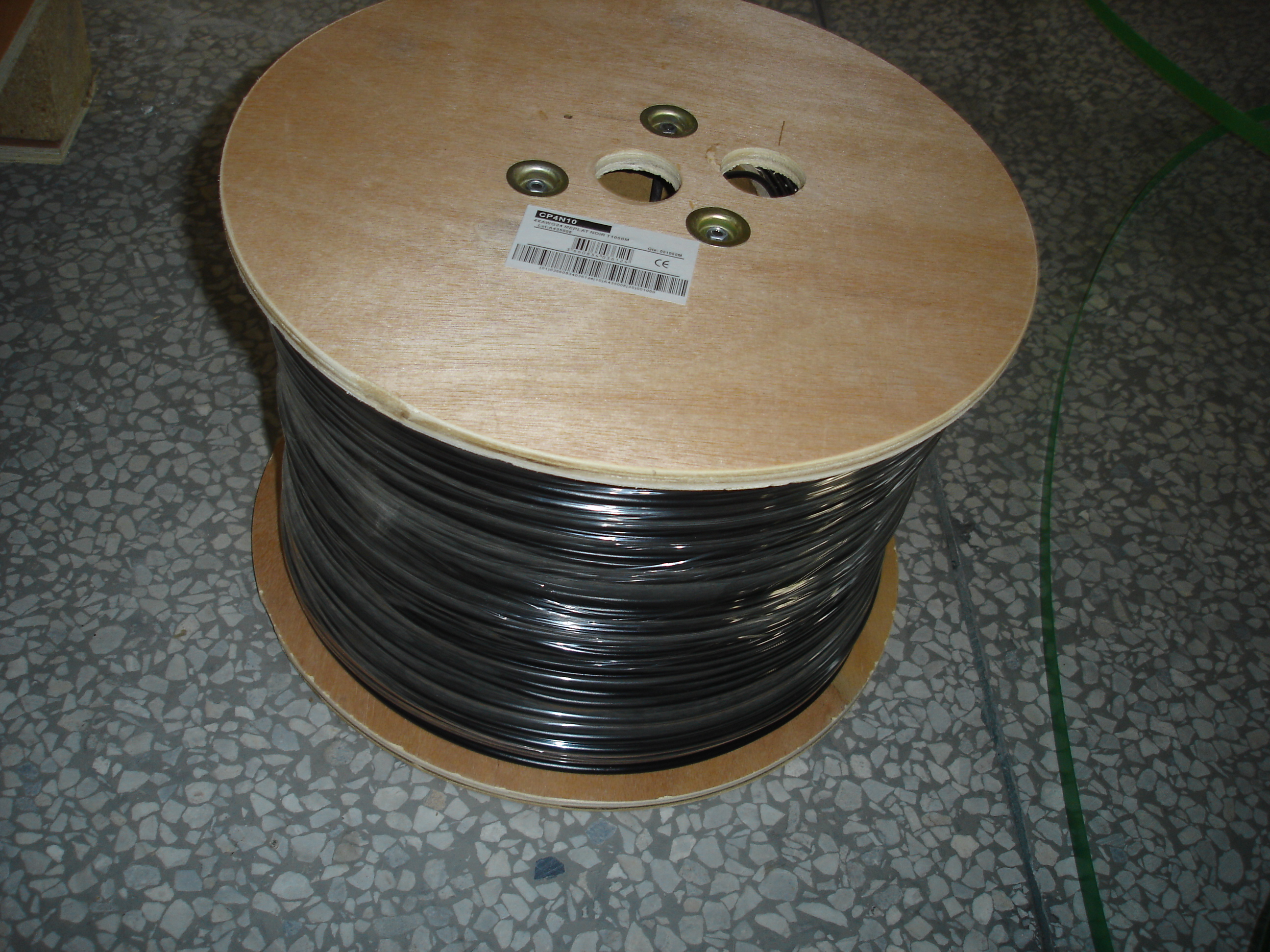

Standard packing: 100m/box, 100m/plastic spool, 305m/wooden spool
Application: used for alarm mechanisms or security system.
Electrical Properties: Nom.DC Resistance per Conductor@20 6.43Ohms/Kft.nom
Capacitance between Conductors@1KHZ 35pF/ft.nom
Operating Voltage 300V/RMS max
Temperature Rating -20oC to 60oC
