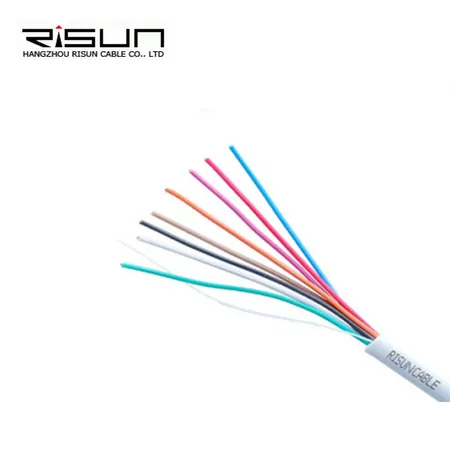

Alarm cable Nx0.50
US $60.00 - US $75.00
Production Lead Time:
20 day(s)
Shipping Method:
BY SEA
Description
Contact Supplier
Description
Fire alarm cableSuitable for Evacuation Systems, Burglar alarms | |||||||||
| DESCRIPTION | |||||||||
| Manufactured according to NEC. | |||||||||
| TECHNICAL SPECIFICATIONS | |||||||||
Part No. | No.of cores x mm2 | No. / Dia. | Insulation thickness | O.D (approx.) | |||||
| Inch | AWG | mm | Inch | mm | Inch | mm | |||
| 2 x 0,22 | 0.0236 | 24 | 7/0,20 | 0.01 | 0.25 | 0.138 | 3.5 | ||
| 4 x 0,22 | 0.0236 | 24 | 7/0,20 | 0.01 | 0.25 | 0.157 | 4.0 | ||
| 6 x 0,22 | 0.0236 | 24 | 7/0,20 | 0.01 | 0.25 | 0.188 | 4.8 | ||
| 8 x 0,22 | 0.0236 | 24 | 7/0,20 | 0.01 | 0.25 | 0.209 | 5.3 | ||
| 10 x 0,22 | 0.0236 | 24 | 7/0,20 | 0.01 | 0.25 | 0.228 | 5.8 | ||
| 12 x 0,22 | 0.0236 | 24 | 7/0,20 | 0.01 | 0.25 | 0.252 | 6.4 | ||
| 20 x 2,22 | 0.0236 | 24 | 7/0,20 | 0.01 | 0.25 | 0.591 | 15.0 | ||
| 2 x 0,22 + 2 x 0,50 | 0.0236 | 24 | 7/0,20 16/0,20 | 0.01 / 0.0118 | 0.25 / 0.30 | 0.1417 | 3.6 | ||
| 4 x 0,22 + 2 x 0,50 | 0.0236 | 24 | 7/0,20 16/0,20 | 0.01 / 0.0118 | 0.25 / 0.30 | 0.157 | 4.0 | ||
| 6 x 0,22 + 2 x 0,50 | 0.0236 | 24 | 7/0,20 16/0,20 | 0.01 / 0.0118 | 0.25 / 0.30 | 0.177 | 4.5 | ||
| 8 x 0,22 + 2 x 0,50 | 0.0236 | 24 | 7/0,20 16/0,20 | 0.01 / 0.0118 | 0.25 / 0.30 | 0.205 | 5.2 | ||
| 10 x 0,22 + 2 x 0,50 | 0.0236 | 24 | 7/0,20 16/0,20 | 0.01 / 0.0118 | 0.25/ 0.30 | 0.213 | 5.4 | ||
| 12 x 0,22 + 2 x 0,50 | 0.0236 | 24 | 7/0,20 16/0,20 | 0.01 / 0.0118 | 0.25 / 0.30 | 0.221 | 5.6 | ||
| 2 x 0,22 + 2 x 0,75 | 0.0236 | 24 | 7/0,20 24/0,20 | 0.009 / 0.0118 | 0.25 / 0.35 | 0.193 | 4.9 | ||
| 4 x 0,22 + 2 x 0,75 | 0.0236 | 24 | 7/0,20 24/0,20 | 0.009 / 0.0118 | 0.25 / 0.35 | 0.205 | 5.2 | ||
| 6 x 0,22 + 2 x 0,75 | 0.0236 | 24 | 7/0,20 24/0,20 | 0.009 / 0.0118 | 0.25 / 0.35 | 0.213 | 5.4 | ||
| 8 x 0,22 + 2 x 0,75 | 0.0236 | 24 | 7/0,20 24/0,20 | 0.009 / 0.0118 | 0.25 / 0.35 | 0.228 | 5.8 | ||
| 10 x 0,22 + 2 x 0,75 | 0.0236 | 24 | 7/0,20 24/0,20 | 0.009 / 0.0118 | 0.25 / 0.35 | 0.244 | 6.2 | ||
| 12 x 0,22 + 2 x 0,75 | 0.0236 | 24 | 7/0,20 24/0,20 | 0.009 / 0.0118 | 0.25 / 0.35 | 0.260 | 6.6 | ||
| Parameters | |||||||||
| Operating temperature range ℃ | -20+60 | ||||||||
| Min. bend radius (install) | 8xD | ||||||||
| DC resistance 20℃ ohm/KM | 0,22 | 90 | |||||||
| 0,50 | 36.7 | ||||||||
| 0,75 | 24.8 | ||||||||
| Application | |||||||||
Evacuation systems, smoke detectors and alarms. | |||||||||
| Packing | |||||||||
| |||||||||
| All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice. | |||||||||
