Item | Specification |
|
|
| Remark |
light power | 30W | 90W(30w ×3) | 120W(30w ×4) | 240w(30w×8) | optional |
lithium battery capacity | 60AH(192WH) | 60AH ×3 | 60AH ×4 | 60AH ×8 | lithium battery |
solar panel | 5V 46W | 46w ×3 | 46w ×4 | 46w ×8 | Mono |
Voltage | 3.2V | 3.2V | 3.2V | 3.2V |
|
LED Light intensity | 130-140LM/W | 130-140LM/W | 130-140LM/W | 130-140LM/W |
|
Color temperature | 5800-6500K | 5800-6500K | 5800-6500K | 5800-6500K | Standard |
Color rendering index | ≥80% | ≥80% | ≥80% | ≥80% |
|
Light angle | 150° ×75° | 150° ×75° | 150° ×75° | 150° ×75° |
|
Working temperature | -25℃-60℃ | -25℃-60℃ | -25℃-60℃ | -25℃-60℃ |
|
IP grade | IP65 | IP65 | IP65 | IP65 |
|
shock protection | IK10 |
| |||
Lamp casing material | steel |
| |||
Installation diameter | φ60 |
| |||
Lamp dimension | 855×585×160mm |
| |||
working hour | 8-12hrs | optional | |||
mounting height advice | 3-4M |
| 5-7M |
|
|
controller | Booster controller,Over-charging protection, over-discharging protection, short-circuit protection, inverse connection protection, automatic energyisaving mode | Qualified | |||
Certificate | CCC/ CE/ ROHS/ ISO9001/ BIS | ||||

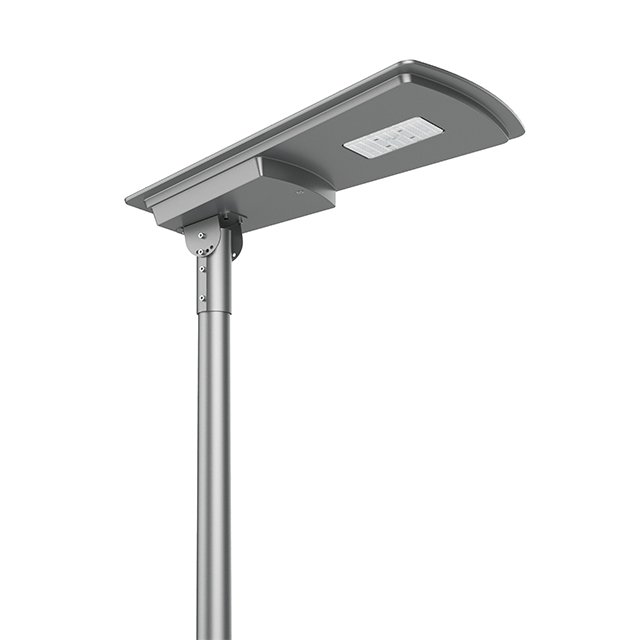

All in one integrated solar street light is patent appearance,suitable for government project ,mian city road 、village road 、community lighting

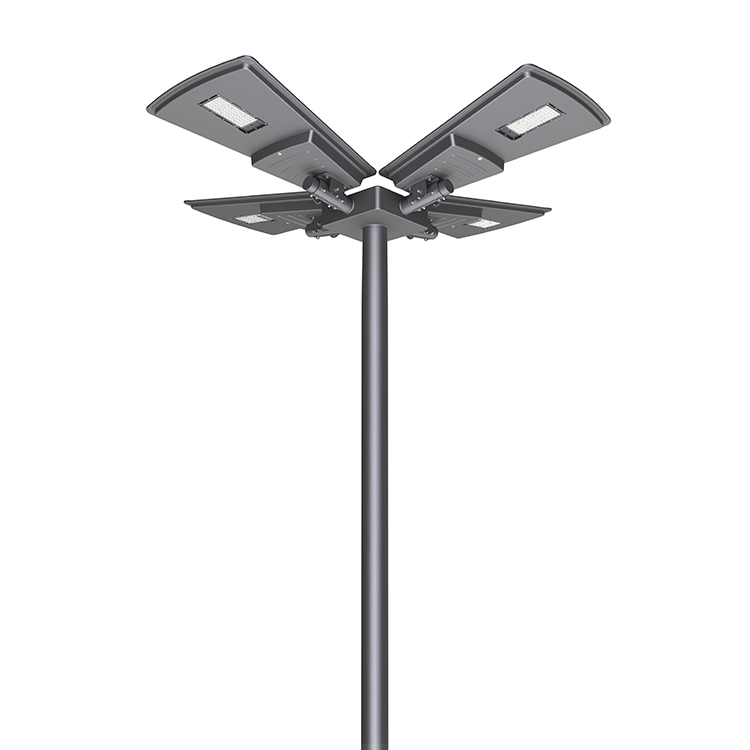

02/ Multi-lamps application showing:
Automatically turn off during the day and charge automatically .
A.full power working mode and Automatic power reduction for energy saving mode.
Lamp Dimension:
Mounting height advice

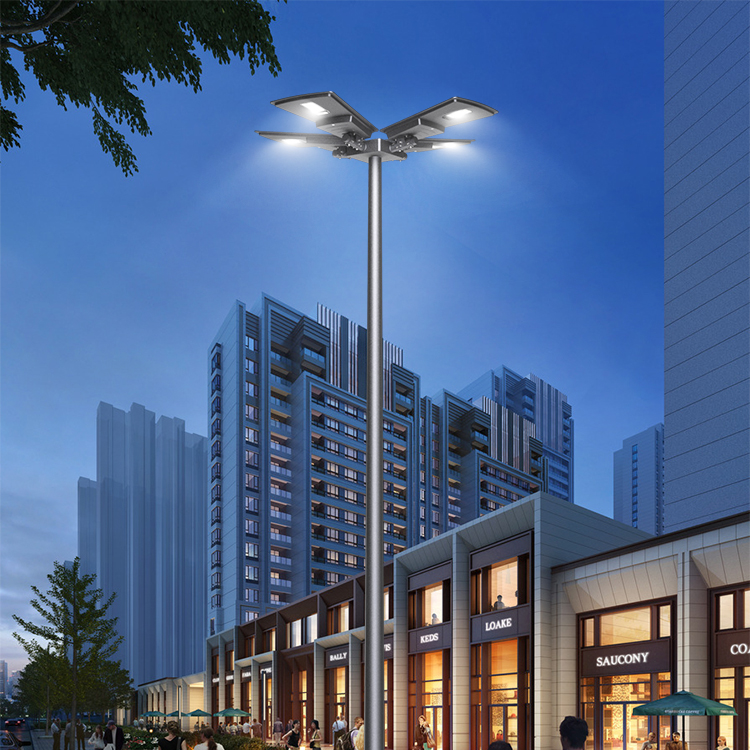

Scene render
Jiangsu yichuang lighting technology CO.,LTD , Founded in 2010, Specialized in solar street light system development
Certifications
