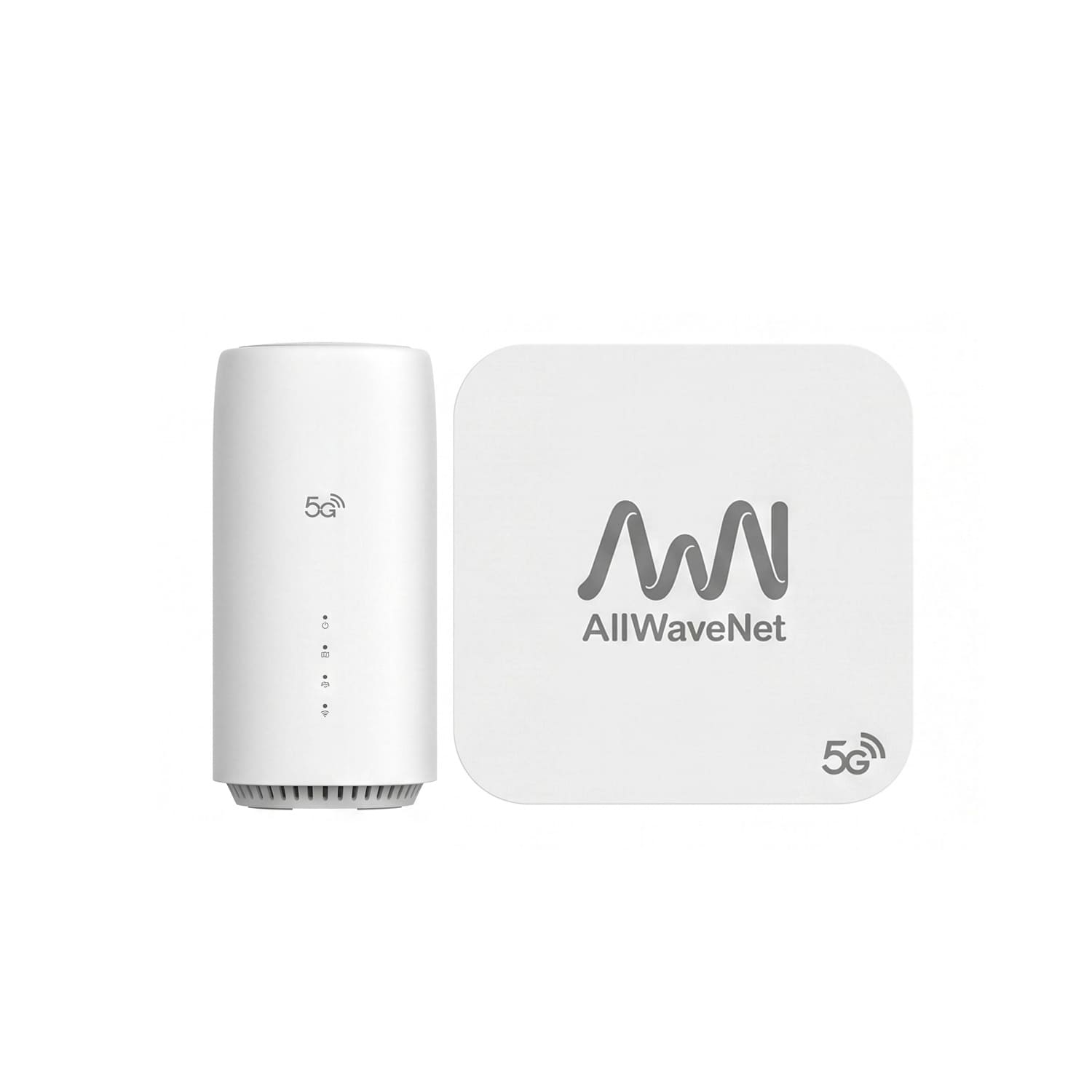

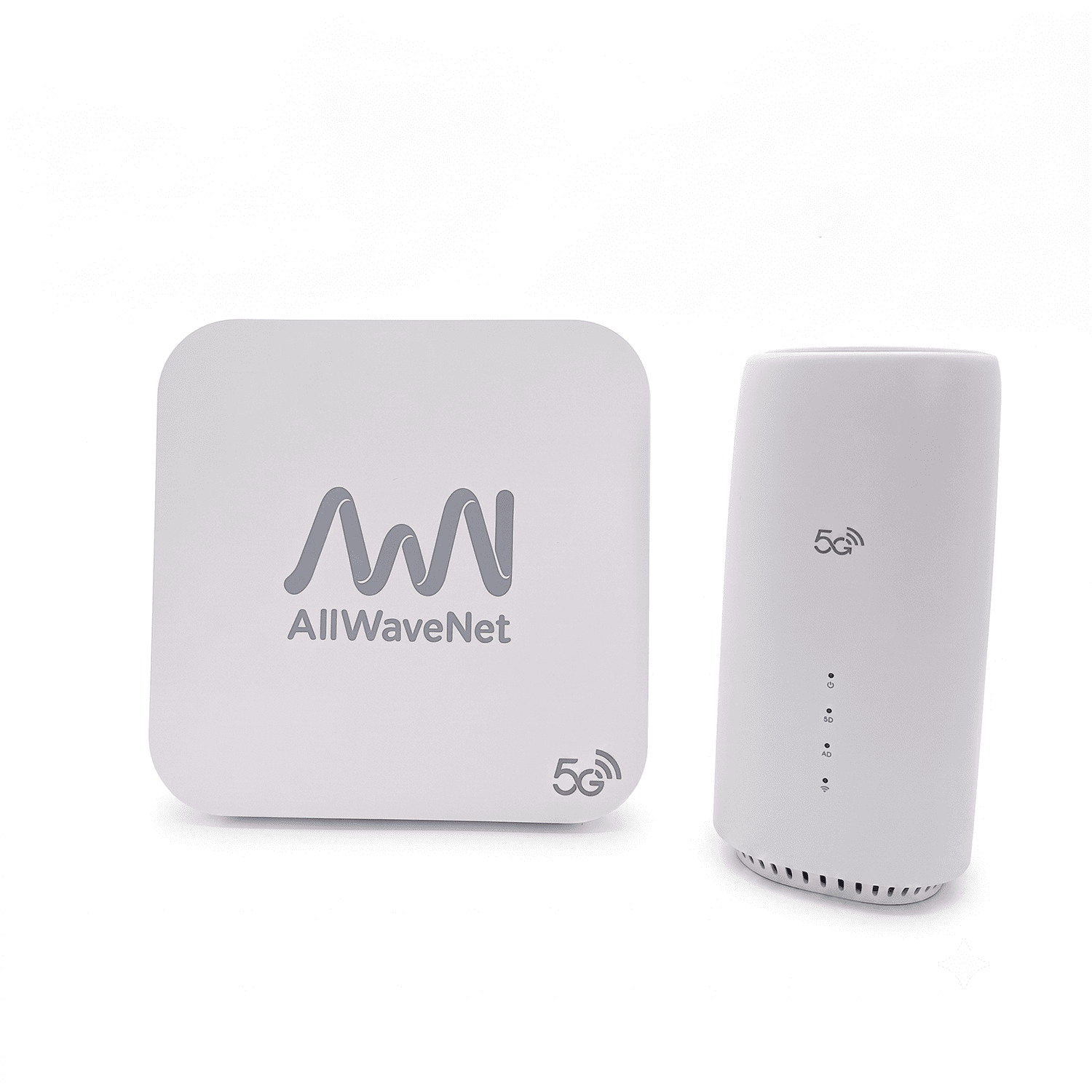

AllWaveNet Fusion F67 KIT 5G NR AX3000 2.5GbE PoE AI Split CPE System
Quantity
Brand:
AllWaveNet
Model No.:
F67 KIT
Description
Contact Supplier
Description

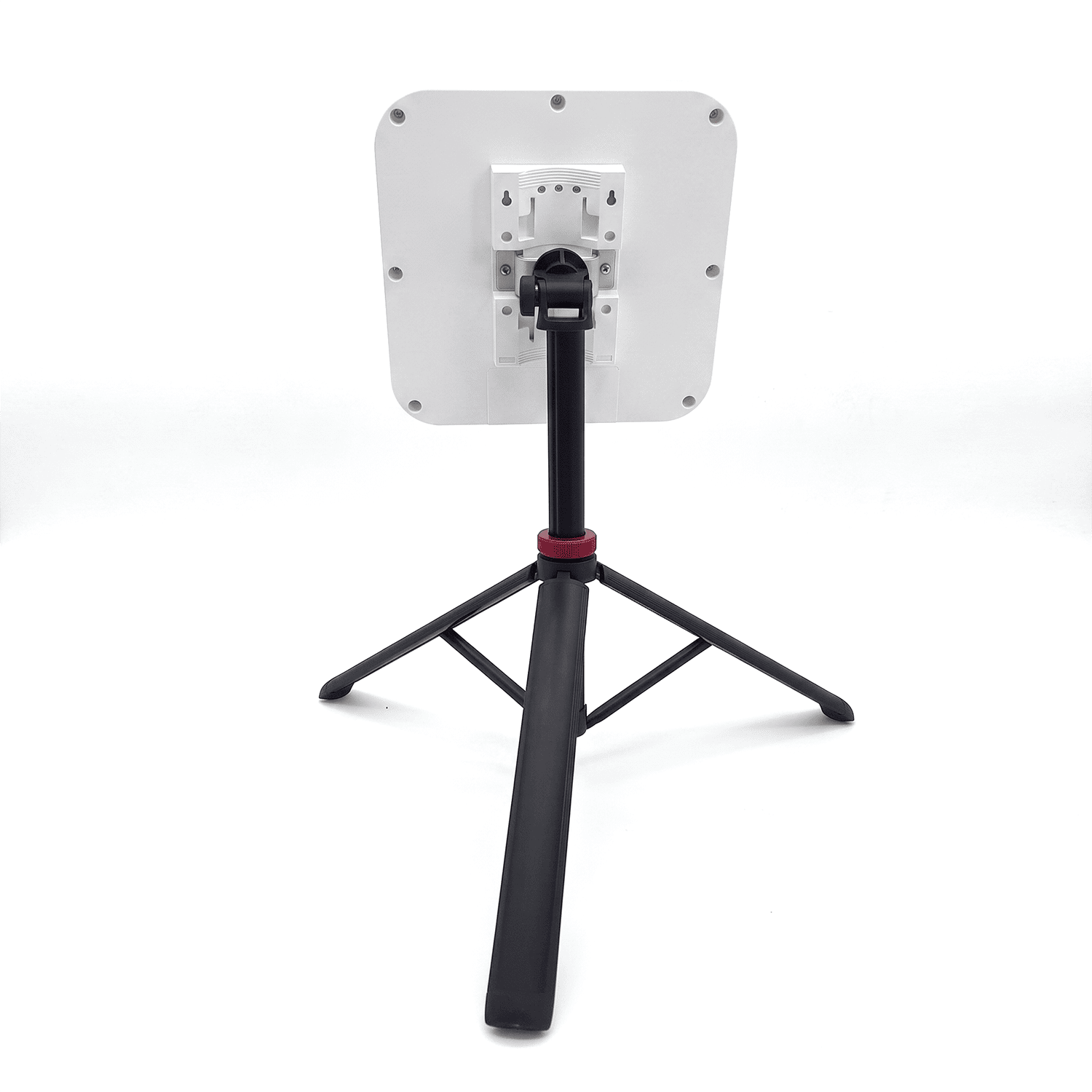

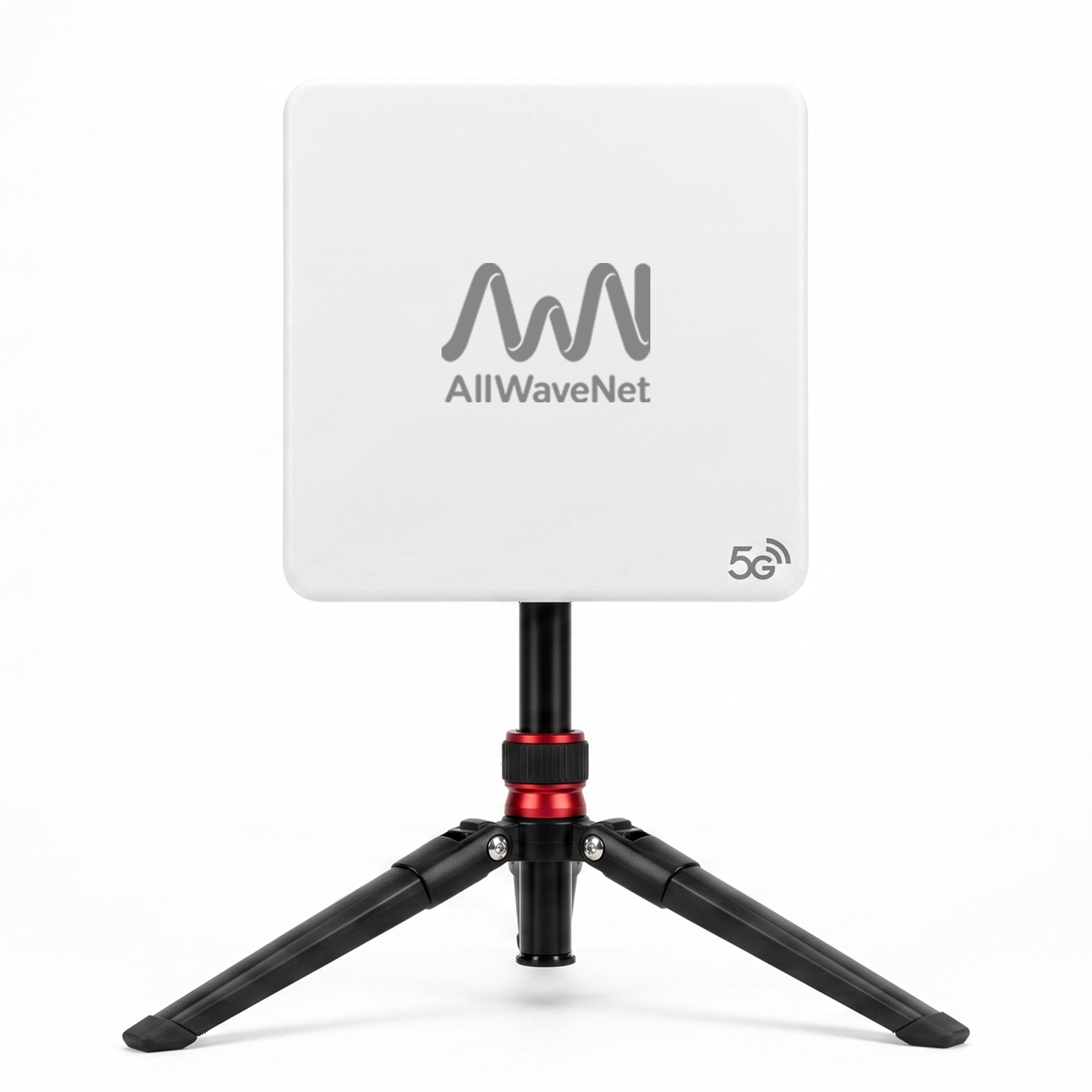

1. Breakthrough of physical limits : IP54 outdoor 5G receiver powerhouse
2. Qualcomm Snapdragon core : True 5G flagship chipset
3. Wi-Fi 6 AX3000： Full‑house devices at full power
4. Enterprise‑grade dual system : NROST + OpenWrt
5. Commitment to never disconnect : Dual SIM and 2.5G Multi‑WAN redundancy
6. Comprehensive VIP exclusive service (Exclusive to F67 KIT set)
| 5G Chipset | Qualcomm X62 Global Version RM520N-GL |
| SIM Slot | Dual SIM (4FF Nano) |
| Wi-Fi Spec. | Wi-Fi 6 AX3000 (2.4GHz 574Mbps + 5GHz 2402Mbps) |
| Main CPU | Cortex-A55 1.5GHz Dual-Core ARM |
| RAM | 1GB DDR4 |
| Flash Storage | eMMC 8GB |

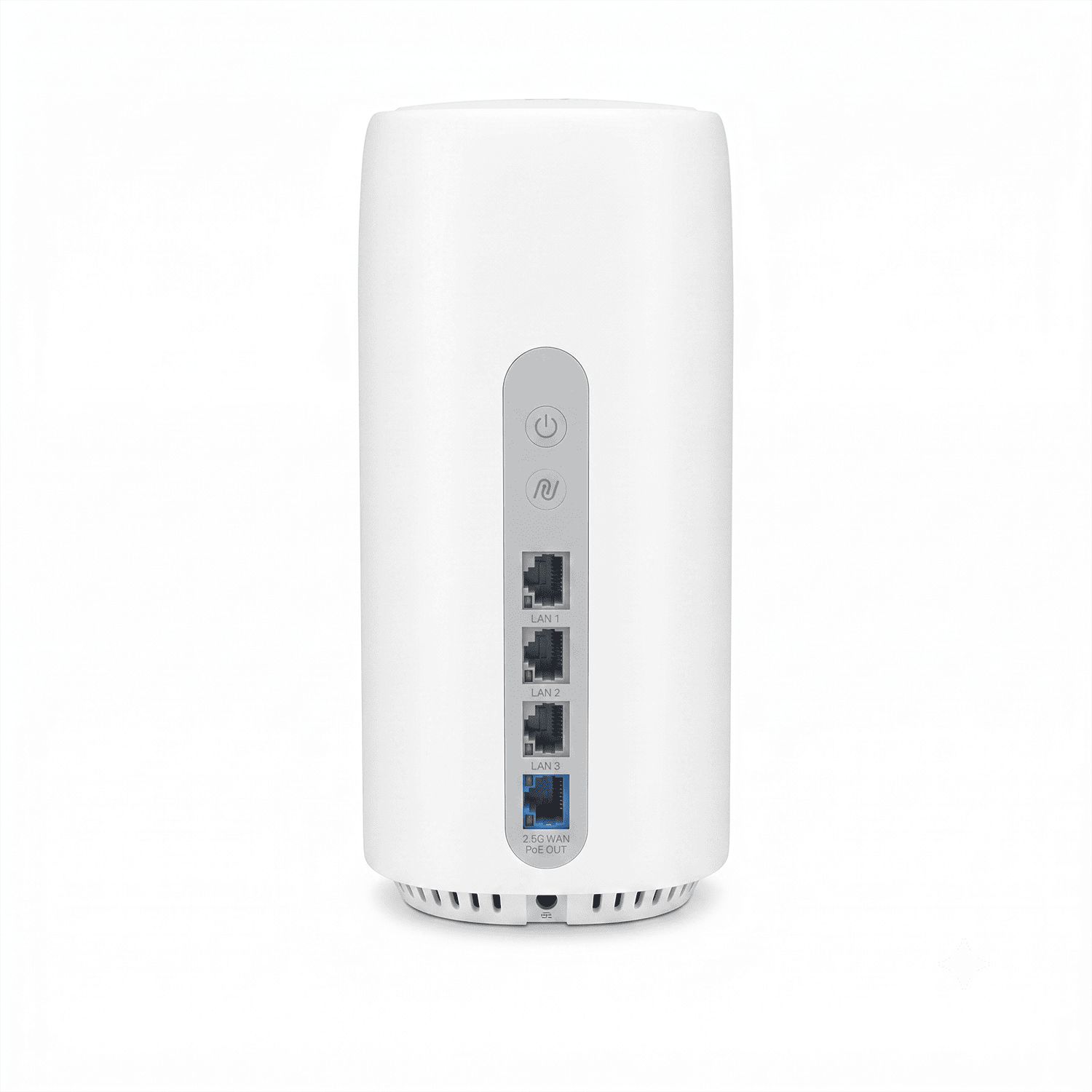

| Ethernet Port | Outdoor (F07): 1x 2.5GbE PoE Port Indoor (F60)：1x 2.5GbE PoE Port，3x 1GbE Ports |
| Externet USB | None |
| Power Supply | DC 12V/2A |
| Enclosure Material | Plastic |
| Antenna Type | Built-in 5G + Wi-Fi Antennas |
| Operating System (OS) | Dual OS (Official NROS + Developer OpenWrt) |
| 5G SA Data Rate | 2.4Gbps(DL)/900Mbps(UL) |
| 5G NSA Data Rate | 3.4Gbps(DL)/550Mbps(UL) |
| 4G LTE Data Rate | 1.6Gbps(DL)/200Mbps(UL) |
| WCDMA Data Rate | 42Mbps(DL)/5.76Mbps(UL) |
| Carrier Aggregation (CA) | 5G 2CC(DL&UL); LTE 5CC(DL)/2CC(UL) |
| 3GPP Standard | 3GPP Release 16 / LTE Cat 19 |
| 5G Sub-6 Frequency Bands | n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 |
| LTE-FDD Frequency Bands | B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/52/66/71 |
| LTE-TDD Frequency Bands | B34/38/39/40/41/42/43/48 |
| WCDMA Frequency Bands | B1/2/4/5/8/19 |
| LAA Frequency Bands | B46 |
| Operating Temperature | 0-40°C (32-104°F) |
